Why Is Centerless Grinding the Most Efficient Grinding Method?

At the recently concluded MTA Vietnam 2025, more than 450 companies from around the world gathered to showcase cutting-edge technologies and innovative products. As a key platform for manufacturing upgrades in Southeast Asia, the exhibition attracted a large number of professionals and industry experts. Among the highlights was grinding technology, with centerless grinders standing out due to their outstanding efficiency and performance, attracting significant attention.

Centerless grinding efficiency stems from the elimination of complex workpiece centering and clamping, the ability to achieve continuous processing, optimized structural design for automation compatibility, and a wide range of applications. These advantages make it the most efficient option in grinding processes.

So, why exactly is the centerless grinder considered the most efficient grinding equipment? Let's delve into the secrets behind its high efficiency.

I. What is a Centerless Grinder?

To understand the efficiency of a centerless grinder, we first need to understand its basic structure and operation.

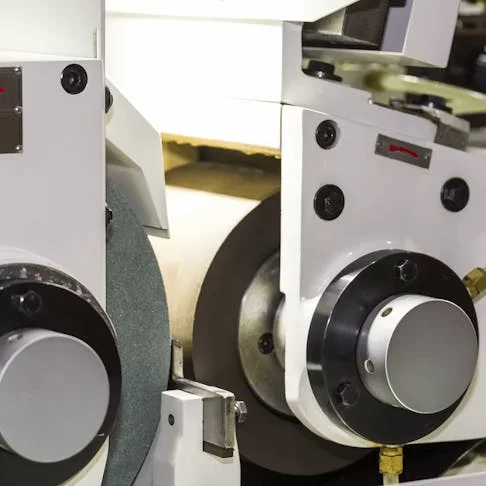

A centerless grinder mainly consists of three key components: the grinding wheel, the regulating wheel, and the work rest blade.

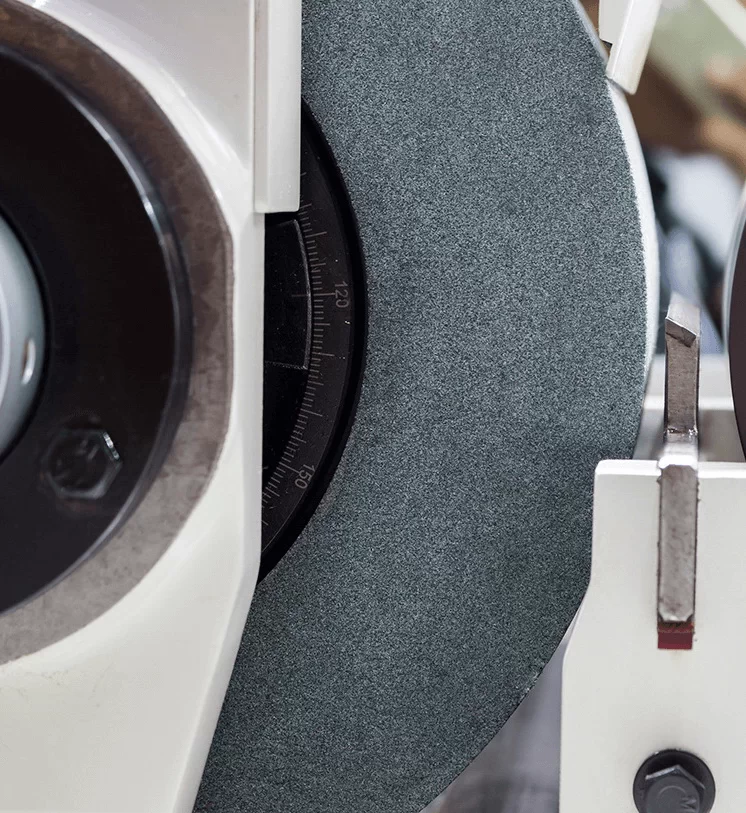

The grinding wheel is the main component that performs the grinding operation. It rotates at high speed and removes material from the workpiece through contact.

The regulating wheel drives the rotation of the workpiece and controls the feed speed, with its rotation speed and angle adjustable based on processing requirements.

The work rest blade supports the workpiece, keeping it in a stable position during the grinding process.

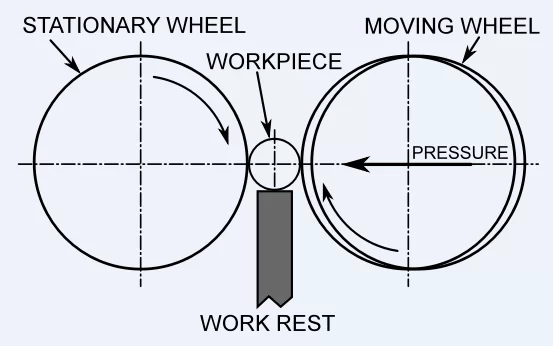

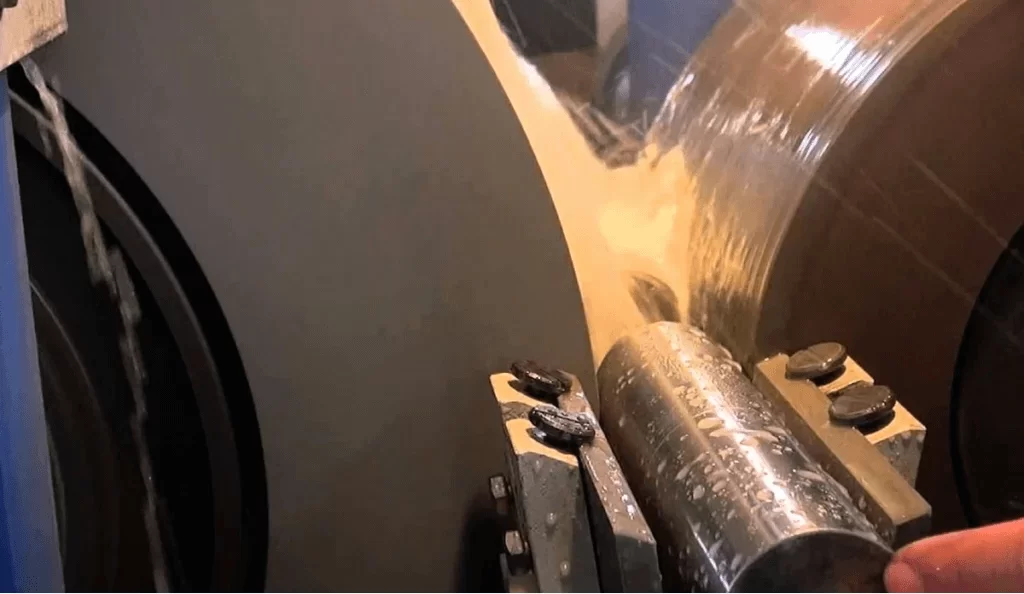

The working process of a centerless grinder is quite unique—there is no need for centering or support of the workpiece. During machining, the workpiece is placed on the work rest blade and is rotated and fed towards the grinding wheel under the drive of the regulating wheel. Meanwhile, the grinding wheel rotates at high speed to perform grinding. The entire process is continuous and stable.

（Comparison between external cylindrical grinder and internal cylindrical grinder）

Compared to conventional cylindrical grinders and other grinding machines, the difference is clear. Traditional cylindrical grinders require the workpiece to be clamped between centers or in a chuck, and centering is essential to ensure machining accuracy. This process is time-consuming and requires careful adjustment. In contrast, centerless grinders eliminate these steps—workpieces can be directly placed on the work rest blade for processing, which inherently reflects their unique advantages.

II. Why Are Centerless Grinders the Most Efficient Grinding Method?

The efficiency of centerless grinders doesn’t come out of nowhere—it’s determined by their characteristics and inherent advantages, primarily reflected in the following aspects:

1. No Need for Workpiece Centering and Clamping

（internal cylindrical grinder）

In conventional grinding equipment, centering and clamping the workpiece is an essential step, and often a tedious one. Operators must carefully align the workpiece so that its center matches the machine's rotational center. This alone consumes a lot of time. For complex-shaped workpieces, the difficulty and time required for centering and clamping are even greater.

In contrast, centerless grinders use the work rest blade and regulating wheel to support the workpiece, eliminating the need for centering and complex clamping. The workpiece simply needs to be placed on the work rest blade and is driven by the regulating wheel into the grinding zone.

Minnuo’s centerless grinders feature highly accurate coordination between the work rest blade and the regulating wheel, ensuring stable workpiece placement. This not only removes the need for centering and clamping but also enhances processing continuity—particularly advantageous in batch production.

In mass production scenarios, this feature significantly improves overall efficiency. For example, when processing a batch of shaft parts, conventional grinders require centering and clamping for each part. Assuming this takes 1 minute per part, the machine can process 60 parts per hour at most. With a centerless grinder, skipping this 1-minute setup means 80–100 parts can be processed per hour, showing a remarkable improvement in efficiency.

2. Continuous Processing Mode

Centerless grinders enable continuous processing. As soon as one workpiece completes grinding and exits the grinding area, the next one can enter immediately, achieving uninterrupted production.

Traditional grinding equipment typically processes one workpiece at a time—after completing one, the operator must remove it and load the next one, leading to downtime between cycles.

This continuous processing mode greatly increases the number of parts machined per unit of time. In our tests, under identical processing conditions, the efficiency of centerless grinders is 2–3 times higher than that of conventional cylindrical grinders. For example, when processing bearing rollers, traditional grinders can produce about 500 units per hour, while centerless grinders can reach 1,000–1,500 units.

3. Optimized Structural Design

The structural design of centerless grinders has been meticulously optimized. The layout of the grinding wheel and regulating wheel is very reasonable, which not only ensures processing accuracy but also enhances efficiency.

A reasonable layout reduces machining errors caused by improper workpiece clamping. Fewer machining errors mean higher part qualification rates, reducing the need for rework and reprocessing.

Rework and reprocessing not only consume additional manpower and materials but also delay production schedules, indirectly reducing overall efficiency. Due to the stability of processing with centerless grinders, the need for rework is minimal, significantly boosting production efficiency.

4. Compatibility with Automated Production

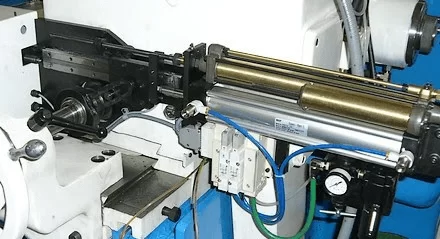

As automation becomes the norm, centerless grinders are highly compatible with automated loading and unloading systems.

Automated systems can transport workpieces to the grinding area and remove them after processing, enabling unattended continuous operation. This automated production model eliminates uncertainty and time waste from manual operations, further enhancing efficiency.

This combination of centerless grinders and automation shows particularly outstanding performance in industries with batch production, such as automotive parts and bearings.

5. Wide Range of Applications

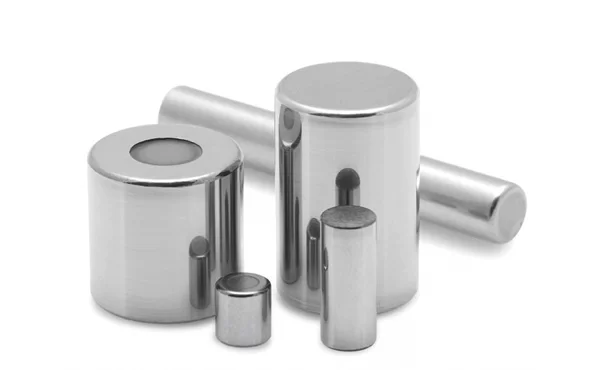

Centerless grinders are applicable to a wide range of workpieces, including shafts, sleeves, cylindrical rollers, and more.

They also adapt well to various materials, whether it's steel, cast iron, or non-ferrous metals—all can be effectively ground.

This broad applicability ensures that centerless grinders can be used in a wider array of scenarios, avoiding idle equipment. A single machine can handle various types and materials of workpieces, effectively increasing equipment utilization and overall production efficiency.

III. Conclusion

Centerless grinders, with their many advantages—such as eliminating the need for centering and clamping, enabling continuous processing, optimized structural design, compatibility with automation, and broad applicability—have become the most efficient equipment in grinding processes.

They play a crucial role in improving production efficiency and reducing manufacturing costs, helping companies gain a competitive edge in the market.

If you would like to learn more about centerless grinders, or have inquiries regarding procurement or technical consultation, feel free to visit our website or contact Minnuo directly. We will provide you with professional service and support.
