30–180mm · Max. Boring Depth: 450mm · Spindle Feed: 0.05 / 0.10 / 0.20mm
The T8018A is a precision fine boring machine designed specifically for cylinder blocks, capable of achieving high roundness and finish accuracy in inner bore machining. With a boring range of 30–180mm and maximum depth of 450mm, this model supports a wide variety of gasoline and diesel engine blocks, making it ideal for automotive, marine, and generator repair applications.
T8018A Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Wide Processing Diameter (30–180mm): Function: Supports both compact and large engine blocks, including V6, inline-4, and truck engines.
- ● Fine Incremental Feed Control: Function: Three selectable feed settings (0.05, 0.10, 0.20 mm/rev) ensure precision in finish boring.
- ● Heavy-Duty Base and Spindle Assembly: Function: Ensures vibration-free machining and consistent alignment during deep boring operations.
- ● Quick-Adjust Boring Head: Function: Enables fast setup changes when moving between different bore diameters.
- ● Depth-Stop and Dial Indicators: Function: Allow for consistent multi-cylinder bore alignment and finish-depth repeatability.
Get More Details →
Recommended Configurations
- ● Centering Tool Kit： Ensures perfect alignment of cylinder bores for accurate concentricity.
- ● Magnetic Base Dial Gauge： Used to check bore taper, roundness, and axial deviation.
- ● Adjustable Workholding Jigs： Allows for quick switching between block types (inline, V-type).
- ● Surface Finish Hone Set： Final polishing of bore for oil retention and smooth piston travel.
- ● Coolant Spray or Chip Blower： Keeps cutting area clean for smooth tool movement and accuracy.
Get More Details →
Application Case
- ● Client: Automotive Rebuild Workshop – Turkey

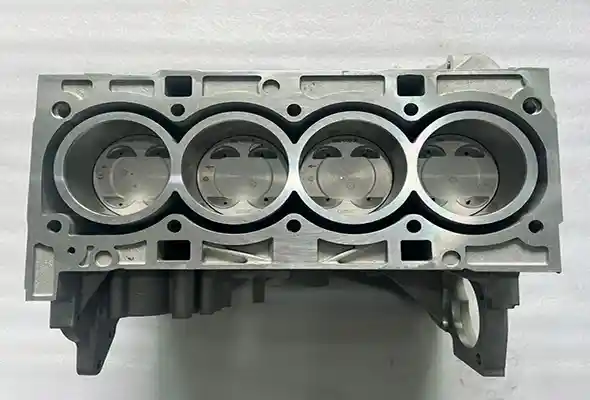

- ● Use Case: Reboring 4-cylinder diesel engine blocks to oversize pistons
- ● Setup: T8018A with precision centering base and honing attachment
- ● Results: Bore diameter deviation: < ±0.01 mm, Surface finish: Ra 0.8 – 1.2 µm, piston ready
- ● Feedback: “Reliable tool with excellent finish and no secondary honing needed”
Get More Details →
Product Specifications
| Specifications | Unit | T8018A |
|---|---|---|
| Processing Diameter | mm | 30-180 |
| Max.Boring Depth | mm | 450 |
| The Rotationl Speed of Spindle | r/min | Infinitely variable |
| Spindle Feed | mm/r | 0.05,0.10,0.20 |
| Maching Power | kw | 3.75 |
| Overall Dimensions | mm | 2000 x 1235 x 1920 |
| Packing Dimensions | mm | 1400 x 1400 x 2250 |
| N.W/G.W | kg | 2000/2200 |
Catalog
Frequently Asked Questions

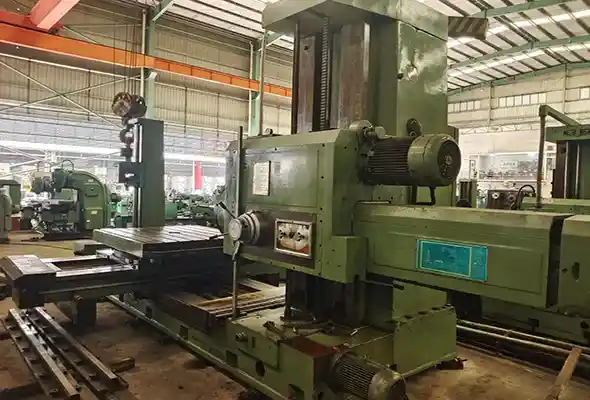

A horizontal boring machine performs internal hole machining or boring on large structural components by rotating a boring bar or spindle. It is suitable for high-precision, high-strength, and large-sized parts. The workpiece is typically fixed on the worktable, and the tool moves along multiple axes to achieve deep, multi-directional boring and milling operations.
High-quality horizontal boring machine manufacturers should possess independent R&D capabilities, complete machine processing capacity, stable delivery experience, and global customer cases. Minnuo not only has a full-scale production and assembly facility but also provides international certifications such as CE and ISO to ensure equipment quality and responsive service.
The horizontal boring machine price mainly depends on the boring diameter, worktable size, control system configuration, and whether it includes automatic tool changers or auxiliary modules such as rotary tables and measuring systems. We will provide a detailed quotation based on your process requirements and budget, with options to include transportation and taxes.
Absolutely! Minnuo has a strong and responsive pre-sales technical team. As long as you provide part drawings, whether for a single horizontal boring machine or a complete set of integrated equipment, we can recommend the appropriate model within 10 minutes and deliver a complete solution within 5 working days.
We offer full mechanical processing and electrical integration capabilities. Based on your machining requirements, we can customize the horizontal boring and milling machine in terms of travel distance, boring bar diameter, spindle structure, tool magazine configuration, and control system. We support multiple CNC versions and custom functional modules.
We are equipped with top international machining centers to ensure the precision and stability of all key components in our CNC horizontal boring machines. Each machine undergoes full-scale debugging and load testing before delivery and comes with a complete inspection report to ensure immediate production readiness upon arrival.
We maintain inventory of standard models for fast delivery. For customized horizontal boring machines, the delivery time is usually 30–45 working days, depending on the complexity of the configuration and the production schedule.
All of our equipment comes with a one-year warranty. During the warranty period, any failure will be covered by free repair services. We also provide 24-hour remote technical support (via video or phone), and if necessary, can dispatch engineers on-site to ensure quick production recovery.
