Precision Machining, Increased Efficiency
Powerful Performance, Stable Operation
Versatile Design, Meets Various Needs
High Reliability, Lower Maintenance Costs
Smart Control, Easy to Use
Fast Delivery, Shorter Lead Time
Our vertical machining center makes production more efficient and stable, significantly reducing manual intervention and improving overall capacity. At the same time, we offer comprehensive after-sales support to ensure your equipment remains in optimal condition.
● Max Maximum Table size: 2300 mm × 950 mm
● Max Maximum Load: 2500 kg
● Max Maximum X/Y/Z Axis travel: 2060/950/850 mm

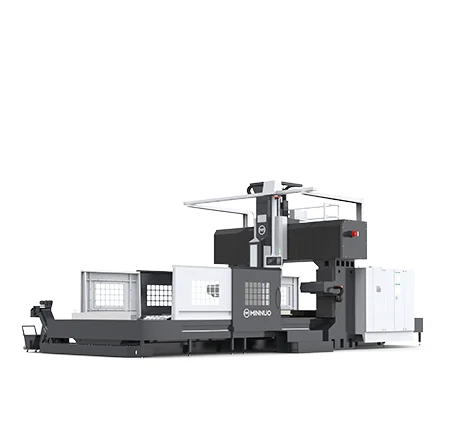

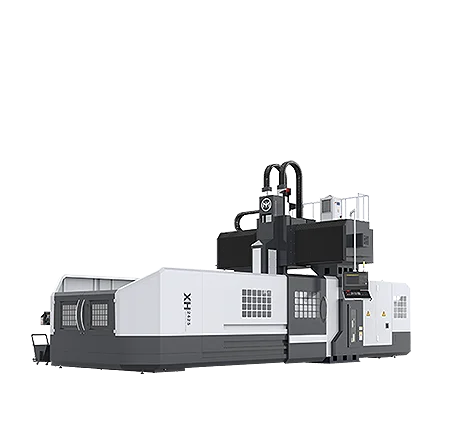

● Distance Between Columns:6000mm
● Spindle power: 30/37 kW
● Maximum X/Y/Z-axis travel: 24,200/6,500/1,500 mm
● Table Maximum size: Φ650mm
● Table Maximum Load: 600kg
● X/Y/Z Maximum axis travel: 650/650/500mm
● Spindle Speed: 6000rpm
● Distance Between Columns：2200mm
● Maximum X/Y/Z-axis travel: 3100/ 1900/900mm
The five - axis machining process commences with CAD/CAM programming to generate precise paths. The workpiece is fixed on a rotating worktable, and the spindle drives the tool at high speed.
The five axes, consisting of X, Y, Z linear axes and A, B rotational axes, operate synchronously. X, Y, Z control the tool's position, while A, B adjust the workpiece's angles. This enables high - precision multi - angle machining of complex surfaces.

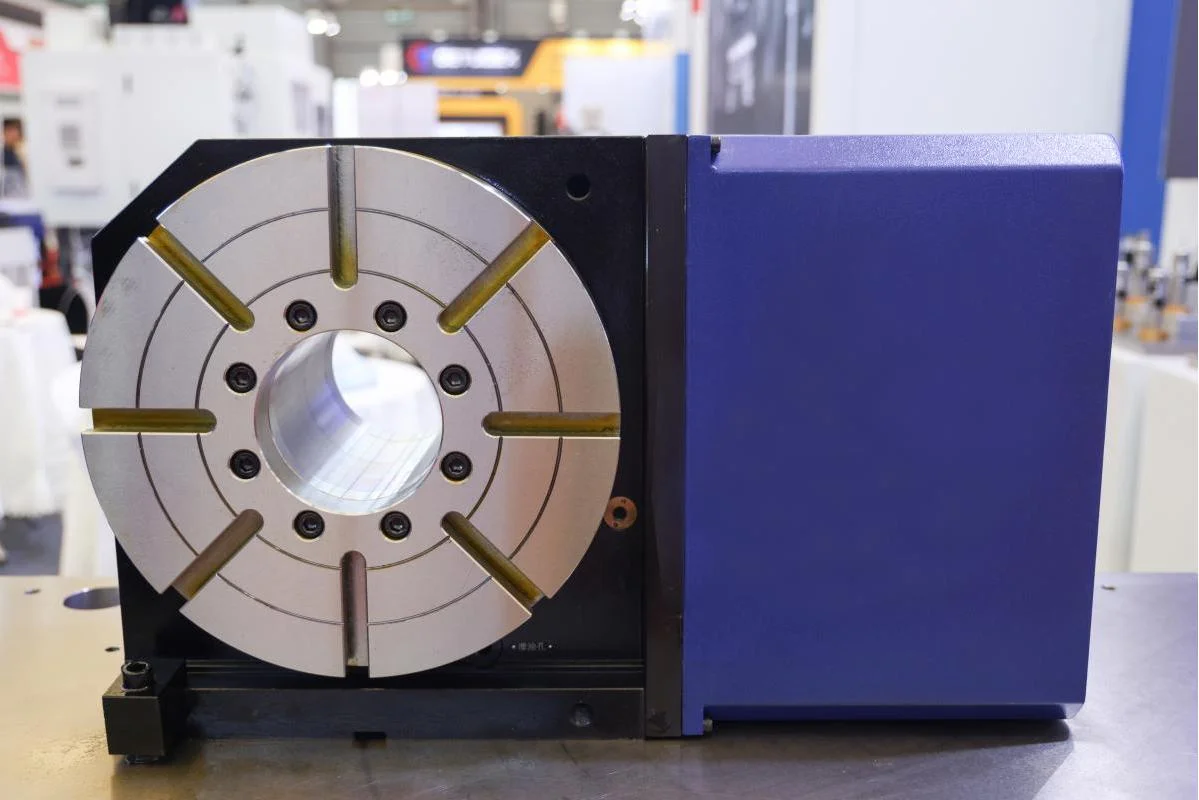

The fourth - axis CNC rotary table can achieve 360 - degree rotation, breaking through processing limitations. It enables multi - surface machining of complex workpieces, greatly improving machining accuracy and efficiency.

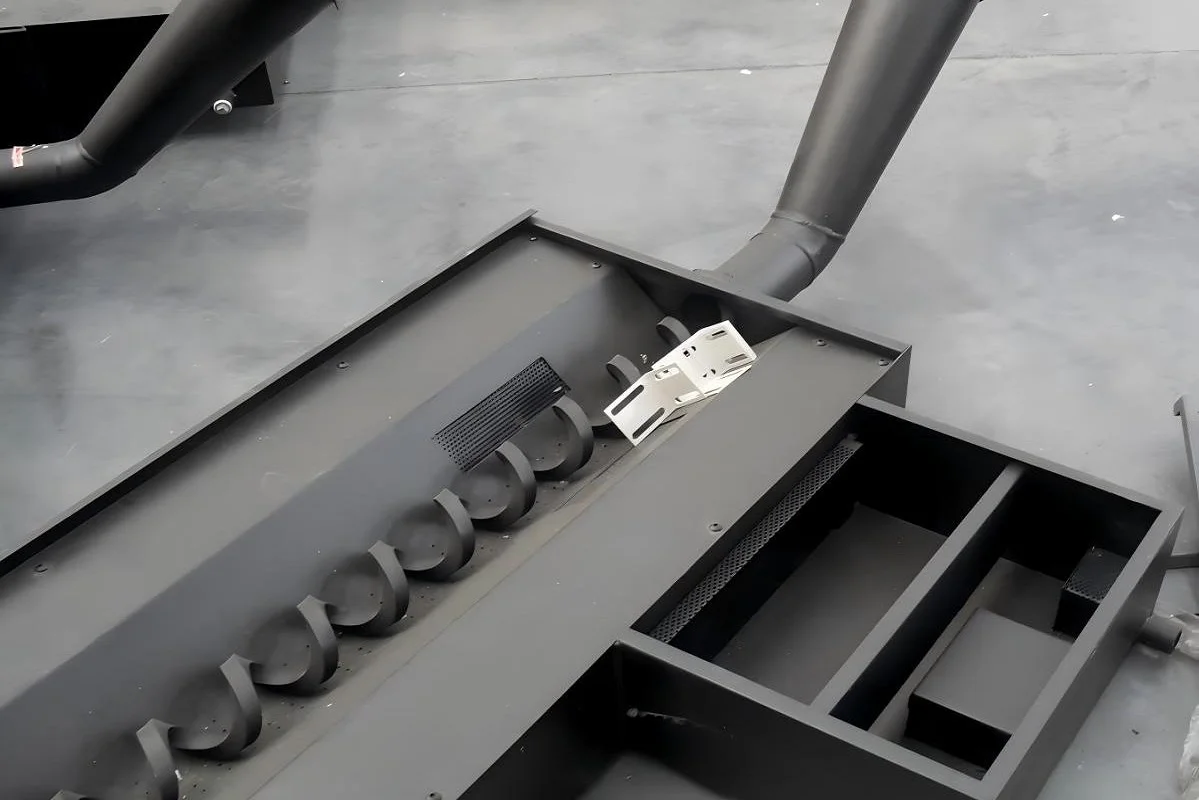

The spiral chip conveyor uses spiral blades to push chips, with high - efficiency chip removal, a compact structure. It can adapt to complex conditions, is stable and reliable, and improves the processing environment and efficiency.

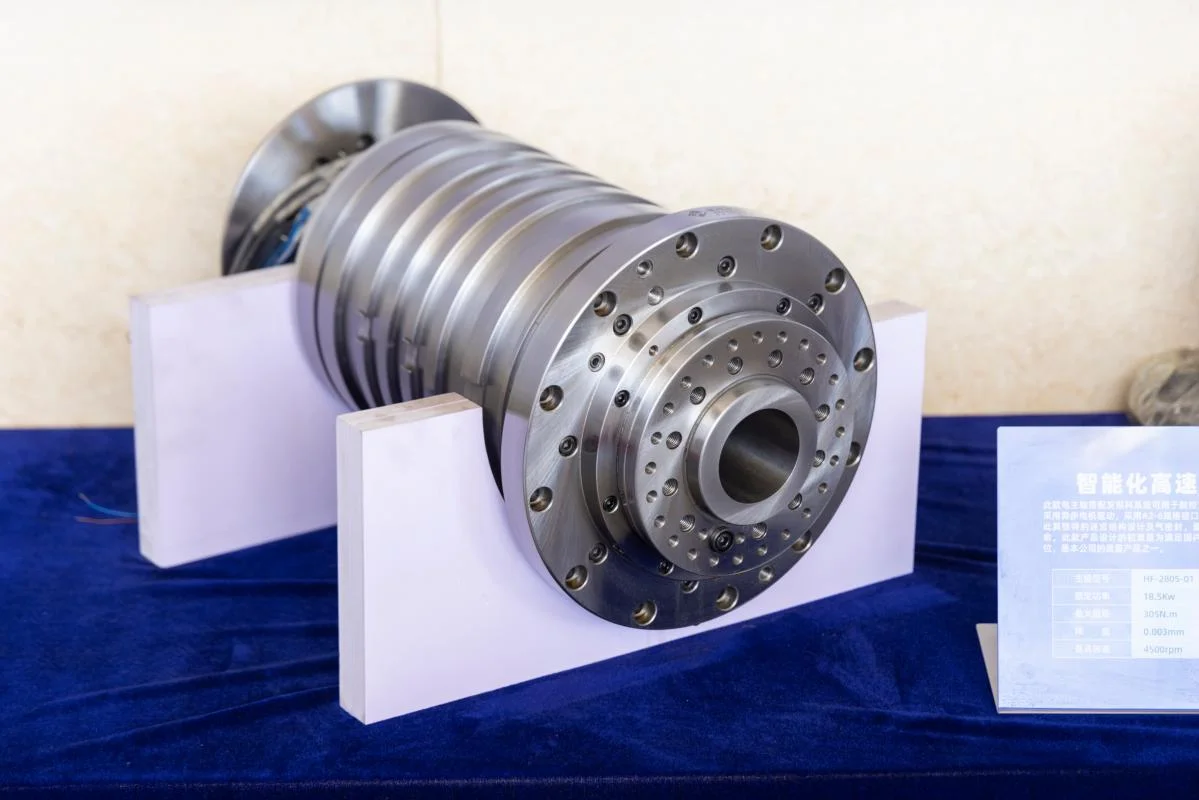

The spindle hollow oil - cooling device dissipates heat efficiently through circulating oil, stabilizes spindle accuracy, reduces noise, extends service life, and ensures stable equipment operation.

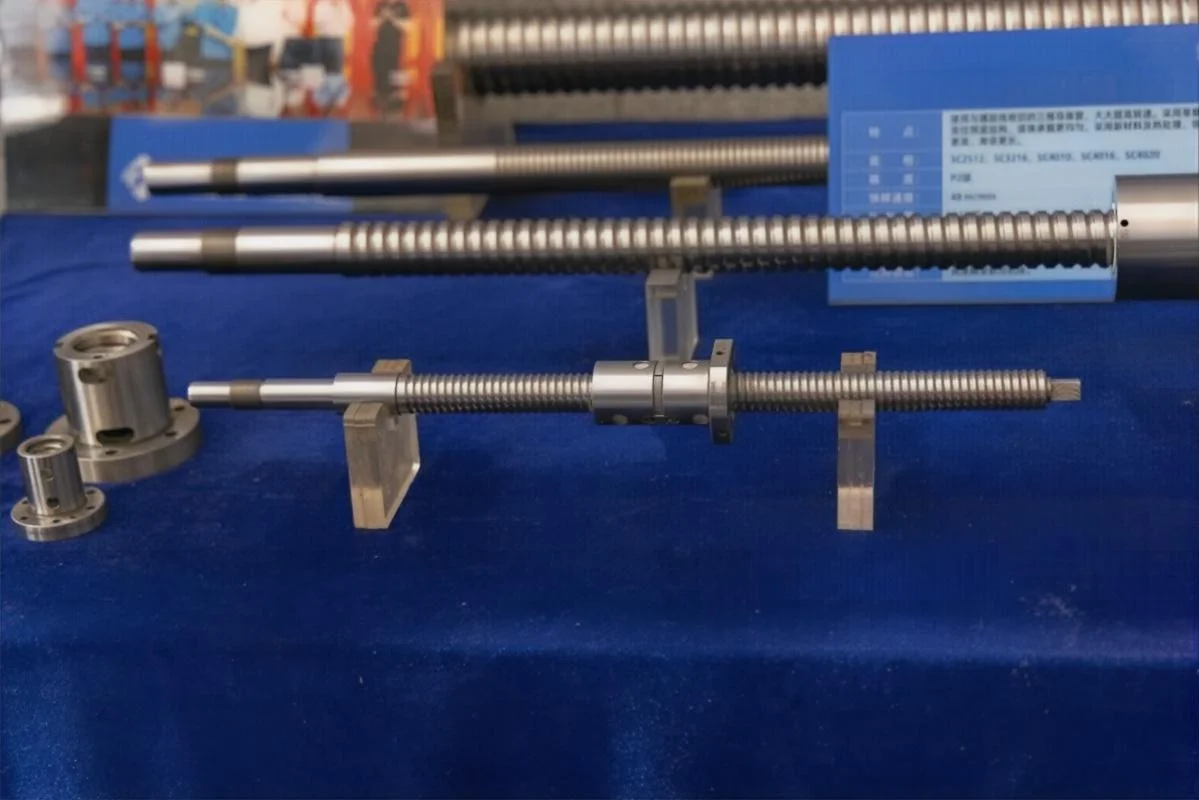

High - precision roller lead screws adopt a special roller structure, with high transmission accuracy and precise positioning. They have strong load - bearing capacity, can withstand axial forces, high transmission efficiency, low wear and long service life.
Jiangsu Minnuo Group Co., Ltd., a leading provider of CNC machine tools and intelligent manufacturing solutions. Founded in 1987, with a registered capital of RMB 120 million, Jiangsu Minnuo Group Co., Ltd. is one of the leading enterprises in the CNC machine tool industry.
Our machines feature advanced high-precision hollow cooling technology for all three axes (X, Y, Z), with real-time temperature control. This ensures minimal thermal deformation during machining, achieving positioning accuracy of 0.008 mm and repeatability of 0.005 mm.
Equipped with Japanese Kosei locating pins and an OGIC gear plate structure, our rotary table achieves indexing precision of ≤±2.5″ and repeatability of ≤±1″, with circular grating indexing precision of ±5″.
Utilizing FANUC 31i's thermal error compensation software, we effectively manage thermal and force-induced deformation. This technology integrates with the FANUC system for accurate compensation, ensuring precise positioning between the tool and spindle.

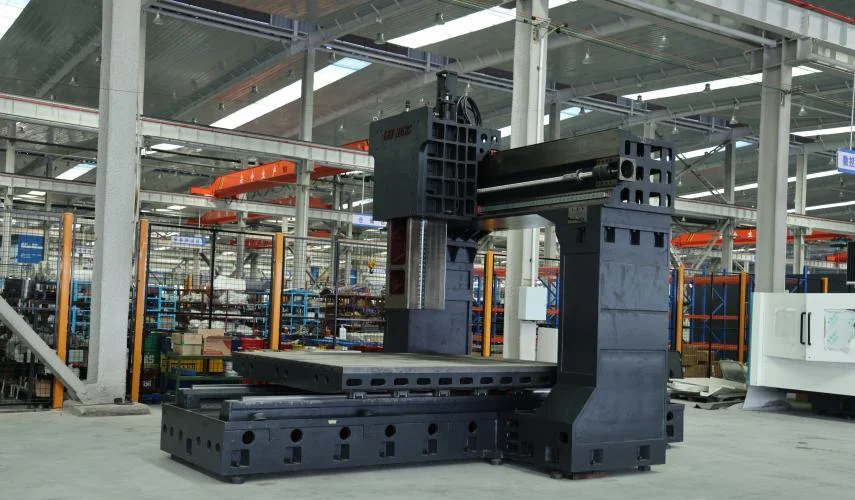

The machine base is made from high-phosphorus cast iron with excellent stiffness and accuracy retention. Designed through finite element analysis, it guarantees high static and dynamic rigidity, enhancing overall machining precision.
Minnuo has a highly responsive pre-sales team. If you provide the drawings, we can recommend suitable equipment for a single machine within 10 minutes. For production lines requiring multiple machines, we’ll deliver a complete solution within 5 business days.

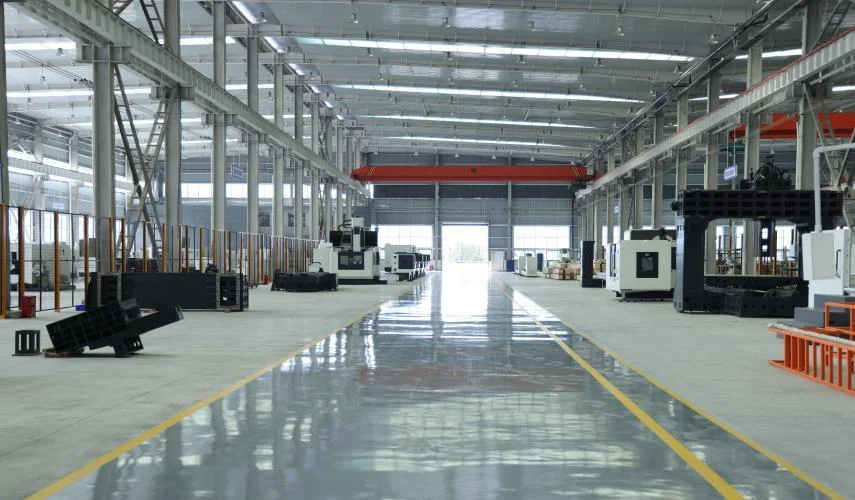

Minnuo is equipped with comprehensive production facilities. We can provide customization for machine systems, spindle speeds, motor power, and even the sheet metal casing.

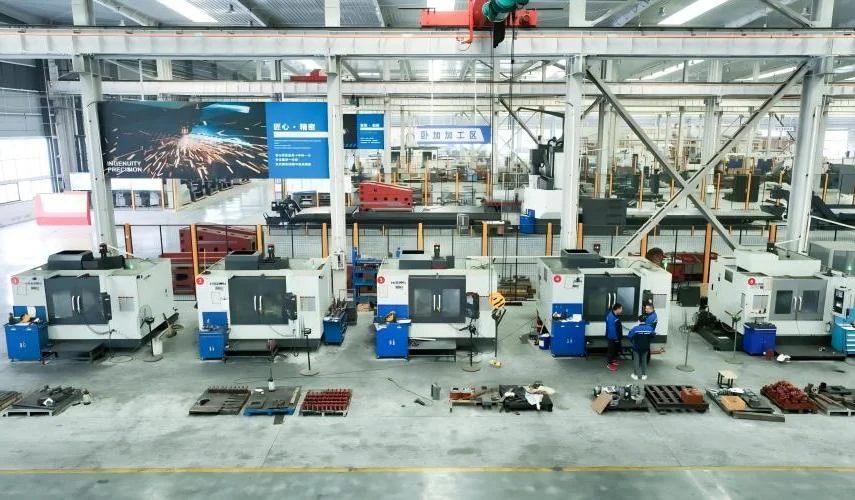

Our company uses top-tier international machining centers to ensure precision in component manufacturing. Additionally, we provide a quality inspection report for every machine before it leaves the factory.
We keep stock of standard models for fast delivery. Customized models can be delivered within 30-45 working days.
Our equipment comes with a one-year warranty, during which we offer free repair services. In case of equipment issues, customers can contact our after-sales team anytime. We provide 24-hour technical support through remote video, phone, or on-site service to resolve problems quickly.
