Auto/Aerospace/Mold Industries: 3 Precision Matching Schemes + 5 Pitfall Avoidance Guides for Horizontal Machining Centers

I. Introduction: Why Can't Horizontal Machining Center Selection Be a "One-Size-Fits-All" Approach?

The selection of horizontal machining centers directly determines production efficiency, machining precision, and enterprise profits. However, the machining needs of the automotive, aerospace, and mold industries vary significantly. Blind selection can easily lead to dilemmas such as insufficient precision, inadequate rigidity, and low cost-effectiveness. This article provides targeted precision matching schemes for different industries, clarifies the core parameter selection standards for each industry, and combines high-frequency pitfall avoidance guides and practical tools to help practitioners quickly select the right horizontal machining center, reduce trial and error costs, and improve production efficiency.

The reason why horizontal machining center selection cannot be a "one-size-fits-all" approach lies in the fundamental differences in machining scenarios and core needs across industries. The automotive industry focuses on mass production and high stability; the aerospace industry pursues ultra-high precision and adaptability to difficult-to-machine materials; the mold industry requires strong rigidity to support heavy cutting of mold cavities and high-quality curved surface machining. Ignoring industry characteristics and choosing general-purpose models will inevitably result in mismatches between equipment and production needs, leading to low efficiency or substandard precision. For example, a mold factory once blindly purchased a high-speed light-cutting horizontal machining center to process large mold cavities. Due to insufficient rigidity, it caused severe machining vibration and substandard surface roughness, resulting in rework losses exceeding 100,000 yuan—this is a typical lesson of wrong selection.

Whether you are a person in charge of mass production of auto parts, a technician engaged in aerospace precision part machining, or a purchaser of a mold manufacturing enterprise, the following content can accurately match your selection needs. From general selection judgment dimensions, to exclusive matching schemes for the three major industries, and then to directly applicable selection comparison tables, each part provides clear practical guidelines. Continue reading to master the core methods of avoiding selection pitfalls and accurately matching horizontal machining centers.

II. First, Understand: 3 Core Judgment Dimensions for Horizontal Machining Center Selection

Before conducting industry-specific selection, clarifying 3 general core judgment dimensions can help you quickly lock in the selection direction and avoid going astray from the start.

2.1 Machining Scene Matching: Determine the Machining Type First, Then Select the Performance Direction

The first step in selection is to clarify your own machining type, which directly determines the core performance requirements of the horizontal machining center. For mass heavy-cutting machining such as auto parts, priority should be given to models with strong rigidity and high stability; for aerospace precision part machining, focus on ultra-high precision and adaptability to difficult-to-machine materials; for multi-variety, small-batch curved surface machining in the mold industry, it is necessary to balance rigidity and curved surface machining precision. Simply put, the machining type determines the "capability boundary" of the horizontal machining center, and choosing the right direction can avoid "overkill" or "insufficiency".

2.2 Priority of Core Parameters: Different Industries Have Different Focuses

The core parameters of horizontal machining centers include spindle taper, guide rail type, tool magazine capacity, stroke range, etc., but the priority of these parameters varies completely across industries. Spindle taper determines cutting capacity: BT50 is suitable for heavy cutting, while BT40/HSK63 focuses more on high precision. Among guide rail types, hard rails have strong stability and are suitable for heavy cutting, while linear rails have high positioning precision and are suitable for precision machining. Tool magazine capacity should match the number of processes; mass production requires a larger capacity to reduce tool change time. The selection logic of these parameters will be explained in detail in combination with each industry later.

2.3 Cost and Budget Balance: How to Choose Between Domestic and Imported Models?

Many enterprises hesitate between domestic and imported models when selecting. In fact, the core is to balance needs and costs. If the precision requirement is general, mass production is carried out, and maintenance convenience is emphasized, high-end domestic models can fully meet the needs, and the price is only 50%-70% of that of imported models, with lower maintenance costs and faster response. For ultra-high precision scenarios such as aerospace, imported high-end models have advantages in long-term precision retention, but higher purchase and maintenance costs need to be borne. It is recommended to make a comprehensive decision based on production capacity needs, precision requirements, and long-term operation and maintenance costs, and not blindly pursue imports.

Small Tool: Horizontal Machining Center Selection Demand Self-Assessment Form

1. Core Machining Materials: □ Steel □ Aluminum Alloy □ Titanium Alloy □ Superalloy □ Others
2. Annual Production Capacity Demand: □ Less than 10,000 pieces □ 10,000-50,000 pieces □ More than 50,000 pieces
3. Core Precision Requirement: □ ±0.01mm □ ±0.005mm □ ±0.001mm
4. Machining Type: □ Heavy Cutting □ High-Speed Precision □ Multi-Variety Small-Batch
5. Budget Range: □ Less than 500,000 yuan □ 500,000-1,000,000 yuan □ More than 1,000,000 yuan

Comparing the above dimensions can quickly clarify your core needs and avoid blind selection.

III. Industry-Specific Practical Chapter: Precision Matching Schemes for Horizontal Machining Centers

Combining the core needs of each industry, we have sorted out targeted precision matching schemes that can be directly applied by comparison.

3.1 Automotive Industry: Mass Production and High-Efficiency Horizontal Machining Center Matching Scheme

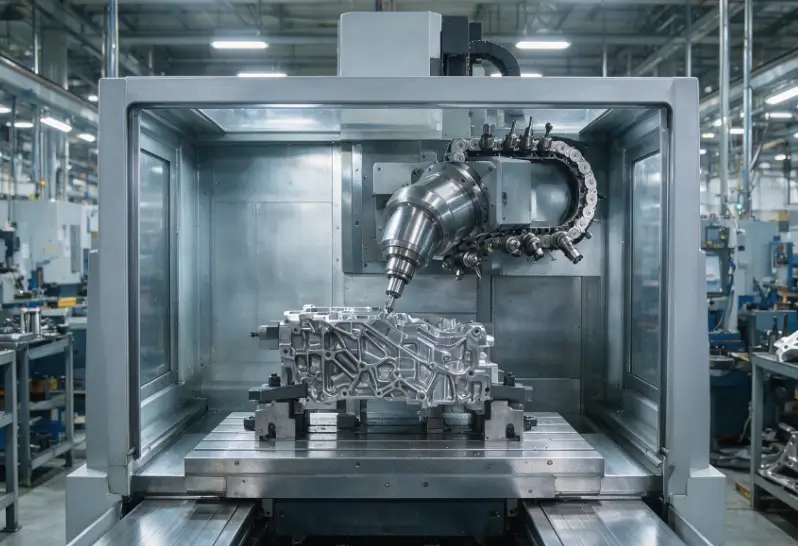

The core needs of the automotive industry are high stability and high production capacity, mainly adapting to the mass machining of auto parts such as transmission housings and engine blocks. The machining volume is large, the continuous operation time is long, and the requirements for equipment stability and failure rate are extremely high.

Core Parameter Selection Standards

• Spindle Taper: Priority is given to BT50. The taper shank has strong rigidity, which can adapt to heavy cutting machining and meet the thick-walled machining needs of auto parts;
• Guide Rail Type: Choose hard rails. Hard rails have stronger wear resistance and stability, and can bear the load of long-term heavy cutting, avoiding guide rail deformation during continuous operation;
• Tool Magazine Capacity: ≥40 tools. Auto parts machining involves many processes, and a large-capacity tool magazine can reduce the number of tool changes and improve machining efficiency;
• Stroke Range: Determined according to the maximum machining part size. For example, machining engine blocks requires ensuring that the X/Y/Z axis strokes can cover the entire part. Generally, it is recommended that the X-axis ≥1000mm, Y-axis ≥800mm, and Z-axis ≥800mm.

Model Recommendation and Comparison

For high-end domestic models, horizontal machining centers equipped with Huazhong Type 8 systems can be selected. This model optimizes spindle rigidity and cooling systems for automotive mass machining scenarios, with strong continuous operation stability and a purchase cost of about 600,000-800,000 yuan. For imported models, Mazak horizontal machining centers can be considered, which have excellent stability and precision performance, but the purchase cost is as high as 1.2-1.5 million yuan. Verification in mass production scenarios shows that high-end domestic models can fully match the automotive industry's needs in terms of production capacity and stability, and have lower maintenance costs and higher cost-effectiveness.

Pitfall Avoidance Points

Avoid blindly pursuing "high precision" which leads to excessive costs. The precision requirements of most auto parts in the automotive industry can be met with ±0.01mm. Excessively pursuing higher precision will significantly increase purchase costs; focus on the continuous operation stability of the equipment. You can require the manufacturer to provide a 72-hour continuous operation test report to verify failure rate and dimensional stability data.

3.2 Aerospace Industry: Ultra-High Precision Horizontal Machining Center Matching Scheme

The core needs of the aerospace industry are ultra-high positioning precision (≤0.005mm) and strong rigidity, mainly machining difficult-to-machine materials such as titanium alloys and superalloys. Most parts are key structural components, and precision directly affects flight safety, so the requirements for long-term precision retention of equipment are extremely high.

Core Parameter Selection Standards

• Spindle Taper: Choose BT40 or HSK63. These two types of taper shanks have higher positioning precision. HSK63 has a more balanced high-speed performance and rigidity, making it suitable for precision machining of difficult-to-machine materials such as titanium alloys;
• Guide Rail Type: Choose linear rails. Linear rails have a small friction coefficient and high positioning precision, which can meet ultra-high precision machining needs. It is recommended to choose ball screw linear rails to improve motion stability;
• Additional Functions: Must be equipped with a constant temperature cooling system, which can effectively control temperature changes of the spindle and machine tool body, avoiding thermal deformation affecting precision; at the same time, it is recommended to be equipped with an on-line detection function to real-time monitor machining precision and adjust compensation in time;
• Stroke Range: Adapt to large aerospace parts. Generally, it is required that the X-axis ≥1500mm, Y-axis ≥1000mm, and Z-axis ≥1000mm.

Model Recommendation and Comparison

For imported high-end models, DMG MORI horizontal machining centers can be selected. Their ultra-high precision retention and adaptability to difficult-to-machine materials have been long-term verified in the aerospace industry, with positioning precision up to ±0.003mm, but the purchase cost is as high as 2-3 million yuan. For high-precision domestic models, high-end horizontal machining centers equipped with Siemens 840D systems can be selected, with positioning precision up to ±0.005mm, which can meet the machining needs of some aerospace parts, and the purchase cost is about 1.2-1.5 million yuan. Selection boundary recommendation: Priority is given to imported high-end models for core key parts; high-precision domestic models can be considered for general precision parts to balance precision and cost.

Pitfall Avoidance Points

Focus on verifying the equipment's precision calibration report. Require the manufacturer to provide a precision test report issued by an authoritative third-party organization to avoid the manufacturer falsifying precision parameters; do not ignore "long-term precision retention capacity". You can require the manufacturer to provide precision re-test data after 6 months of use; prioritize models with aerospace industry application cases to avoid trial and error for the first time.

3.3 Mold Industry: High-Rigidity Curved Surface Machining Horizontal Machining Center Matching Scheme

The core needs of the mold industry are high rigidity (adapting to heavy cutting of mold cavities), excellent curved surface machining capacity, and stable spindle speed. It mainly processes parts such as mold cavities and cores. The cutting load during machining is large, and the precision of curved surface machining directly affects the molding quality of the mold.

Core Parameter Selection Standards

• Spindle Taper: Choose BT50. The high-rigidity taper shank can bear the load of heavy cutting of mold cavities, avoiding spindle vibration during machining;
• Guide Rail Type: Choose hard rails or reinforced linear rails. Hard rails have stronger rigidity and are suitable for heavy cutting; reinforced linear rails balance rigidity and positioning precision, making them suitable for complex curved surface machining;
• Tool Magazine Capacity: ≥30 tools. Mold machining involves complex processes and requires frequent tool changes. A large-capacity tool magazine can improve machining continuity;
• CNC System: Equip with high-performance CNC systems, such as Fanuc Oi-MF and Siemens 828D. The curved surface machining algorithms of these systems are more excellent, which can improve the precision and surface quality of curved surface machining.

Model Recommendation and Comparison

For cost-effective domestic models, hard-rail horizontal machining centers equipped with Fanuc systems can be selected, with a purchase cost of about 500,000-700,000 yuan. They have high mold machining efficiency and surface roughness up to Ra0.8μm, which can meet the needs of most mold machining. For mid-range imported models, Makino horizontal machining centers can be considered, which have better curved surface machining precision and stability, but the purchase cost is as high as 1-1.2 million yuan. From the perspective of test cutting cases, the precision and surface quality of mold cavities processed by cost-effective domestic models can fully match industry standards, with obvious cost-effectiveness advantages.

Pitfall Avoidance Points

Avoid selecting "high-speed light-cutting" models. Such models have insufficient rigidity and cannot bear the heavy cutting needs of molds, which are prone to machining vibration and dimensional deviation; focus on testing spindle rigidity and machine tool vibration control capacity. You can require the manufacturer to perform heavy cutting test on 45# steel to verify the machining surface roughness and dimensional stability; do not ignore the curved surface machining capacity of the CNC system. You can require the manufacturer to demonstrate the machining process of complex curved surfaces and observe the machining precision.

IV. Pitfall Avoidance Guide: 5 High-Frequency Pitfalls and Avoidance Methods in Horizontal Machining Center Selection

Combining a large number of selection practices, we have summarized 5 high-frequency selection pitfalls. Mastering the avoidance methods can significantly reduce trial and error costs.

4.1 Pitfall 1: Only Looking at Parameter Sheets Instead of Actual Test Cutting

Many enterprises only compare parameter sheets provided by manufacturers during selection, ignoring actual test cutting verification, leading to mismatches between equipment parameters and actual machining needs.

Avoidance method: Must require the manufacturer to provide test cutting services for similar parts in the same industry. Personally go to the manufacturer's site to verify the precision, surface roughness, and machining efficiency data of the test-cut parts, and at the same time observe the stability and noise of the equipment during operation to avoid being misled by "paper parameters".

4.2 Pitfall 2: Blindly Pursuing Imported Models

Some enterprises believe that "imported models are definitely better" and blindly purchase imported horizontal machining centers, resulting in high purchase costs and inconvenient subsequent maintenance.

Avoidance method: Make rational decisions based on your own precision and production capacity needs. For scenarios such as automotive mass machining and ordinary mold machining, high-end domestic models can fully replace imported ones. Moreover, domestic models have faster response to localized maintenance services (generally on-site within 24 hours) and shorter supply cycles for vulnerable parts (3-7 days), which can significantly reduce downtime losses.

4.3 Pitfall 3: Ignoring Maintenance Convenience

During selection, only focusing on equipment performance and price, while ignoring the manufacturer's maintenance capacity, leading to inability to repair the equipment in time after failure.

Avoidance method: Select manufacturers with local service outlets. Confirm in advance the size of the manufacturer's technical support team, the supply cycle of vulnerable parts, and the maintenance response time; clarify maintenance terms when signing the purchase contract, such as warranty period, number of free maintenance times, and fault repair time limit, to protect subsequent operation and maintenance rights and interests.

4.4 Pitfall 4: Unpractical "Parameter Stacking"

Some manufacturers stack a large number of high-end parameters to attract customers, but many parameters have no practical significance for specific industry scenarios.

Avoidance method: Determine core parameters according to your own machining needs, and there is no need to excessively pursue high-end configurations for non-core parameters. For example, mold machining does not require ultra-high spindle speed (generally 8000rpm can meet the needs), and excessive pursuit of high speed will increase purchase costs; automotive mass machining does not require high-precision on-line detection systems, and simple dimensional detection tools can meet the needs.

4.5 Pitfall 5: Ignoring Automation Adaptability

In mass production scenarios, if the adaptability between the equipment and the automation system is not considered in advance, subsequent transformation will be very difficult.

Avoidance method: When selecting models for mass production scenarios (such as auto parts machining), confirm in advance whether the interface of the horizontal machining center can be adapted to the robot loading and unloading system and whether there is reserved space for automation transformation; require the manufacturer to provide an automation adaptation plan to ensure that the equipment can seamlessly connect to the subsequent automated production line and improve production efficiency.

V. Practical Tool: Industry-Specific Horizontal Machining Center Selection Comparison Table (Directly Applicable)

To facilitate quick selection, we have sorted out an industry-specific selection comparison table. You can quickly screen models that meet your needs by comparing the table.

Usage Instructions

According to your own industry, lock the model direction by comparing "Core Needs" and "Recommended Parameters", then screen optional models combined with "Budget Range", and finally confirm the manufacturer's maintenance capacity through "Maintenance Key Points" to quickly complete the initial selection.

VI. Real Cases: 3 Successful Selection Practices in Different Industries

Through real cases, you can more intuitively understand the actual effect of industry-specific selection schemes.

6.1 Case 1: An Auto Parts Factory – Replacing Imports with High-End Domestic Horizontal Machining Centers to Reduce Costs and Improve Efficiency

Background: The factory previously used imported horizontal machining centers to process transmission housings, with high purchase costs and slow maintenance response. A single failure caused downtime exceeding 48 hours.

Selection Needs: Maintain production capacity unchanged, reduce purchase and maintenance costs.

Solution: Select high-end domestic BT50 spindle and hard rail horizontal machining centers, equipped with 40-tool magazines to adapt to mass machining needs.

Effect: Production capacity increased by 20% (tool change time reduced by 30%), purchase cost reduced by 40%, maintenance response time shortened to within 24 hours, saving about 80,000 yuan in production costs per month.

6.2 Case 2: An Aerospace Parts Supporting Factory – Precisely Matching High-Precision Horizontal Machining Centers to Improve Precision Qualification Rate

Background: The factory processes titanium alloy aerospace parts. Previously, it used ordinary horizontal machining centers, with a precision qualification rate of only 85%, which could not meet customer needs.

Selection Needs: Positioning precision ≤0.005mm, adapting to titanium alloy machining.

Solution: Select imported high-end HSK63 spindle and linear rail horizontal machining centers, equipped with constant temperature cooling and on-line detection systems.

Effect: Precision qualification rate increased from 85% to 99.5%, customer complaint rate dropped to 0, successfully winning large-value long-term orders.

6.3 Case 3: A Mold Factory – Replacing Old Horizontal Machining Centers with Insufficient Rigidity to Reduce Rework Rate

Background: The factory's old horizontal machining centers had insufficient rigidity, causing severe vibration when processing large mold cavities, with a rework rate of 15%.

Selection Needs: High rigidity and high precision in curved surface machining.

Solution: Select domestic hard rail heavy-cutting horizontal machining centers equipped with Fanuc CNC systems.

Effect: Mold machining efficiency increased by 15%, surface roughness reached Ra0.8μm, rework rate dropped to below 1%, saving about 30,000 yuan in rework costs per month.

VII. Conclusion

The core of horizontal machining center selection is matching equipment with industry processing demands: automotive production prioritizes stability and efficiency, aerospace requires ultra-high precision for hard-to-cut materials, and mold manufacturing demands strong rigidity for complex curved surfaces.

Follow the three core selection dimensions, avoid the five common selection pitfalls, and use the industry matching schemes and comparison table above to cut trial-and-error costs and achieve optimal equipment configuration.
