Guide to milling machine function upgrade: from basic expansion to intelligent innovation, unlocking new possibilities of machining

Introduction: The Industry Value and Inevitable Trend of Milling Machine Function Upgrade

In today's rapidly evolving mechanical processing industry, milling machines as core equipment directly determine production efficiency, machining precision, and product competitiveness through their functional boundaries. Traditional milling machines, primarily limited to basic cutting and drilling functions, can no longer meet the demands of precision manufacturing, compound machining, and flexible production. Whether addressing cost reduction and efficiency improvement for small-to-medium manufacturers or supporting intelligent transformation for large enterprises, upgrading milling machine capabilities has become a critical pathway to overcome production bottlenecks and enhance core competitiveness. This article systematically outlines the core functional expansions of milling machines, from basic practical upgrades to high-end intelligent innovations. By integrating technical principles, application scenarios, and practical case studies, it provides industry professionals with comprehensive references for functional upgrades.

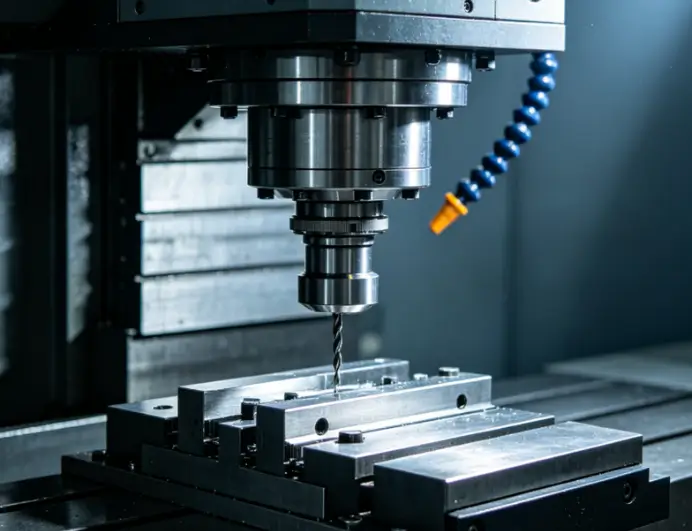

1.Upgrade of Basic Practical Function:Core Expansion of Low Cost and High Return

1.1. Automatic feed function: Say goodbye to manual operation and improve machining stability

Traditional milling machines require manual feed rate adjustment, which not only increases labor intensity but also causes processing accuracy fluctuations due to human errors. The installation of an automatic feed system enables uniform, segmented, and stepless speed control across X/Y/Z axes, with a feed rate range of 0.01-500mm/min. This system accommodates various materials (steel, aluminum, copper, plastics) and machining processes (milling, boring, chamfering).

Technical implementation: The core involves installing servo motors, ball screws, and CNC system modules to achieve precise feed control via pulse signals. For standard vertical milling machines, an external automatic feeder (e.g., upgraded hand-cranked pulse generator) can be selected for easy installation and lower cost (approximately 3,000-8,000 yuan). Larger milling machines can be upgraded to an integrated feed system that synchronizes with spindle speed, enabling intelligent "speed-feed rate" matching.

Practical Value: A hardware processing plant upgraded three standard milling machines with automatic feed function, achieving a 40% efficiency boost per machine, a 72% waste reduction (from 3.2% to 0.8%), and 20% labor cost savings. The upgrade cost was fully recovered within just three months.

1.2. Multi-station processing function: one-stop completion of compound processes, reducing clamping errors

Traditional milling machines are typically single-station designs, requiring multiple clamping and equipment changes for complex parts, which is not only time-consuming and labor-intensive but also prone to positional deviations that affect machining accuracy. By upgrading to multi-station processing capabilities, a single machine can perform multiple operations including milling, drilling, boring, and tapping, significantly enhancing both efficiency and precision.

Technical Implementation: The system is primarily achieved through the installation of multi-station tool turrets, rotary worktables, or indexing heads. The multi-station tool turret accommodates 8-12 tools and supports automatic tool change, with a tool change time of just 1-3 seconds. The rotary worktable enables continuous 360° rotation or indexing positioning, achieving a positioning accuracy of ±0.005mm, making it suitable for machining circumferentially distributed holes and grooves.

Application scenarios: Batch processing of complex components including automotive parts (e.g., gears, bearing housings), construction machinery parts (e.g., hydraulic valve blocks), and precision molds. After upgrading its multi-station milling machines, a certain automotive parts manufacturer reduced gearbox housing processing steps from 5 to 2, achieving a 60% reduction in production cycle time and a 99.5% product qualification rate.

1.3. Rigid thread cutting function: Solve the problem of thread processing and improve the quality of thread

Traditional milling machine tapping relies on manual operation or rigid flexible tapping, which often results in issues like thread misalignment, thread slippage, and pitch deviation. This is particularly problematic when machining high-strength materials such as stainless steel or alloy steel, leading to higher scrap rates. With the upgraded rigid tapping function, the spindle speed and feed rate can be precisely synchronized, significantly improving both the quality and efficiency of thread processing.

Technical implementation: The upgrade focuses on enhancing the spindle servo and CNC systems to enable position control, ensuring precise matching of "spindle speed × pitch = feed rate" during tapping. Additionally, a rigid tapping tool holder is integrated to improve rigidity, preventing vibration-induced thread defects.

Technical Advantages: The thread processing precision can reach 6H grade, suitable for M3-M50 thread processing, and the processing efficiency is 3-5 times higher than traditional tapping. After a mechanical processing plant upgraded its rigid tapping function, the thread defect rate of stainless steel parts decreased from 15% to 1.2%, saving over 100,000 yuan in raw material costs annually.

2. Function Upgrade for Precision Improvement: Meeting the Needs of Precision Manufacturing

2.1. Digital transformation: from "manual" to "intelligent", achieving precise control

The machining accuracy of conventional milling machines depends on the operator's skill, which often falls short of precision manufacturing requirements. By implementing CNC upgrades, traditional milling machines can be transformed into CNC milling machines, enabling automated and high-precision processing. This represents a cost-effective solution for small and medium-sized manufacturers to enhance their competitiveness.

The upgrade involves installing core components including CNC systems (e.g., FANUC, Siemens, Huazhong CNC), servo drives, ball screws, and linear guides. The CNC system supports G-code and M-code programming, enabling processing of complex curved surfaces and 3D contours with positioning accuracy of ±0.003mm and repeat positioning accuracy of ±0.001mm.

Cost and Return on Retrofit: The retrofitting cost for a single machine ranges from 50,000 to 150,000 yuan, varying by equipment model and configuration. For example, a precision mold manufacturer upgraded two standard milling machines to CNC models, achieving a mold cavity machining accuracy improvement from ±0.02mm to ±0.005mm. This upgrade reduced production cycles by 50% and significantly boosted order processing capacity, with the investment fully recovered within six months.

2.2. Closed-loop control of grating scale: Real-time compensation error, extreme improvement of accuracy

Even the NC milling machine, after long-term use, may produce positioning error due to the factors of screw wear, temperature change, etc. The closed-loop control system of grating scale can detect the actual position of the worktable in real time, and compare with the command position of the NC system, and automatically compensate the error, so that the positioning accuracy is improved by one order of magnitude.

Technical principle: The grating scale converts displacement into electrical signals through optical principles, which are fed back to the CNC system. The system adjusts the servo motor's operation based on the deviation value, achieving a closed-loop control of "command-detection-compensation". With a resolution of 0.1μm, the grating scale meets high-precision machining requirements.

Application scenarios: Aerospace components (e.g., aircraft engine blades, spacecraft structural parts), precision instruments, and electronic components require ultra-precise manufacturing. After installing a grating scale on its CNC milling machine, an aviation parts manufacturer achieved a precision improvement from ±0.005mm to ±0.001mm, successfully entering the high-end aviation manufacturing supply chain.

2.3. The function of constant temperature control: restrain the temperature deformation and stabilize the processing precision

In milling machine, the temperature of spindle, worktable and tool will increase due to friction, which will cause thermal deformation and affect the machining precision. Especially in long time continuous machining or machining large parts, the thermal deformation error is more obvious. The upgrade of constant temperature control function can effectively suppress the influence of temperature change on machining precision.

Technical Implementation: The system is implemented through three key components: an oil temperature control system, a spindle constant-temperature sleeve, and workshop environmental temperature regulation equipment. The oil temperature control system maintains hydraulic and lubricating oil temperatures within ±2℃. The spindle constant-temperature sleeve stabilizes spindle temperature at the set point (typically 20-25℃) via water or oil circulation cooling. The workshop environmental temperature regulation equipment keeps temperature fluctuations in the machining area within ±1℃.

Effect verification: after the installation of the constant temperature control system in the gantry milling machine, the straightness error of the 3 m long machine tool bed was reduced from 0.03mm/m to 0.01mm/m, which satisfied the demand of high precision machine tool manufacturing.

3. Intelligent and Efficient Function Upgrade: Adapt to the Trend of Industry 4.0

3.1. Automatic tool change function: reduce the auxiliary time and realize unmanned processing

Traditional milling machine tool change relies on manual operation, which not only consumes excessive auxiliary time but also risks affecting machining accuracy due to improper tool installation. The upgraded automatic tool change function enables automated selection, replacement, and storage of tools, significantly reducing auxiliary time and paving the way for unmanned machining.

Technical Solution: The automatic tool changer system is selected based on the milling machine type. Vertical milling machines typically use a tool magazine combined with a robotic arm, with a capacity of 16-24 tools and a tool change time of 3-5 seconds. Portal milling machines can employ either a chain-type or disc-type tool magazine, offering a capacity of 40-60 tools and supporting automatic replacement of heavy tools (weight ≤50kg).

Intelligent Advantages: The CNC system's tool management features enable tool lifespan monitoring, wear alerts, and automatic tool replacement, effectively preventing machining failures caused by tool damage. After upgrading the automatic tool-changing function, an electronics equipment manufacturer reduced auxiliary time for smartphone frame processing by 70%, increased daily output per machine from 200 to 500 units, and achieved 24/7 unmanned production.

3.2. Online detection function: real-time quality monitoring and waste reduction

Under traditional processing methods, part quality inspection must be conducted after processing. If defective products are identified, it results in wasted raw materials and labor hours. With the upgraded online inspection feature, real-time monitoring of part dimensions, shapes, and positional accuracy during processing allows for immediate adjustment of parameters, effectively preventing defective products.

Technical Implementation: This is primarily achieved by installing either contact-type sensors (e.g., Renesault sensors) or non-contact sensors (e.g., laser sensors, vision sensors). The sensors automatically collect critical dimensional data from components and transmit it to the CNC system for comparison with preset standards. If deviations exceed the allowable range, the system will automatically pause the machining process and trigger an alarm, or adjust machining parameters (e.g., feed rate, cutting depth) based on the deviation values.

Application value: After the online detection function is added to the milling machine, the scrap rate of complex parts is reduced from 8% to 0.5%, the annual production cost is saved more than 300,000 yuan, and the workload of the follow-up detection process is reduced.

3.3. Internet and data management functions: integrated with smart factory to realize collaborative production

In the context of Industry 4.0, equipment networking and data management have become essential requirements for smart factories. By upgrading milling machines with networking and data management capabilities, real-time equipment status monitoring, production data analysis, and remote transmission and management of machining programs can be achieved, thereby enhancing production management efficiency.

Technical Implementation: The milling machine is integrated into the factory's MES (Manufacturing Execution System) or ERP system by installing an industrial Ethernet module and an IoT gateway. The CNC system supports data acquisition (e.g., spindle speed, feed rate, processing time, and scrap rate), remote monitoring, and remote operation. Managers can monitor real-time equipment status and production progress via computers or mobile apps.

Synergistic Benefits: An automotive parts manufacturer implemented a milling machine networked upgrade, enabling centralized processing program management and remote execution. This reduced production plan adjustment response time from 2 hours to 10 minutes. By analyzing equipment operation data, the manufacturer optimized processing parameters, boosting overall equipment efficiency (OEE) from 65% to 85%.

4. Special Process Type Function Upgrade: Expanding Processing Boundary

4.1. Five-axis linkage machining function: Breakthrough of complex surface machining bottleneck

Traditional three-axis milling machines can only perform linear motion along X/Y/Z axes, making them inadequate for machining complex curved surfaces like impellers, blades, or mold cavities. With the addition of five-axis linkage capability, the tool can rotate around either the A/C or B/C axis, enabling multi-angle relative motion between the tool and workpiece. This capability effectively addresses the demands of complex curved surface machining.

Technical core: The key to five-axis synchronized milling machine lies in the five-axis interpolation function of the CNC system and the rigid design of the machine structure. The CNC system must support complex programming of spatial surfaces and real-time interpolation calculations. The machine structure typically adopts gantry, cradle, or cantilever types to ensure stability and precision during operation.

Application: It is widely used in aerospace, mould manufacturing, medical equipment and other industries. After a certain aero-engine manufacturing plant uses five-axis milling machine to process engine blade, the surface roughness of blade is reduced from Ra1.6μm to Ra0.8μm, and the processing cycle is shortened by 40%, which meets the requirement of high performance of engine.

4.2. High-speed cutting function: Improve machining efficiency and surface quality

High-speed cutting technology is a key development direction in modern mechanical processing, with its core advantages being high processing efficiency, excellent part surface quality, and low cutting forces. After upgrading milling machines with high-speed cutting capabilities, the spindle speed can reach 10,000-30,000 rpm, and the feed rate can achieve 20-60 m/min, significantly enhancing both processing efficiency and product quality.

Technical specifications: High-speed machining imposes stringent requirements on the milling machine's spindle, feed system, cutting tools, and lubrication-cooling system. The spindle must be a high-speed electric spindle with high rigidity and low vibration. The feed system requires linear motors or high-speed ball screws to ensure smooth high-speed operation. Cutting tools should utilize superhard materials like PCD (poly-crystalline diamond) or CBN (cubic boron nitride), paired with a high-pressure cooling system (operating at 70-100 bar) to reduce cutting temperatures and extend tool life.

Application effect: A mold factory adopted high-speed cutting milling machine to process injection mold cavities, achieving a surface roughness of Ra0.2μm. This eliminated the need for subsequent polishing, reducing the processing cycle from 7 days to 2 days, and significantly improving mold production efficiency.

4.3. Composite processing function: Integration of multiple processes to achieve integrated manufacturing

The compound machining is to integrate two or more kinds of machining technology into one machine, to realize "one time clamping, all processing", which is an effective solution to the problem of complex parts machining. The upgradeable compound machining functions of milling machine include milling turning compound, milling grinding compound, milling welding compound, etc.

Case Study: The milling-rolling hybrid machine combines milling and turning capabilities, enabling the production of complex components like shafts and discs. It performs both milling (e.g., keyways, flat surfaces) and turning (e.g., external diameters, end faces, threads), eliminating the need for repeated part changes between machines. This significantly improves processing accuracy and efficiency. A medical device manufacturer using this hybrid machine for orthopedic implants (e.g., artificial joints) achieved a precision of ±0.002mm, reduced production cycles by 50%, and increased product pass rates to 99.8%.

5. Selection Suggestions and Precautions for Milling Machine Function Upgrade

5.1. Selection principle: Upgrade as needed, prioritize cost performance

When upgrading milling machine capabilities, enterprises should align upgrades with their actual needs and budgets, avoiding blind pursuit of high-end configurations. For small and medium-sized manufacturers primarily handling simple part batches, practical upgrades like automatic feed systems and multi-station processing are recommended. Those engaged in precision mold or aerospace component manufacturing should consider high-precision upgrades such as CNC system integration and five-axis synchronized machining. Enterprises transitioning to smart factories should prioritize intelligent features including automated tool changing, real-time inspection, and networked data management.

5.2. Notes: Ensure upgrade compatibility with your device

1. Equipment baseline assessment: Before upgrading, conduct a comprehensive inspection of the milling machine's bed rigidity, spindle precision, and guide rail condition. If the equipment shows severe aging (e.g., bed deformation or excessive spindle wear), repair or replace core components first before proceeding with functional upgrades, otherwise the upgrade may be compromised.
2. Brand and Compatibility: Select compatible upgrade components (e.g., CNC systems, servo motors) for milling machines to prevent equipment failures due to incompatibility. We recommend choosing products from reputable brands to ensure quality and after-sales service.
3. Staff Training: After the feature upgrade, operators must master the new functions 'operation methods and programming techniques. Companies should organize professional training to enhance employees' skills and fully leverage the upgraded features' value.
4. Post-upgrade maintenance: The upgraded milling machine requires enhanced maintenance, including regular checks on ball screws and linear guides for lubrication, as well as cleaning of grating scales and measuring heads, to ensure long-term stable operation.
