Guide to Tool Magazine Selection for Gantry Machining Centers: In-depth Analysis of Non-tool Magazine, Disc Type and Chain Type Tool Magazines

Introduction: The Core Position of Tool Magazines in Modern Gantry Machining Centers

In modern manufacturing, gantry machining centers, as typical equipment with high precision and high efficiency, have become core equipment in aerospace, automotive manufacturing, mold processing and other fields. As the core device of automatic machining, the tool magazine system directly determines the overall efficiency of machining centers. The tool magazine system of gantry machining centers not only provides tool storage for automatic machining, but also enables rapid tool change, thus greatly shortening processing time and reducing production costs. According to the structure and form, tool magazines are mainly divided into three types: non-tool magazine configuration, disc type tool magazine and chain type tool magazine. This paper will deeply analyze the technical characteristics of these three configurations, their impact on processing capacity and applicable scenarios, providing professional selection references for manufacturing enterprises.

Chapter 1 Technical Characteristics of Three Tool Magazine Configurations for Gantry Machining Centers

1.1 Gantry Machining Center with Non-tool Magazine

Gantry machining centers without tool magazines retain the most traditional processing mode, with a simple structure and obvious advantages in manufacturing cost. Such equipment mainly relies on manual tool change operations, suitable for large workpiece processing scenarios with small production batches and long processing cycles. Eliminating complex tool magazine systems and automatic tool change mechanisms, the equipment has a more concise structure, convenient maintenance and high overall stability. However, the notable disadvantage of non-tool magazine configuration is low automation. In complex processing requiring alternating operations of multiple tools, frequent tool change operations will lead to a sharp drop in production efficiency and high dependence on operators' skills.

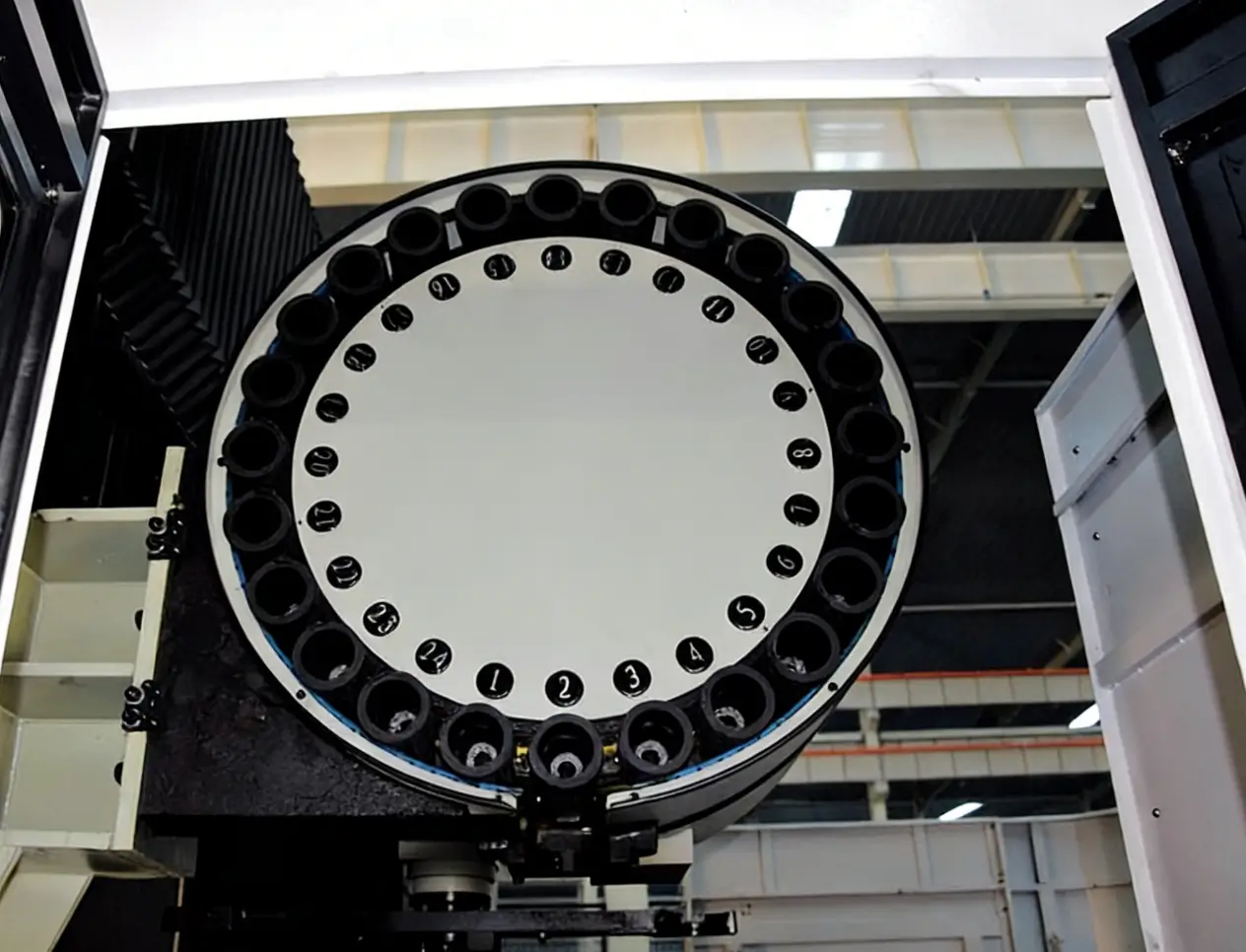

1.2 Gantry Machining Center with Disc Type Tool Magazine

Disc type tool magazine (also known as disk tool magazine or rotary tool magazine) is one of the most widely used automatic tool change systems at present. It adopts a disc-shaped layout, with tools evenly distributed along the circumferential direction, realizing rapid tool positioning and switching through rotary motion. The tool storage capacity of disc type tool magazines is usually moderate, generally between 16 and 30 tools, especially suitable for small and medium batch processing tasks.

The core advantage of disc type tool magazine is its fast tool change speed. Driven by high-precision servo motors and equipped with a manipulator tool change mechanism, the tool change time (chip-to-chip) of modern disc type tool magazines can be shortened to a few seconds, greatly reducing non-cutting time. In addition, the disc type tool magazine has a relatively compact structure and small floor area, helping to optimize workshop layout and improve space utilization. Its maintenance cost is relatively low, and tool installation and replacement are convenient, reducing the complexity of daily operations.

1.3 Gantry Machining Center with Chain Type Tool Magazine

Chain type tool magazine is a tool magazine system designed for large-capacity tool storage requirements. It adopts a chain drive structure, with tools arranged sequentially along the chain, and sends the target tool to the tool change position through the circular motion of the chain. The biggest feature of this structure is large tool storage capacity, usually accommodating more than 20 tools, and some models can even reach more than 120 tools, meeting the needs of large-scale production and long-term continuous processing.

Although the tool change speed of chain type tool magazine is slightly slower than that of disc type, it has extremely high stability and can continuously provide required tools for machining centers in complex processing environments. Chain type tool magazines usually adopt mechanical cam structures to realize tool change actions. This design has a simple structure, accurate and fast actions and high reliability, but the manufacturing cost is relatively high. Chain type tool magazines show obvious advantages in application scenarios with complex processing tasks and a wide variety of tools.

Table: Comparison of Main Technical Parameters of Three Tool Magazine Configurations

Chapter 2 Analysis of the Impact of Different Tool Magazine Configurations on Processing Capacity

2.1 Impact on Processing Efficiency

Tool magazine configuration has a direct and significant impact on the processing efficiency of gantry machining centers. Non-tool magazine configuration relies on manual tool change, requiring shutdown for each tool change, with a high proportion of non-cutting time and low overall equipment utilization. According to practical application statistics, in complex workpiece processing requiring frequent tool changes, the effective processing time of non-tool magazine configuration may be less than 50% of the total working time.

Disc type tool magazine greatly improves equipment utilization through high-speed automatic tool change. Its fast tool switching capability enables machining centers to seamlessly connect different processes, especially suitable for processing scenarios with concentrated processes and frequent tool use. The tool change speed of disc type tool magazine can usually be completed within a few seconds, enabling the equipment to achieve nearly continuous processing operation and significantly improve effective cutting time.

Chain type tool magazine reduces the number of tool changes in production through large-capacity tool storage, realizing long-term unmanned operation for large-batch production or complex workpiece processing requiring multiple tools. Although the single tool change time may be slightly longer than that of disc type, the impact of tool change time on overall efficiency can be minimized by optimizing tool management strategies and reasonably arranging commonly used tools.

2.2 Impact on Processing Accuracy

Processing accuracy is a key indicator to measure the performance of gantry machining centers, and the performance of the tool magazine system has an important impact on this. Non-tool magazine configuration requires re-tool setting after each tool change, making it difficult to guarantee repeated positioning accuracy. Especially when clamping the same tool multiple times, it is easy to introduce human errors and affect the consistency of workpieces.

Disc type tool magazine adopts a high-precision positioning system, usually equipped with servo motor drive and precision indexing mechanism, ensuring the accuracy and consistency of tool position after each tool change. This reliable positioning accuracy guarantees high stability of workpiece quality in batch processing. In addition, the tool management of disc type tool magazine is more standardized, which can effectively protect the 7:24 taper surface of tools from pollution, especially beneficial to maintaining the processing accuracy stability of precision tools such as fine boring cutters.

Chain type tool magazine also pays attention to accuracy maintenance, ensuring accurate tool position during storage and exchange through rigid structure and precision guidance. The tool holder design of chain type tool magazine can completely contain the tool taper surface, preventing pollution from cutting fluid and impurities, providing guarantee for long-term stable processing. However, due to certain cumulative errors in chain drive, additional compensation measures may be required for ultra-precision micro-machining.

2.3 Impact on Processing Flexibility

Processing flexibility refers to the ability of gantry machining centers to adapt to different processing tasks, and the three tool magazine configurations show obvious differences in this regard. Non-tool magazine configuration has certain advantages in single-piece production and large simple workpiece processing. Operators can flexibly select tools according to actual needs without being limited by tool magazine capacity and structure.

While maintaining fast tool change speed, disc type tool magazine provides moderate tool capacity, showing good adaptability in multi-variety, small and medium-batch production. Modern disc type tool magazines are usually equipped with intelligent tool management systems, compatible with various types of tools such as drills, milling cutters and reamers, meeting diverse processing needs.

Chain type tool magazine supports machining centers to cope with complex parts and large-batch production tasks with its large capacity. Especially in aerospace, automotive molds and other fields requiring a large number of tools, chain type tool magazine can ensure that machining centers have the ability to complete all processing procedures of complex workpieces without shutdown for tool replacement. In addition, chain type tool magazines usually support tool life management and wear monitoring functions, further enhancing the intelligent level of the processing process.

2.4 Impact on Production Cost

The selection of tool magazine configuration directly affects the total cost of ownership (TCO) of gantry machining centers. Non-tool magazine configuration has the lowest initial investment and simple maintenance, suitable for users with limited budgets or simple processing tasks.

Although the initial investment of disc type tool magazine is relatively high, it can recover the investment in a short time by improving equipment utilization and processing efficiency. Taking a 40# tool magazine with 20 tools as an example, the price of a disc type tool magazine is about 35,000 yuan, and the efficiency improvement brought by reducing non-cutting time can usually achieve return on investment within one year.

As a high-end configuration, chain type tool magazine has the highest initial investment (about 65,000 yuan for the same specification), but it is oriented to large-scale production scenarios. By reducing downtime and improving equipment utilization, it can significantly reduce unit cost in large-batch production. In addition, the high reliability of chain type tool magazine reduces fault downtime, further lowering maintenance and production losses.

Table: Cost-benefit Analysis of Different Tool Magazine Configurations

Chapter 3 Professional Suggestions on Tool Magazine Selection and Analysis of Application Scenarios

3.1 Selection Principles Based on Production Demand

To select the appropriate tool magazine configuration for a gantry machining center, it is necessary to comprehensively consider production scale, workpiece complexity, accuracy requirements, investment budget and other factors. The following are professional selection principles:

For single-piece and small-batch production, especially large simple workpiece processing, non-tool magazine configuration still has certain application value due to its simple structure and low cost. Such scenarios usually do not require frequent tool changes, or the processing cycle is long, and tool change time has little impact on overall efficiency.

For small and medium-batch production with medium workpiece complexity and a certain degree of automation required, disc type tool magazine is the best choice. Its fast tool change capability and moderate tool capacity can meet the processing needs of most complex workpieces, achieving a good balance between investment cost and performance.

For large-batch production and highly complex workpiece processing, especially in aerospace, automotive molds and other fields, chain type tool magazine is an ideal choice with its large capacity and high reliability. Such applications usually require machining centers to operate continuously for a long time, and chain type tool magazine can support such high-intensity operation requirements.

3.2 Analysis of Application Scenarios in Different Industries

Due to different product characteristics and production scales, manufacturing industries have obvious differences in the demand for gantry machining center tool magazines:

The aerospace field has extremely high requirements for part accuracy and quality, and processing often involves complex surfaces and difficult-to-machine materials, requiring alternating operations of multiple tools. Chain type tool magazine has become the first choice in this field due to its large capacity and high reliability. The processing of key parts such as aircraft structural parts and engine blades usually requires a large number of tools, and chain type tool magazine can ensure the continuity and stability of the processing process.

The automotive manufacturing industry takes into account large-batch production and accuracy requirements, requiring both high-efficiency processing and guaranteed component quality. Both disc type tool magazines and chain type tool magazines are widely used in this field, and the specific choice depends on production scale and processing task complexity. Automotive mold processing mostly adopts chain type tool magazines, while component production may prefer disc type tool magazines.

The mold manufacturing industry has high requirements for processing accuracy and flexibility, with a wide variety of products and not necessarily large batches. Disc type tool magazine performs well in this field due to its fast tool change capability and moderate tool capacity. Mold processing usually requires frequent tool changes to adapt to different processing procedures, and the fast response characteristic of disc type tool magazine can minimize non-cutting time.

The general machinery manufacturing industry has a wide range of products and diverse processing needs, requiring machining centers to have strong adaptability. According to the specific production scale, disc type or chain type tool magazines can be selected, and non-tool magazine configuration still has a place in specific scenarios.

3.3 Maintenance and Optimization Strategies of Tool Magazine System

Appropriate maintenance and optimization are the keys to ensuring the long-term stable operation of machining centers, regardless of the tool magazine configuration selected:

Regular inspection and maintenance are the basis for maintaining tool magazine performance. For disc type tool magazines, focus on the operating status of the indexing disc and "Geneva mechanism", and replace worn needle bearings in a timely manner. For chain type tool magazines, regularly check the chain tension and wear, and replace the gear oil in the cam box on schedule.

Tool management optimization can improve tool magazine utilization. Reduce idle strokes and tool change times through reasonable tool arrangement and life management. Modern tool magazine systems are usually equipped with tool monitoring functions, which can track tool usage and wear status in real time to realize predictive maintenance.

Standardized operating procedures help avoid failures caused by human factors. Operators should strictly follow the procedures for tool loading and changing operations to avoid damage to the tool magazine caused by overweight and oversized tools. Regularly train operators to improve their understanding of the working principle and fault identification ability of the tool magazine system.

Chapter 4 Development Trend and Future Prospect of Tool Magazine Technology

With the continuous development of manufacturing towards intelligence and high efficiency, gantry machining center tool magazine technology also presents a clear development trend:

High speed is the primary direction of tool magazine technology development. There are two main indicators for measuring tool change speed: "tool-to-tool change time" and "chip-to-chip change time", and the latter can better reflect the overall processing efficiency. Current advanced tool magazine systems are committed to further shortening the tool change time, aiming to control the chip-to-chip change time within 5 seconds or even shorter.

Intelligence is another important development trend of tool magazine systems. Modern tool magazines are no longer just simple tool storage devices, but intelligent systems integrating sensors, control systems and data analysis functions. Intelligent tool magazines can significantly improve the automation level and reliability of the processing process by monitoring tool status in real time, predicting maintenance needs and optimizing tool change strategies.

Structural optimization and the application of new materials will also promote the innovation of tool magazine technology. To meet the needs of high-speed processing, tool magazine structural design pays more attention to lightweight and high rigidity, reducing the inertia of moving parts and improving dynamic response performance. At the same time, the application of new tool shank technologies such as HSK also provides support for the improvement of tool change speed.

Modular design improves the adaptability and scalability of tool magazine systems. Modern tool magazine systems tend to adopt standardized interfaces and modular structures, enabling the same tool magazine to adapt to different models of machining centers, and facilitating function expansion, upgrade and maintenance.

Conclusion

The selection of tool magazine for gantry machining centers is a decision-making process that requires comprehensive consideration of multiple factors. Non-tool magazine configuration, disc type tool magazine and chain type tool magazine each have unique technical characteristics and applicable scenarios, directly affecting the processing capacity, accuracy, efficiency and production cost of machining centers.

Non-tool magazine configuration still has value in specific application scenarios with its simple structure and low cost advantage; disc type tool magazine achieves a good balance between tool change speed, space utilization and investment cost, making it an ideal choice for most small and medium-batch production; chain type tool magazine has become an essential configuration for large-batch and high-complexity processing tasks with its large capacity and high reliability.

With the continuous development of manufacturing technology, tool magazine systems are evolving towards faster, more intelligent and more reliable directions. Manufacturing enterprises should scientifically select the most suitable tool magazine configuration according to their own product characteristics, production scale and development plan, maximize the efficiency of gantry machining centers and enhance market competitiveness. Correct tool magazine selection is not only a configuration choice for equipment, but also an important decision for enterprise production strategy.
