50–6000 rpm Spindle · Stable ·High-Efficiency Horizontal Cutting

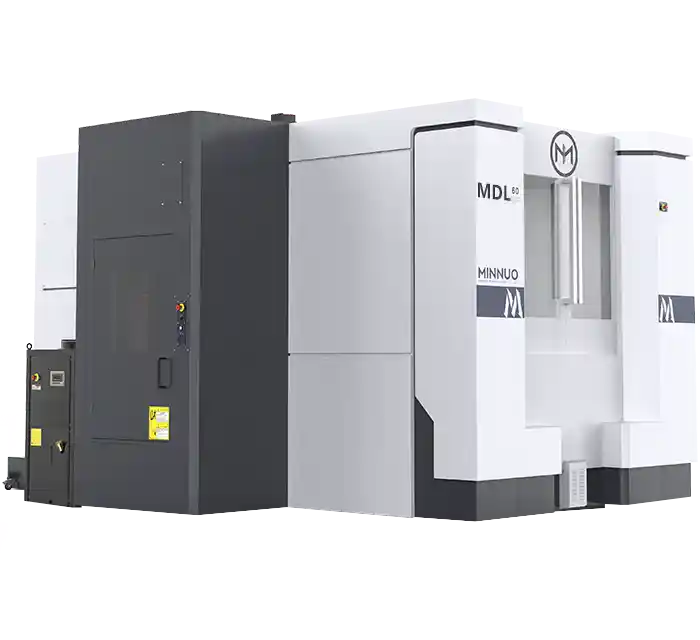

The MDL Series is a precision-engineered horizontal machining center built for high-volume and high-rigidity cutting tasks. With a travel range of 1000mm (X) × 800mm (Y) × 630mm (Z), stepless spindle speeds from 50 to 6000 rpm, and axis feed rates up to 10,000 mm/min, it is ideal for automotive, heavy machinery, and hydraulic component manufacturing.
MDL Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Horizontal Layout for Multi-Surface Machining: Allows machining on multiple faces of the workpiece in a single setup—ideal for box-type or cuboid components.
- ● X/Y/Z Travel: 1000/800/630mm: Accommodates medium-to-large components with complex geometries and precise tolerance requirements.
- ● Stepless Spindle Speed (50–6000 rpm): Wide range for roughing and finishing various materials including cast iron, aluminum, and alloy steel.
- ● Rapid Feed (up to 10,000 mm/min): Enables fast axis movements and reduces non-cutting time for improved overall productivity.
- ● High Load-Bearing Rotary Table (optional): Supports heavy parts or fixtures with indexing capability for four-sided machining.
Get More Details →

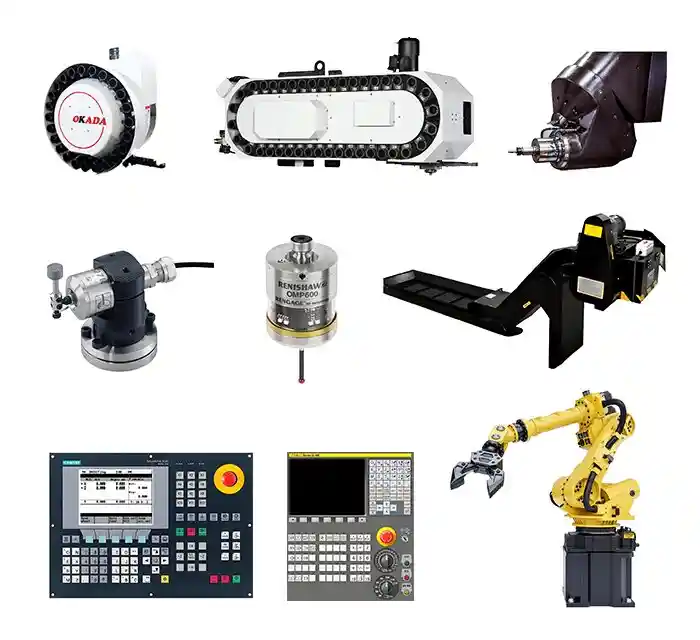

Recommended Configurations
- ● Worktable Configuration: Horizontal Rotary Worktable, Dual Pallet System, High-Precision Rotary Worktable (B-axis + C-axis)
- ● Spindle Configuration: High-Precision Spindle, Water-Cooled Spindle, High-Torque Spindle
- ● Cooling System Configuration: Internal Cooling System, High-Pressure Cooling System, Mist Cooling System
- ● Automation Configuration: Automatic Tool Changer System (ATC), Automatic Tool Measurement System (ATMS), Automatic Loading and Unloading System
- ● CNC Control System: High-Performance CNC System (FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi, etc.)
- ● Precision Assurance Configuration: Laser Interferometer Precision Measurement System, Thermal Compensation System, Grating Scale Feedback System, Encoder System
- ● Drive System Configuration: High-Load Servo Motor Drive, High-Speed Servo Motor
- ● Safety and Protection Configuration: Full Enclosure Safety Guard, Emergency Stop System
Get More Details →
Application Case
- ● Client: Hydraulic pump manufacturer (South America).
- ● Workpiece: Cast iron pump housing with internal and external precision surfaces.
- ● Setup: MDL with CNC 4th-axis rotary table, 40T ATC, BT50 spindle, FANUC controller.
- ● Results: Completed 4-face machining in one setup, including bore, thread, and slot , Achieved dimensional accuracy within ±0.008mm, Cycle time reduced by 34% vs vertical machining center with multiple re-clamps.
Get More Details →
Product Specifications
| Specifications | Unit | MDL50 | MDL63 | MDL63A |
|---|---|---|---|---|
| X/Y/Z axis travel | mm | 800/800/630(Inline spindles) 800/800/610(electric spindle) | 800/800/630(Inline spindles) 800/800/600(electric spindle) | 1000/800/630 |
| X/Y/Z axis Max.rapid traverse | m/min | 54 | 40 | 40 |
| X/Y/Z axis feed speed | mm/min | 1~10000 | 1~10000 | 1~10000 |
| Spindle speed | rpm | 50~10000(Inline spindlesⅠ) 50~5000(Inline spindlesⅠ) 50~18000(electric spindle) | 50~6000(Inline spindles) 50~12000(electric spindle) | 50~6000(Inline spindles) |
| Spindle taper | mm | HSK63A | HSK100A | HSK100A |
| Spindle diameter | / | φ80 | φ100 | φ100 |
| Transmission type | / | Stepless | ||
| Spindle motor power | kw | 15/18.5(Inline spindles) 25/35(electric spindle) | 22/26(Inline spindles) 25/55(electric spindle) | 22/26 |
| Spindle lubrication | / | Oil and grease lubrication (Inline spindles) Oil-air lubrication (electric spindle) | Oil and grease lubrication(Inline spindles) Oil-air lubrication(electric spindle) | Oil and grease lubrication |
| Tool capacity | / | 24 | 28 | 28 |
| Tool selection | / | Randomization | Randomization | Randomization |
| Tool change time | s | 7(cut-cut)1.5(tool-tool) | 7(cut-cut)2.5(tool-tool) | 7(cut-cut)2.5(tool-tool) |
| Max.tool diameter | mm | φ75(empty space:φ150) | φ110(empty space:φ230) | φ110(empty space:φ230) |
| Max.tool length | mm | 360 | 390 | 390 |
| Max.tool weight | kg | 8 | 20 | 20 |
| Positioning Accuracy | mm | 0.008 | 0.008 | 0.008 |
| Repeat positioning accuracy | mm | 0.004 | 0.004 | 0.004 |
| Machine dimensions(L*W) | mm*mm | 2000×4800 | 2100×5050 | 2300×5050 |
| Net.weight | kg | 9000 | 11000 | 12000 |
| CNC system | / | FANUC 31i | FANUC 31i | FANUC 31i |
