φ620mm Swing · φ220mm Max Grinding · One-clamp bore & face grinding

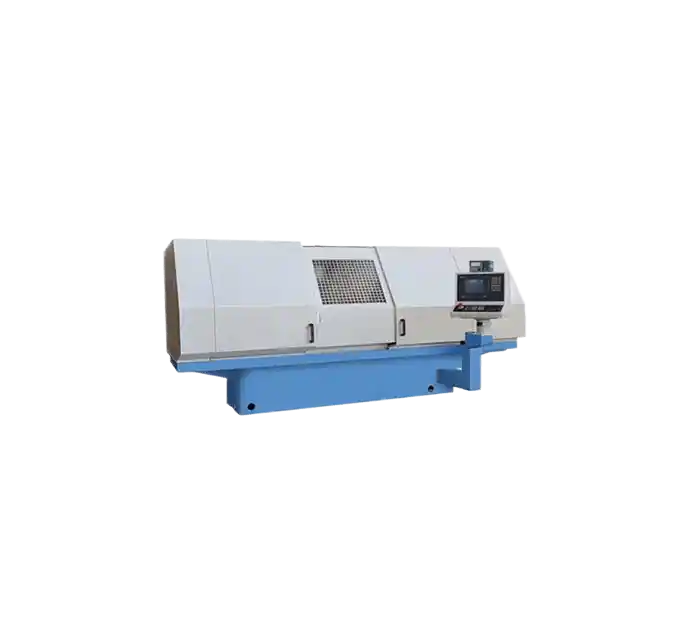

The MK2120 is a CNC turret internal grinding machine designed for efficient and high-accuracy inner bore finishing on medium to large-diameter components. Capable of handling holes from 20mm to 220mm in diameter and grinding up to 200mm in depth, this model is ideal for machining deep, precise bores with minimal setup time.

MK2120 Series

Regular maintenance

Spare parts supply

On-site installation service

Customized design

Key Features

● Wide Internal Grinding Range: 20–220mm. Accommodates both small precision holes and large industrial bores.

● Deep Bore Grinding: Up to 200mm. Allows for machining of long bushings, deep sleeves, and internal cylinders.

● Turret Tool System: Supports automatic switching between grinding heads or dressing tools to reduce downtime.

● CNC-Controlled Axes: Enables full automation of feed, positioning, and spark-out cycles for superior repeatability.

● High Rigidity + Thermal Stability: Ensures long-term dimensional accuracy under continuous production conditions.

Get More Details →

Recommended Configurations

● Workpiece Spindle & Clamping: Servo/variable frequency motor, pneumatic/hydraulic fixtures, centers or centerless support, optional cooling

● Feeding & Motion System: Servo motor, ball screw, precision rails, gap compensation

● Wheel Dressing System: Internal wheel dresser (single-point/roller/diamond), automatic cycle setting

● Cooling & Chip Removal: Cooling circulation, adjustable nozzles, filtration (magnetic separator + paper filter), chip conveyor

● Control & Automation: HMI touch screen, automatic loading/unloading

● Measurement & Compensation: Contact/laser probe, rotary encoder/displacement sensor

● Safety & Protection: Enclosed cover, interlock system, emergency stop, wheel protection, spark/dust protection

● Accessories & Options: Workpiece positioning stand, internal fixture, lighting, non-standard fixtures

Get More Details →

Application Case

● Client: Automotive Gear Manufacturer (Czech Republic).

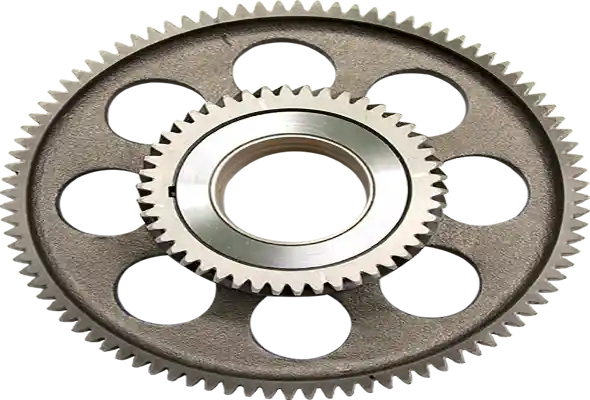

● Workpiece: Gear bores with 180mm ID, 150mm deep.

● Setup: MK2120 with dual turret heads, coolant tank, and Siemens CNC.

● Results: Achieved bore tolerance: IT5 level (≤±0.005mm), cycle time reduced by 28% with turret switching, bore roundness deviation: < 2μm, surface finish: Ra 0.4 μm.Client feedback: “Exceptional deep bore performance with reduced operator effort.”

Get More Details →

Specifications	Unit	MK2120
Grinding hole diameter	mm	20-220
Max.grinding depth	mm	200
Max.swinging over the table	mm	620
Max.table travel(Z-axis)	mm	600
Max.travel of the wheel head(X-axis)	mm	200
Max.speed of Z-axis	m/min	8
Max.speed of X-axis	m/min	5
Workpiece spindle speed	r/min	100～500
Bore roundness	mm	0.002
Cylindricity of bore	mm	0.004
Surface roughness of bore	μm	Ra0.32
Surface roughness of end face	μm	Ra0.63
Perpendicularity of end face to bore	μm	0.005
Max.turning angle of headstock	°	30
Total power of machine	kw	18
Machine weight	kg	4500
