14500 mm X-axis Travel • High Precision in Large Component Machining
The TK6920 CNC Floor Type Milling and Boring Machine is a versatile, high-performance solution for drilling, reaming, tapping, and milling. Ideal for heavy machinery, shipbuilding, and energy industries, it offers high precision, rigidity, and reliable performance with easy maintenance.
TK6920
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Multi-Process Capability： Handles a wide range of processes including drilling, reaming, milling, tapping, and more, offering high precision and efficiency in one machine.

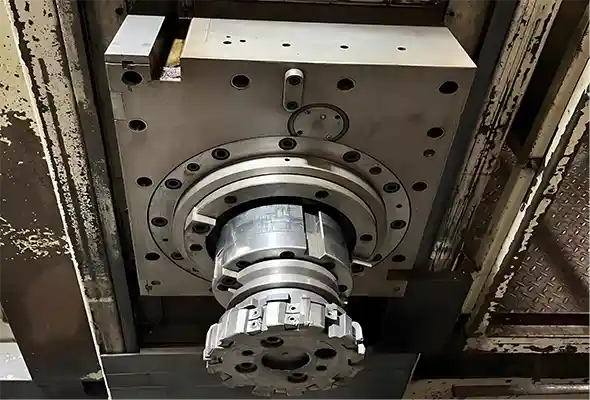

- ● High-Precision Boring Spindle： The 200mm diameter boring spindle with a maximum torque of 8000 Nm ensures stable, high-performance machining for large and complex parts.
- ● Large Column Travel (X-axis)： A generous 14500 mm column travel allows for the machining of large components with ease.
- ● Collaborative System Design： The integrated mechanical, electrical, and hydraulic systems ensure high efficiency, easy maintenance, and reliability.
- ● Tooling Flexibility： The machine supports multiple types of tool libraries and offers both automatic and manual angle milling heads, adaptable to various machining conditions.
- ● High Rigidity and Stability： Designed for heavy-duty applications, the machine’s structure provides high rigidity, ensuring minimal vibration and precise operation.
Get More Details →
Recommended Configurations
- ● Automatic Tool Library： Enhances productivity with efficient tool management and automatic tool changes.
- ● Angle Milling Heads： Provides flexibility for machining complex geometries with both automatic and manual configurations.
- ● Hydraulic Clamping System： Ensures secure and stable workpiece positioning during heavy-duty machining operations.
- ● Coolant and Lubrication System： Ensures efficient cooling and lubrication for extended tool life and enhanced machining accuracy.
- ● Rotary Table (Optional)： Enables multi-axis machining for more complex geometries, increasing the machine's flexibility.
Get More Details →
Application Case
- ● Client: Heavy Machinery Manufacturer – United Kingdom

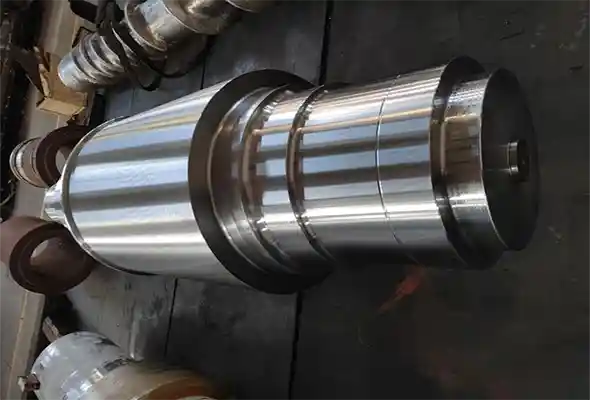

- ● Use Case: Machining of large engine components and heavy-duty shafts
- ● Setup: TK6920 CNC Floor Type Milling and Boring Machine with automatic tool library and hydraulic clamping system
- ● Results: • Precision: Achieved tolerances of ±0.01mm on large engine parts • Increased Productivity: Reduced machining time by 25% with multi-process capabilities and efficient tool management • Improved Workpiece Quality: Enhanced surface finish and reduced tool wear due to optimized cooling and stable spindle performance
- ● Client Feedback: "The TK6920 has significantly improved our machining capabilities. It provides exceptional precision and flexibility, which has streamlined our production processes."
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
The CNC Floor Type Milling and Boring Machine offers powerful machining capabilities, ideal for large and heavy workpieces. It has high stability and rigidity, suitable for precise milling and boring operations, especially for complex parts.
It is widely used in industries such as aerospace, shipbuilding, automotive, energy, and mold making. It is especially suited for machining large, high-precision parts such as shafts, flanges, and gears.
The machine offers a maximum processing diameter of up to 8000mm, a maximum workpiece height of 3000mm, and can handle workpieces weighing up to 50 tons, making it suitable for large and high-precision parts.
Equipped with an advanced CNC system and an intuitive interface, the machine is easy to operate. After training, operators can quickly master it and handle complex machining tasks.
Yes, the CNC Floor Type Milling and Boring Machine can be customized. Parameters such as spindle speed, motor power, and machining stroke can be adjusted to meet specific processing needs.
High rigidity design and precise CNC system, combined with high-quality components from renowned brands, ensure high precision and stability during machining.
Standard models are available for immediate delivery. Customized models typically have a delivery time of 30 to 45 working days.
We offer a one-year warranty with 24-hour technical support. Any issues during use can be addressed through remote support, phone consultations, or on-site service.
