1600 Nm Maximum Spindle Torque • High Precision in Boring & Milling
The HTC65 Series Horizontal Boring and Milling Machining Center is a high-performance, heavy-duty machine designed for precise boring, milling, and drilling of large workpieces, offering exceptional stability, high torque, and minimal vibration, making it ideal for aerospace, automotive, and machinery industries.
HTC65 Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● T-Shaped Moving Column Design： Provides high stability and rigidity, enhancing machining accuracy for large workpieces.

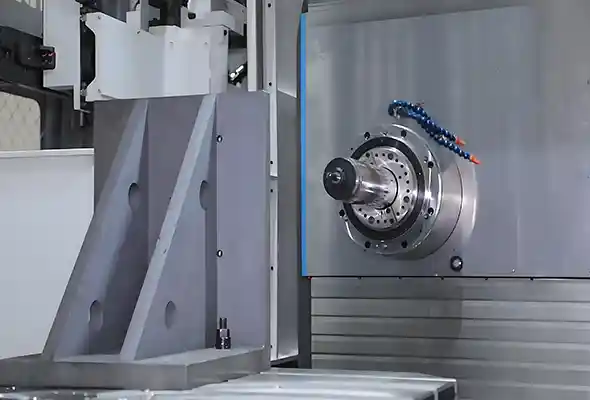

- ● Spindle with High Torque： The 110/130 boring bar serves as the main spindle, offering a maximum spindle torque of 1600 Nm for powerful machining capabilities.
- ● AC Servo Motor Drive： Ensures high performance and precise control over the spindle, optimizing machining efficiency.
- ● Heavy-Duty Linear Guides： Used on the Y and Z axes, these guides feature low friction, high sensitivity, and excellent vibration resistance.
- ● Reliable Tooling Mechanism： Tool grasping is achieved by closely fitting the tool with the spindle taper hole, ensuring stable and precise tool positioning.
- ● Spindle Orientation Function： Enables precise spindle alignment for accurate machining, improving overall machining efficiency.
Get More Details →
Recommended Configurations
- ● Automatic Tool Changer (ATC)： For efficient tool management and quick tool changes during machining.
- ● Rigid Coupling and Gearbox Transmission： Ensures high torque transmission and precision during machining operations.
- ● High-Precision Rotary Table (Optional)： For milling complex angles and increasing flexibility in multi-axis machining.
- ● Hydraulic Clamping System： Improves workpiece stability and ensures secure holding during high-speed operations.
- ● Cooling System： Provides optimal cooling for both the tool and workpiece, reducing thermal expansion and improving tool life.
Get More Details →
Application Case
- ● Client: Heavy Machinery Manufacturer – Germany

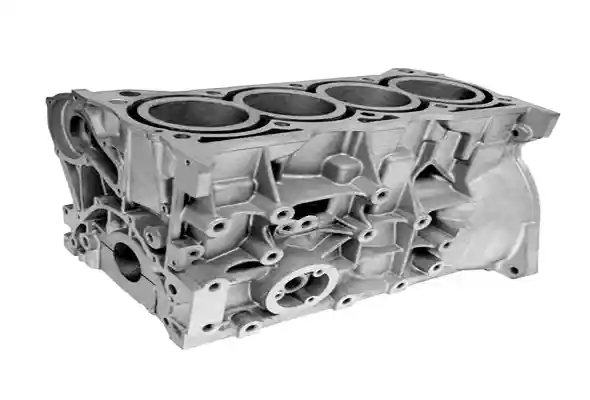

- ● Use Case: Machining of large machinery components (e.g., engine blocks, heavy-duty shafts)
- ● Setup: HTC65 Series with automatic tool changer, high-precision rotary table, and hydraulic clamping system
- ● Results: • Precision: Achieved tight tolerances of ±0.005mm for large machinery parts • Increased Productivity: Machining time reduced by 20% with efficient tool management and spindle drive system • Improved Workpiece Quality: Superior surface finish and minimal tool wear due to optimized cooling and precise spindle control
- ● Client Feedback: “The HTC65 has significantly boosted our production capacity and machining precision. The rigid design and powerful spindle motor allow us to handle even the most challenging parts with ease.”
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions

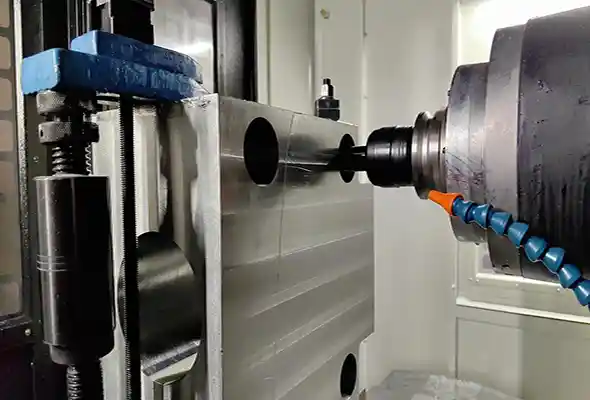

The Horizontal Boring and Milling Machining Center offers powerful machining capabilities, capable of performing high-precision boring, milling, and drilling operations. Its horizontal design provides stable clamping, making it ideal for large workpieces, improving both efficiency and precision.
It is widely used in industries such as aerospace, automotive, heavy machinery, and mold making. It is especially suitable for machining large and complex workpieces, such as flanges, gears, and shafts.
The machine provides large machining diameters and strokes, with a maximum processing diameter of up to 4000mm, suitable for machining large and high-precision parts.
Equipped with an advanced CNC system and an intuitive interface, the machine is easy to operate. After training, operators can quickly master its functions and handle complex machining tasks.
Yes, customization is available for spindle speed, motor power, machining stroke, and more to meet specific processing requirements and provide flexible machining solutions.
The machine ensures high precision through its rigid design, precise CNC system, and use of high-quality components, ensuring stability and accuracy during the machining process.
Standard models are available for quick delivery. Customized models typically have a delivery time of 30 to 45 working days.
We provide a one-year warranty with 24-hour technical support. Any issues during use can be addressed through remote support or on-site services.
