Boring Shaft Diameter: φ110mm · Max. Spindle Torque: 1225Nm · Table Size: 1100×960mm · Max. Table Load: 2500kg

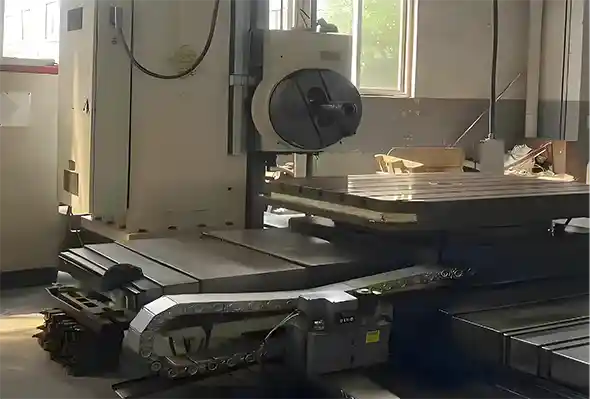

The TPX6111B is a single-column digital boring machine with a φ110mm boring shaft and high torque output (1225Nm), designed for precision boring and coordinate hole processing. With a stable 1100×960mm worktable, it supports 2500kg heavy workpieces and enables repetitive precision machining of parts requiring multi-position drilling, countersinking, and flat surface milling.
TPX6111B Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features

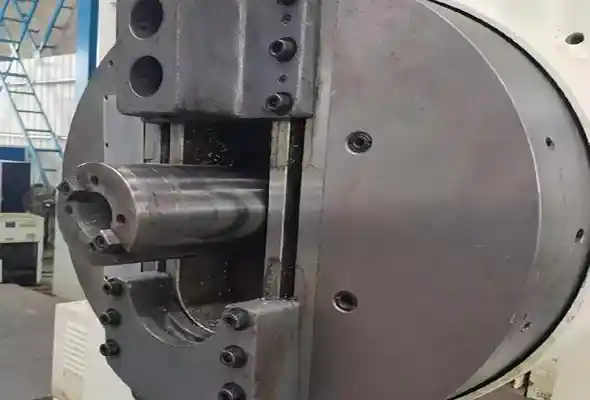

- ● φ110mm Boring Shaft with High Torque (1225Nm): Enables deep hole boring and large-diameter finishing with consistent force.
- ● Digital Positioning System (DRO-Compatible): Ensures coordinate accuracy in complex part layouts and multi-feature components.
- ● Heavy-Duty Table (1100×960mm, 2.5T Load): Suitable for medium-to-heavy assemblies including cast housings, jigs, and fixtures.
- ● Flexible Machining Modes: Supports boring, milling, spot facing, drilling, and threading with ease.
- ● Rigid Column and Feed System: Maintains stability and geometric precision during long machining cycles.
Get More Details →
Recommended Configurations
- ● DRO System (3- or 4-Axis)： Enables accurate coordinate boring and re-boring alignment.
- ● Facing Head Attachment： Allows face machining of flanges and stepped shoulders.
- ● Right-Angle Milling Head： Supports non-axial machining like side ports and side walls.
- ● Tool Presetter / Probe Kit： Speeds up setup and ensures accurate bore depth and position.
- ● Extended Boring Bar Set： Allows boring of deep pockets and high aspect-ratio holes.
Get More Details →
Application Case
- ● Client: Industrial Gearbox Repair Facility – Europe.
- ● Use Case: Coordinate boring of bolt holes and dowel pin seats in gearbox casings.
- ● Setup: TPX6111B with DRO + right-angle head for side ports.
- ● Results: Bore alignment deviation: ≤ ±0.02 mm, surface finish: Ra 1.6 µm with consistent concentricity, operator feedback: “The digital measurement makes repetitive multi-hole tasks simple and precise”.
Get More Details →
Product Specifications
| Specifications | Unit | TPX6111B | TPX6111B/2 | TPX6111B/3 | TPX6111C/3 |
|---|---|---|---|---|---|
| Boring shaft diameter | mm | 110 | 110 | 110 | 110 |
| Spindle taper hole | Morse No6(Optional ISO 7:24 No50) | ISO 7:24 No50 | |||
| Max.spindle torque | N.m | 1225 | 1225 | 1225 | 1250 |
| Max.flat disk torque | N.m | 1960 | 1960 | 1960 | 1960 |
| Max.spindle axial force | N | 12250 | 12250 | 12250 | 12250 |
| Max.spindle travel | mm | 600 | |||
| Spindle speed steps | 22 | 22 | 22 | stepless | |
| Spindle speed range | r/min | 8-1000 | 8-1000 | 8-1000 | 8-1100 |
| Flat disk slide travel | mm | 180 | 180 | 180 | 180 |
| Table size | mm | 1100×960 | 1100×960 | 1250×1100 | 1250×1100 |
| Max.table weight | kg | 2500 | 2500 | 3000 | 3000 |
| Max.distance from spindle centerline to table surface | mm | 900 | 900 | 1200 | 1200 |
| Table travel Vertical travel | mm | 1000 | 1000 | 1400(no rear column) | 1400(no rear column) |
| Table travelLateral travel | mm | 900 | 1250 | 1600 | 1600 |
| Feed speed | mm/min | 2500 | 2500 | 2500 | 2500 |
| Feed range | mm/r | 0.04-6/0.01-1.88 | 0.04-6/0.01-1.88 | 0.04-6/0.01-1.88 | 0.04-6/0.01-1.88 |
| Slide feed range | 0.32-2500 | ||||
| Main motor power | kW | 7.5 | 7.5 | 7.5 | 15 |
| Machine size(L×W×H) | mm | 4910*2454*2750 | 4910*2870*2750 | 5120*3380*3100 | 5120*3380*3100 |
| Machine weight | kg | 13000 | 14500 | 18000 | 18000 |
