Wide swing capacity • High-torque face cutting • Optimized spindle box • Servo-driven tool carriage

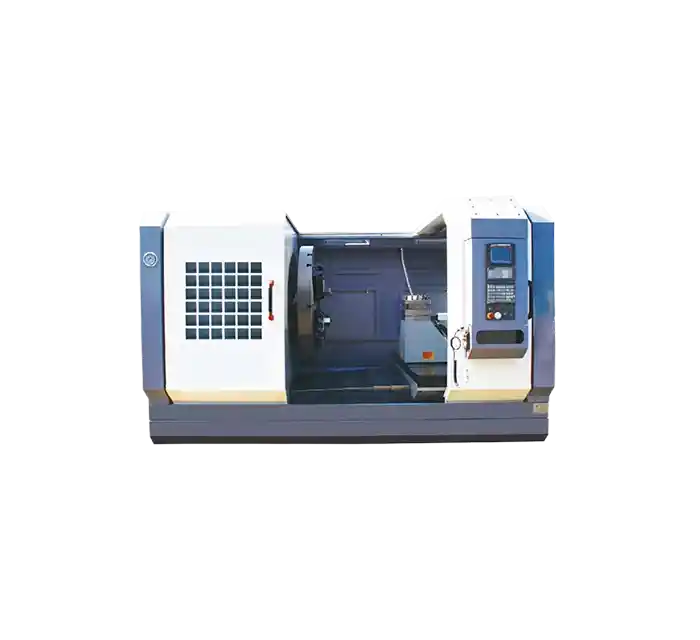

The CK64 Series CNC Face Heavy Duty Lathe is designed for precise turning of short, large-diameter parts like discs and rings, ideal for heavy-duty face and cylindrical machining. Its compact build, optimized spindle, and automation deliver stable cutting and high accuracy for industries like rail, energy, and heavy equipment.
CK64 Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Optimized Spindle Box Design: Developed through advanced 3D modeling and dynamic simulation, the redesigned spindle box enables smoother gear shifting, enhanced operational stability, and a broader speed range to accommodate diverse cutting applications.
- ● Advanced Automation System: Featuring integrated frequency converter and servo motor technology, the automated tool movement system minimizes manual intervention, improves repeatable positioning accuracy, and enhances safety by reducing machine downtime.
- ● High Load-Bearing Capacity: With a maximum swing of up to 2500 mm and load capacity reaching 3 tons, the CK64 Series is capable of machining large face-type components with high rigidity and efficient material removal.
- ● Enhanced Safety and Reliability: A simplified electronic system paired with precise servo control reduces failure rates and enhances user experience through intuitive operation panels and interlock protections.
Get More Details →

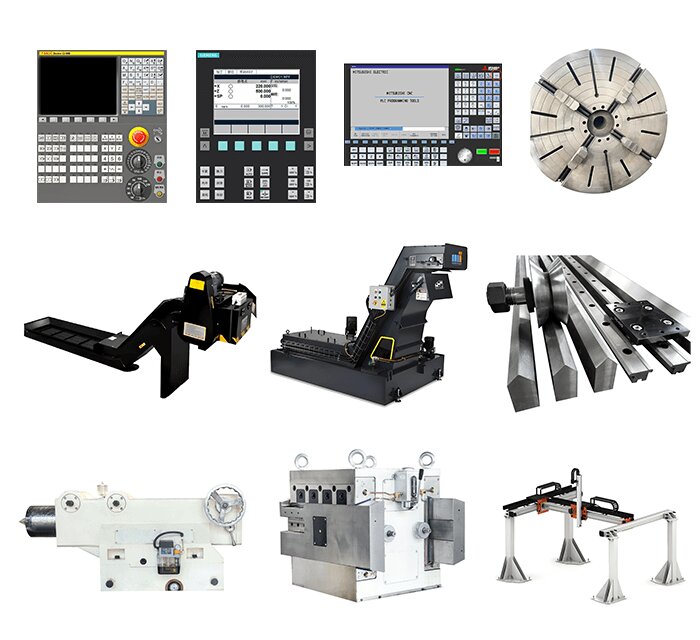

Recommended Configurations
- ● Spindle System: High-torque Spindle, High-power Spindle, Center Water Outlet Spindle
- ● Feed System: High-precision Servo Motor, Stepper Motor, Heavy-duty Square Linear Guides
- ● Cooling System: Centrifugal Pump, Vibration Pump, Water-soluble Coolant, Oil-based Coolant
- ● CNC Control System: High-performance CNC System (FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi, etc.)
- ● Tooling System: Large Square Ram Tool Holder, Turret Tooling System, Electric Turret, Large-size Tool Holding System
- ● Tooling System: Large Square Ram Tool Holder, Turret Tooling System, Electric Turret, Large-size Tool Holding System
- ● Other Configurations: Lubricated Manual Tailstock, Strong Magnetic Chain-type Chip Conveyor, Automated Loading/Unloading Gantry
Get More Details →
Application Case
- ● Client: Power Equipment Manufacturer – Germany

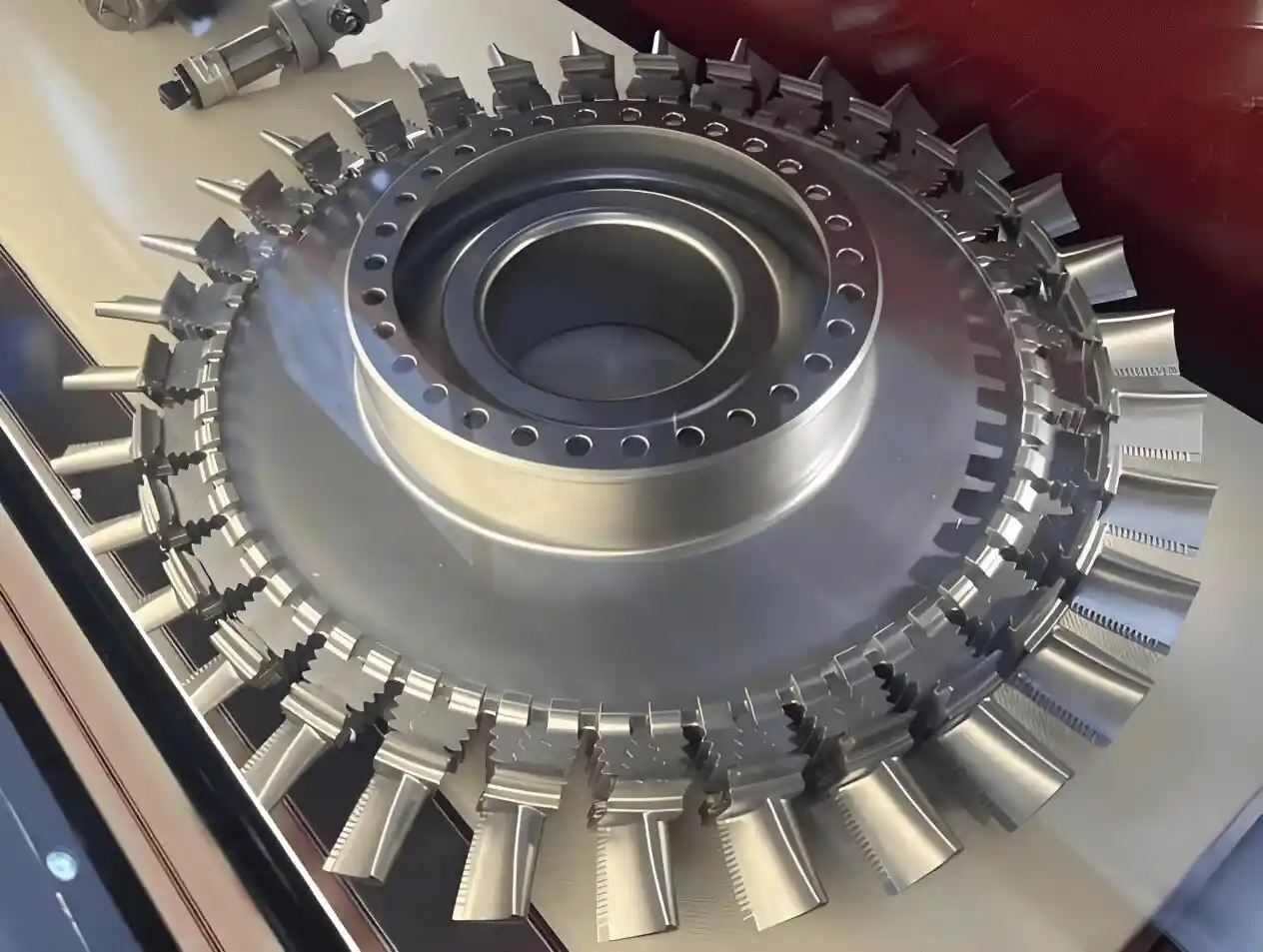

- ● Use Case: High-precision turning of turbine disc faces
- ● Setup: CK641600 with 4-station electric turret and servo spindle system
- ● Results: • Accuracy: Maintained dimensional tolerance within ±0.01 mm across 800 mm faces • Cycle Time Reduction: 25% improvement with integrated toolpath control • Operational Uptime: 98.5% over 6 months of continuous operation
- ● Client Feedback: “The CK64 lathe has proven indispensable for our large face components—stable, accurate, and highly automated.”
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
Minnuo cnc heavy duty lathes are designed for large, long, and heavy components, such as wind turbine shafts, marine propeller shafts, large rollers, pressure vessel flanges, and oil drilling equipment. These machines are ideal for industries like energy, marine, aerospace, and heavy machinery.
Our standard heavy duty cnc lathe machines can handle turning diameters up to 2,000 mm, lengths up to 10,000 mm, and load capacities over 15 tons. Custom models can be configured for even larger sizes and heavier components.
Minnuo heavy duty cnc lathes feature one-piece cast iron beds, extra-wide guideways, large spindle bores, and reinforced tailstocks. These structural features ensure exceptional rigidity and vibration absorption during heavy cutting operations.
Yes! Just send us your part drawings or specifications, and Minnuo’s engineering team will recommend the suitable heavy duty lathe model within 10 minutes. For full production lines, we will provide a tailored solution within 5 working days.
Absolutely! We offer customizations including bed length, spindle bore diameter, main spindle power, chuck size, and steady rest options, as well as integration with automation systems to meet your exact processing needs.
Each machine is manufactured using premium processing equipment, with precision hand scraping of contact surfaces, and undergoes dynamic balancing tests, laser alignment checks, and full-function dry runs before shipment. Inspection reports are delivered with the machine.
Standard models can be delivered within 15–20 working days. For large or fully customized machines, the delivery time is usually 30–60 working days, depending on complexity and workload.
We offer a one-year warranty, with 24/7 technical support. Our service team provides remote video diagnostics, phone consultations, and on-site assistance to solve any issues quickly. Spare parts support is guaranteed for 10+ years after purchase.
As a professional heavy duty lathe machine manufacturer, Minnuo offers direct factory sales. We will provide the most suitable quotation according to customers' requirements to ensure the highest cost - performance ratio.
