Wide-span guideways • Floor-mounted structure • Heavy-load low-speed turning
CNC Heavy Duty Flange Lathe CK60 series is a traditional floor lathe, which can be mainly used for all kinds of turning work, and is capable of turning the end face, outer circle and taper of all kinds of parts. The machine tool has the features of strong rigidity, high efficiency, energy saving, safety and reliability, easy operation and beautiful modelling.
CK60 Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Wide-Span Rectangular Base Rail: The lathe features a wide-span rectangular guideway base with high rigidity, offering excellent load-bearing capacity and ensuring stable cutting under low spindle speeds and high cutting forces.
- ● Mountain-Type Guideway Structure: The headstock and cross bed are integrated on a single reinforced base, with the spindle axis positioned perpendicular to the tool carriage travel. This configuration enhances cross-feed smoothness and structural rigidity, especially for long workpieces.
- ● Variable-Speed Spindle Drive: Fitted with a frequency-controlled spindle motor, the CK60 Series enables stepless speed adjustment. This allows optimal spindle tuning for different materials and tools, enhancing cutting efficiency and extending tool life.
- ● Manual Cross-Slide Adjustability: The manually adjustable cross-slide supports flexible setup for large workpieces while minimizing vibration transfer from the spindle to the pallet, ensuring machining stability.
Get More Details →

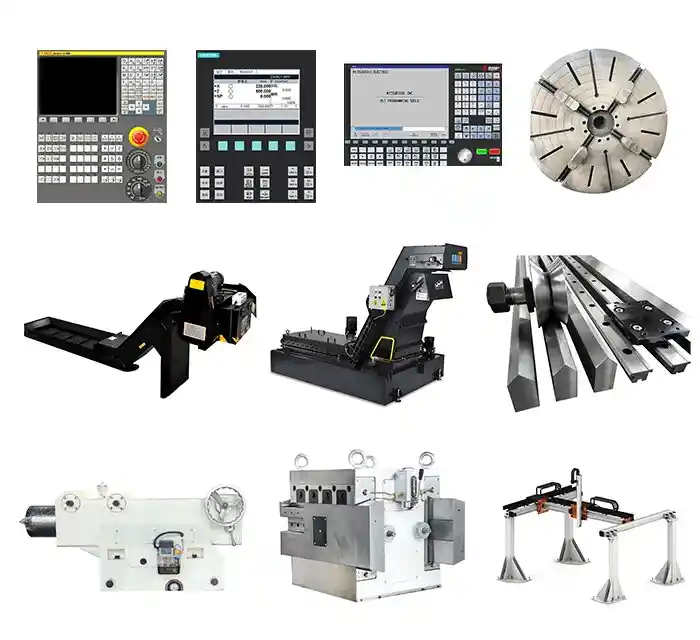

Recommended Configurations
- ● Spindle System: High-torque Spindle, High-power Spindle, Center Water Outlet Spindle
- ● Feed System: High-precision Servo Motor, Stepper Motor, Heavy-duty Square Linear Guides
- ● Cooling System: Centrifugal Pump, Vibration Pump, Water-soluble Coolant, Oil-based Coolant
- ● Cooling System: Centrifugal Pump, Vibration Pump, Water-soluble Coolant, Oil-based Coolant
- ● Tooling System: Large Square Ram Tool Holder, Turret Tooling System, Electric Turret, Large-size Tool Holding System
- ● Measurement and Monitoring: Heidenhain Linear Scales, Tool Breakage Detection System, Renishaw OMP60 Workpiece Probe, Renishaw TS27R Tool Setting Probe
- ● Other Configurations: Lubricated Manual Tailstock, Strong Magnetic Chain-type Chip Conveyor, Automated Loading/Unloading Gantry
Get More Details →
Application Case
- ● Client: Large Flange Manufacturer – Eastern Europe

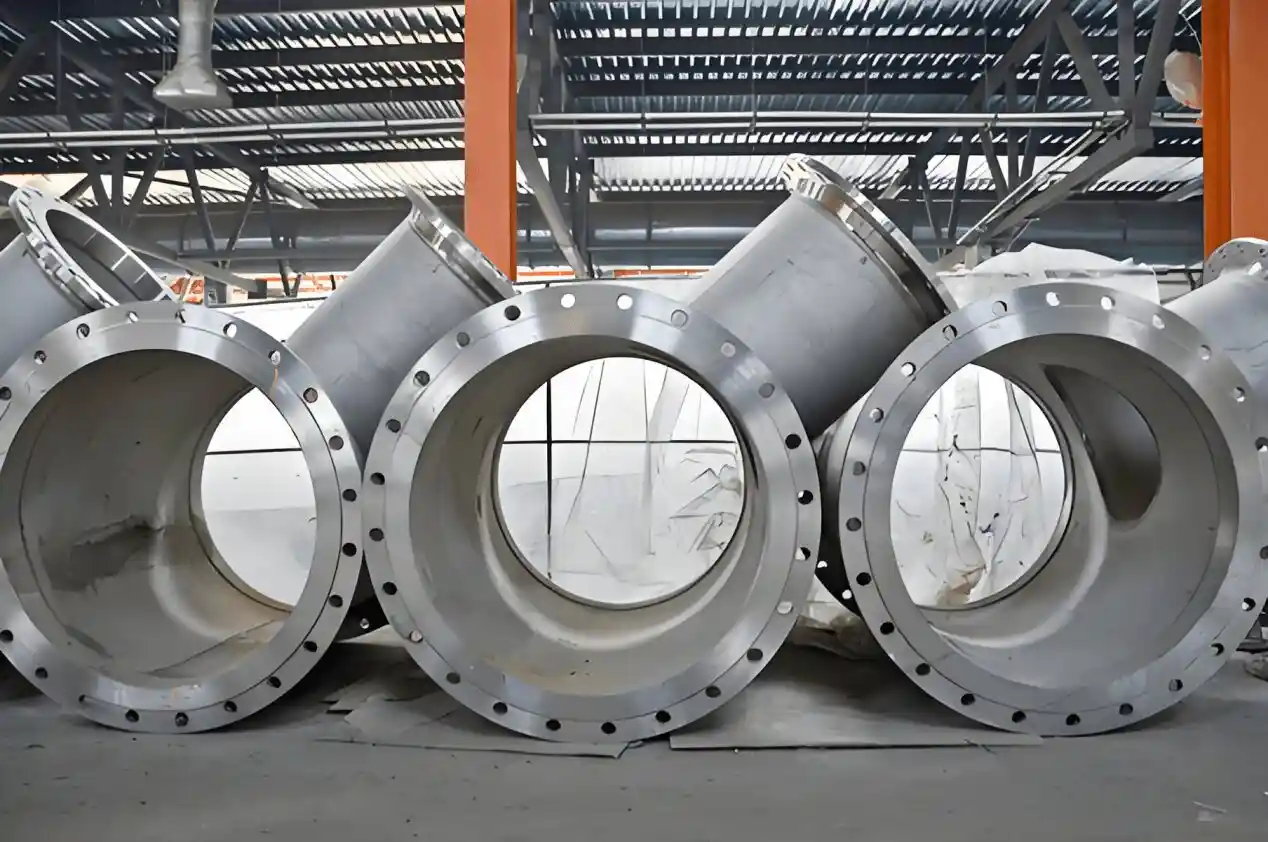

- ● Use Case: Rough and finish turning of 2500 mm steel pipeline flanges
- ● Setup: CK602500 with hydraulic chuck, chip conveyor, and tool setter
- ● Results: • Accuracy: Maintained concentricity within ±0.015 mm • Cycle Time: Reduced by 22% using stepless speed optimization • Tool Life: Improved by 35% due to adaptive speed control
- ● Client Feedback: “The CK60 lathe gives us rock-solid stability for heavy flange turning and the flexibility to handle a variety of diameters—all with minimal downtime.”
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
Minnuo cnc heavy duty lathes are designed for large, long, and heavy components, such as wind turbine shafts, marine propeller shafts, large rollers, pressure vessel flanges, and oil drilling equipment. These machines are ideal for industries like energy, marine, aerospace, and heavy machinery.
Our standard heavy duty lathes can handle turning diameters up to 2,000 mm, lengths up to 10,000 mm, and load capacities over 15 tons. Custom models can be configured for even larger sizes and heavier components.
Minnuo cnc heavy duty lathes feature one-piece cast iron beds, extra-wide guideways, large spindle bores, and reinforced tailstocks. These structural features ensure exceptional rigidity and vibration absorption during heavy cutting operations.
Yes! Just send us your part drawings or specifications, and Minnuo’s engineering team will recommend the suitable heavy duty lathe model within 10 minutes. For full production lines, we will provide a tailored solution within 5 working days.
Absolutely! We offer customizations including bed length, spindle bore diameter, main spindle power, chuck size, and steady rest options, as well as integration with automation systems to meet your exact processing needs.
Each machine is manufactured using premium processing equipment, with precision hand scraping of contact surfaces, and undergoes dynamic balancing tests, laser alignment checks, and full-function dry runs before shipment. Inspection reports are delivered with the machine.
Standard models can be delivered within 15–20 working days. For large or fully customized machines, the delivery time is usually 30–60 working days, depending on complexity and workload.
We offer a one-year warranty, with 24/7 technical support. Our service team provides remote video diagnostics, phone consultations, and on-site assistance to solve any issues quickly. Spare parts support is guaranteed for 10+ years after purchase.
