High-load capacity • Full-length roller turning • DRO precision feedback • Four-guideway bed
The CX84 Series is a heavy-duty roll turning lathe with digital readout, designed for precise machining of industrial rollers in one setup. Its rigid structure and DRO system enhance accuracy and efficiency, making it ideal for metallurgical, paper, and rubber industries.
CX84 Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● High-Rigidity Structural Design: The machine bed adopts an integral four-guideway structure with a wide span, ensuring outstanding stiffness and resistance to deformation. The rectangular transverse guideway, combined with a frame-type tool carriage and fixed tool post, offers optimal rigidity—especially suited for over-center turning operations.
- ● Precision Spindle Assembly: Equipped with double-row short cylindrical roller bearings and adjustable radial clearance, the main spindle delivers high rigidity, smooth rotation, and consistent precision even under heavy-duty cutting of large-diameter rollers.
- ● Efficient Lubrication & Protection: A centralized lubrication system supplies metered oil directly to key guideways and movement interfaces. Stainless steel protective covers on both longitudinal and transverse axes preserve motion accuracy and reduce long-term maintenance needs.
- ● Digital Readout (DRO) Integration: The integrated high-resolution DRO system allows real-time monitoring and fine adjustment of axis movement, minimizing setup time and improving precision for both rough and finish turning tasks.
Get More Details →
Recommended Configurations
- ● Spindle System: High-torque Spindle, High-power Spindle, Center Water Outlet Spindle
- ● Feed System: High-precision Servo Motor, Stepper Motor, Heavy-duty Square Linear Guides
- ● Cooling System: Centrifugal Pump, Vibration Pump, Water-soluble Coolant, Oil-based Coolant
- ● CNC Control System: High-performance CNC System (FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi, etc.)
- ● Tooling System: Large Square Ram Tool Holder, Turret Tooling System, Electric Turret, Large-size Tool Holding System
- ● Measurement and Monitoring: Heidenhain Linear Scales, Tool Breakage Detection System, Renishaw OMP60 Workpiece Probe, Renishaw TS27R Tool Setting Probe
- ● Other Configurations: Lubricated Manual Tailstock, Strong Magnetic Chain-type Chip Conveyor, Automated Loading/Unloading Gantry
Get More Details →
Application Case
- ● Client: Integrated Steel Plant – South Korea

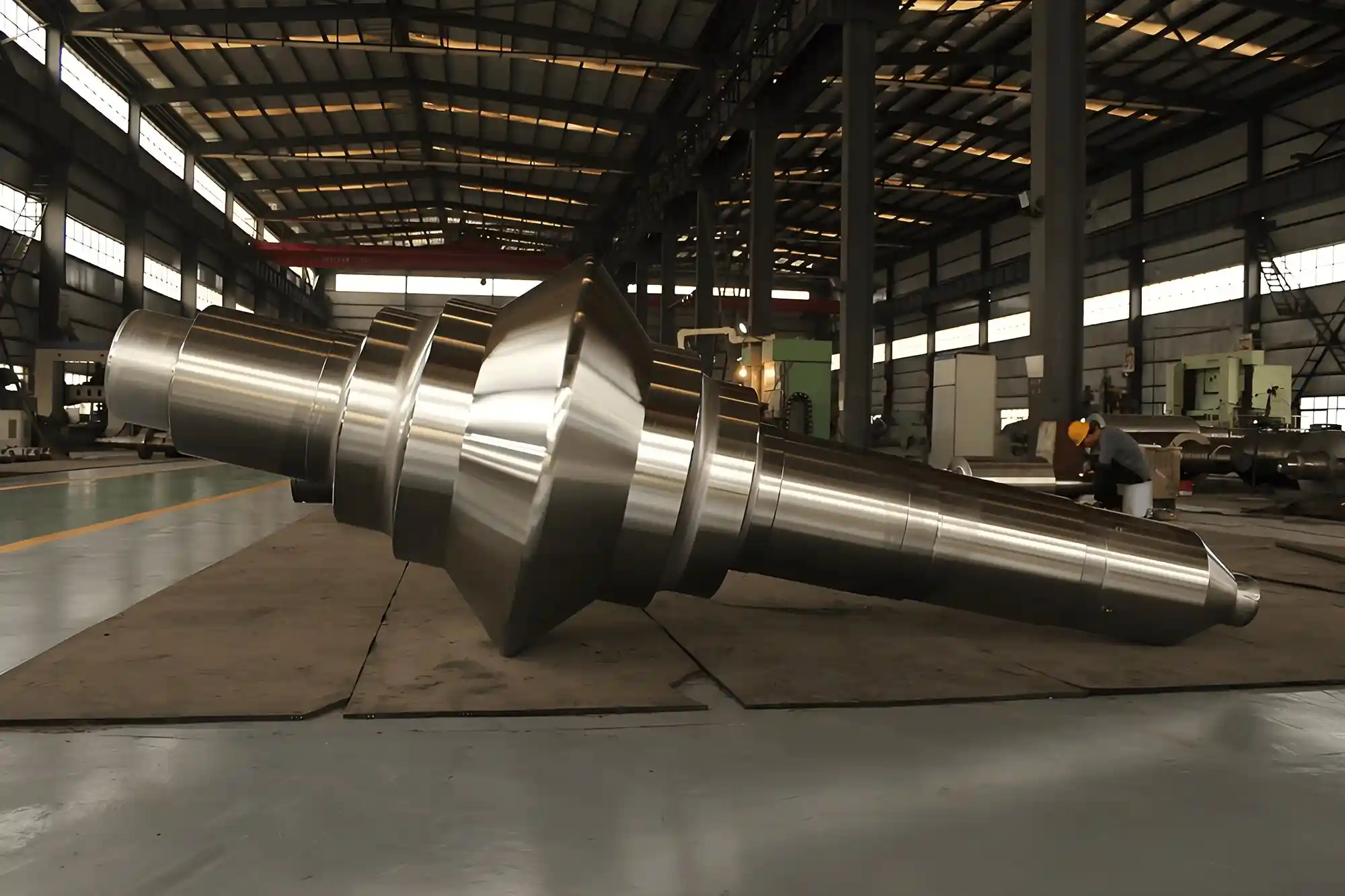

- ● Use Case: Complete machining and reconditioning of hot strip mill work rolls (Ø1000 mm × 5500 mm)
- ● Setup: CX841000 with DRO, custom carbide tool holders, hydraulic steady rests
- ● Results: • Tolerance Achieved: ±0.02 mm over full roller length • Cycle Time: Reduced by 28% vs. previous semi-manual process • Surface Finish: Improved to Ra ≤ 1.0 µm with precision tool path control
- ● Client Feedback: “The CX84 lathe’s structure and digital system helped us consolidate our roughing and finishing operations into one pass, boosting productivity while maintaining strict quality standards.”
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
Minnuo heavy duty precision lathes are designed for large, long, and heavy components, such as wind turbine shafts, marine propeller shafts, large rollers, pressure vessel flanges, and oil drilling equipment. These machines are ideal for industries like energy, marine, aerospace, and heavy machinery.
Our standard heavy duty lathe machines can handle turning diameters up to 2,000 mm, lengths up to 10,000 mm, and load capacities over 15 tons. Custom models can be configured for even larger sizes and heavier components.
Minnuo heavy duty lathes feature one-piece cast iron beds, extra-wide guideways, large spindle bores, and reinforced tailstocks. These structural features ensure exceptional rigidity and vibration absorption during heavy cutting operations.
Yes! Just send us your part drawings or specifications, and Minnuo’s engineering team will recommend the suitable heavy duty lathe model within 10 minutes. For full production lines, we will provide a tailored solution within 5 working days.
Absolutely! We offer customizations including bed length, spindle bore diameter, main spindle power, chuck size, and steady rest options, as well as integration with automation systems to meet your exact processing needs.
Each machine is manufactured using premium processing equipment, with precision hand scraping of contact surfaces, and undergoes dynamic balancing tests, laser alignment checks, and full-function dry runs before shipment. Inspection reports are delivered with the machine.
Standard models can be delivered within 15–20 working days. For large or fully customized machines, the delivery time is usually 30–60 working days, depending on complexity and workload.
We offer a one-year warranty, with 24/7 technical support. Our service team provides remote video diagnostics, phone consultations, and on-site assistance to solve any issues quickly. Spare parts support is guaranteed for 10+ years after purchase.
As a professional heavy duty lathe machine manufacturer, Minnuo offers direct factory sales. We will provide the most suitable quotation according to customers' requirements to ensure the highest cost - performance ratio.
