Bench Size: 1700×400mm · X/Y/Z Travel: 1600 / 500 / 300mm · Max Load: 450kg · Spindle Speed: 20,000 rpm

The TC-1600 Series is a high-speed vertical CNC drilling and tapping center designed for fast-cycle machining of small to mid-size workpieces. With a powerful 20,000 rpm spindle, 1600mm X-axis travel, and robust 450kg load capacity, this machine delivers both agility and accuracy, enabling efficient multi-hole drilling, blind hole tapping, and pocket contouring in aluminum, copper, and engineering plastics.

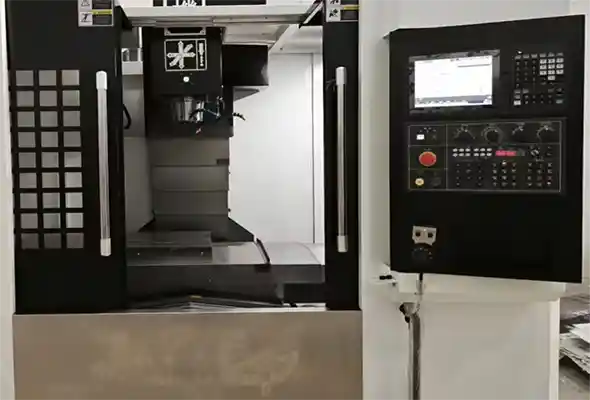

TC-1600 Series

Regular maintenance

Spare parts supply

On-site installation service

Customized design

Key Features

● 20,000 RPM High-Speed Spindle: Enables ultra-fast drilling and threading with reduced cycle times and burr-free edges.

● Extended X-Axis Travel: 1600mm, suitable for long parts or multi-station fixtures, increasing work efficiency.

● Compact Y/Z Stroke: 500/300mm, ideal for flat or low-profile components with complex hole patterns.

● 450kg Load Table: Provides stable support for multiple parts or heavy aluminum profiles.

● Servo-Controlled Axis Motion: Ensures accurate feed control, allowing for fine tool engagement and positioning.

Get More Details →

Recommended Configurations

● Automatic Tool Changer (ATC)： Reduces non-cutting time, improves multitool productivity.

● Dual-Pallet System： Enables non-stop production through part loading while machining.

● Oil-Mist or Water-Coolant System： Extends tool life and ensures thermal stability during high-speed tapping.

● Renishaw Tool Presetter / Probe： Automates tool length and part alignment for reduced setup error.

● Anti-Vibration Mounts： Improve accuracy and machine longevity during continuous high-speed operation.

Get More Details →

Application Case

● Client: Precision Electronics Manufacturer – South Korea.

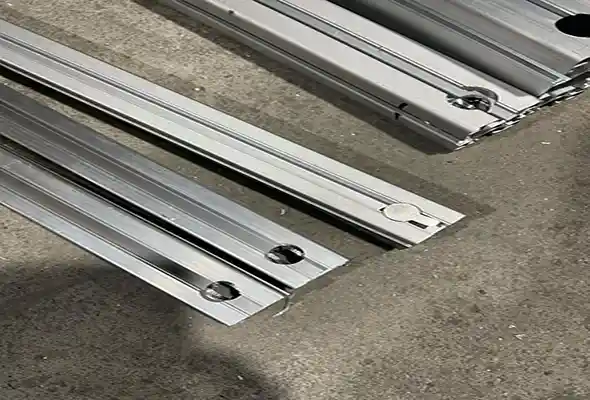

● Use Case: High-speed drilling and tapping of 3C product aluminum frames.

● Setup: TC-1600 with ATC, dual-pallet, and coolant mist system.

● Results: Average part cycle time: 35% reduction, hole roundness within ±0.01 mm, tapping thread fully formed, client feedback: “Exceptional output for mid-volume 3C production with no overheating or chatter.”

Get More Details →

Name		Unit	Parameter
Range of work	Triaxial stroke(X/Y/Z)	mm	1600/500/300
	The distance from the spindle center line to the column guide rail surface	mm	516
	The distance from the main nose to the working top	mm	150~450
Workingbench	Bench size(length and width)	mm	1700×400
	Maximum carrying capacity	kg	450
	T-type groove(slot number,slot width spacing)		3×14×121
principal axis	main shaft speed	rpm	20000
	taper hole of spindle		BT30/BT40
	Power of spindle motor	KW	5.5/7.5
Speed	Fast moving speed(X/Y/Z axis)	m/min	30/48/48
Speed	Cut into give speed	m/min	10/10/10
Tool magazine	Number of knives	grasp	21
	Tool maximum diameter/length/weight of		φ60mm/200mm/3kg
	Maximum diameter(full/adjacent)	mm	60/80
Machine tool accuracy	Positioning accuracy(X/Y/Z)	mm	0.008
Machine tool accuracy	Repeat positioning accuracy(X/Y/Z)	mm	0.005
Else	Gas source/air pressure		280L/min 6~8bar
	Total electrical capacity of the machine tool	KVA	15
	Water tank volume	L	160
	Machine Exsize(XYZ)	mm	3850×2620×2370
	Machine tool weight(approx.)	kg	4100
