φ800mm Rotary Diameter · 800mm Max Machining Height · 1500mm Max Processing Length

The SXH800CNC is the flagship model in the SXH Series, designed for oversized non-metal cutting applications. With a remarkable 800mm rotary diameter, 800mm vertical cutting height, and 1500mm maximum processing length, it is purpose-built for large-format graphite shaping, advanced ceramics machining, and insulation component fabrication.

CNC Abrasive Wire Cutting Machine SXH800

Regular maintenance

Spare parts supply

On-site installation service

Customized design

Key Features

● Massive 800mm rotary diameter for extra-large block machining.

● 800mm cutting height supports tall graphite or ceramic parts.

● 1500mm processing length ideal for long insulation panels and graphite electrodes.

● CNC-controlled motion system ensures precise toolpath control and repeatability.

● Abrasive-coated wire provides cold, stable cuts with minimal chipping or deformation.

Get More Details →

Recommended Configurations

● Dust extraction system: Maintains clean environment and protects electronics during graphite machining.

● Reinforced rotary table: Supports heavy workpieces with indexing for better profile accessibility.

● Wire breakage auto-detect unit: Reduces downtime and alerts operator immediately.

● Large-capacity flushing system: Enables wet cutting of ceramic and quartz materials.

● Anti-vibration machine base: Enhances overall cutting precision for tall or wide structures.

● Path optimizer software module: Automatically adjusts feed and speed based on geometry complexity.

Get More Details →

Application Case

● Client: High-temperature Component Fabricator – South Korea.

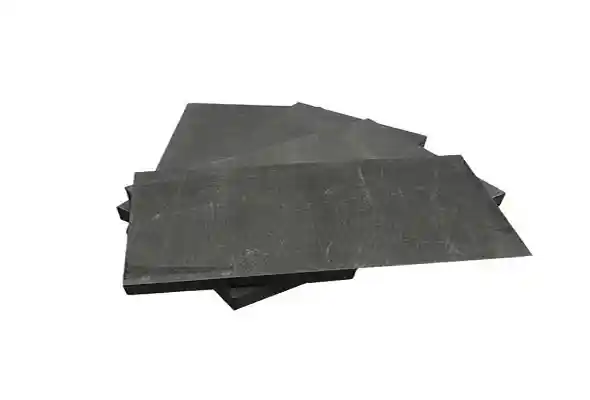

● Use Case: Cutting oversized graphite insulation panels and heating element enclosures.

● Setup: SXH800CNC with custom large-bed fixture, abrasive wire φ0.25mm, dry cutting with negative-pressure dust control.

● Results:Dimensional tolerance: ≤ ±0.018 mm ,Surface quality: Ra ≤ 2.0 μm, with no chipping on panel edges ,Output: Large graphite panel production doubled compared to manual milling,Client feedback: “This machine handles our largest blocks with incredible consistency—there’s no alternative for this scale of fragile material.”

Get More Details →

Model	Unit	SXH450CNC	SXH630CNC	SXH800CNC
Max.rotary diameter	mm	450	630	800
Max.machining height	mm	350	600	800
Max.processing length	mm	600	1400	1500
Number of grinding wheel grooves		4
Spindle speed range	rpm	0-5000
Spindle motor power	KW	2.2	3	3
Spindle motor type		Frequency conversion/servo
Diameter of wire guide wheel	mm	220	300	350
X-axis travel	mm	450	630	800
Y-axis travel	mm	600	1400	1500
XY axis drive		servo
X-axis travel speed	m/min	6
Y-direction travel speed	m/min	6
Min.setting unit for X direction	mm	0.001	0.001	0.001
Min.setting unit for Y direction	mm	0.001	0.001	0.001
Repeat positioning accuracy	mm	X axis:0.012Y axis:0.016	X axis:0.012Y axis:0.016	X axis:0.012Y axis:0.016
Precision Pneumatic Tensioning		air pressure control
Air source	Mp	0.6
Power source		AC380V 50Hz
Power of the whole machine	KW	4	7	7.5
Servo motor	NM	X axis:7.16	X axis:21.5	X axis:21.5
Output torque	NM	Y axis:7.16	Y axis:28.6	Y axis:28.6
CNC System		Weihong NC60C
Ordinary CNC sanding line system		XUL/HL
Weight	KG	2300	5200	2800
Dimension	mm	1800×1800×1450	3520×2000×2000	2400×1800×1850

MN CATALOG.pdf

Frequently Asked Questions

1、What types of materials are suitable for CNC abrasive wire cutting machines?

Minnuo’s CNC abrasive wire cutting machines are ideal for hard and brittle materials such as sapphire, silicon wafers, silicon carbide, ceramics, quartz, magnetic materials, and rare metals.

2、What is the working principle of abrasive wire cutting?

A diamond-coated or abrasive wire continuously moves through the workpiece under controlled tension, achieving precise material removal by micro-grinding action, ideal for high-precision, low-damage cutting.

3、What machining accuracy and surface finish can be achieved?

Our machines achieve cutting accuracy within ±0.01–0.02 mm, and surface roughness Ra 0.4–0.8 μm, depending on material properties and cutting parameters.

4、 Can you recommend a model if I provide material type and thickness?

Absolutely! Just send us your material type, block size, required cut thickness, and tolerance, and Minnuo’s engineers will recommend the best abrasive wire cutting machine within 10 minutes.

5、Can your machines be customized?

Yes! We offer customizations including cutting stroke (X/Y/Z), maximum workpiece size, wire type (single wire/double wire), tension control system, and CNC system brand based on customer requirements.

6、How do you ensure machining precision and wire stability?

Minnuo machines feature high-stability tension control, servo-driven wire feeding, constant wire speed regulation, and are calibrated with laser interferometer and precision measuring instruments before shipment.

7、What is the delivery time for CNC abrasive wire cutting machines?

Standard models are delivered within 30–45 working days. Customized or high-end versions usually require 45–60 working days.

8、What after-sales services are provided?

Minnuo provides a one-year warranty, 24/7 technical support, remote online guidance, on-site commissioning services, and long-term spare parts support.
