X-Axis Travel: 4200 mm · Y-Axis Travel: 2500 mm · Z-Axis Travel: 1000 mm

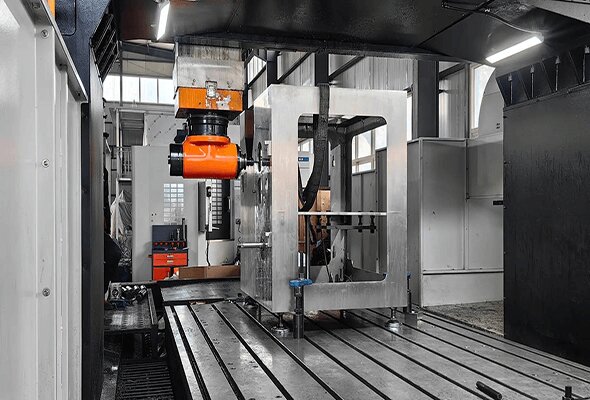

The XH4022 Moving Table Gantry Machining Center is engineered to deliver high-precision machining in demanding applications. With an expansive travel range and robust design, it ensures reliable performance for large-scale production, including industries like automotive, aerospace, and heavy manufacturing.
XH2014/XH6022
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Extended Machining Capacity With 4200 mm of X-axis travel, this machine accommodates larger workpieces, making it suitable for a range of industrial applications.
- ● Superior Stability The robust design reduces vibrations, ensuring high-precision results even during heavy-duty operations.
- ● High-Speed Spindle Operates at speeds up to 6000 rpm, enabling quick and efficient material removal.
- ● Versatile Processing Capable of machining a wide variety of materials, including metals, composites, and alloys, for diverse manufacturing needs.
- ● Advanced Control Systems Intuitive CNC control enhances machining accuracy and overall operational efficiency.
Get More Details →
Recommended Configurations

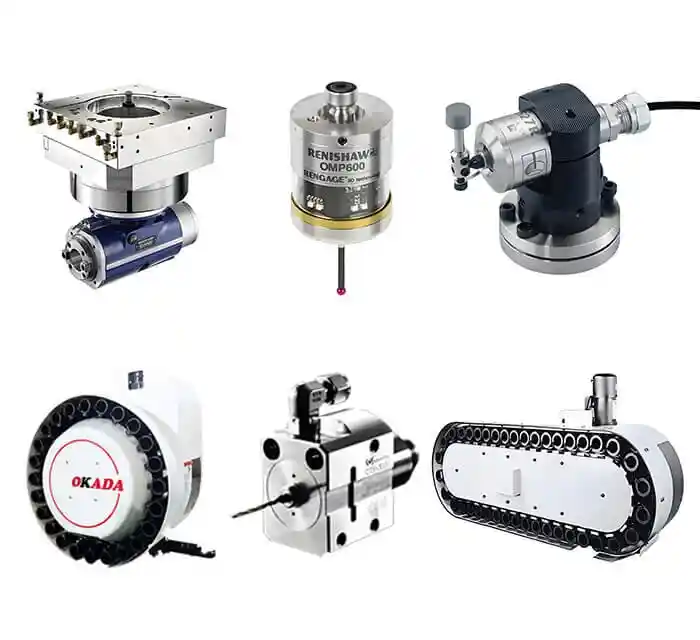

- ● Spindle: High-precision spindle (SKF, NSK), high-speed spindle, air-cooled/water-cooled spindle
- ● CNC Control System: High-performance CNC systems (FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi, etc.)
- ● Fixtures: Magnetic chuck, V-type fixture, fixed worktable fixture
- ● Drive System: Servo motor drive, linear motor drive, dual-drive system
- ● Tool System: 40-tool chain-type tool magazine, Taiwan-made 24-tool magazine, automatic head changing system
- ● Cooling System: High-pressure cooling system, built-in cooling system, mist cooling system, automatic cutting fluid supply system
- ● Other Configurations: Screw chip conveyor, magnetic hinged belt chip conveyor, gantry loader, Renishaw OMP60 workpiece probe, Renishaw TS27R contact tool setter
Get More Details →
Application Case
- ● Client: Leading Heavy Machinery Manufacturer – Germany

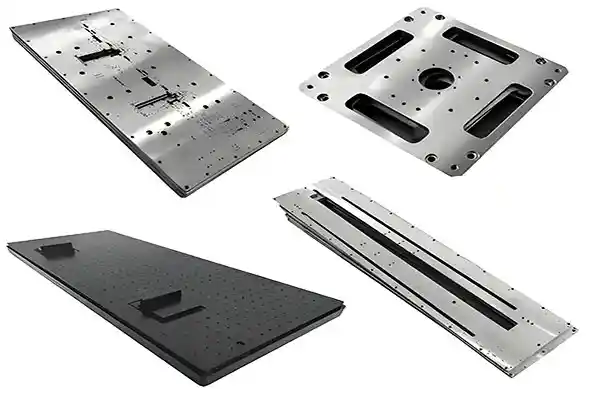

- ● Use Case: Machining large-scale parts for industrial machinery
- ● Setup: XH4022 with tool changer and high-speed spindle system
- ● Results: • Reduced machining times by 25% • Improved precision in complex part geometries • Enhanced efficiency through automated operations
- ● Client Feedback: "The XH4022 has exceeded our expectations with its stability and speed, and it's now central to our high-volume production needs."
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
Our moving table gantry machining centers are ideal for large molds, engine blocks, aerospace panels, heavy mechanical parts, and rail transit components requiring high-precision and multi-surface machining.
Moving table gantries provide better dynamic stability, superior chip evacuation, higher precision for medium to large parts, and easier automation integration due to the independent worktable motion.
Minnuo’s moving table gantries feature fixed gantry structures, moving worktables on precision guideways, high-torque spindles, automatic tool changers (ATC), and optional multi-angle heads.
Absolutely! Minnuo’s engineers can recommend the best-fit moving table gantry machining center model within 10 minutes after reviewing your part drawings. Full production line proposals are available within 5 working days.
Yes! We offer customization for spindle type, travel dimensions (X/Y/Z), worktable size, ATC capacity, milling head types, and automation options such as pallet changers and robotic interfaces.
All machines are built with high-grade Meehanite castings, and undergo laser calibration, dynamic balance testing, and geometric accuracy inspection to guarantee superior precision and reliability.
Standard models are delivered within 40–60 working days. Customized models or special configurations may require 60–90 working days, depending on complexity.
Minnuo offers a one-year warranty, 24/7 technical support, remote troubleshooting, on-site service, and spare parts supply guaranteed for 10+ years.
