Integrated Mechanical, Electrical & Hydraulic Systems

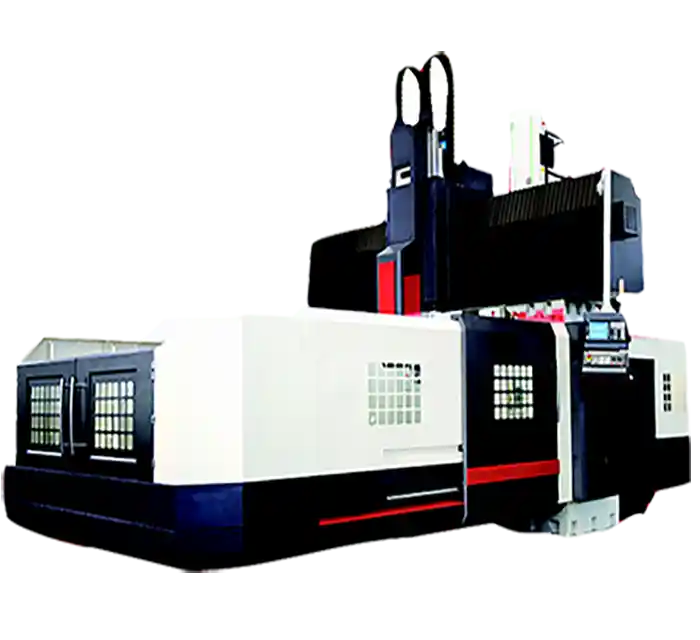

The VHT5000X56 CNC Gantry Type Turning-Milling Center offers high-precision machining for drilling, milling, and complex tasks. Its robust design ensures reliability and efficiency, ideal for large components in industries like railways and shipbuilding, with easy maintenance and flexible tooling options.
VHT5000X56
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Versatile Machining Capabilities： Supports a wide range of processes including drilling, reaming, milling, and tapping for complex and large workpieces.
- ● Collaborative System Design： Mechanical, electrical, and hydraulic systems are integrated for easy maintenance and high operational efficiency.
- ● High Precision and Rigidity： Designed for high-precision work, offering rigidity and stability for heavy-duty machining.
- ● Top-Tier Components： Key components selected from well-known domestic and international manufacturers to ensure reliability and longevity.
- ● Flexible Tooling Options： Multiple tool libraries and automatic/manual angle milling heads to suit various working conditions.
Get More Details →
Recommended Configurations
- ● Automatic Tool Library： Offers high flexibility in tool management, improving machining efficiency and reducing downtime.
- ● Automatic/Manual Angle Milling Heads： Various angle heads to handle complex machining tasks, ensuring versatility for different workpieces.
- ● Rigid Tapping Mechanism： For precise thread cutting operations that require high accuracy.
- ● Hydraulic System with Integrated Cooling： Ensures stable operation while maintaining temperature control during long machining cycles.
- ● Customizable CNC System： Allows for tailored configurations based on user needs, including advanced control systems for automation.
Get More Details →
Application Case
- ● Client: Railway Locomotive Manufacturer – China
- ● Use Case: Machining of large locomotive frame components
- ● Setup: VHT5000X56 with automatic tool library and rigid tapping mechanism
- ● Results: • Precision: Achieved tight tolerances of ±0.01mm for large frame parts • Increased Efficiency: 25% reduction in machining time due to versatile tooling options • Improved Production Capacity: Significant increase in throughput for large components
- ● Client Feedback: “The VHT5000X56 has significantly boosted our production efficiency and precision. The ability to handle large and complex components with various tools in one setup is a major advantage for our operations.”
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
The CNC Gantry Type Turning-Milling Compound Machining Center combines both turning and milling functions, ideal for machining complex workpieces. It enhances machining efficiency and precision, making it suitable for large, high-precision parts.
It is widely used in aerospace, automotive, energy, shipbuilding, and heavy machinery industries. It is especially suited for machining large parts such as shafts, flanges, and gears with high precision.
The machine has a maximum processing diameter of 5000mm and can handle workpieces weighing up to 25 tons, making it suitable for large and high-precision parts.
Equipped with an advanced CNC system, the machine has an intuitive interface. With proper training, operators can quickly master its features and handle complex machining tasks.
Yes, the CNC Gantry Type Turning-Milling Compound Machining Center can be customized. It allows adjustments for spindle speed, motor power, and machining stroke to meet specific production needs.
The machine ensures high precision through its rigid structure and a high-precision CNC system. Key components are sourced from top brands to guarantee stable accuracy during the machining process.
Standard models are available for immediate delivery, while customized models typically have a delivery time of 30 to 45 working days.
We provide a one-year warranty, including free repair services during the warranty period. Customers can contact our after-sales team for support via remote technical assistance, phone calls, or on-site service, ensuring the machine remains in optimal condition.
