φ4000mm Swing · 0.5–106 rpm Spindle · High Torque

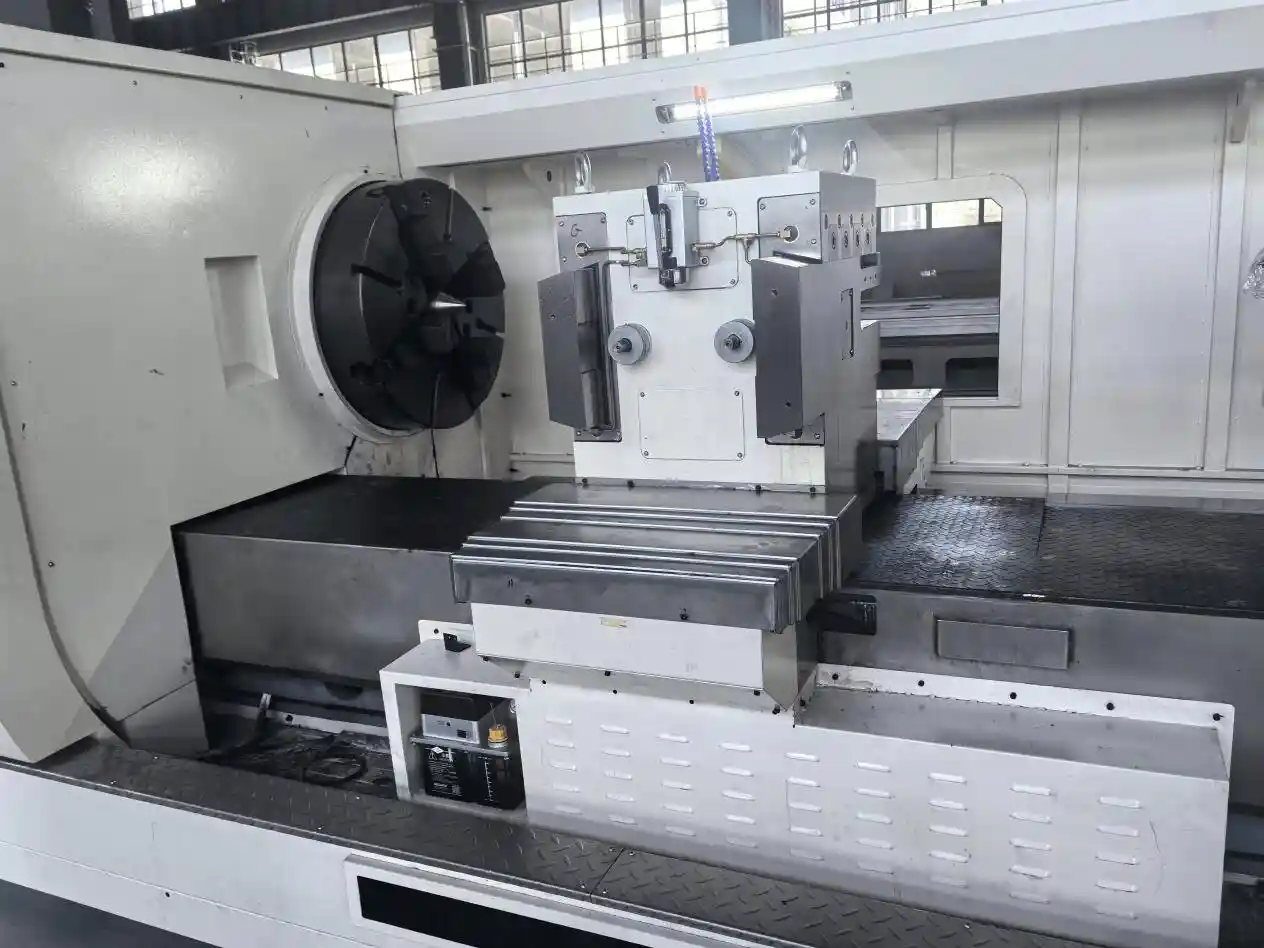

The CK61 Series is a heavy duty cnc lathe machine designed for machining extra-large and ultra-heavy components with exceptional precision and rigidity. Featuring a swing diameter over tool carriage of up to Ø4000mm, a stepless spindle speed range of 0.5–106 rpm, and high-speed axis traverses, it excels in slow-speed torque-driven heavy cutting—making it ideal for wind turbine hubs, marine shafts, industrial rollers, and metal processing cylinders.
CK61 Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Ultra-Large Swing Diameter (φ4000mm): Accommodates massive parts such as large steel rollers, impellers, and circular structural components.
- ● High-Torque Spindle (0.5–106 rpm): Stepless speed control allows precise low-speed heavy-duty cutting of high-resistance materials.
- ● Wide-Area Rapid Traverse (X: 2500mm/min / Z: 3000mm/min): Enables efficient tool positioning and fast rough-to-finish operations on long workpieces.
- ● Stable Structure for Large Loads: The rigid box-type bed and large-span guideway system ensure outstanding vibration damping.
- ● Optional Tailstock or Steady Rest: Supports long shafts and irregular heavy parts to maintain axial stability.
Get More Details →
Recommended Configurations

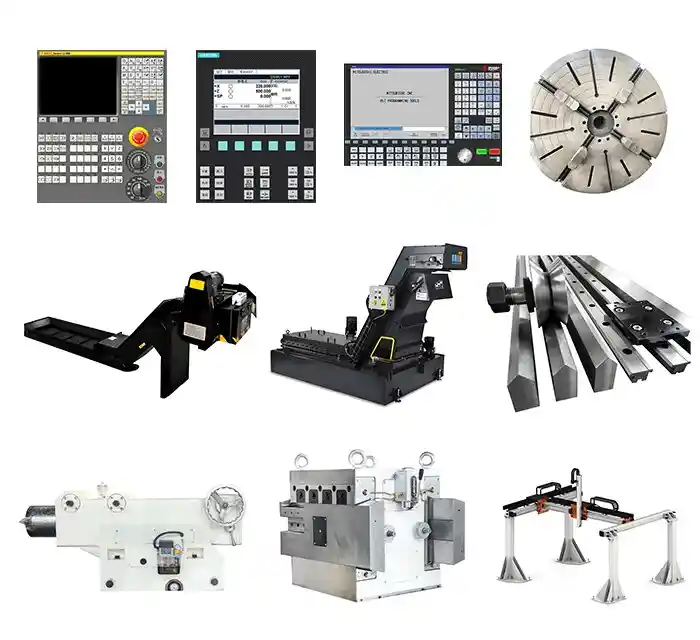

- ● Spindle System: High-torque Spindle, High-power Spindle, Center Water Outlet Spindle
- ● Feed System: High-precision Servo Motor, Stepper Motor, Heavy-duty Square Linear Guides
- ● Cooling System: Centrifugal Pump, Vibration Pump, Water-soluble Coolant, Oil-based Coolant
- ● CNC Control System: High-performance CNC System (FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi, etc.)
- ● Tooling System: Large Square Ram Tool Holder, Turret Tooling System, Electric Turret, Large-size Tool Holding System
- ● Measurement and Monitoring: Heidenhain Linear Scales, Tool Breakage Detection System, Renishaw OMP60 Workpiece Probe, Renishaw TS27R Tool Setting Probe
- ● Other Configurations: Lubricated Manual Tailstock, Strong Magnetic Chain-type Chip Conveyor, Automated Loading/Unloading Gantry
Get More Details →
Application Case
- ● Client: Wind turbine part manufacturer (China).
- ● Workpiece: 3.8-meter diameter alloy steel bearing ring.
- ● Setup: CK61 with double steady rest, custom boring bar, FANUC control.
- ● Results: Low-speed roughing + high-stability finishing within one setup. Runout control within 0.02mm over 3.2-meter swing. Surface roughness achieved Ra ≤ 1.6μm. Increased productivity by 35% compared to traditional manual lathe process.
Get More Details →
Product Specifications
| Specification | Unit | CW6163E/CW6263E | CW6180E | CW6180F/CW6280F | CW61100F/CW62100F | CW61100L | |||
|---|---|---|---|---|---|---|---|---|---|
| Swing over bed | mm | 630 | 800 | 800 | 1000 | 1000 | |||
| Swing over gap | mm | 800 | 1000 | 1200 | / | ||||
| Swing over cross slide | mm | 350 | 480 | 680 | 610 | ||||
| Distance between centers | mm | 1500/2000/3000/ 4000/5000/6000 | 1500/2000/3000/4000/5000/6000 | 1500/2000/3000/4000/5000/6000 | 1500/2000/3000/4000/5000/6000 | 1500/2000/3000/4000/5000/6000 | |||
| Guideway width | mm | 550 | 550 | 600 | 600 | 755 | |||
| Max.load capacity | T | 3 | 3 | 4 | 4 | 6 | |||
| Spindle bore | mm | 104 | 104 | 104 | 104 | 130 | |||
| Spindle bore taper | / | Metricφ120/MT5 | Metricφ120/MT5 | Metricφ120/MT5 | Metricφ120/MT5 | Metricφ140/MT6 | |||
| Spindle nose type | / | C11 | C11 | C11 | C11 | A2-15 | |||
| Spindle speed steps | / | FWD.18 steps | FWD.18 steps | FWD.18 steps | FWD.18 steps | FWD.21 steps | |||
| Spindle speed range | rpm | 7.5-1000 | 6-800 | 5.4-720 | 5.4-720 | 3.15-315 | |||
| Chuck | mm | φ3153-jaw manual | φ3153-jaw manual | φ4003-jaw manua | φ4003-jaw manua | φ10004-jaw manual | |||
| Turret/tool post | / | Manual turret 4 position | Manual turret 4 position | Manual turret 4 position | Manual turret 4 position | Manual turret 4 position | |||
| Tool shank size | mm | 30x30 | 30x30 | 32x32 | 32x32 | 45x45 | |||
| X axis travel | mm | 320 | 420 | 420 | 420 | 520 | |||
| Z axis trave | mm | 1350/1850/2850/ 3850/4850/5850 | 1350/1850/2850/3850/4850/5850 | 1350/1850/2850/3850/4850/5850 | 1350/1850/2850/3850/4850/5850 | 1350/1850/2850/3850/4850/5850 | |||
| X axis feed grade/range | mm/r | 64/0.05-12.15 | 64/0.05-12.15 | 64/0.05-12.15 | 64/0.05-12.15 | 56/0.05-6 | |||
| Z axis feed grade/range | mm/r | 64/0.1-24.3 | 64/0.1-24.3 | 64/0.1-24.3 | 64/0.1-24.3 | 56/0.1-12 | |||
| X axis rapid traverse | mm/min | 2300 | 2300 | 2300 | 2300 | 1870 | |||
| Z axis rapid traverse | mm/min | 4000 | 4000 | 4000 | 4000 | 3740 | |||
| Metric thread grade/range | mm | 50/1-240 | 50/1-240 | 50/1-240 | 50/1-240 | 44/1-120 | |||
| nch thread grade/range | T.P.I | 26/14-1 | 26/14-1 | 26/14-1 | 26/14-1 | 31/28-3/8 | |||
| Module thread grade/range | mm | 53/0.5-120 | 53/0.5-120 | - | 45/0.5-60 | ||||
| DP thread grade/range | D.P | 24/28-1 | 24/28-1 | - | - | 30/56-1 | |||
| Tailstock quill diameter | mm | φ100 | φ100 | φ120 | φ120 | φ160 | |||
| Tailstock quill taper | / | MT5 | MT5 | MT6 | MT6 | MT6 | |||
| Tailstock quill trave | mm | 250 | 250 | 250 | 250 | 300 | |||
| Main spindle motor | kW | 11 | 11 | 11 | 11 | 22 | |||
| Rapid traverse motor | kW | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | |||
| Coolant pump motor | kW | 0.125 | 0.125 | 0.125 | 0.125 | 0.125 | |||
| WidthxHeight | mm | 1400x1450 | 1500x1450 | 1550x1650 | 1750x1750 | 2000x1800 | |||
