1000mm Swing over Bed · 6000mm Workpiece Length · Ø130mm Spindle Bore

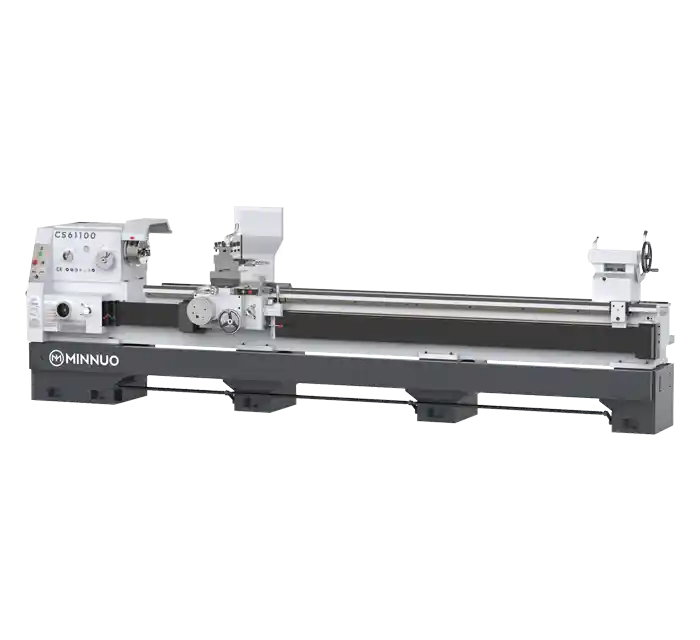

The CW6163E/CW61100L Series is a heavy-duty manual lathe designed for stable machining of long, large-diameter workpieces in industries like energy, petroleum, and shipbuilding.
CW6163E/CW61100L Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Large Swing Capacity: Max. swing over bed: 1000 mm — accommodates oversized flanges, rolls, and structural parts.
- ● Long Workpiece Capability: Up to 6000 mm between centers, perfect for shafts, rollers, and cylindrical beams.
- ● Wide Spindle Bore: Ø130 mm: Supports large-diameter bar stock, oil pipes, and hollow workpieces with smooth internal chucking.
- ● High-Rigidity Bed and Headstock: One-piece casting with enhanced ribbing provides stable cutting under heavy loads.

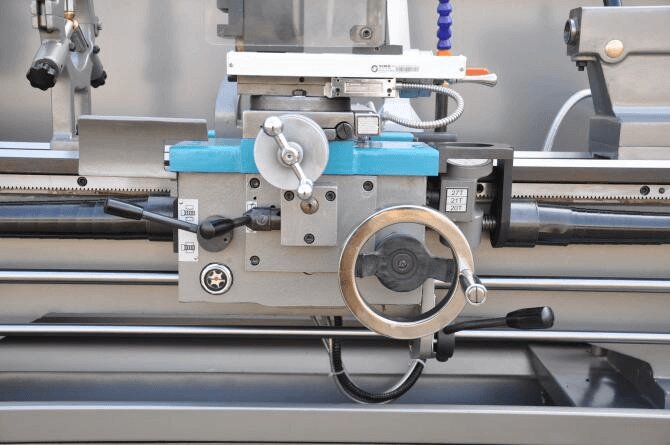

- ● Reliable Manual Operation: Precise handwheel control and gearbox feed system for both skilled and production use.
Get More Details →
Recommended Configurations

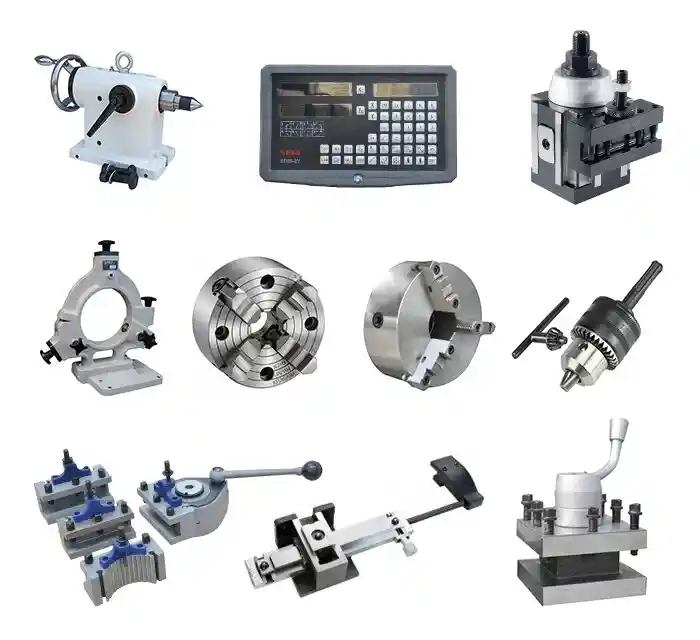

- ● Spindle: High-precision spindle (SKF, NSK)
- ● Chuck: Three-jaw chuck with chuck protection device, manual four-jaw independent chuck
- ● Drive System: Belt drive, motor drive
- ● Turret: Single turret, square tool post
- ● Cooling System: Conventional cooling system, built-in cooling system
- ● Support: Stable support, follow rest
- ● Other Configurations: Center rest, protective cover design, manual tailstock, work light
Get More Details →
Application Case
- ● Client: Petroleum equipment service company.
- ● Use Case: Long pipe thread turning and inner bore roughing.
- ● Setup: CW6163E + manual 3-jaw chuck + tailstock support.
- ● Result Highlights: Stable performance during heavy threading of 5-meter oil tubing, Dimensional deviation under ±0.03 mm across full length, Smooth finish and low vibration ensured by wide bed design, Operator-friendly and easy to maintain, ideal for workshop repairs.
Get More Details →
Product Specifications
| Specification | Unit | CW6163E/CW6263E | CW6180E | CW6180F/CW6280F | CW61100F/CW62100F | CW61100L | |||
|---|---|---|---|---|---|---|---|---|---|
| Swing over bed | mm | 630 | 800 | 800 | 1000 | 1000 | |||
| Swing over gap | mm | 800 | 1000 | 1200 | / | ||||
| Swing over cross slide | mm | 350 | 480 | 680 | 610 | ||||
| Distance between centers | mm | 1500/2000/3000/ 4000/5000/6000 | 1500/2000/3000/4000/5000/6000 | 1500/2000/3000/4000/5000/6000 | 1500/2000/3000/4000/5000/6000 | 1500/2000/3000/4000/5000/6000 | |||
| Guideway width | mm | 550 | 550 | 600 | 600 | 755 | |||
| Max.load capacity | T | 3 | 3 | 4 | 4 | 6 | |||
| Spindle bore | mm | 104 | 104 | 104 | 104 | 130 | |||
| Spindle bore taper | / | Metricφ120/MT5 | Metricφ120/MT5 | Metricφ120/MT5 | Metricφ120/MT5 | Metricφ140/MT6 | |||
| Spindle nose type | / | C11 | C11 | C11 | C11 | A2-15 | |||
| Spindle speed steps | / | FWD.18 steps | FWD.18 steps | FWD.18 steps | FWD.18 steps | FWD.21 steps | |||
| Spindle speed range | rpm | 7.5-1000 | 6-800 | 5.4-720 | 5.4-720 | 3.15-315 | |||
| Chuck | mm | φ3153-jaw manual | φ3153-jaw manual | φ4003-jaw manua | φ4003-jaw manua | φ10004-jaw manual | |||
| Turret/tool post | / | Manual turret 4 position | Manual turret 4 position | Manual turret 4 position | Manual turret 4 position | Manual turret 4 position | |||
| Tool shank size | mm | 30x30 | 30x30 | 32x32 | 32x32 | 45x45 | |||
| X axis travel | mm | 320 | 420 | 420 | 420 | 520 | |||
| Z axis trave | mm | 1350/1850/2850/ 3850/4850/5850 | 1350/1850/2850/3850/4850/5850 | 1350/1850/2850/3850/4850/5850 | 1350/1850/2850/3850/4850/5850 | 1350/1850/2850/3850/4850/5850 | |||
| X axis feed grade/range | mm/r | 64/0.05-12.15 | 64/0.05-12.15 | 64/0.05-12.15 | 64/0.05-12.15 | 56/0.05-6 | |||
| Z axis feed grade/range | mm/r | 64/0.1-24.3 | 64/0.1-24.3 | 64/0.1-24.3 | 64/0.1-24.3 | 56/0.1-12 | |||
| X axis rapid traverse | mm/min | 2300 | 2300 | 2300 | 2300 | 1870 | |||
| Z axis rapid traverse | mm/min | 4000 | 4000 | 4000 | 4000 | 3740 | |||
| Metric thread grade/range | mm | 50/1-240 | 50/1-240 | 50/1-240 | 50/1-240 | 44/1-120 | |||
| nch thread grade/range | T.P.I | 26/14-1 | 26/14-1 | 26/14-1 | 26/14-1 | 31/28-3/8 | |||
| Module thread grade/range | mm | 53/0.5-120 | 53/0.5-120 | - | 45/0.5-60 | ||||
| DP thread grade/range | D.P | 24/28-1 | 24/28-1 | - | - | 30/56-1 | |||
| Tailstock quill diameter | mm | φ100 | φ100 | φ120 | φ120 | φ160 | |||
| Tailstock quill taper | / | MT5 | MT5 | MT6 | MT6 | MT6 | |||
| Tailstock quill trave | mm | 250 | 250 | 250 | 250 | 300 | |||
| Main spindle motor | kW | 11 | 11 | 11 | 11 | 22 | |||
| Rapid traverse motor | kW | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | |||
| Coolant pump motor | kW | 0.125 | 0.125 | 0.125 | 0.125 | 0.125 | |||
| WidthxHeight | mm | 1400x1450 | 1500x1450 | 1550x1650 | 1750x1750 | 2000x1800 | |||
Catalog
Frequently Asked Questions
A manual lathe can process various types of materials, including steel, cast iron, non - ferrous metals, and some non - metallic materials.
The machining accuracy of our manual metal lathe can reach grade IT7, which can meet the processing requirements of most precision parts.
As a professional manual lathe manufactor, Minnuo offers direct factory sales. We will provide the most suitable quotation according to customers' requirements to ensure the highest cost - performance ratio.
The pre - sales department of Minnuo Company is strong and responsive. As long as you have the drawings, for a single piece of equipment, we can recommend the best manual lathe within 10 minutes. For a production line composed of multiple pieces of equipment, we will provide a solution within 5 working days!
Minnuo Company has a complete set of basic production equipment. We can provide customization services for machine systems, spindle speeds, motor powers, and even the sheet metal of the outer shell.
Our company has several processing master machines of international first - tier brands, which ensures the processing accuracy of manual lathe machine components. At the same time, we also provide a quality inspection report when the machine leaves the factory.
We have inventory for conventional models of manual lathes and can deliver them quickly. For customized models, delivery can be made within 30 - 45 working days.
Our high precision manual lathe comes with a one - year warranty. During the warranty period, we provide free repair services. If the equipment malfunctions, customers can contact our after - sales team at any time. We provide 24 - hour technical support services and can quickly solve problems through remote video, phone calls, or on - site services.
Operating a manual lathe can be challenging for beginners, as it requires hands-on skills and precision. A skilled manual lathe operator must understand tooling, feeds, speeds, and material behavior. However, with proper training and practice, the learning curve becomes manageable.
