Fixed Part Discharge System for Fast Recovery · φ10mm Drilling Capacity ·Up to 6 Live Tool Stations

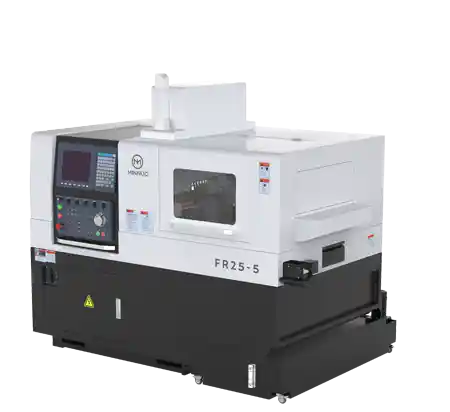

The FR Series Swiss Type CNC Lathe is engineered for high-efficiency machining of small-diameter, high-precision components. With high-power motors, multiple tool heads, and a compact modular design, this lathe shortens cycle times while ensuring consistent output quality. Featuring full oil-cooled spindles and precision components like imported NSK bearings and THK guide rails, the FR Series delivers reliable, continuous production in sectors demanding speed and accuracy.
FR Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Precision Spindle System: Equipped with imported NSK bearings and THK guide rails, both main and back spindles offer high accuracy and stability for micro-part machining.
- ● Multi-Tool Capability: Supports up to 6 power-driven tools for simultaneous operations such as milling, drilling, and tapping, reducing the need for secondary setups.
- ● Integrated Oil-Cooled Motor Spindle: Maintains consistent thermal conditions during high-speed machining, improving dimensional stability and tool life.
- ● High-Speed Front Tool Head: Operating at up to 10,000 rpm, the front tool head ensures rapid and accurate processing of small-diameter features.
- ● Efficient Part Discharge System: Fixed discharge chute allows seamless part removal in just 1 second without obstructing the front tool system, supporting uninterrupted automation.
Get More Details →

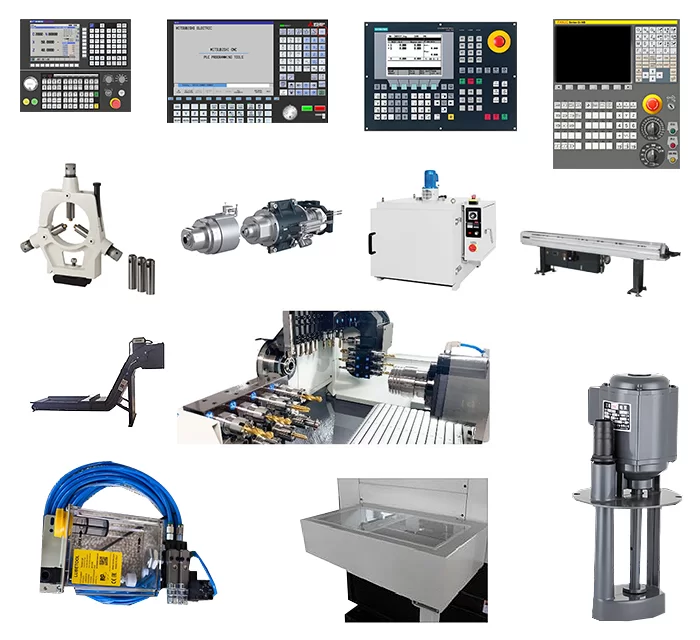

Recommended Configurations
- ● Bar Feeder Interface: Enables continuous feeding of long bar stock, ideal for high-volume production.
- ● Oil Mist Collector: Maintains a clean machining environment and protects operators’ health during extended high-speed cutting.
- ● High-Pressure Coolant System: Ensures efficient chip evacuation and stable temperature during micro-hole machining.
- ● Hydraulic Chuck Upgrade: Offers improved clamping force and ease of automation for repetitive production runs.
Get More Details →
Application Case
- ● Client: Precision Electronics Manufacturer – Japan
- ● Workpiece: Micro sensor casings (Ø12 × 30 mm)
- ● Setup: FR Series lathe with 6-tool live turret, high-speed front tool head, and bar feeder
- ● Results: • Precision: Maintained dimensional tolerance within ±0.004 mm • Efficiency: Reduced cycle time by 35% with high-speed drilling and multi-tool configuration • Productivity: Achieved fully automated output at 24-hour continuous run without human intervention • Client Feedback: “The FR Series provides unmatched stability and speed for our small-part production. We’ve seen a clear jump in throughput and reliability.”
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
The materials that can be processed include various metals such as carbon steel, stainless steel, and alloy steel, as well as some non-metal materials like plastic and nylon.
4-axis swiss type lathe can machine complex surfaces and special - shaped structures, realize multi - process compound machining, reduce clamping times to improve accuracy, optimize the tool path to shorten processing time, and increase equipment utilization.
As a professional swiss type cnc lathe supplier and direct manufacturer of CNC lathe machines, Minnuo offers factory direct sales. We provide the most suitable quotation based on customer requirements, ensuring the highest cost-performance ratio.
Minnuo has a robust and responsive pre - sales department. As long as you provide the drawings, for a single piece of equipment, we can give equipment recommendations within 10 minutes. For production lines consisting of multiple pieces of equipment, we will offer solutions within 5 working days.
Minnuo owns a complete set of basic production facilities. We can provide customization services for machine systems, spindle rotation speed, motor power, and even the sheet metal of the outer shell.
Our company has several processing mother machines from international top - tier brands, which ensures the processing accuracy of cnc lathe machine components. Also, we provide a quality inspection report when the machine is dispatched from the factory.
For conventional Swiss - type machine models, we keep inventory and can deliver promptly. For customized models, the delivery time is 30 - 45 working days.
Our swiss type lathes have a one - year warranty. During the warranty period, we offer free repair services. If there is a malfunction with the equipment, customers can contact our after - sales team at any time. We provide 24 - hour technical support and can quickly resolve issues via remote video, phone, or on - site service.
