Ø320mm Max Turning Diameter · Compact · Precise · High-Speed Lathe

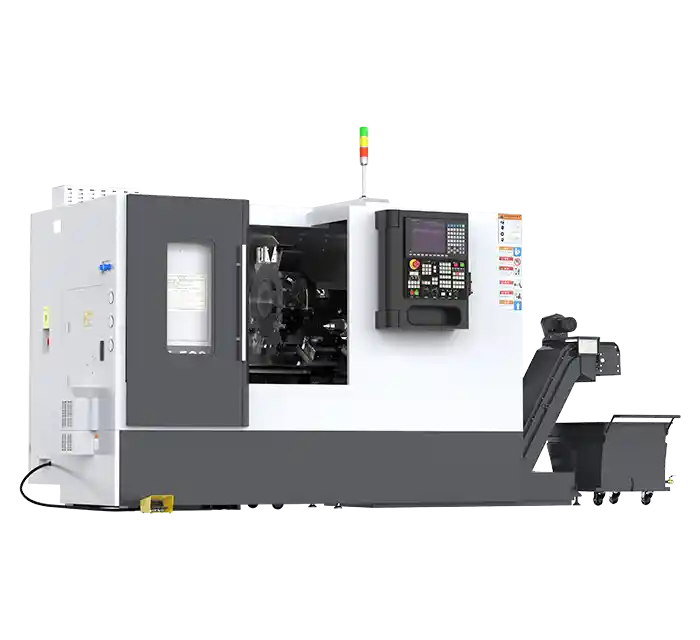

The MN500L is a compact yet powerful CNC turning center, purpose-built for high-precision bar and disc part machining. Featuring a maximum bar capacity of Ø50mm, max. turning diameter of Ø320mm, and travels of X: 200mm / Z: 580mm, it combines speed, accuracy, and efficiency in a small footprint.
MN500L
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Bar Machining up to Ø50mm: Ideal for automatic production of shafts, bushings, bolts, fasteners, and hydraulic connectors.
- ● Max Turning Diameter: Ø320mm: Enables larger face work or disc-type part processing without changing machines.
- ● Compact Axis Travels: X = 200mm / Z = 580mm: Ensures precise movement and fast response in small-part machining operations.
- ● High-Rigidity Structure: One-piece bed with heavy ribbing for vibration damping and thermal stability.
- ● Efficient Auto Production Ready: Compatible with bar feeders, parts catchers, and robotic loading solutions.
Get More Details →
Recommended Configurations
- ● Spindle Configuration: High-speed Electric Spindle, Dual Spindle System, Y-axis Powered Tool Turret
- ● Tooling System: Servo Tool Turret, Tool Compensation System
- ● Clamping System: Hydraulic Clamps, Pneumatic Clamps, Mechanical Clamps, Magnetic Clamps
- ● Feed and Drive System: Linear Drive, Ball Screws, Servo Motors
- ● Cooling and Lubrication System: Internal Cooling System, External Cooling System, High-pressure Cooling System
- ● Control System: High-performance CNC System (FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi, etc.)
- ● Other Configurations: Robot Arm, Renishaw OMP60 Workpiece Probe, Renishaw TS27R Tool Setting Probe, Chain-Type Chip Conveyor, Oil Mist Collector
Get More Details →
Application Case

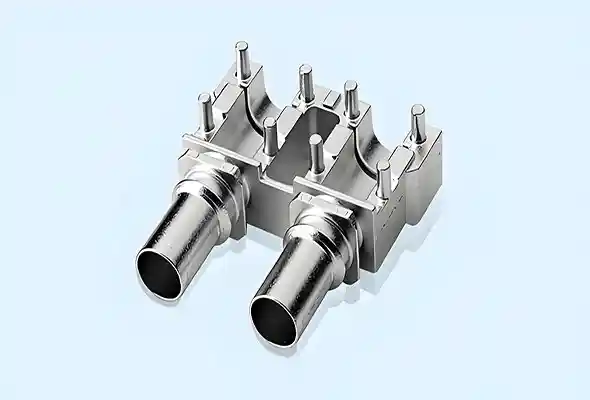

- ● Client: European automotive connector factory.
- ● Workpiece: Ø48mm × 60mm carbon steel connector shell.
- ● Setup: MN500L + bar feeder + 12-station turret + FANUC control.
- ● Results: Fully automated bar-fed production, Maintained concentricity within ±0.005mm, Surface roughness Ra ≤ 1.0μm on turning face.
Get More Details →
Product Specifications
| Specifications | unit | 235LANCEN |
|---|---|---|
| Max.swingdia.over bed | mm | 460 |
| Max.swingdia.over side | mm | 260 |
| Max.work piece length | mm | 550 |
| Max.bar capacity | mm | 50 |
| Max.processng diameter(plate) | mm | 320 |
| Spindle nose | GB59001 | A2-6 |
| spindle bore | 0/mm | 65 |
| Spindle speed | r/min | 4000 |
| Spindle shift mode | / | stepless speed control |
| Spindle motor power | KW | 15 |
| Chucktype | / | Hydraulic chucks |
| Chuck size | Inch | 8 |
| X-axis apid traverse | m/min | 30 |
| Z-axis apid traverse | m/min | 36 |
| X-axis servo motor torque | N.m | 12 |
| Z-axis servo motor torque | N.m | 12 |
| X-axis travel | mm | 200 |
| Z-axistravel | mm | 580 |
| Guide way type | / | rails |
| Turret type | / | Horizontal 12 stations |
| Tool shank size | mm | 25X25/040 |
| Tailstock type | / | Hydraulically |
| Tailstock qulldia | φ/mm | 65 |
| Tailstock qulltravel | mm | 80 |
| Tailstock qulltaper | / | MT4# |
| Total rated power | KW | 20 |
| Net weight | kg | 2600 |
| Machine dimension(L×WH) | (mm) | 3700x1750x1750 |
Catalog
Frequently Asked Questions
Of course ,our 5 axis cnc slant bed lathe can perform more complex machining tasks.
The servo system uses products from Siemens (or you can specify the brand), and the ball screws are from THK. This ensures the high quality and reliability of the CNC machine tool.
As a professional CNC lathe machine manufactor, Minnuo offers direct factory sales. We will provide the most suitable quotation according to customers' requirements to ensure the highest cost - performance ratio.
Minnuo's pre - sales team responds quickly. For a single CNC lathe machine, we'll give equipment recommendations within 10 minutes upon getting the drawings. For a production line of multiple CNC machine lathes, a solution will be provided within 5 working days.
We have complete basic production equipment. For CNC lathe machines, we customize components like machine systems, spindle speeds, motor power, and outer shell sheet metal.
Our company has several processing master machines of international first - tier brands, which ensures the processing accuracy of cnc lathe machine components. At the same time, we also provide a quality inspection report when the machine leaves the factory.
We stock standard CNC slant bed lathe for quick delivery. Custom CNC machine lathes are delivered in 30 - 45 working days.
Our CNC lathe machines have a one - year warranty with free repairs. Contact our 24/7 after - sales team for malfunctions. Issues are resolved via remote video, phone, or on - site service.
