φ750mm Swing · φ550mm Max Turning · 500mm Height · 15” Chuck
Ideal for turning large industrial components such as pump casings, disc-type flanges, and valve housings with exceptional rigidity and surface quality.

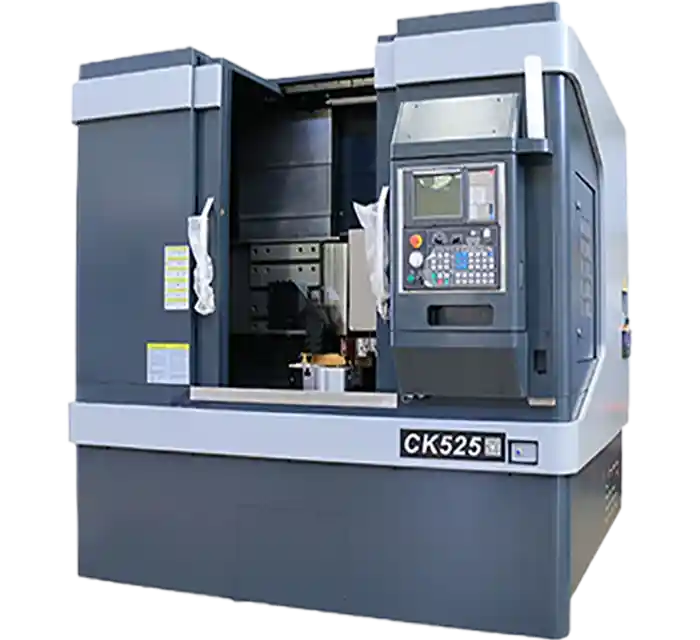

CK525 Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features

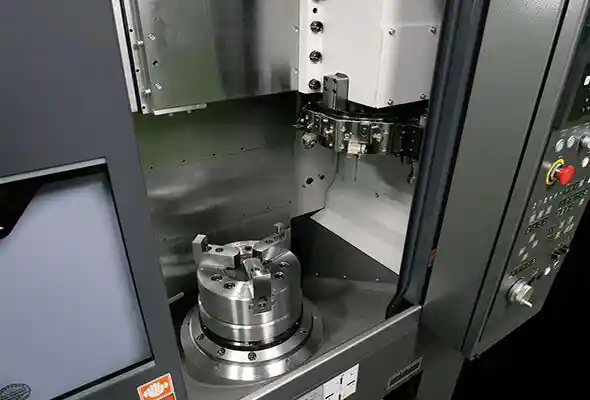

- ● Double-Column Structure: Provides enhanced stability and rigidity for large workpieces.
- ● High-Precision Spindle: Ensures excellent surface finish even under heavy cutting loads.
- ● Heavy-Duty Chuck: 15” chuck accommodates large-diameter parts securely.
- ● Efficient Chip Removal: Optimized coolant and chip evacuation design for extended operation.
- ● Anti-Vibration Design:Reduces deformation and chatter, improving part accuracy and tool life.
Get More Details →
Recommended Configurations

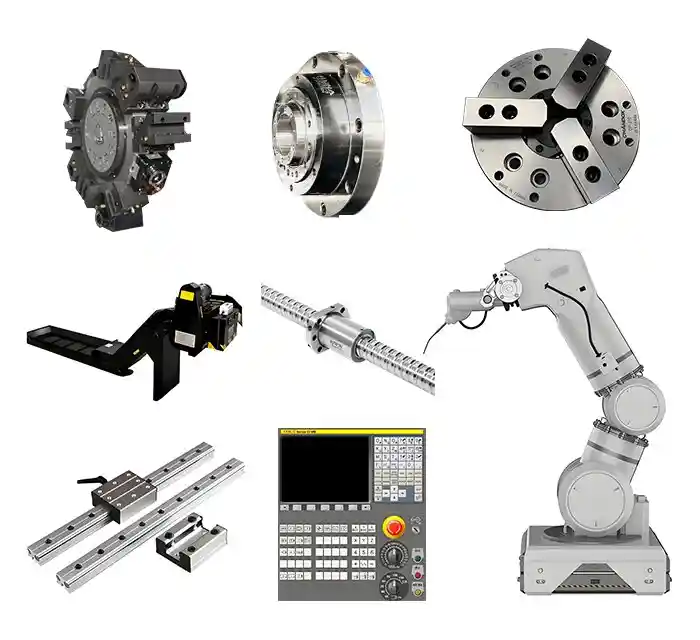

- ● Magnetic Chip Conveyor: Efficient chip handling during heavy-duty continuous turning
- ● 4-Station Hydraulic Tool Post: Automatic tool indexing for improved processing efficiency
- ● Spindle Air Purge System: Keeps spindle assembly clean from debris and prolongs bearing life
- ● Enclosed Guarding with LED Lighting: Enhances safety and visibility during machining
- ● Siemens/FANUC CNC System: Supports multi-axis control with high-speed interpolation
Get More Details →
Application Case
- ● Client:Industrial Valve Manufacturer – Italy

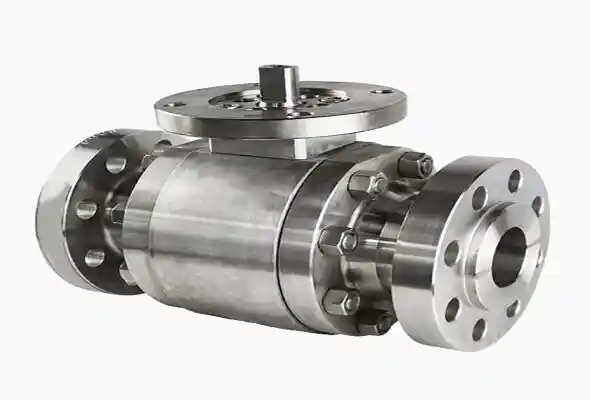

- ● Use Case: Rough and finish machining of 500mm diameter valve housings made from cast steel
- ● Setup: CK525 with 4-station hydraulic turret, chip conveyor, and FANUC 0i CNC system
- ● Results: Dimensional tolerance: ±0.02 mm Cycle time reduction: 25% Surface roughness Ra: ≤1.6 μm
- ● Client feedback: “The CK525 has become our go-to machine for large flange and housing turning—stable, accurate, and efficient.”
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
Our vertical lathes are ideal for machining heavy, large-diameter, and short-length workpieces, such as flange parts, bearings, valves, and large gear blanks. They are particularly suited for industries like aerospace, wind energy, heavy machinery, and shipbuilding.
Minnuo vertical lathes achieve positioning accuracy within ±0.01mm and surface roughness up to Ra0.8μm, ensuring excellent precision even for complex contour turning operations.
Yes, our vertical lathes are designed for both heavy roughing and precision finishing. Equipped with high-rigidity structures, powerful spindles, and optional live tooling systems, they meet diverse turning requirements in one setup.
Absolutely! Minnuo Company has a strong and fast-responding pre-sales team. If you provide the parts drawings or specifications, we can recommend the appropriate vertical lathe model within 10 minutes for a single machine. For a full production line, we will offer a comprehensive solution within 5 working days.
Yes, Minnuo offers complete customization options for vertical lathes, including changes to spindle speed ranges, chuck sizes, motor power, tool turret types, and even special clamping systems to fit your specific production needs.
Our vertical lathes are manufactured using top-brand machining centers for parts processing, ensuring high-precision assembly. Each machine undergoes strict geometric accuracy tests and dynamic balancing tests. Quality inspection reports are provided with every shipment.
For standard vertical lathe models, we maintain stock and can arrange fast delivery within 7–10 days. Customized vertical lathes are usually delivered within 30–45 working days, depending on specific customer requirements.
All Minnuo vertical lathes come with a one-year warranty. We offer 24-hour technical support through video calls, phone, or on-site services. During the warranty period, any equipment faults are repaired free of charge. Our after-sales team ensures fast troubleshooting to keep your production line running smoothly.
