20 m/min Rapid Traverse · Ultra-Fast · High-Efficiency Milling

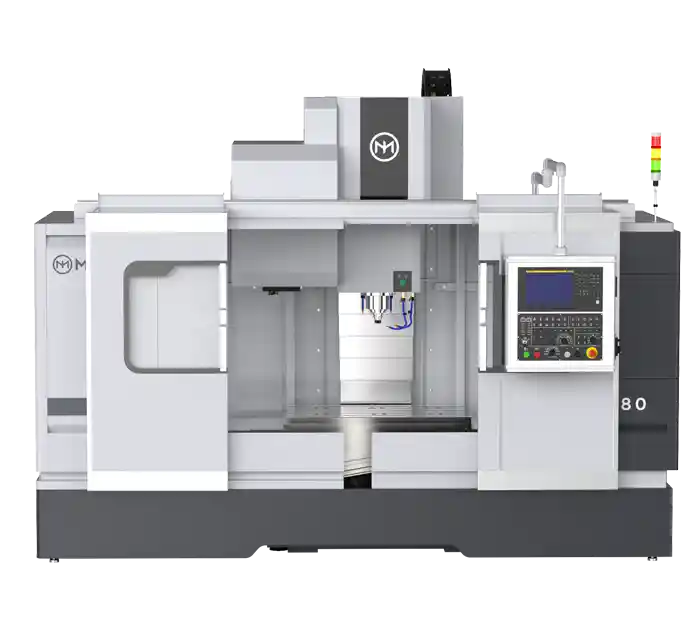

The VMC 1580 is a high-speed, high-efficiency vertical machining center designed for medium to large-sized component processing. With an expansive X/Y/Z travel of 1500 × 800 × 700mm, it supports the machining of large dies, structural plates, aluminum frames, and machine parts. Its rapid traverse speeds of 20/20/16 m/min (X/Y/Z) and feed rates up to 10,000 mm/min enable reduced cycle times and excellent throughput in demanding production environments.
Vertical CNC Machining Center
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Generous Axis Travel (1500×800×700mm): Accommodates large molds, plate-type workpieces, fixtures, and mechanical assemblies with ease.
- ● Ultra-Fast Traverse Speeds: X/Y: 20 m/min · Z: 16 m/min—boosts non-cutting movement for faster part processing.
- ● High Feed Rate (10,000 mm/min): Enables efficient machining for aluminum, steel, and other general engineering materials.

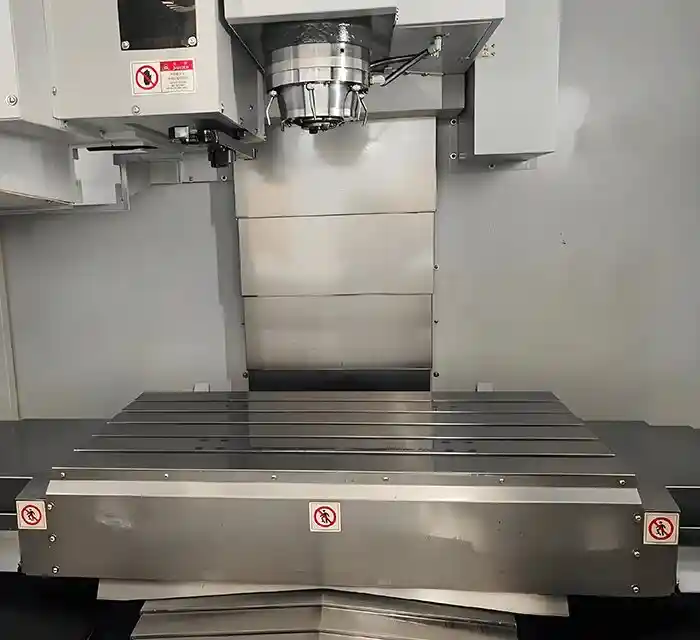

- ● Heavy-Duty Cast Iron Structure: Rigid base and column construction absorb vibration, delivering high dimensional accuracy.
- ● Flexible Tooling System: Equipped with automatic tool changer (24–40T) for multi-step machining operations in a single setup.
Get More Details →

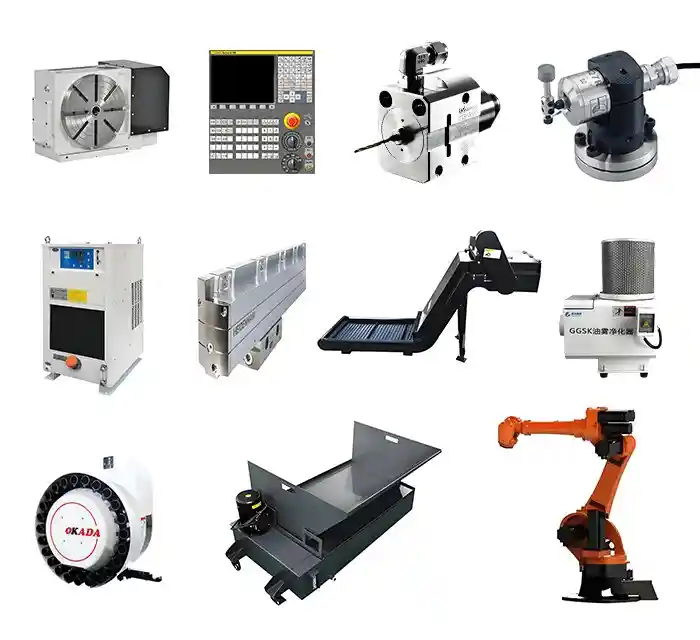

Recommended Configurations
- ● Spindle System: High precision spindles (SKF, NSK), center coolant spindle
- ● Feed System: Servo motor, stepper motor, linear guideway, ball screw
- ● Cooling System: Centrifugal pump, vibration pump, water-soluble coolant, oil-based coolant
- ● CNC Control System: High-performance CNC systems (FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi, etc.)
- ● CNC Control System: High-performance CNC systems (FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi, etc.)
- ● Measuring and Monitoring: Heidenhain linear scales, tool breakage detection system, Renishaw OMP60 workpiece probe, Renishaw TS27R touch probe
- ● Other Configurations: Chip conveyor, oil mist collector, oil cooler, cooling water tank, multi-joint robot arm
Get More Details →
Application Case
- ● Client: Mold processing factory (Vietnam)

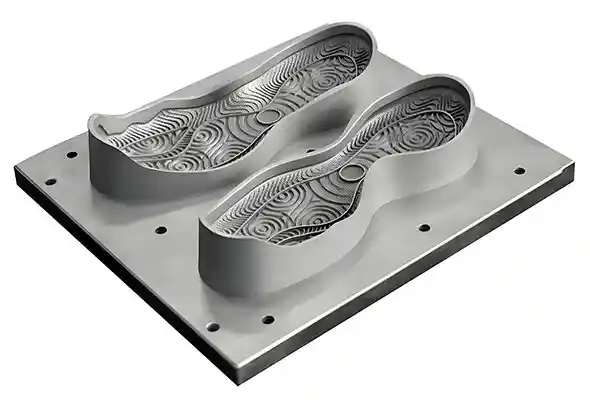

- ● Workpiece: Aluminum alloy mold base 1420 × 780 × 90mm
- ● Setup: VMC 1580 with 10000 rpm spindle, 30T ATC, Siemens controller
- ● Results: Achieved full roughing and finishing in one setup, Surface roughness Ra ≤ 1.2μm; flatness within 0.01mm, 27% faster cycle time than previous vertical center due to high traverse rates, Reduced manual finishing workload by 40%
Get More Details →
Product Specifications
| Specifications | unit | VMC650 | VMC855 | VMC1050 | VMC1160 | VMC1370 | VMC1580 |
|---|---|---|---|---|---|---|---|
| Table size | mm | 900×400 | 1000×550 | 1000×530 | 1200x600 | 1500×700 | 1700×800 |
| Table maximum load | kg | 350 | 500 | 600 | 1000 | 900 | 1500 |
| X/Y/Z axis travel | mm | 650x400x500 | 800×550×550 | 1000×500×600 | 1100×600×600 | 1300×700×700 | 1500×800×700 |
| Distance between spindle center and column | mm | 476 | 590 | 580 | 650 | 752 | 871 |
| Distance between spindle end face and worktable surface | mm | 100-600 | 120-670 | 140-740 | 120-720 | 150-850 | 150-900 |
| X/Y/Z Max.feed speed | mm/min | 10000 | 10000 | 10000 | 10000 | 8000 | 10000 |
| X/Y/Z Max.Rapid traverse | m/min | 32/32/30 | 32/32/30 | 32/32/24 | 32/32/30 | 20/20/15 | 20/20/16 |
| spindle speed | r/min | 8000 | 8000 | 8000 | 8000 | 8000 | 6000 |
| spindle taper | type | BT40 | BT40 | BT40 | BT40 | BT40 | BT50 |
| Spindle motor power | kW | 5.5/7.5 | 7.5/11 | 7.5/11 | 11/15 | 11/15 | 15/18 |
| X/Y/Z axis servo motor power | kW | 2.6/2.6/2.8 | 3.9/3.9/3.6 | 3.9/3.9/3.6 | 04/4/5 | 04/4/5 | 4.5/4.5/4.5 |
| X/Y/Z motor connection | / | direct link | direct link | direct link | direct link | direct link | direct link |
| X/Y/Z Guide way type | / | rails | rails | rails | Three-wire guideway | Two lines and one hard guide | Two lines and one hard guide |
| Tslot | mm | 3-18×125 | 5-18×90 | 5-18×90 | 5-18×100 | 5-18×145 | 5-22×145 |
| Repeat positioning accuracy | mm | ±0.004 | ±0.004 | ±0.004 | ±0.005 | ±0.005 | ±0.005 |
| Tool magazine | / | Bucket/Disc | Disc | ||||
| Toolcapacity | / | 16T/16T | 24T | 24T | 24T | 24T | 24T |
| Maximum tool weight | kg | 7 | 8 | 8 | 8 | 8 | 15 |
| Max.tool length | mm | 250/300 | 300 | 250/300 | 300 | 300 | 300 |
| Electric capacity | kVA | 10 | 15 | 15 | 18 | 22 | 30 |
| Machine dimension (L×W×H) | mm | 2300×2000×2300 | 2600×2380×2700 | 3200×2420×2400 | 3100×2490×2380 | 3600×3000×2700 | 4260×3545×3200 |
| Net.weight(about) | kg | 4500 | 5000 | 6000 | 7000 | 11000 | 12000 |
Catalog
Frequently Asked Questions
The vertical CNC machining centers use a thermal compensation system to counteract expansion and contraction.
Absolutely, the vertical CNC machining center offers smooth 5 - axis interpolation for complex geometries.
As a professional CNC vertical machine center manufactor, Minnuo offers direct factory sales. We will provide the most suitable quotation according to customers' requirements to ensure the highest cost - performance ratio.
Minnuo's pre - sales team responds quickly. For a single vertical machine center, we'll give equipment recommendations within 10 minutes upon getting the drawings. For a production line of multiple CNC machine lathes, a solution will be provided within 5 working days.
We have complete basic production equipment. For vertical CNC machining centers，we customize components such as machine systems, spindle speeds, motor power, and outer shell sheet metal.
Our top - brand processing machines ensure part machining accuracy in vertical machine center. We provide quality inspection reports for CNC machine lathes at factory - leaving.
We stock standard vertical CNC machining centers for quick delivery. Custom CNC machine lathes are delivered in 30 - 45 working days.
Our vertical machine center have a one - year warranty with free repairs. Contact our 24/7 after - sales team for malfunctions. Issues are resolved via remote video, phone, or on - site service.
