65 Tons · Bending Length: 2500mm · Y-Axis Servo Power: 15 kW

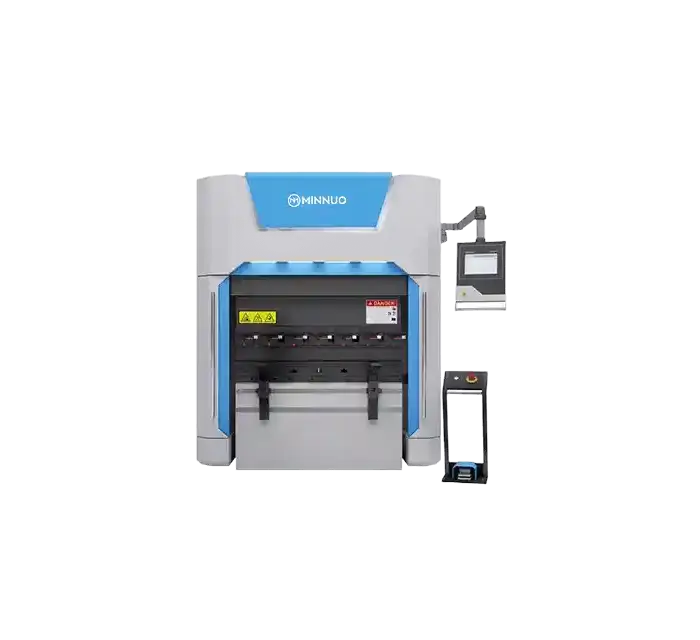

The EP-65T2500 is a mid-tonnage, long-format electric servo press brake optimized for forming larger sheet metal parts with consistent accuracy. With 65 tons of bending force, 2500mm maximum working length, and a robust 15 kW Y-axis servo motor, it delivers clean, efficient, and programmable forming suitable for a wide range of industrial sheet applications.
EP Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● 65T Forming Force for Mid-Range Materials: Perfectly suited for mild steel, stainless steel, and aluminum sheets up to 3–4mm thickness.
- ● 2500mm Bending Length for Large Panels: Enables forming of long covers, frames, housing structures, and multi-bend sheet parts.
- ● 15 kW High-Torque Y-Axis Servo Motor: Provides precise ram control, high-speed approach, and stable load handling.
- ● No Hydraulic Oil – Full Electric System: Clean, quiet, and sustainable; great for indoor and precision-focused manufacturing environments.
- ● No Hydraulic Oil – Full Electric System: Clean, quiet, and sustainable; great for indoor and precision-focused manufacturing environments.
Get More Details →
Recommended Configurations
- ● CNC Back Gauge (X/R/Z1/Z2 axis)： Multi-point positioning for complex parts.
- ● Pneumatic Tool Clamping System： Fast tool change for flexible production lines.
- ● Real-Time Angle Correction System： Improves first-pass yield on long or spring-back sensitive parts
- ● Sliding Front Support Arms： Maintains stability on long, narrow components.
- ● Sliding Front Support Arms： Maintains stability on long, narrow components.
Get More Details →
Application Case

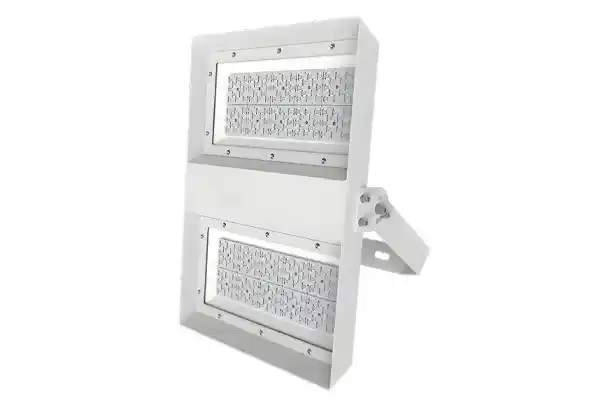

- ● Client: Commercial lighting equipment manufacturer – Middle East
- ● Workpiece: 2.0mm thick aluminum lighting housing, 2300mm long
- ● Setup: EP-65T2500 + CNC 4-axis back gauge + ESA controller + quick clamp tooling
- ● Results: Angle tolerance: ≤ ±0.25° after laser correction Cycle time per part: ~14 seconds Energy consumption reduced by 60% compared to legacy hydraulic model Operator fatigue lowered due to quieter, smoother operation Daily output increased by 32%
Get More Details →
Product Specifications
| Specifications | Unit | EP-35T1250 | EP-43T2000 | EP-65T2500 |
|---|---|---|---|---|
| Bending Capacity | T | 35 | 43 | 65 |
| Y-axis Servo Motor | KW | 6.5 | 7.5 | 15 |
| Bending Length | mm | 1250 | 2000 | 2500 |
| Column Pitch | mm | 1130 | 1400 | 2100 |
| Throat Depth | mm | 410 | 410 | 410 |
| Daylight | mm | 470 | 470 | 470 |
| Slider Inclination | mm | ±30 | ±30 | ±30 |
| Y Rapid Speed | mm/s | 135 | 180 | 160 |
| Y Working Speed | mm/s | 50 | 50 | 50 |
| Y Retrack Speed | mm/s | 135 | 180 | 165 |
| X Rapid Speed | mm/s | 500 | 500 | 500 |
| R Rapid Speed | mm/s | 200 | 200 | 200 |
| Z1/Z2 Rapid Speed | mm/s | 400 | 400 | 400 |
| Y-axis | mm | ±0.01 | ±0.01 | ±0.01 |
| X-axis | mm | ±0.02 | ±0.02 | ±0.02 |
| R-axis | mm | ±0.1 | ±0.1 | ±0.1 |
| Z1/Z2-axis | mm | ±0.1 | ±0.1 | ±0.1 |
| Y Stroke | mm | 200 | 200 | 200 |
| X Stroke | mm | 500 | 500 | 500 |
| R Stroke | mm | 140 | 140 | 140 |
| Z1/Z2 Stroke | mm | 400 | 600 | 900 |
| Controller System | SL100-P4/6 | SL100-P4/6 | SL100-P4/6 | |
| Installed capacity | kVA | 15 | 15 | 25 |
| Dimension | mm | 1475x1358x2439 | 2020x1388x2439 | 2520x1700x2664 |
| Weight | kg | 3000 | 3300 | 5100 |
Catalog
Frequently Asked Questions
Efficient series CNC press brake machines are designed for mid-to-high-end customer needs. They offer higher repeat positioning accuracy, faster bending speeds, and enhanced automation integration. These machines are ideal for high-precision and high-efficiency mass production, and are especially suitable for integration with robotic production lines.
Operating a brake press machine is not complicated. We provide operation manuals, instructional videos, and on-site training services. The CNC press brake machine is equipped with a graphical touchscreen interface that supports one-click angle adjustment and automatic calibration, making it easy and safe for beginners to learn and operate.
Absolutely! Minnuo has a strong and responsive pre-sales technical team. As long as you provide part drawings, whether for a single press brake machine or a complete automated bending line, we can usually provide a recommendation within 10 minutes. A complete multi-machine configuration can be delivered within 5 working days.
We have full mechanical processing and electrical control development capabilities. Based on your product material, thickness, bending angle, and precision requirements, we can customize the CNC press brake machine in terms of axis configuration, tonnage, control system, and tooling structure to meet specific process and production line needs.
We use hydraulic systems and servo motors from top international brands, combined with high-strength welded frames and self-developed control systems, to ensure that the press brake machine runs stably over long periods without deformation. Each machine comes with a complete quality inspection report and is ready for production upon delivery.
For standard models, we have inventory available for fast shipment. For customized press brake machines, the lead time is typically 30–45 working days, depending on the configuration complexity and production schedule.
Our press brake machines come with a one-year warranty. During the warranty period, any failure will be covered with free repair support. Minnuo provides 24-hour remote video support, telephone technical guidance, and on-site service if necessary to ensure quick production recovery.
A press brake machine is a device used to accurately bend sheet metal into specific angles. It is widely used in sheet metal processing, cabinet manufacturing, automotive parts, and other industries. It achieves high-precision and high-efficiency bending through the coordination of upper and lower dies and numerical control systems.
