2500 × 600 mm Table • 1800 mm X-Axis Travel • High-Rigidity Design for Heavy-Duty Cutting

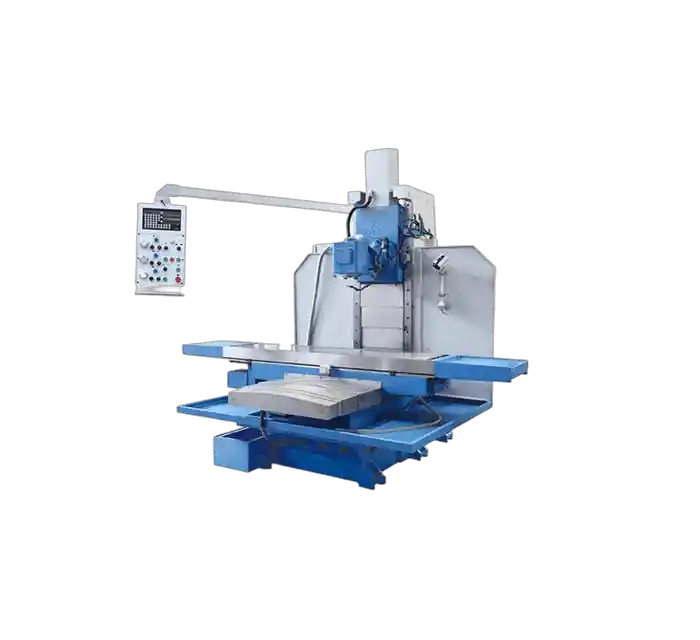

The XK715/XK716 Series CNC Bed-Type Horizontal Milling Machine is built for large-scale machining tasks that demand strength, precision, and efficiency. With its fixed bed and movable column or head design, it offers outstanding rigidity during deep and long cuts. Equipped with servo-driven feed systems, high-grade alloy steel spindle assemblies, and robust cooling, the machine supports both vertical and horizontal machining for maximum versatility. It is ideal for industries such as heavy machinery, mold manufacturing, and energy equipment.
XK715/XK716 Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Large Travel and Payload Capacity: The machine offers a generous 1800 mm X-axis and 700 mm Y-axis travel, making it suitable for large-format workpieces.
- ● Precision Spindle Technology: Spindle is made from high-grade alloy steel, dynamically balanced, and supported by preloaded ceramic bearings with oil mist lubrication for extended life.
- ● Efficient Thermal Control System: High-coverage coolant flow with dual-stage filtration and built-in oil-water separation maintains consistent cutting conditions and reduces maintenance.
- ● Advanced CNC Feed Mechanism: ±0.005 mm closed-loop positioning accuracy with intelligent servo feed adjustment improves machining repeatability.
- ● Dual Machining Mode Support: Handles both vertical and horizontal configurations with optional rotary attachments for expanded capability.
Get More Details →

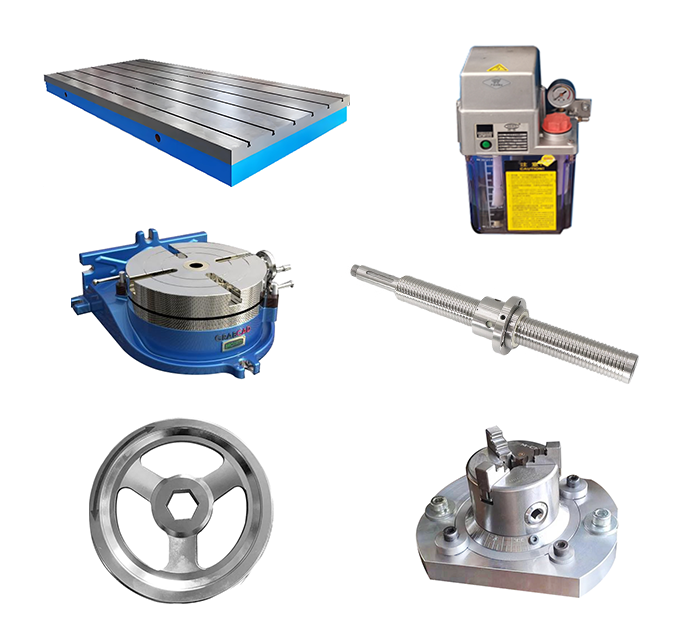

Recommended Configurations
- ● Spindle System: Infinitely variable speed spindle, 360° rotating head
- ● Worktable: Large-size horizontal ±45° rotating worktable
- ● Feed System: Three-axis ball screws, manual feed system, electric feed adjustment
- ● Cooling and Lubrication System: Coolant spray system, cooling water tank, automatic electronic lubrication pump
- ● Clamping System: Dividing Head, custom fixture
- ● Drive System: Three-axis independent servo motor drive
- ● Precision Guideways: Rolling guideways or sliding guideways
- ● Other (Safety Protection System): 45° high-speed rotating tool turret, digital readout, dividing head, E-type handwheel, protective covers, emergency stop button, and safety lock
Get More Details →
Application Case
- ● Client: Heavy Construction Machinery Manufacturer – India

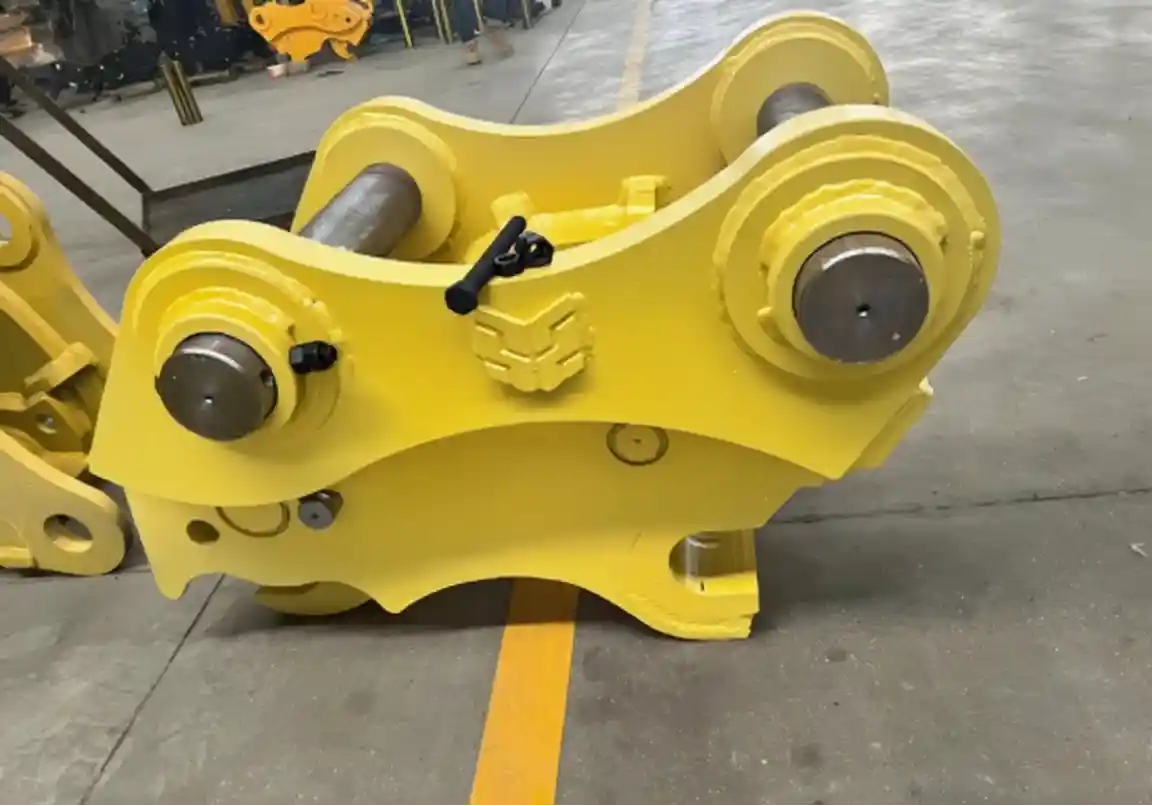

- ● Workpiece: Steel baseplates and frame structures for excavators
- ● Setup: XK716 with 4th-axis CNC rotary table and spindle cooling unit
- ● Results: • Maintained ±0.01 mm flatness over 1200 mm length • Reduced machining cycle time by 25% through optimized feed and rotary indexing • Improved part consistency and surface finish in multi-shift production
- ● Client Feedback: "This machine exceeded our expectations in rigidity and throughput. Its ability to hold precision under load made it an ideal choice for our large structural parts."
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
A horizontal CNC milling machine supports multi-axis linkage, automatic tool change, and programmed machining, significantly improving processing efficiency and consistency. If you require complex parts, mass production, or high repeat accuracy, the CNC model is undoubtedly a better option.
It depends on your workpiece type and production method. A horizontal milling machine is better for side machining, heavy cutting, and long workpieces, offering greater stability and better chip removal. A vertical milling machine is more suitable for small, complex-shaped parts. If your products involve large workpieces, grooves, or multi-surface machining, the horizontal type is the better choice.
A 5 axis horizontal milling machine can complete high-precision machining of complex multi-surface parts in a single setup. It is suitable for aerospace components, mold manufacturing, and high-precision machinery. It effectively reduces the number of setups and improves surface quality—making it an ideal choice for users seeking automation and efficient machining.
Absolutely! Minnuo has an experienced pre-sales technical team. As long as I provide drawings, whether for a standard horizontal milling machine or a complex production line setup, a single machine recommendation can be given within 10 minutes, and a complete production line plan can be delivered within 5 working days.
MINNUO has strong in-house manufacturing capabilities and can customize the horizontal milling machine based on your process needs, including travel range, tool magazine structure, spindle system, electrical system, and machine appearance. We also support custom configurations of horizontal boring and milling machines for multi-function integration.
We are equipped with high-end machining centers from top international brands to ensure the precision of all key components in the horizontal milling machine. Each machine undergoes full debugging and quality inspection before delivery and comes with a test report to ensure the equipment you receive is ready for immediate use.
For standard models, you can benefit from fast delivery from stock. For customized horizontal milling machines, the delivery time is generally 30–45 working days. The specific schedule will be confirmed based on configuration and production planning.
The equipment comes with a one-year warranty. During the warranty period, if any fault occurs, you will receive free repair support. We provide remote video guidance, phone technical support, and on-site service when necessary, ensuring rapid production recovery and minimizing downtime risks.
