1600 × 360 mm Table • 1300 mm Longitudinal Travel • Siemens CNC System

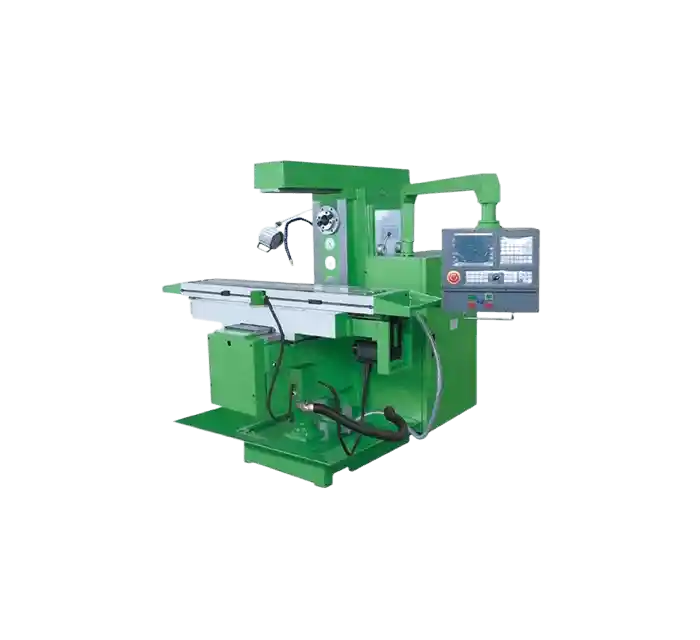

The XLK6036 Series is a heavy-duty horizontal CNC milling machine with Siemens control and optional 4th-axis support for complex multi-face machining. Its rigid cast iron frame and servo-driven feed ensure stable, precise performance for large components like mold bases and precision rails.
XLK6036 Series

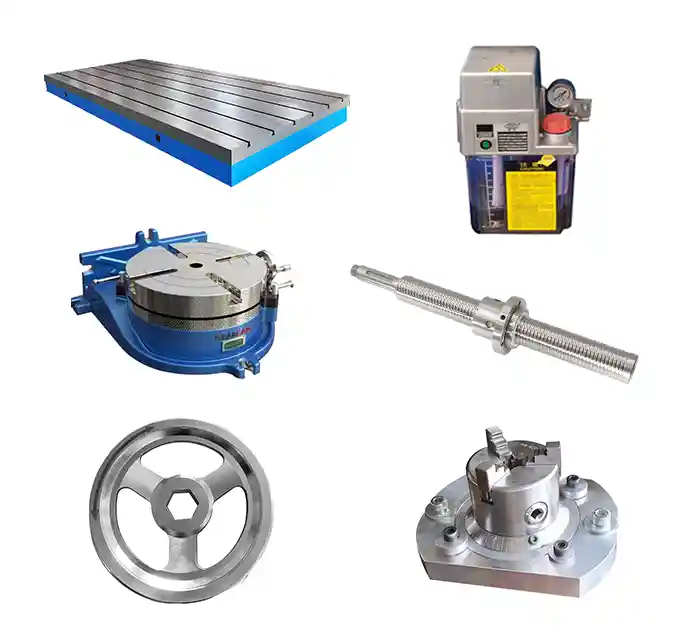

Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● User-Friendly CNC Control: Siemens interface with simplified panel layout and intuitive spindle speed control for efficient operation.
- ● Heavy-Duty Cast Iron Frame: HT250 components with tempering and aging treatment offer high rigidity and minimal deformation.

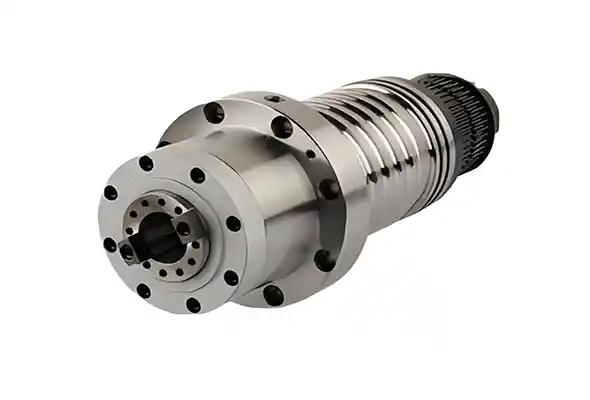

- ● Low-Noise, Multi-Angle Spindle System: Compatible with universal and vertical milling heads for multi-angle cutting, with noise < 80 dB.
- ● Stepless Servo Feed System: Smooth axis motion and fast response through servo motor-driven table feed with adjustable speeds.
- ● Expandable 4-Axis Machining: Optional rotary table or indexing head enables continuous multi-side machining.
Get More Details →
Recommended Configurations
- ● CNC Rotary Table: Allows 4th-axis contouring for curved surfaces or gear profiles.
- ● Indexing Head: Supports angular positioning for multi-face part setups.
- ● Coolant Circulation System: Enhances chip removal and tool life during extended cutting.
- ● Digital Tool Setter: Improves setup accuracy and reduces downtime.
- ● Universal Milling Head: Enables flexible horizontal-vertical angular machining for complex geometries.
Get More Details →
Application Case
- ● Client: Precision Machinery Supplier – Poland
- ● Workpiece: Structural support blocks and long fixture bases
- ● Setup: XLK6036 with CNC rotary table and universal milling head
- ● Results: • Achieved dimensional repeatability within ±0.01 mm over 1.3-meter travel • 30% cycle time reduction with continuous 4-axis milling • Improved surface integrity on steel and cast iron materials
- ● Client Feedback: “The XLK6036 combines rigidity, precision, and programming ease—perfect for complex fixture fabrication in a single setup.”
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
A horizontal CNC milling machine supports multi-axis linkage, automatic tool change, and programmed machining, significantly improving processing efficiency and consistency. If you require complex parts, mass production, or high repeat accuracy, the CNC model is undoubtedly a better option.
It depends on your workpiece type and production method. A horizontal milling machine is better for side machining, heavy cutting, and long workpieces, offering greater stability and better chip removal. A vertical milling machine is more suitable for small, complex-shaped parts. If your products involve large workpieces, grooves, or multi-surface machining, the horizontal type is the better choice.
A 5 axis horizontal milling machine can complete high-precision machining of complex multi-surface parts in a single setup. It is suitable for aerospace components, mold manufacturing, and high-precision machinery. It effectively reduces the number of setups and improves surface quality—making it an ideal choice for users seeking automation and efficient machining.
Absolutely! Minnuo has an experienced pre-sales technical team. As long as I provide drawings, whether for a standard horizontal milling machine or a complex production line setup, a single machine recommendation can be given within 10 minutes, and a complete production line plan can be delivered within 5 working days.
MINNUO has strong in-house manufacturing capabilities and can customize the horizontal milling machine based on your process needs, including travel range, tool magazine structure, spindle system, electrical system, and machine appearance. We also support custom configurations of horizontal boring and milling machines for multi-function integration.
We are equipped with high-end machining centers from top international brands to ensure the precision of all key components in the horizontal milling machine. Each machine undergoes full debugging and quality inspection before delivery and comes with a test report to ensure the equipment you receive is ready for immediate use.
For standard models, you can benefit from fast delivery from stock. For customized horizontal milling machines, the delivery time is generally 30–45 working days. The specific schedule will be confirmed based on configuration and production planning.
The equipment comes with a one-year warranty. During the warranty period, if any fault occurs, you will receive free repair support. We provide remote video guidance, phone technical support, and on-site service when necessary, ensuring rapid production recovery and minimizing downtime risks.
