Table Size: 500×2000mm · Travel (X/Y/Z): 1400 / 700 / 500mm · T-Slots: 5×18mm×80mm spacing
The X5750A is an enhanced universal ram-type manual milling machine featuring an extended 2000mm table for longer and heavier workpieces. Designed for manual, high-rigidity, heavy-duty machining, it supports both horizontal and vertical milling through a ram-adjustable spindle head, making it ideal for flexible, low-volume, and custom component fabrication.
Extended-Bed Manual Ram Milling Machine X5750A
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Extra-Long Table (2000mm): Handles oversized components like mold plates, linear bases, and structural beams with ease.
- ● Manual Universal Ram Head: Adjustable forward/backward for deeper reach and angular surface milling.
- ● Rigid Frame & Reinforced Guideways: Supports heavy workpieces up to 1.5 tons while maintaining feed accuracy.
- ● Multi-Axis Manual Feed with Precision Handwheels: Allows operators full control for custom slotting, facing, and contouring.
- ● Horizontal/Vertical Milling Compatibility: One machine covers slab milling, end milling, and face milling operations.
Get More Details →

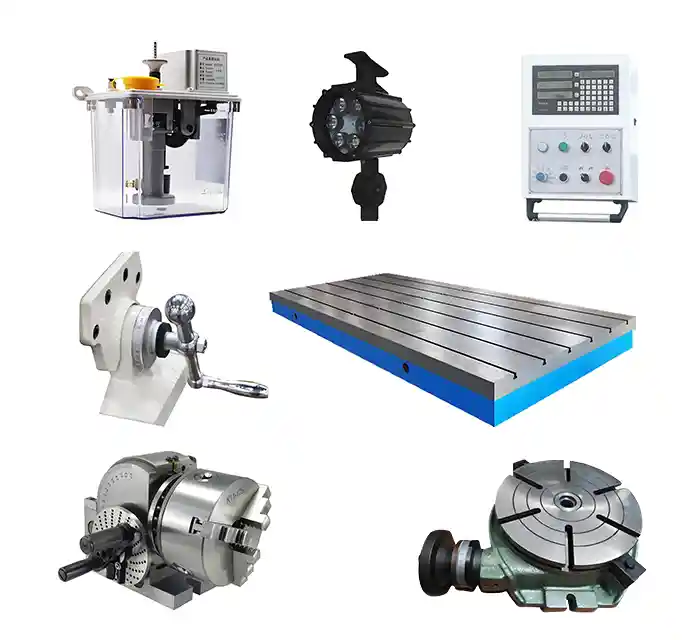

Recommended Configurations
- ● Spindle System: Adjustable speed spindle
- ● Worktable: T-slot worktable, ±45° rotating worktable, coordinate system，Rotary table
- ● Feed System: Manual feed system, electric feed adjustment
- ● Cooling and Lubrication System: Coolant spray device，Automatic centralized oil lubrication
- ● Clamping System: Standard fixtures, quick-change fixture device
- ● Precision Guideways: Rolling guideways or sliding guideways
- ● Other (Safety Protection System): 45° high-speed rotating tool turret, digital readout, dividing head, protective covers, emergency stop button and safety lock, LED work lamp，cutting disc
Get More Details →
Application Case
- ● Client: Industrial Mold Manufacturer (Germany)
- ● Workpiece: 1800mm long P20 steel mold base
- ● Setup: X5750A with ISO50 horizontal arbor, DRO, and dual clamps.
- ● Results: Surface finish: Ra 1.8 μm over full X-travel,Angular milling achieved using ram-forward head adjustment,Operator feedback: “The 2000mm table stroke saved time by eliminating multiple repositionings”
Get More Details →
Product Specifications
| Specification | Unit | X5750 | X5750A |
|---|---|---|---|
| Table size | mm | 500×1600 | 500×2000 |
| T-slots(NO./width/pitch) | mm | 5/18/80 | |
| Table travel(X/Y/Z) | mm | 1200/700/500 | 1400/700/500 |
| Swivel angle of milling head | - | 360° | |
| Spindle taper | - | ISO50 | |
| Spindle speed range | (27)30-2050 | ||
| Table feed(X/Y/Z) | mm/min | 10-1000/10-1000/5-500 | |
| Table rapid speed | 2200/2200/1100 | ||
| Distance between spindle nose and table surface | mm | 50-550 | |
| Distance from spindle center line to column | mm | 45-745 | |
| Main motor power | Kw | 7.5 | |
| Feed motor | Kw | AC servo motor X/Y:18NM;Z:27NM | |
| Max load | Kg | 1800 | |
| Overall size | mm | 2625×2460×2080 | 2625×2860×2080 |
| weight | kg | 4200 | 4500 |
Catalog
Frequently Asked Questions
A universal vertical milling machine has a vertically oriented spindle, making it suitable for flat surface machining. A horizontal universal milling machine features a horizontally oriented spindle, ideal for side milling or long workpieces. Some high-end models can switch between vertical and horizontal modes, enhancing versatility.
Compared to a standard vertical milling machine, a universal milling machine typically features a multi-angle adjustable spindle head, a rotating worktable, and greater workpiece adaptability. It supports both vertical and horizontal multi-surface machining, making it ideal for complex structures and small-batch, variable-part production scenarios—such as the Huron universal milling machine.
Absolutely! Minnuo has a strong and responsive pre-sales team. As long as you provide part drawings, whether it's for a single universal milling machine or a production line with multiple machines, we can recommend a solution within 10 minutes. For full-line projects, a complete proposal will be delivered within 5 working days.
We have full production capabilities and can customize the universal milling machine based on your specific needs, including travel range, spindle type, motor power, control system brand, and tool change method. Whether it's a traditional manual model or a CNC universal milling machine, non-standard customization is supported to meet a variety of machining scenarios.
We are equipped with high-end machining centers from top international brands, ensuring the machining precision of all core components of our universal milling machines. Each unit undergoes full machine testing before delivery and includes a quality inspection report to ensure it meets delivery standards.
For standard models, we maintain stock for fast delivery. If you require a customized universal milling machine or a horizontal universal milling machine, the delivery time is typically 30–45 working days, depending on the configuration.
The equipment you purchase comes with a one-year warranty. During the warranty period, you are entitled to free repair services in the event of equipment failure. We also provide remote video guidance, phone-based technical support, and on-site service when needed to help you resume production quickly and minimize downtime.
The universal milling machine price varies depending on the model, configuration (such as whether it's a CNC bed type universal milling machine), travel specifications, and whether customization is required. Minnuo will provide a detailed and transparent formal quotation based on your specific needs, with optional inclusion of taxes and shipping.
