Table Size: 1250×360mm · Travel (X/Y/Z): 1000 / 320 / 500mm · Spindle Taper: ISO40 (Vertical) / ISO50 (Horizontal)

The XA6236 is a conventional universal milling machine that integrates vertical and horizontal spindles, providing excellent adaptability for multi-surface machining tasks. With its generous 1000mm longitudinal travel, strong table load support, and ISO40/ISO50 dual-taper compatibility, this machine is engineered for both roughing and precision finishing of medium-sized workpieces.

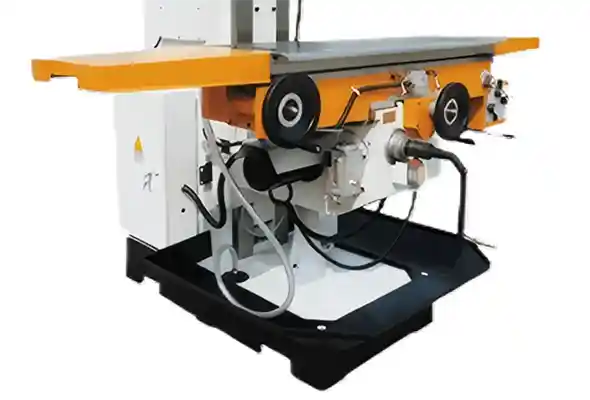

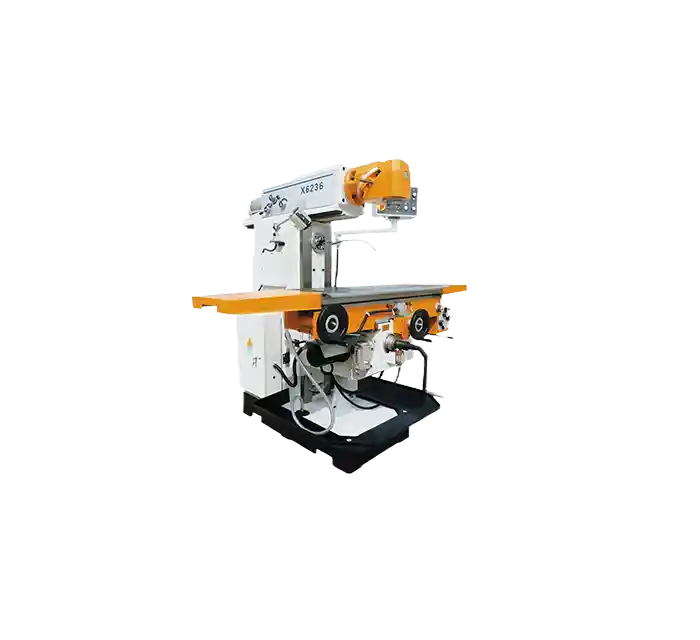

Conventional Universal Milling Machine XA6236

Regular maintenance

Spare parts supply

On-site installation service

Customized design

Key Features

● Dual Spindle Configuration: Equipped with both vertical ISO40 and horizontal ISO50 spindles for diverse cutting applications.

● Large Travel Coverage: Supports X/Y/Z movements of 1000/320/500mm, ideal for multi-face work without repositioning.

● Hardened & Ground Slideways: Ensures long-term precision and smooth manual movement under load.

● Manual Swivel Head (Optional): Enables basic angle and inclined milling for chamfers, bevels, or sloped faces.

● Rugged Gear Drive System: Delivers consistent torque at low speeds for heavy-duty steel cutting.

Get More Details →

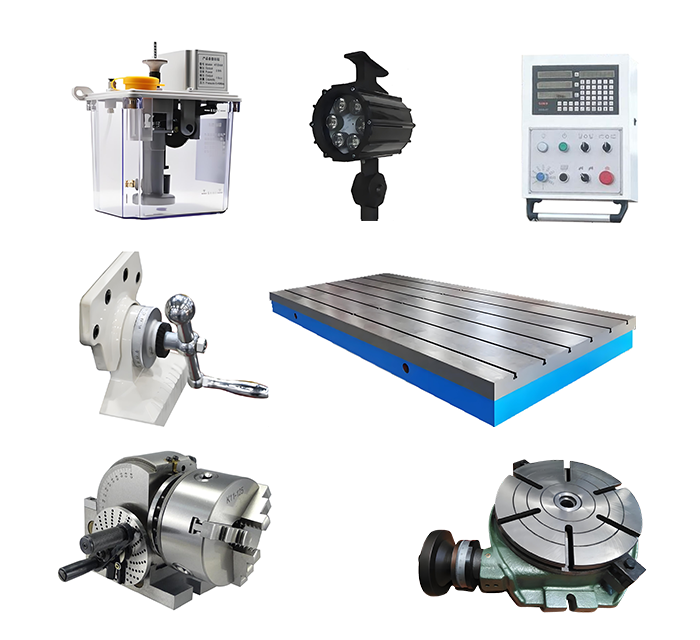

Recommended Configurations

● Spindle System: Adjustable speed spindle

● Worktable: T-slot worktable, ±45° rotating worktable, coordinate system，Rotary table

● Feed System: Manual feed system, electric feed adjustment

● Cooling and Lubrication System: Coolant spray device，Automatic centralized oil lubrication

● Clamping System: Standard fixtures, quick-change fixture device

● Precision Guideways: Rolling guideways or sliding guideways

● Other (Safety Protection System): 45° high-speed rotating tool turret, digital readout, dividing head, protective covers, emergency stop button and safety lock, LED work lamp，cutting disc

Get More Details →

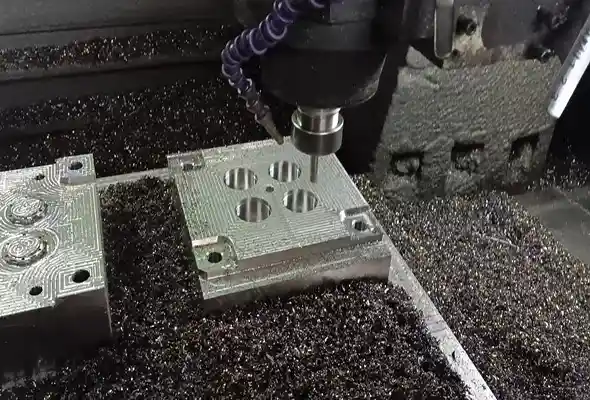

Application Case

● Client: Tool & Die Workshop (Vietnam).

● Use Case: Universal milling of small-to-medium mold inserts.

● Setup: XA6236 with DRO, rotary table, and ISO40 face mill.

● Results: Dimensional accuracy within ±0.03mm over multiple operations ,One-machine solution for face, slot, and side milling, Operator comment: “Switching between vertical and horizontal modes saved setup time”.

Get More Details →

Parameter	Unit	XA6236
Spindle taper		7：24 ISO40(vertical)/ISO50(horizontal)
Distance from vertical spindle hole center to column surface	mm	350-850
Distance from vertical spindle end face to table surface	mm	210-710
Distance from horizontal spindle center to table surface	mm	0-500
Distance from the center of horizontal spindle to the lower surface of ram	mm	175
Spindle speed range	r/min	（11step）35-1600（vertical）（12step）60-1800（horizontal）
Table size	mm	1250*360
Table travel(longitudinal/transverse/vertical)	mm	1000/320/500
Table longitudinal/horizontal motorized feed rate	mm/min	15-370（8step）（Fast540）
Table vertical motorized lifting speed	mm/min	590
Table T-slot number/width/spacing	mm	3/18/80
Main drive motor power	kw	2.2(vertical）4(horizontal）
Table motorized feed motor power	W	750
Motor power of lifting table lifting and feeding	W	1100
Cooling pump motor power	W	90
Net weight	kg	2400
Dimension	mm	222017902040

MN CATALOG.pdf

Frequently Asked Questions

1、What is the difference between a universal vertical milling machine and a horizontal universal milling machine?

A universal vertical milling machine has a vertically oriented spindle, making it suitable for flat surface machining. A horizontal universal milling machine features a horizontally oriented spindle, ideal for side milling or long workpieces. Some high-end models can switch between vertical and horizontal modes, enhancing versatility.

2、What is the difference between a universal milling machine and a vertical milling machine?

Compared to a standard vertical milling machine, a universal milling machine typically features a multi-angle adjustable spindle head, a rotating worktable, and greater workpiece adaptability. It supports both vertical and horizontal multi-surface machining, making it ideal for complex structures and small-batch, variable-part production scenarios—such as the Huron universal milling machine.

3、I only have part drawings. Can you recommend a suitable universal milling machine?

Absolutely! Minnuo has a strong and responsive pre-sales team. As long as you provide part drawings, whether it's for a single universal milling machine or a production line with multiple machines, we can recommend a solution within 10 minutes. For full-line projects, a complete proposal will be delivered within 5 working days.

4、What customization options are available for universal milling machines?

We have full production capabilities and can customize the universal milling machine based on your specific needs, including travel range, spindle type, motor power, control system brand, and tool change method. Whether it's a traditional manual model or a CNC universal milling machine, non-standard customization is supported to meet a variety of machining scenarios.

5、 How is the quality of a universal milling machine ensured?

We are equipped with high-end machining centers from top international brands, ensuring the machining precision of all core components of our universal milling machines. Each unit undergoes full machine testing before delivery and includes a quality inspection report to ensure it meets delivery standards.

6、We are equipped with high-end machining centers from top international brands, ensuring the machining precision of all core components of our universal milling machines. Each unit undergoes full machine testing before delivery and includes a quality inspection report to ensure it meets delivery standards.

For standard models, we maintain stock for fast delivery. If you require a customized universal milling machine or a horizontal universal milling machine, the delivery time is typically 30–45 working days, depending on the configuration.

7、What does your after-sales service include?

The equipment you purchase comes with a one-year warranty. During the warranty period, you are entitled to free repair services in the event of equipment failure. We also provide remote video guidance, phone-based technical support, and on-site service when needed to help you resume production quickly and minimize downtime.

8、What is the general price range for a universal milling machine?

The universal milling machine price varies depending on the model, configuration (such as whether it's a CNC bed type universal milling machine), travel specifications, and whether customization is required. Minnuo will provide a detailed and transparent formal quotation based on your specific needs, with optional inclusion of taxes and shipping.
