C-Axis Indexing for High Precision • ±0.001° Positioning Accuracy

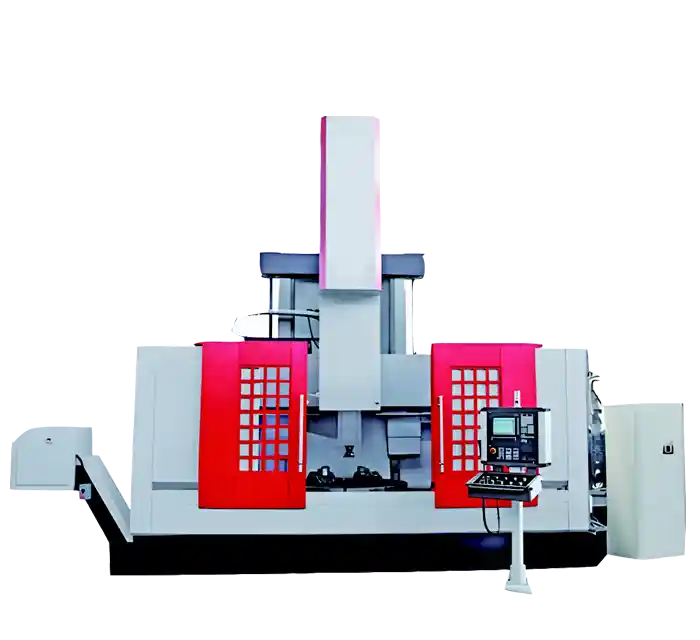

The VSL CNC Single-Column Vertical Turning and Milling Center is a high-performance machine for turning, milling, and grinding with a single clamping. Featuring a high-torque spindle, precise bearings, and C-axis indexing, it offers reliable performance for large workpieces in industries like automotive, aerospace, and heavy machinery. Powered by Siemens 840DSl control, it ensures accuracy and stability.
VSL series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Multi-Process Capability： The VSL can perform turning, milling, boring, drilling, tapping, reaming, and grinding with a single clamping, increasing productivity and precision.
- ● High-Precision Worktable Spindle： Features double-row cylindrical roller bearings for radial centering and large thrust bearings for axial guidance, ensuring smooth and accurate operation.
- ● C-Axis Indexing Function： Reduces gear transmission clearance, allowing C-axis positioning accuracy to reach ±0.001°, enhancing precision in complex machining.

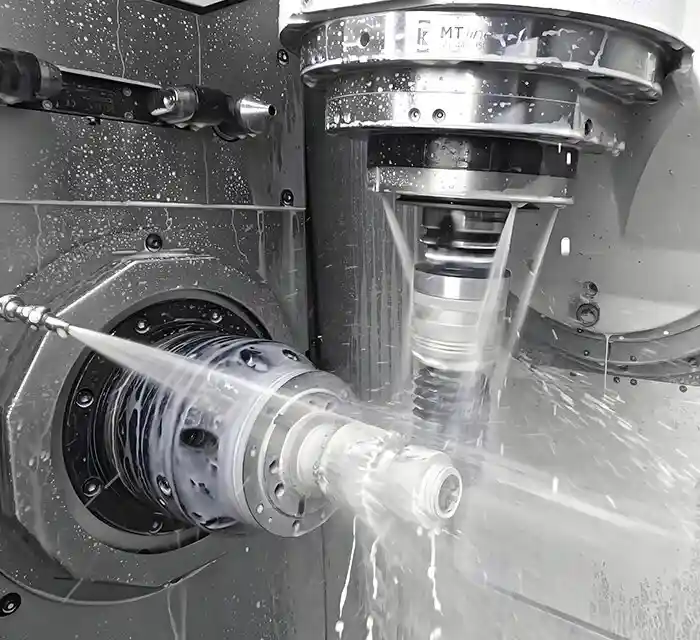

- ● Electric Spindle Milling Head： The milling head uses an electric spindle with water cooling, ensuring high tolerance, low noise, and high torque, providing stable performance during long machining operations.
- ● Advanced Control System： The Siemens 840DSl system offers excellent control for complex machining tasks, with an option for an automatic tool magazine for higher automation.
- ● Independent Hydraulic Station & Refrigeration Unit： For stable power supply and temperature control during long operation cycles, ensuring the precision of the machining process.
Get More Details →
Recommended Configurations
- ● Spindle Configuration: High-speed Electric Spindle, Dual Spindle System, Y-axis Powered Tool Turret
- ● Tooling System: Servo Tool Turret, Tool Compensation System
- ● Clamping System: Hydraulic Clamps, Pneumatic Clamps, Mechanical Clamps, Magnetic Clamps
- ● Feed and Drive System: Linear Drive, Ball Screws, Servo Motors
- ● Cooling and Lubrication System: Internal Cooling System, External Cooling System, High-pressure Cooling System
- ● Control System: High-performance CNC System (FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi, etc.)
- ● Other Configurations: Robot Arm, Renishaw OMP60 Workpiece Probe, Renishaw TS27R Tool Setting Probe, Chain-Type Chip Conveyor, Oil Mist Collector
Get More Details →
Application Case
- ● Application Case
- ● Client: Automotive Parts Manufacturer – Japan

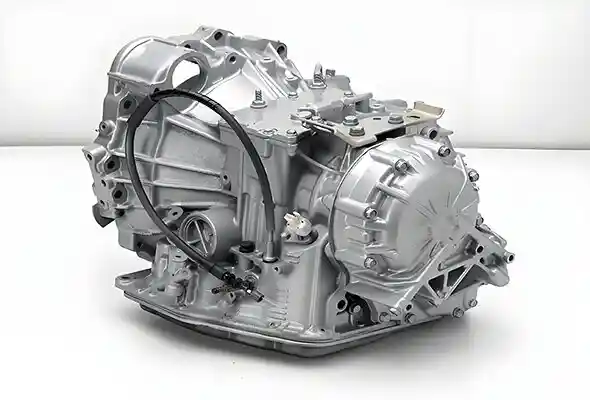

- ● Use Case: Machining of precision automotive components (e.g., engine blocks, transmission parts)
- ● Setup: VSL CNC Single-Column Vertical Turning and Milling Center with automatic tool magazine, electric spindle milling head, and hydraulic station
- ● Results: • Precision: Achieved tight tolerances of ±0.005mm on complex engine parts • Increased Efficiency: Reduced machining time by 15% due to multi-process capabilities and automation • Improved Workpiece Quality: Enhanced surface finish and minimal tool wear with water-cooled milling head
- ● Client Feedback: "The VSL machine has greatly increased our productivity and machining precision. The ability to handle multiple processes in one setup has been a game-changer for our production line."
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
It integrates turning and milling in a compact footprint, offering high rigidity and stability. Ideal for large precision parts like flanges, discs, and shafts with reduced setup time and increased efficiency.
Widely used in aerospace, wind power, automotive, and construction equipment industries. It’s suitable for high-precision, large-size, single or small-batch parts.
Supports max turning diameter of up to 4000mm and height up to 2500mm. Capable of multi-process machining in a single setup for complex components.
Yes. The system features a user-friendly, graphical CNC interface. Operators can master it quickly with basic training.
Spindle speed, motor power, tool turret, ATC system, and probes can all be customized to meet specific production needs.
High-rigidity bed structure, imported components, and precision drive systems reduce thermal drift and vibration, ensuring consistent accuracy.
Standard models are in stock; custom configurations typically require 30–45 working days, depending on the specifications.
One-year warranty with lifetime technical support. We offer quick fault response, remote diagnostics, and on-site repair to ensure long-term machine reliability.
