Up to 5T workpiece capacity • Hydrostatic spindle • FANUC Oi-MD CNC system • Dual chuck option

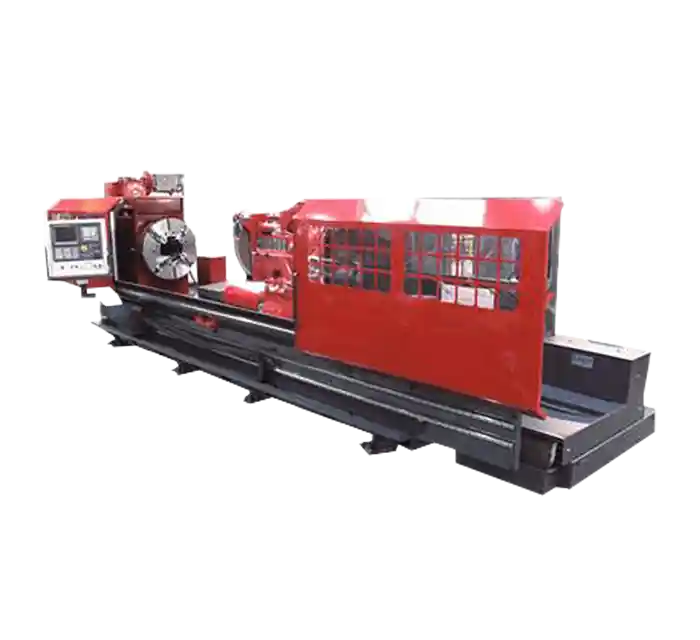

The MKY Series CNC grinder is built for heavy oilfield tools like stabilizers and drill collars, handling diameters up to 1118 mm and parts weighing up to 5 tons. With a FANUC Oi-MD system, hydrostatic spindle, and vibration-resistant drive, it ensures high precision and durability for demanding energy applications.
MKY Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Rigid Bed Construction: The one-piece well-type bed is FEA-optimized and built from high-grade cast iron, offering excellent structural stability and ensuring long-term machining accuracy.
- ● High-Torque Spindle Drive: Powered by an AC variable-frequency motor with a synchronous belt, the headstock delivers strong torque with reduced transmission vibration for smoother and more efficient operation.
- ● Advanced Grinding Spindle: Features a hydrostatic spindle and concave flange chuck, providing superior rigidity and enabling precision grinding of complex contours with excellent repeatability.
- ● CNC System & Automation: Utilizes the FANUC Oi-MD control platform to perform accurate multi-step grinding with stable performance, user-friendly programming, and full compatibility with automated workflows.
- ● Custom Workholding Support: An optional dual-chuck configuration accommodates long or irregular oilfield components, enhancing workpiece stability and production flexibility.
Get More Details →
Recommended Configurations
- ● Spindle System: High-precision grinding spindles (belt-driven, electric spindles, or hydrostatic spindles), spindle cooling system (oil-cooling or air-cooling), automatic spindle balancing system (optional)
- ● Workpiece Clamping System: Precision clamping devices, universal V-block clamps, custom tooling fixtures, workpiece rotation system

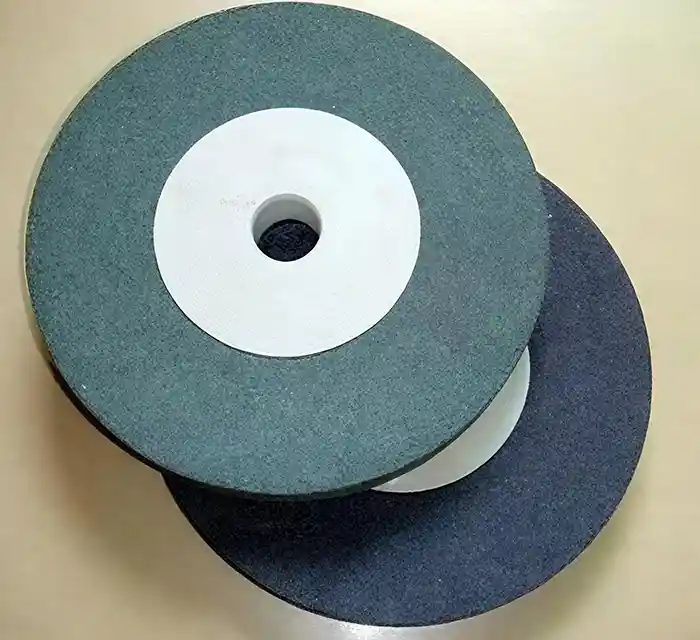

- ● Grinding Wheel System: Automatic grinding wheel dressing system (diamond dressing wheel or single-point dresser), precision grinding wheel dynamic balancing system
- ● Feed and Motion System: Automatic feed control system, adjustable feed speed to meet different grinding operation requirements
- ● Cooling and Filtration System: Coolant circulation system, adjustable nozzle-type coolant injection system, high-efficiency filtration system (paper belt filter or magnetic separator)
- ● Control and Automation System: CNC (Computer Numerical Control) system or PLC control system, Human-Machine Interface (HMI touch screen), tool measurement and compensation system (optional), automatic loading and unloading system (optional)
- ● Accessories and Optional Devices: Grinding wheel dressing tool holder, workpiece positioning supports, lighting system and workpiece air-blow cleaning system, chip removal and dust cleaning system
Get More Details →
Application Case
- ● Client: Oil Equipment Manufacturer – USA
- ● Workpiece: Spiral stabilizers (Ø950 mm × 2200 mm)
- ● Setup: MKY-Series with FANUC CNC, hydrostatic spindle, and dual chuck
- ● Results: • Roundness tolerance: ≤ 0.01 mm • Surface roughness: Ra ≤ 0.8 μm • Tool change and cycle time reduced by 30%
- ● Client Feedback: “This grinder has improved both throughput and quality in our tool repair and new production line.”
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
Absolutely. Minnuo has an experienced and responsive technical team. As long as I provide the part drawings, you can recommend a suitable tool grinding machine within 10 minutes for a single unit. For production lines with multiple machines, a full solution will be delivered within 5 working days.
If I need to frequently grind or re-sharpen tools like drills, end mills, or taps, a tool & cutter grinding machine is the right choice. It supports multi-angle and multi-type tool grinding and is ideal for mold making, hardware machining, and repair shops.
A CNC tool grinding machine offers automated control, high repeatability, and is ideal for complex or batch tool production. If I require high efficiency, consistency, or need to grind complex geometries, CNC is the better choice. For small volumes or limited budgets, a manual grinder may suffice.
Yes. You offer various models of 5 axis CNC tool grinding machines, and I can customize one based on tool size, geometry, and processing needs. It’s ideal for precision grinding of complex tools like spiral end mills and ball nose cutters.
A universal tool cutter grinder machine is highly versatile. It can handle many tool types including end mills, turning tools, drills, and gear cutters. It’s perfect for shops like mine that deal with a wide range of tool types and require flexible processing.
You’re equipped with high-end machining centers from top global brands to ensure precision for all key parts of the CNC tool grinding machine. Each machine is rigorously tested before delivery and comes with a detailed quality inspection report, so I can purchase with confidence.
A tool post grinding machine is typically mounted on a lathe and used for regrinding tools or small workpieces. It’s an ideal option for tasks that require precision grinding of outer diameters or faces in limited space—perfect for repair shops or turning environments like mine.
Not at all. We provide operation manuals, instructional videos, and technical training support for all models of tool grinding machines. I can also choose remote training or on-site installation and commissioning services to ensure quick setup and safe operation.
