High-Speed Performance for Fast Machining• 32 m/min Rapid Traverse Speed

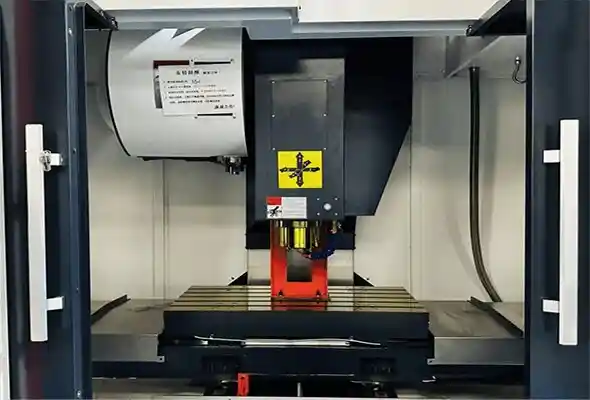

The VMC1050 CNC Vertical Machining Center offers precision machining for both rough and finish operations, ideal for industries like automotive and aerospace. Its high-speed capabilities and robust design ensure efficient machining of medium-sized parts.
VMC1050
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Optimal Travel Range: With 1000 mm on the X-axis, 500 mm on the Y-axis, and 600 mm on the Z-axis, the VMC1050 is ideal for machining medium-sized components and molds.
- ● High-Speed Machining: The VMC1050 offers a maximum feed rate of 10,000 mm/min and rapid traverse speeds of up to 32 m/min in the X/Y axes, ensuring faster machining and shorter cycle times.
- ● Versatile Machining Operations: The machine is equipped to handle a wide range of operations, including milling, drilling, tapping, boring, and more, providing flexibility for various production requirements.
- ● High Precision and Efficiency: Designed for high precision, the VMC1050 guarantees excellent accuracy for both rough and finish machining, ensuring high-quality results with every operation.
- ● Sturdy and Reliable Design: The VMC1050 is built with a rigid structure to ensure stable performance, even during heavy-duty machining tasks.
Get More Details →
Recommended Configurations
- ● Spindle System: High precision spindles (SKF, NSK), center coolant spindle
- ● Feed System: Servo motor, stepper motor, linear guideway, ball screw
- ● Cooling System: Centrifugal pump, vibration pump, water-soluble coolant, oil-based coolant
- ● CNC Control System: High-performance CNC systems (FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi, etc.)
- ● Tooling System: Carousel tool changer, chain-type tool changer, linear tool changer
- ● Measuring and Monitoring: Heidenhain linear scales, tool breakage detection system, Renishaw OMP60 workpiece probe, Renishaw TS27R touch probe
- ● Other Configurations: Chip conveyor, oil mist collector, oil cooler, cooling water tank, multi-joint robot arm
Get More Details →
Application Case
- ● Client: Precision Mold Manufacturer – USA

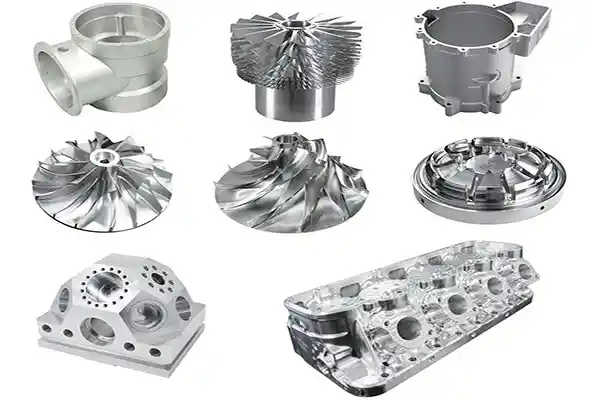

- ● Workpiece: Precision mold cavities and small structural parts
- ● Setup: VMC1050 CNC Vertical Machining Center with automatic tool changer and chip conveyor
- ● Results: • Precision: Achieved tight tolerances of ±0.005 mm on complex mold geometries • Efficiency: Machining time reduced by 20% through high-speed cutting and automated tool changes • Surface Quality: Enhanced finish and reduced tool wear with optimized cooling and cutting parameters • Process Capability: Enabled both roughing and finishing operations in a single setup
- ● Client Feedback: “The VMC1050 has significantly improved our production capacity. The flexibility of this machine allows us to handle both rough and fine machining in one setup, making it a key asset in our production line.”
Get More Details →
Product Specifications
| Specifications | unit | VMC650 | VMC855 | VMC1050 | VMC1160 | VMC1370 | VMC1580 |
|---|---|---|---|---|---|---|---|
| Table size | mm | 900×400 | 1000×550 | 1000×530 | 1200x600 | 1500×700 | 1700×800 |
| Table maximum load | kg | 350 | 500 | 600 | 1000 | 900 | 1500 |
| X/Y/Z axis travel | mm | 650x400x500 | 800×550×550 | 1000×500×600 | 1100×600×600 | 1300×700×700 | 1500×800×700 |
| Distance between spindle center and column | mm | 476 | 590 | 580 | 650 | 752 | 871 |
| Distance between spindle end face and worktable surface | mm | 100-600 | 120-670 | 140-740 | 120-720 | 150-850 | 150-900 |
| X/Y/Z Max.feed speed | mm/min | 10000 | 10000 | 10000 | 10000 | 8000 | 10000 |
| X/Y/Z Max.Rapid traverse | m/min | 32/32/30 | 32/32/30 | 32/32/24 | 32/32/30 | 20/20/15 | 20/20/16 |
| spindle speed | r/min | 8000 | 8000 | 8000 | 8000 | 8000 | 6000 |
| spindle taper | type | BT40 | BT40 | BT40 | BT40 | BT40 | BT50 |
| Spindle motor power | kW | 5.5/7.5 | 7.5/11 | 7.5/11 | 11/15 | 11/15 | 15/18 |
| X/Y/Z axis servo motor power | kW | 2.6/2.6/2.8 | 3.9/3.9/3.6 | 3.9/3.9/3.6 | 04/4/5 | 04/4/5 | 4.5/4.5/4.5 |
| X/Y/Z motor connection | / | direct link | direct link | direct link | direct link | direct link | direct link |
| X/Y/Z Guide way type | / | rails | rails | rails | Three-wire guideway | Two lines and one hard guide | Two lines and one hard guide |
| Tslot | mm | 3-18×125 | 5-18×90 | 5-18×90 | 5-18×100 | 5-18×145 | 5-22×145 |
| Repeat positioning accuracy | mm | ±0.004 | ±0.004 | ±0.004 | ±0.005 | ±0.005 | ±0.005 |
| Tool magazine | / | Bucket/Disc | Disc | ||||
| Toolcapacity | / | 16T/16T | 24T | 24T | 24T | 24T | 24T |
| Maximum tool weight | kg | 7 | 8 | 8 | 8 | 8 | 15 |
| Max.tool length | mm | 250/300 | 300 | 250/300 | 300 | 300 | 300 |
| Electric capacity | kVA | 10 | 15 | 15 | 18 | 22 | 30 |
| Machine dimension (L×W×H) | mm | 2300×2000×2300 | 2600×2380×2700 | 3200×2420×2400 | 3100×2490×2380 | 3600×3000×2700 | 4260×3545×3200 |
| Net.weight(about) | kg | 4500 | 5000 | 6000 | 7000 | 11000 | 12000 |
Catalog
Frequently Asked Questions
The vertical CNC machining centers use a thermal compensation system to counteract expansion and contraction.
Absolutely, the vertical CNC machining center offers smooth 5 - axis interpolation for complex geometries.
As a professional CNC lathe machine manufactor, Minnuo offers direct factory sales. We will provide the most suitable quotation according to customers' requirements to ensure the highest cost - performance ratio.
Minnuo's pre - sales team responds quickly. For a single CNC lathe machine, we'll give equipment recommendations within 10 minutes upon getting the drawings. For a production line of multiple CNC machine lathes, a solution will be provided within 5 working days.
We have complete basic production equipment. For vertical CNC machining centers，we customize components such as machine systems, spindle speeds, motor power, and outer shell sheet metal.
Our top - brand processing machines ensure part machining accuracy in CNC lathe machines. We provide quality inspection reports for CNC machine lathes at factory - leaving.
We stock standard vertical CNC machining centers for quick delivery. Custom CNC machine lathes are delivered in 30 - 45 working days.
Our CNC lathe machines have a one - year warranty with free repairs. Contact our 24/7 after - sales team for malfunctions. Issues are resolved via remote video, phone, or on - site service.
