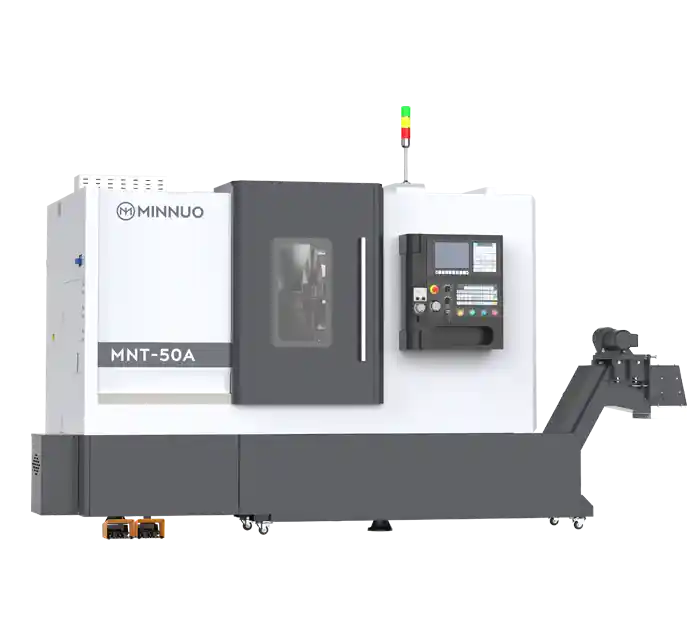

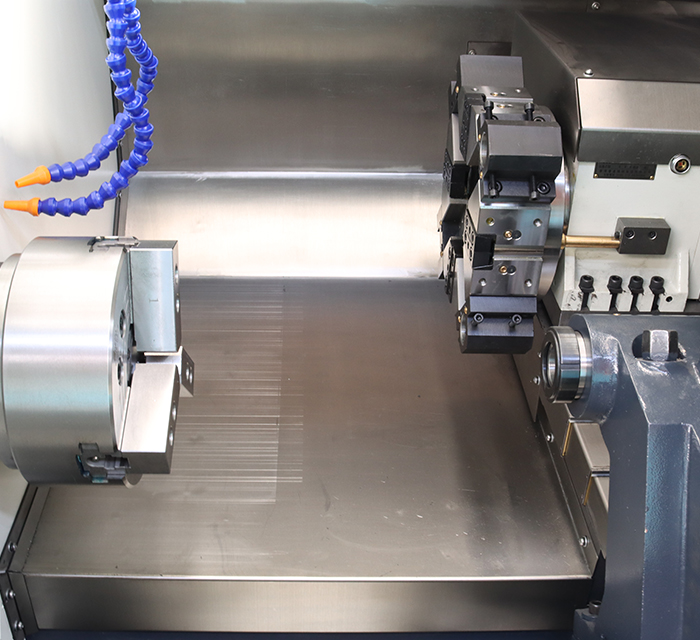

The MNT50A is a robust and efficient CNC slant bed lathe designed for precision machining of medium-length shaft and disc-type parts. With X-axis travel of 240mm, Z-axis travel ranging from 350mm to 1560mm, and a machining length of up to 1500mm, it delivers outstanding versatility for industries including automotive, hydraulics, general machinery, and tool manufacturing.
MNT Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Long Travel in a Compact Body: Z-axis range from 350mm to 1560mm, supports turning lengths up to 1500mm, suitable for everything from short flanges to long shafts.
- ● Precision X-Axis Movement: 240mm travel supports full tool engagement and accurate positioning, ideal for OD/ID turning, facing, and taper cutting.
- ● 45° Slant Bed Design: Enhances chip evacuation, improves cutting rigidity, and simplifies operator access for tooling and part handling.
- ● One-Piece Casting for Stability: Heavy-duty Meehanite casting base ensures dimensional stability, even under heavy or continuous-duty operation.
- ● Servo Turret Compatibility: Can be paired with electric or servo tool turrets (8 or 12 stations) for fast, repeatable tool changes.
Get More Details →

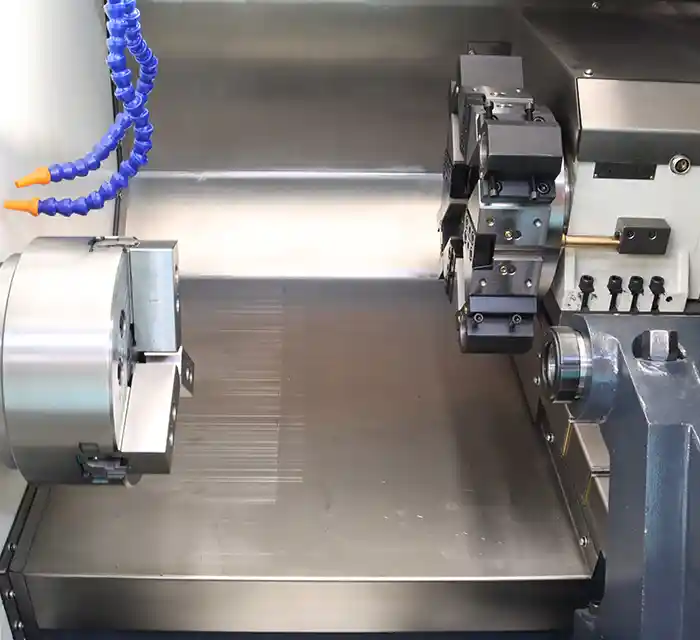

Recommended Configurations

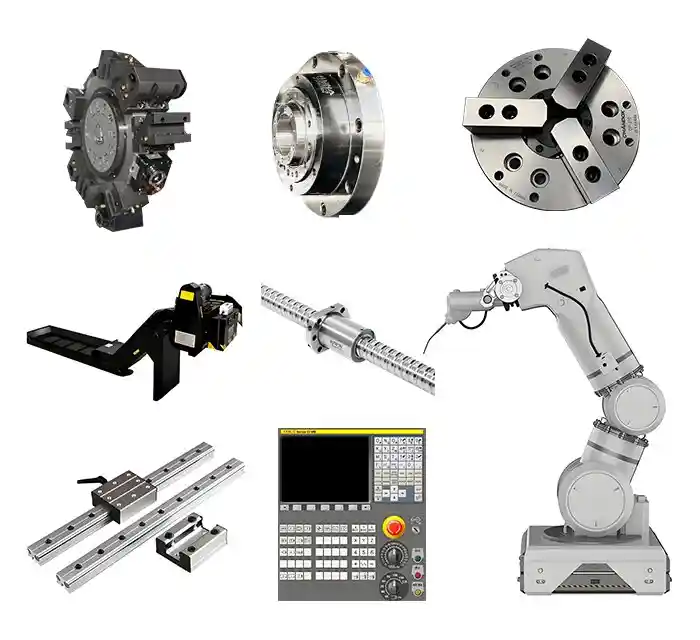

- ● Spindle: High-precision spindle (SKF, NSK), center-out water spindle, hydraulic spindle
- ● Drive System: Servo motor, linear motor drive (high precision, high speed)
- ● Automation: Automatic tool changing system (ATC), automatic loading and unloading system, robotic arm integration
- ● Turret: Electric turret, servo turret, Y-axis powered turret, vertical electric tool holder
- ● Cooling System: High-pressure cooling system, built-in cooling system
- ● CNC Control System: High-performance CNC systems (FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi, etc.)
- ● Measurement and Monitoring: Tool breakage detection system, Renishaw OMP60 workpiece probe, Renishaw TS27R contact tool setter
- ● Other Configurations: Hydraulic/pneumatic chuck, protective cover design, chain-type chip conveyor, oil mist collector
Get More Details →
Application Case
- ● Client: Automotive supplier (Southeast Asia).
- ● Workpiece: Ø70mm × 1150mm steel shaft with stepped diameters and threads.
- ● Machine Setup: MNT50A with 10” hydraulic chuck, 8-station electric turret, FANUC 0i-TF control.
- ● Results: Cycle time reduced by 18% compared to old flat-bed lathe, High repeatability over 3-shift production (±0.01mm).
Get More Details →
Product Specifications
| Specifications | unit | MNT25Y | MNT50A | MNT46A | MNT50A | MNT50M | MNT50Y |
|---|---|---|---|---|---|---|---|
| Max.swing dia.over bed | mm | 510 | 360 | 460 | 560 | 560 | 640 |
| Max.swing dia.over slide | mm | 150 | 140 | 260 | 300 | 300 | 380 |
| Max.work piece length | mm | 235 | 300 | 350 | 300/550/800/1500 | 400/700/1500 | 400/700/1500 |
| Max.bar capacity | mm | 44 | 38/44 | 44 | 55/75 | 55/75 | 55/75 |
| Max.processing diameter(plate) | mm | 250 | 360 | 440/360 | 440/360 | 300/350 | 300/450/450 |
| Spindle nose | GB59001 | A2-5 | A2-5 | A2-5 | A2-6/8 | A2-6/8 | A2-6/8 |
| spindle bore | φ/mm | 56 | 48/56 | 56 | 66/66/86 | 66/86/86 | 66/86/86 |
| Spindle speed | r/min | 50-4500 | 50-4000 | 50-3500 | 50-3000 | 50-3000 | 50-3000 |
| Spindle shift mode | / | stepless speed control | |||||
| Spindle motor power | KW | 7.5/5.5 | 5.5 | 7.5 | 11/11/15 | 11/15/15 | 11/15/15 |
| Chuck type | / | Hydraulic chucks | |||||
| Chuck size | Inch | 6 | 6 | 8 | 10 | 10 | 10 |
| Xaxisrapid traverse | m/min | BW70-Y-35- BMT40-12T-4L | 24 | 24 | 24 | SHD16L/TCSD80-12T-330 | TCSDY80H-12T-330 |
| Zaxis rapid traverse | m/min | 24 | 24 | 24 | 24 | 18 | 18 |
| Xaxisservo motor torque | N.m | 24 | 6 | 7.5 | 10/15 | 18 | 18 |
| Zaxis servo motor torque | N.m | 10 | 6 | 7.5 | 10/15 | 15 | 15 |
| Xaxi travel | mm | 10 | 185 | 240 | 240 | 15 | 15 |
| Zaxis travel | mm | 135 | 350 | 400 | 400/540/860/1560 | 240/260/260 | 240/260/260 |
| Guide way type | / | ±30 | Linear guides | Linear guides | Linear guides | / | ±45 |
| turret type | / | 370 | Horizontal 8/12 stations | 500/800/1500 | 500/800/1500 | ||
| tool shank size | mm | rails | 20X20/025 | 25×25/032 | 25X25/032 | rails | rails |
| Tail stock type | / | BMT40 | Hydraulically | Hydraulically | Hydraulically | BMT45 | BMT45 |
| Tail tock qull dia | φ/mm | 20X20/025 | 65 | 70 | 70/90 | 25X25/032 | 25X25/032 |
| Tail stock quiltravel | mm | / | 60 | 80 | 80 | Hydraulically | Hydraulically |
| Tail stock quilltaper | / | / | MT4# | MT5# | MT5# | 70/90 | 70/90 |
| Total rated power | KW | 9 | 11 | 14/18/22 | 80 | 80 | |
| Totalrated current | A | 18 | 19 | 23 | 30 | 24 | 24 |
| Net weight | kg | 2500 | 2500 | 3000 | 3100/3300/4000/5000 | 3300/4000/5000 | 3400/4100/5100 |
| Machine dimension (LxW×H) | (mm) | 1810×1480×1940 | 2200×1636×1850 | 2500×1950×1950 | 2600/2700/3300/4000X2000X2000 | 2600/3370/4100×2000×2000 | 2600/3370/4100×2000×2100 |
Catalog
Frequently Asked Questions
Of course ,our 5 axis cnc slant bed lathe can perform more complex machining tasks.
The servo system uses products from Siemens (or you can specify the brand), and the ball screws are from THK. This ensures the high quality and reliability of the CNC machine tool.
As a professional CNC lathe machine manufactor, Minnuo offers direct factory sales. We will provide the most suitable quotation according to customers' requirements to ensure the highest cost - performance ratio.
Minnuo's pre - sales team responds quickly. For a single slant bed cnc lathe machine, we'll give equipment recommendations within 10 minutes upon getting the drawings. For a production line of multiple CNC machine lathes, a solution will be provided within 5 working days.
We have complete basic production equipment. For slant bed cnc lathe machines, we customize components like machine systems, spindle speeds, motor power, and outer shell sheet metal.
Our top - brand processing machines ensure part machining accuracy in CNC slant bed lathe. We provide quality inspection reports for CNC machine lathes at factory - leaving.
We stock standard CNC slant bed lathe for quick delivery. Custom CNC machine lathes are delivered in 30 - 45 working days.
Our slant bed cnc lathe machines have a one - year warranty with free repairs. Contact our 24/7 after - sales team for malfunctions. Issues are resolved via remote video, phone, or on - site service.
A slant bed CNC lathe offers advantages such as better chip evacuation, higher rigidity, improved accuracy, and easier operator access compared to a flatbed lathe.
