Stable Performance with High-Speed Cutting Capability • 32 m/min Rapid Traverse Speed

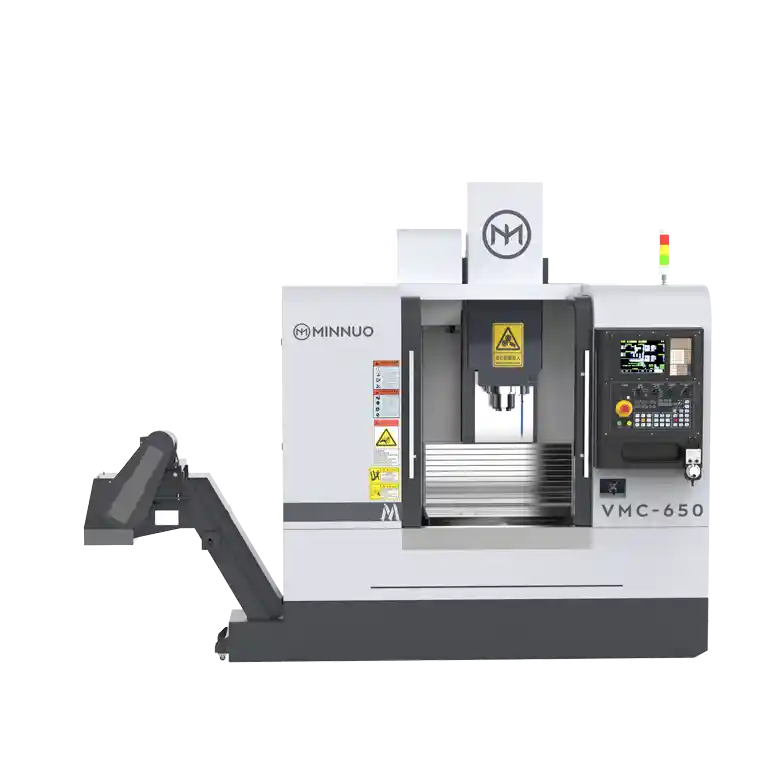

The VMC650 CNC Vertical Machining Center is a versatile, high-performance machine ideal for milling, drilling, tapping, and boring. With its large travel range, efficient feed rates, and reliable design, it excels in both high-speed production and custom machining tasks for industries like mechanical component production and mold making.
VMC650
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Large Travel Range: With 650 mm on the X-axis, 400 mm on the Y-axis, and 500 mm on the Z-axis, the VMC650 is well-suited for machining medium-sized components and molds.
- ● High-Speed Machining: The VMC650 supports a maximum feed rate of 10,000 mm/min and a rapid traverse speed of up to 32 m/min in the X/Y axes, offering fast processing times and reduced cycle times.
- ● Versatile Machining Capabilities: Designed for a wide range of tasks, the VMC650 can perform milling, drilling, tapping, boring, and other operations in a single setup, improving machining efficiency and part quality.
- ● Precision and Flexibility: Equipped with high-precision components, the VMC650 ensures accuracy in machining complex geometries, from rough cutting to fine finishing.
- ● Stable and Reliable Design: The machine’s rigid structure and robust components ensure stable cutting performance and long-term reliability, even under heavy-duty machining conditions.
Get More Details →

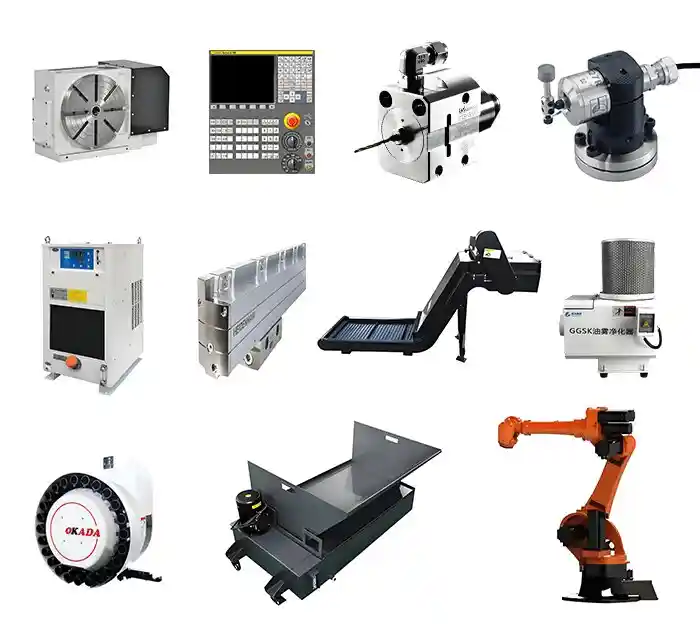

Recommended Configurations

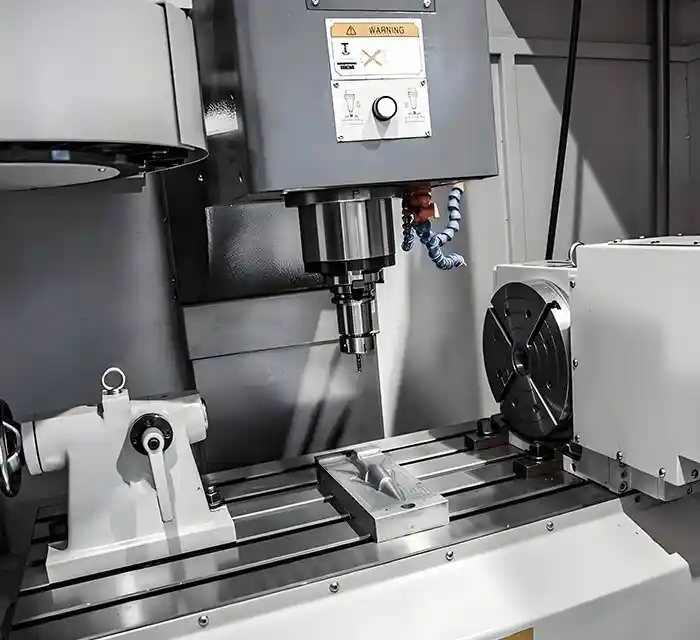

- ● Worktable Configuration: Fixed Worktable, Rotary Worktable
- ● Spindle Configuration: High-Precision Spindle, High-Speed Spindle, High-Torque Spindle
- ● Cooling System Configuration: Internal Cooling System, High-Pressure Cooling System, Mist Cooling System
- ● Drive System Configuration: Servo Motor Drive System, Linear Motor Drive System, High-Load Servo Motor
- ● CNC Control System: High-Performance CNC System (FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi, etc.)
- ● Automation Configuration: Automatic Tool Changer System (ATC), Automatic Tool Measurement System (ATMS), Automatic Loading and Unloading System
- ● Precision Assurance Configuration: Laser Interferometer Precision Measurement System, Thermal Compensation System, Grating Scale Feedback System
- ● Vibration Control System: Active Vibration Control System, Intelligent Vibration Compensation System
- ● Safety and Protection Configuration: Full Enclosure Safety Guard, Emergency Stop System
Get More Details →
Application Case
- ● Client: Precision Mold Manufacturer – South Korea

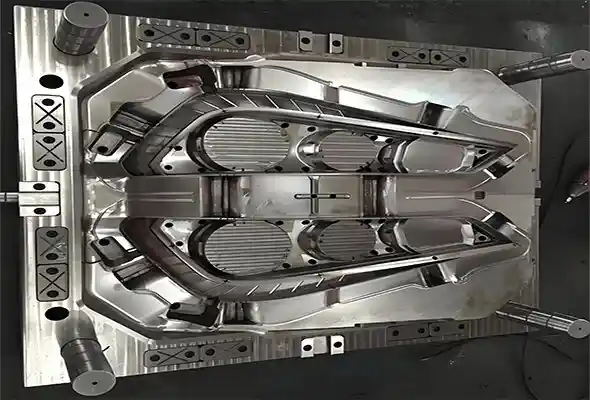

- ● Workpiece: Complex mold cavities and metal parts
- ● Setup: VMC650 with automatic tool changer and chip conveyor
- ● Results: • Precision: Achieved tight tolerances of ±0.005 mm on intricate mold cavities and complex metal components • Efficiency: Reduced machining time by 20% with high-speed cutting and rapid traverse capabilities • Surface Quality: Achieved excellent surface finish and minimal tool wear, thanks to efficient cooling and stable performance • Process Flexibility: Handled both roughing and finishing operations in one setup, improving workflow efficiency
- ● Client Feedback: “The VMC650 has significantly increased our throughput and precision. The ability to handle both rough and fine machining operations in one setup has streamlined our workflow.”
Get More Details →
Product Specifications
| Specifications | unit | VMC650 | VMC855 | VMC1050 | VMC1160 | VMC1370 | VMC1580 |
|---|---|---|---|---|---|---|---|
| Table size | mm | 900×400 | 1000×550 | 1000×530 | 1200x600 | 1500×700 | 1700×800 |
| Table maximum load | kg | 350 | 500 | 600 | 1000 | 900 | 1500 |
| X/Y/Z axis travel | mm | 650x400x500 | 800×550×550 | 1000×500×600 | 1100×600×600 | 1300×700×700 | 1500×800×700 |
| Distance between spindle center and column | mm | 476 | 590 | 580 | 650 | 752 | 871 |
| Distance between spindle end face and worktable surface | mm | 100-600 | 120-670 | 140-740 | 120-720 | 150-850 | 150-900 |
| X/Y/Z Max.feed speed | mm/min | 10000 | 10000 | 10000 | 10000 | 8000 | 10000 |
| X/Y/Z Max.Rapid traverse | m/min | 32/32/30 | 32/32/30 | 32/32/24 | 32/32/30 | 20/20/15 | 20/20/16 |
| spindle speed | r/min | 8000 | 8000 | 8000 | 8000 | 8000 | 6000 |
| spindle taper | type | BT40 | BT40 | BT40 | BT40 | BT40 | BT50 |
| Spindle motor power | kW | 5.5/7.5 | 7.5/11 | 7.5/11 | 11/15 | 11/15 | 15/18 |
| X/Y/Z axis servo motor power | kW | 2.6/2.6/2.8 | 3.9/3.9/3.6 | 3.9/3.9/3.6 | 04/4/5 | 04/4/5 | 4.5/4.5/4.5 |
| X/Y/Z motor connection | / | direct link | direct link | direct link | direct link | direct link | direct link |
| X/Y/Z Guide way type | / | rails | rails | rails | Three-wire guideway | Two lines and one hard guide | Two lines and one hard guide |
| Tslot | mm | 3-18×125 | 5-18×90 | 5-18×90 | 5-18×100 | 5-18×145 | 5-22×145 |
| Repeat positioning accuracy | mm | ±0.004 | ±0.004 | ±0.004 | ±0.005 | ±0.005 | ±0.005 |
| Tool magazine | / | Bucket/Disc | Disc | ||||
| Toolcapacity | / | 16T/16T | 24T | 24T | 24T | 24T | 24T |
| Maximum tool weight | kg | 7 | 8 | 8 | 8 | 8 | 15 |
| Max.tool length | mm | 250/300 | 300 | 250/300 | 300 | 300 | 300 |
| Electric capacity | kVA | 10 | 15 | 15 | 18 | 22 | 30 |
| Machine dimension (L×W×H) | mm | 2300×2000×2300 | 2600×2380×2700 | 3200×2420×2400 | 3100×2490×2380 | 3600×3000×2700 | 4260×3545×3200 |
| Net.weight(about) | kg | 4500 | 5000 | 6000 | 7000 | 11000 | 12000 |
Catalog
Frequently Asked Questions
The vertical CNC machining centers use a thermal compensation system to counteract expansion and contraction.
Absolutely, the vertical CNC machining center offers smooth 5 - axis interpolation for complex geometries.
As a professional CNC lathe machine manufactor, Minnuo offers direct factory sales. We will provide the most suitable quotation according to customers' requirements to ensure the highest cost - performance ratio.
Minnuo's pre - sales team responds quickly. For a single CNC lathe machine, we'll give equipment recommendations within 10 minutes upon getting the drawings. For a production line of multiple CNC machine lathes, a solution will be provided within 5 working days.
We have complete basic production equipment. For vertical CNC machining centers，we customize components such as machine systems, spindle speeds, motor power, and outer shell sheet metal.
Our top - brand processing machines ensure part machining accuracy in CNC lathe machines. As oneof the vertical machining center manufacturers,we provide quality inspection reports for CNC machine lathes at factory - leaving.
We stock standard vertical CNC machining centers for quick delivery. Custom CNC machine lathes are delivered in 30 - 45 working days.
Our CNC lathe machines have a one - year warranty with free repairs. Contact our 24/7 after - sales team for malfunctions. Issues are resolved via remote video, phone, or on - site service.
