12,000 rpm Spindle · Flexibility for Complex Multi-Face Machining

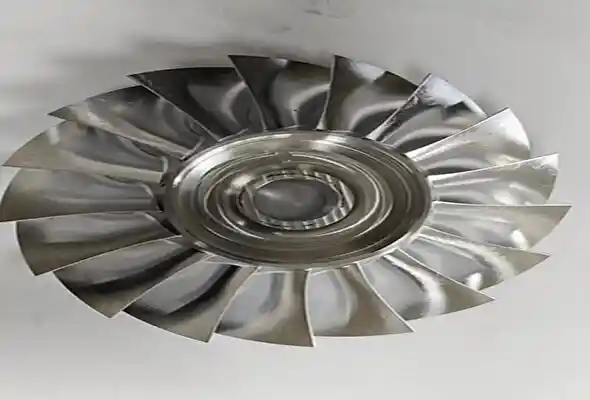

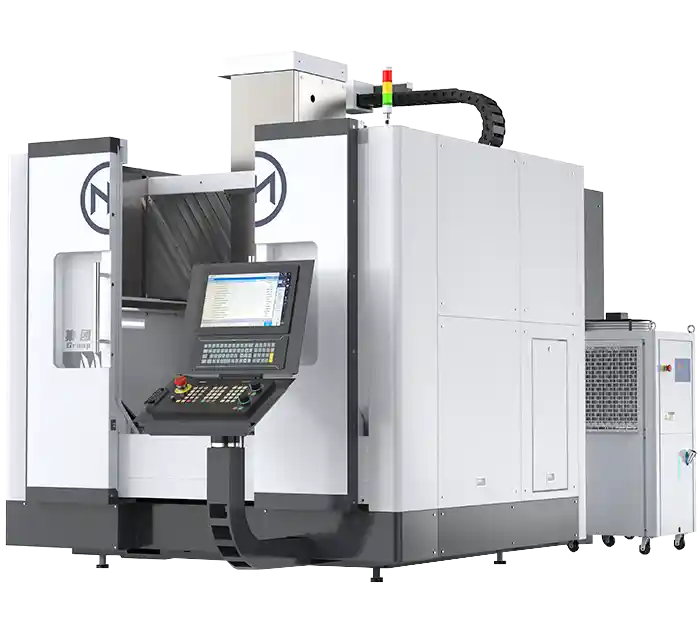

This 5 axis vertical machining center adopts a gantry structure and a dual-axis turntable. It is suitable for machining complex curved surfaces and impellers, offering high cost-effectiveness.
VMU Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Simultaneous 5-Axis Control Enables complex surface machining and multi-face cutting in a single clamping, reducing setup time and improving accuracy.
- ● Compact Travel with High Rigidity X/Y/Z: 650/650/500mm—perfect for high-precision machining of compact but detailed parts.
- ● High-Speed Spindle (12,000 rpm) Provides the flexibility to perform both roughing and finishing on aluminum, steel, titanium, and non-ferrous alloys.

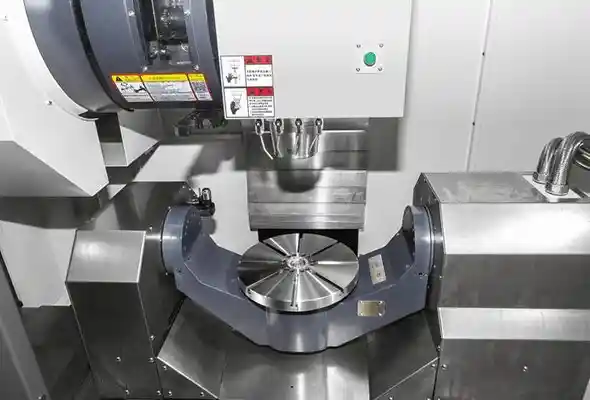

- ● Integrated Rotary Table (B/C Axis) Supports ±110° tilting and 360° rotation for full 5-sided access to the part surface.
- ● Stable Cast Iron Structure Ensures long-term thermal stability and vibration absorption for micron-level consistency.
Get More Details →

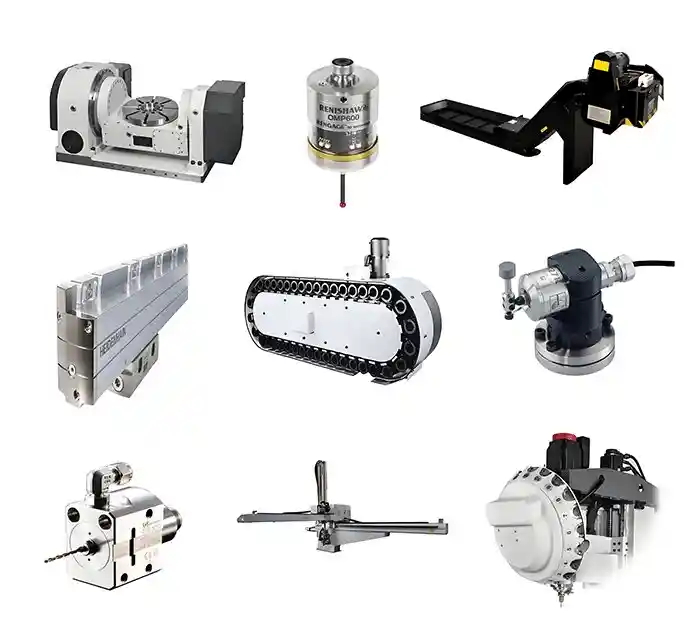

Recommended Configurations
- ● Worktable Configuration: Fixed Worktable, Rotary Worktable
- ● Spindle Configuration: High-Precision Spindle, High-Speed Spindle, High-Torque Spindle
- ● Cooling System Configuration: Internal Cooling System, High-Pressure Cooling System, Mist Cooling System
- ● Drive System Configuration: Servo Motor Drive System, Linear Motor Drive System, High-Load Servo Motor
- ● CNC Control System: High-Performance CNC System (FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi, etc.)
- ● Automation Configuration: Automatic Tool Changer System (ATC), Automatic Tool Measurement System (ATMS), Automatic Loading and Unloading System
- ● Precision Assurance Configuration: Laser Interferometer Precision Measurement System, Thermal Compensation System, Grating Scale Feedback System
- ● Vibration Control System: Active Vibration Control System, Intelligent Vibration Compensation System
- ● Safety and Protection Configuration: Full Enclosure Safety Guard, Emergency Stop System
Get More Details →
Application Case
- ● Client: Precision mold factory (Japan)
- ● Workpiece: Injection mold cavity with complex 3D curvature
- ● Setup: VMU with BT40 12,000 rpm spindle, 5-axis table, Renishaw probe, Siemens controller
- ● Results: Achieved full 5-face machining in one clamping, Reduced polishing workload by over 40% due to superior surface finish (Ra ≤ 0.8μm), Dimensional tolerance held within ±0.005mm
Get More Details →
Product Specifications
| Model | VMU650 | |
|---|---|---|
| Items | Unit | Main Technical Parameters |
| Stroke in three directions | mm | 650/650/500 |
| Three-way rapid traverse speed | m/min | 45/45/45 |
| Table | mm | φ650 |
| Maximum table load | kg | 600 |
| Distance from spindle face to table surface | mm | 150～650 |
| Workpiece range | mm | φ800×500 |
| Spindle speed | rpm | 12000 |
| Spindle taper hole | / | HSKA63 |
| Screw diameter | mm | 40/45/40 |
| Tool magazine type | / | 20 spindle direct access tool changer |
| Linear axis positioning accuracy | mm | 0.006 |
| Linear axis repeatability | mm | 0.004 |
| Rotary axis range | o | ±130°×360° |
| Rotary axis speed | rpm | A/C:15/30 |
| Rotary axis positioning accuracy | / | 6 |
| Rotary axis repeatability | / | 4 |
Catalog
Frequently Asked Questions
Minnuo’s 5 axis vertical machining centers are ideal for complex geometries, multi-surface parts, and high-precision components like aerospace parts, medical implants, turbine blades, engine housings, and precision molds.
5-axis machining allows full access to multiple surfaces in a single setup, reduces clamping times, enhances surface finish, and enables complex angle machining that is impossible on 3-axis machines.
Minnuo offers table-tilting types (A+C axis control), head-tilting types (B+C axis control), and double-swivel table types, depending on the size, precision, and material of your workpiece.
Yes! Just send us your workpiece drawings, and Minnuo’s engineers will recommend the most suitable 5-axis vertical machining center model within 10 minutes. Full project solutions are offered within 5 working days.
Absolutely! We offer customization for spindle speeds, spindle taper (HSK, BT, ISO), table diameter, tilting axis range, tool magazine size, and integration with automation systems like robot arms or pallet changers.
Minnuo 5 axis vertical machining centers are built with high-grade Meehanite castings, undergo 5-axis simultaneous laser calibration, ball-bar dynamic testing, and spindle thermal compensation to ensure top-level precision.
Standard models can be delivered within 50–70 working days. Custom-configured high-precision models may require 70–90 working days, depending on complexity.
We provide a one-year full warranty, 24/7 technical support, remote troubleshooting, on-site services, and long-term spare parts support for more than 10 years.
