1400×1600mm Table · φ130mm Spindle · 2000/2000/2000mm Travel (X/Y/Z) · 8T Max Table Load

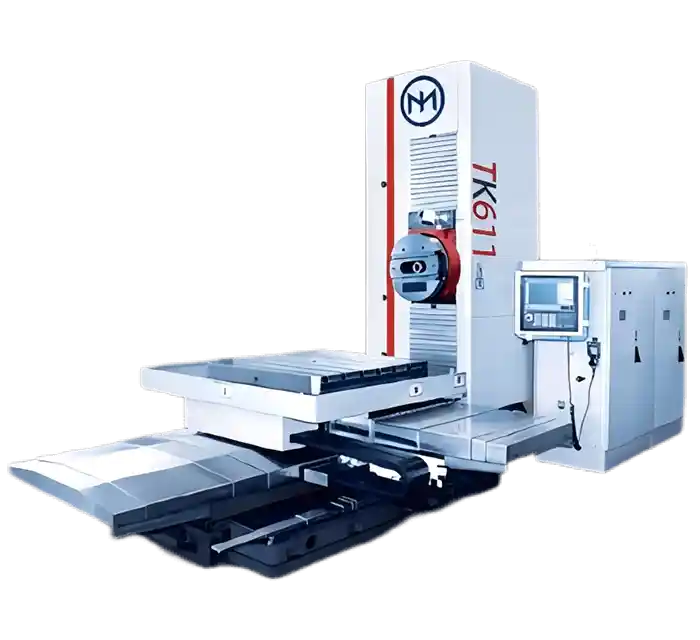

The TK611 CNC Horizontal Milling and Boring Machine combines high torque, rigidity, and efficiency, excelling in complex part machining with six-axis control and 3D capabilities.
TK611 Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features

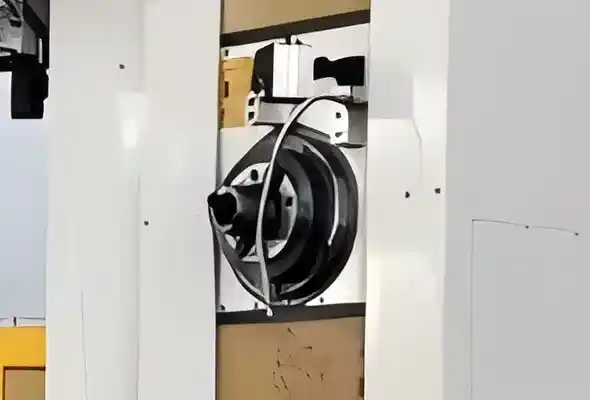

- ● Ø130mm Large-Diameter Spindle: Provides enhanced torque and rigidity for deep boring and heavy-duty milling operations.
- ● Full 3-Axis CNC Control (X/Y/Z: 2000mm): Delivers precise positioning and complex path machining for large components.
- ● b>Massive 8T Load Table with 360° Indexing (Optional) Supports multi-face machining and rotational processing of box-type or irregular parts.
- ● Gear-Driven Spindle Head: Ensures constant torque at low speeds for deep hole boring and large cutter use.
- ● High-Precision Linear Guideways and Ball Screws: Maintain repeatability, minimize backlash, and ensure long-term thermal stability.
Get More Details →
Recommended Configurations
- ● 4th Axis Rotary Table (CNC): Enables multi-face machining without re-clamping, improving efficiency.
- ● Right-Angle Milling Head: Ideal for internal cavity or sidewall machining.
- ● Floor Plate Extension: For extra-large components beyond standard table size.
- ● Coolant Through Spindle (CTS): Assists in deep hole boring and tool cooling.
- ● Renishaw Probe System: Auto workpiece alignment and tool length detection.
Get More Details →
Application Case
- ● Client: Heavy Equipment Manufacturer – Southeast Asia.

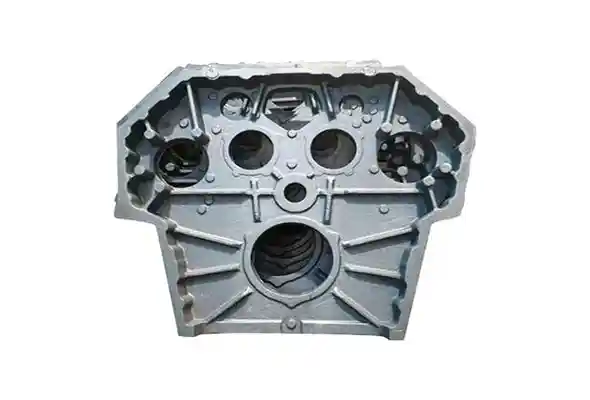

- ● Use Case: Boring and milling of wind turbine gearbox housings.
- ● Setup: TK6113 with CNC rotary table and CTS system.
- ● Results:Final bore tolerance: ≤ ±0.015mm over 1200mm depth,4 surfaces machined in one clamping using rotary table,Client feedback: “High rigidity and automation greatly reduced cycle time and setup effort”.
Get More Details →
Product Specifications
| Parameters | Unit | TK6111 | TK6113 | ||
|---|---|---|---|---|---|
| Table size | mm | 1250×1400 | 1400×1600 | ||
| Spindle dia. | mm | φ110 | φ130 | ||
| X Travel | mm | 1800-2000 | 1800-2000 | ||
| Y Travel | mm | 1200-1600 | 1600-2000 | ||
| Z Travel | mm | 1200-1600 | 1200-2000 | ||
| W Travel | mm | 600 | 800 | ||
| B Travel | CNC rotary | CNC rotary | |||
| T slot | mm | 22×125 | 22×125 | ||
| Table loading | T | 5 | 8 | ||
| CNC controller | SIEMENS B28D or FANUC OI MD | ||||
| Axis quantity | X/Y/Z/W(U) | X/Y/Z/W(U) | |||
| Spindle taper | BT50(P50T-1) | ||||
| Spindle speed | rpm | 2-2000 | 2-2000rpm | ||
| Main motor powerδtorque | kw | 18kw(1300Nm) | 30kw(2200Nm) | ||
| Max.boring/drilling dia. | mm | φ240/250 | φ300/80 | ||
| Max.axial feeding force on spindle | mm/min | 13000 | 23000 | ||
| X/Y/Z Rapid traverse | mm/min | 3000 | 3000 | ||
| X/Y/Z Feeding Speed | mm/min | 5-1000 | 5-2000 | ||
| W axis Feeding speed | mm/min | 0.5-1000 | 5-2000 | ||
| W axis Rapid traverse | mm/min | 2000 | 2000 | ||
| Radial stroke of facing head tool holder | mm | 160 | 200 | ||
| Facinghead speed | rpm | 4-125 | 2-125 | ||
| Max.Machining dia.of facing head tool holder | mm | φ630(Optional) | φ800(Optional) | ||
| Max.permitted torque of facing head | Nm | 1300(Optional) | 2600(Optional) | ||
| Feeding speed of facing head | mm/min | 0.2-500(Optional) | 0.2-500(Optional) | ||
| Rapid traverse of facing head tool holder | mm/min | 1000(Optional) | 1000(Optional) | ||
| X/Y/Z(GB/T17421.2-2000)Positioning accuracy | mm | 0.026/0.03/0.03 | 0.03/0.03/0.03 | 0.04/0.03/0.03 | 0.03/0.03/0.03 |
| W axis(GB/T17421.2-2000)Positioning accuracy | mm | 0.03 | |||
| B axis Positioning accuracy | 0.08 | ||||
| X/Y/Z/W(GB/T17421.2-2000)Repeated accuracy | mm | 0.015/0.015/0.015 | 0.015/0.015/0.015/0.015 | ||
| B axis Repeated accuracy | 4*90°±6" | ||||
| Machine sizes | m | 6.3×3.9×3.7 | 6.5×4.2×3.9 | ||
| Machine weight | T | 25 | 32 | ||
