Table Size: 1700 × 650mm · Travel (X/Y/Z): 1800 / 750 / 400mm · Max Load: 500kg · Spindle Speed: 20000rpm

The TC-1675 is a high-speed, large-format CNC drilling and tapping center designed for precise machining of large plates and multi-hole components. With a massive 1700×650mm table, triaxial stroke of 1800/750/400mm, and ultra-fast 20,000rpm spindle, it delivers powerful productivity for mass tapping, multi-face drilling, and threading of aluminum alloys and non-ferrous materials.

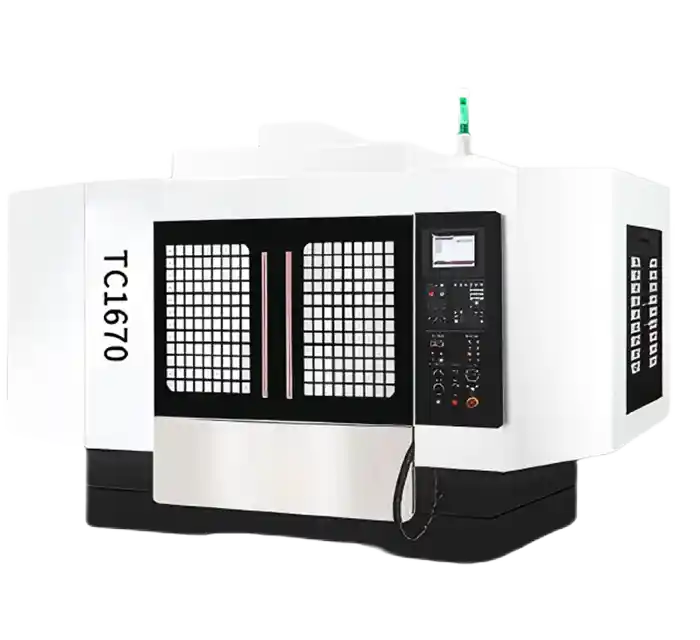

CNC Drilling & Tapping Centre TC-1675

Regular maintenance

Spare parts supply

On-site installation service

Customized design

Key Features

● Extra-Large Working Area: 1700×650mm bench accommodates long panels, plates, and mold bases without repositioning.

● Extended Travel (X: 1800mm): Supports full-length part processing in one pass, reducing fixture costs and machining time.

● High-Speed Spindle (20,000rpm): Ensures clean tapping and burr-free micro-drilling in aluminum and magnesium alloys.

● Fast Tool Change and Precision Positioning: Improves cycle times for multi-hole drilling and thread-cutting operations.

● Heavy Load Handling (500kg): Suitable for thick plates and large molds with heavy fixturing requirements.

Get More Details →

Recommended Configurations

● High-Speed Servo ATC: Reduces cycle time for multi-tool operations.

● Mist Collection System: Enhances operator environment and improves chip evacuation.

● Through-Spindle Coolant: Essential for deep-hole tapping and long-drill applications.

● Auto Pallet Changer (APC): Increases productivity for batch production lines.

● CCD Positioning System: Used for fixture verification and part orientation auto-correction.

Get More Details →

Application Case

● Client: 5G Aluminum Enclosure Supplier (China).

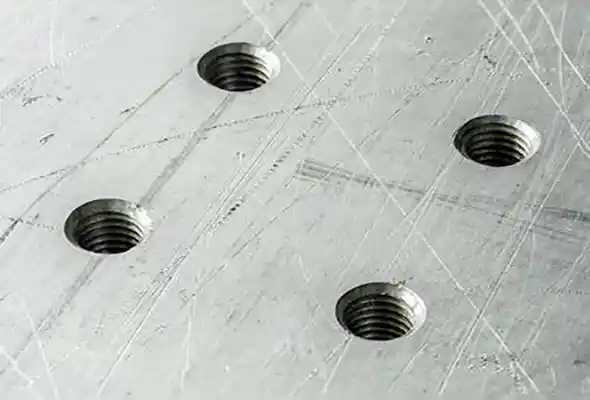

● Workpiece: Thin-wall aluminum housings with 70 threaded holes.

● Setup: TC-1675 with 20-tool servo ATC + through-spindle coolant.

● Results: Thread pitch deviation: < ±0.01mm ,Cycle time: < 80s per housing ,Hole roundness deviation: < 5μm,,Feedback: “Zero thread defects even under high-speed tapping cycles”.

Get More Details →

Name	/	Unit	Parameter
Range of work	Triaxial stroke(X/Y/Z)	mm	1600/750/400
Range of work	The distance from the main nose to the working top	mm	150~550
Workingbench	Bench size(length and width)	mm	1700×650
	Maximum carrying capacity	kg	500
	T-type groove(slot number,slot width spacing)		5×14×130
Spindle	Spindle diameter/cone hole	mm	φ100/BT30
	main shaft speed	rpm	20000
	Power of spindle motor	kW	3.7/5.5
Speed	Fast moving speed(X/Y/Z axis)	m/min	30/36/48
Speed	Cut into give speed	m/min	10/10/10
Tool magazine	Number of knives	grasp	21
	Tool maximum diameter/length/weight of		φ60mm/200mm/3kg
	Maximum diameter(full/adjacent)	mm	60/80
	Tool exchange time(knife-knife)	S	1.3
Machine tool accuracy	Positioning accuracy(X/Y/Z)	mm	0.012
Machine tool accuracy	Repeat positioning accuracy(X/Y/Z)	mm	0.008
Else	Specification of straight-line rolling guide gauge(X/Y/Z)	mm	35/35/45
	Ball screw specification(X/Y/Z)	mm	40/32/36
	Servo motor specification(X/Y/Z)	N.m	13.7/13.7/22.5
	Gas source/air pressure		280L/min 6~8bar
	Total electrical capacity of the machine tool	KVA	15
	Machine tool external type size(XYZ)	mm	4000×3400×3100
	Machine tool weight(about)	kg	6200
