Bench Size: 1100 × 650 mm · X/Y/Z Travel: 1000 / 650 / 300 mm · Max Load: 450 kg · Spindle Speed: 20,000 rpm

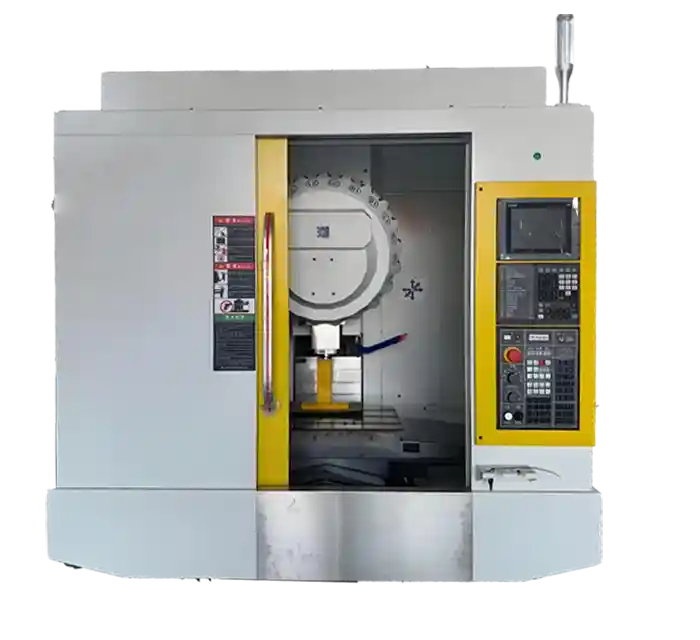

The TC-1065 is a large-table, high-speed CNC drilling and tapping center engineered to process oversized or multi-part setups efficiently. Featuring a 20,000 rpm high-speed spindle, generous 1000mm X-axis stroke, and 650mm wide Y-axis travel, this machine provides excellent throughput for precision holemaking and thread processing across broad surfaces.
TC-1065 Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● 20,000 RPM Spindle (BT30 / Optional BT40): Offers ultra-fast hole drilling, fine-pitch thread tapping, and clean edge finishing on aluminum and light alloys.
- ● 1000mm X-Axis + 650mm Y-Axis Travel: Handles large single components or multi-fixture setups with ease.
- ● 450kg Load Capacity on Wide Table: Ensures rigidity and stability for extended part support without deformation.
- ● Z-Axis Travel of 300mm: Perfect for parts with low to medium thickness or shallow cavity drilling.
- ● Wide Control Compatibility: Available with FANUC, Siemens, Mitsubishi, or GSK systems for global usability.
Get More Details →
Recommended Configurations

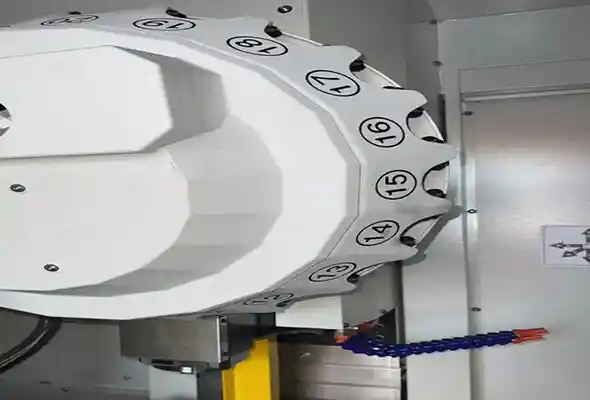

- ● 20-Position Disc-Type ATC： Enables rapid tool changes for multi-feature drilling cycles.
- ● Oil Mist or MQL Cooling System： Protects tool edges during aluminum and copper tapping.
- ● Part Probing and Alignment Kit： Automates datum setup and enhances large-part repeatability.
- ● Pneumatic Clamping Fixtures： Ideal for quick-lock batch work in mass production setups.
- ● Chip Conveyor System： Handles debris from multiple deep hole operations efficiently.
Get More Details →
Application Case
- ● Client: Industrial Control Cabinet Manufacturer – Germany.
- ● Use Case: Drilling + tapping of electrical enclosure base panels and top covers.
- ● Setup: TC-1065 with 20-tool ATC, mist cooling, and custom vacuum fixture.
- ● Results: 60 holes/thread cycles in <45 seconds, hole position tolerance: ≤ ±0.01 mm, cycle time reduced by 32% compared to earlier gantry drill setup, customer comment: “Exceptional combination of area coverage, accuracy, and speed.”
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
Minnuo’s drilling & tapping centers are ideal for light metal components, such as aluminum brackets, 3C parts, heat sinks, phone casings, and precision automotive parts that require high-speed drilling and threading.
Unlike standard VMCs, drilling & tapping centers are designed for high spindle speed (up to 20,000 rpm), rapid tool change, and fast feed rates, optimized specifically for drilling, tapping, and light milling with shorter cycle times.
Minnuo machines offer positioning accuracy of ±0.005 mm, repeatability ±0.003 mm, spindle speeds up to 15,000–20,000 rpm, and rapid traverse speeds up to 48–60 m/min, ensuring ultra-fast cycle time.
Yes! Just send us your part drawing, material, tapping hole specifications, and production volume. Our engineers will recommend the right drilling & tapping center model within 10 minutes.
Absolutely. We support customizations such as table size, number of tool positions (ATC), spindle taper (BT30/BT40), coolant through spindle (CTS), and integration with automation like robot arms or pallet changers.

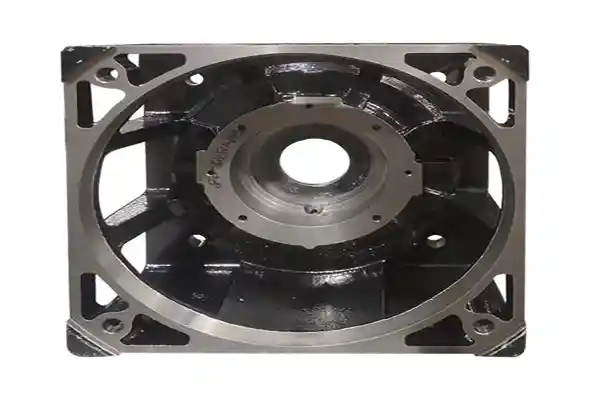

We use high-rigidity cast bases, high-speed precision spindles, servo motors, and perform spindle dynamic balance tests, laser calibration, and full test cutting verification before delivery.
Standard models are delivered in 25–35 working days. Customized models or automation-equipped machines typically require 35–45 working days.
Minnuo offers a one-year warranty, 24/7 technical support, online and on-site training, remote troubleshooting, and long-term spare parts support.
