Large flanges • Tire molds • Turbine covers • Flat plates • Sealing heads • Pipe flanges • Disc-type components
The CX60 Series Floor-Type Flange Heavy Duty Lathe is designed for precise, heavy-duty machining of large disc and ring workpieces, featuring a rigid mountain-shaped guideway and low center of gravity for stability. Ideal for industries like petrochemical and aerospace, it offers digital display and stepless speed control for accurate contouring and roughing.
CX60 Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Heavy-Duty Guideway Structure: The rectangular wide-span base guideway offers outstanding rigidity for heavy-load cutting. A mountain-type guide profile and integrated casting of the spindle box and horizontal bed ensure structural stability and long-term dimensional accuracy.
- ● Infinitely Adjustable Spindle Speed: Equipped with a wave switch and digital display, the spindle speed supports infinite adjustment within 20-step gear ranges, allowing fine-tuned control based on material type and part geometry.

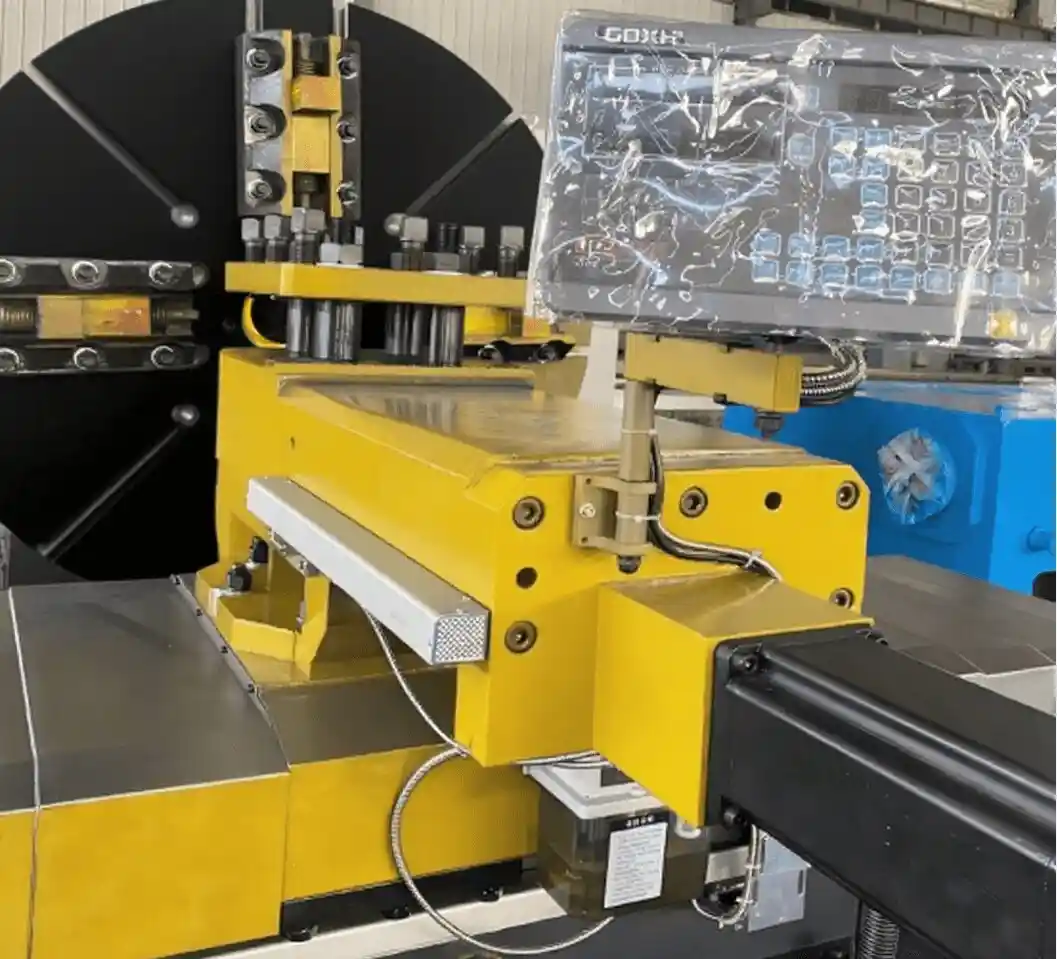

- ● Operator-Friendly Control Platform: The ergonomically positioned control desk features a clear LED coordinate display and provides intuitive access to motion, spindle operations, and safety functions, enhancing user convenience.
- ● Vertical Spindle Orientation: Designed with the spindle axis perpendicular to the working support plate, this layout is ideal for face turning and radial machining of large disc-shaped components.
- ● Vibration-Optimized Casting Process: All precision-machined castings undergo vibration aging and tempering treatments to eliminate internal stress, ensuring superior dynamic cutting accuracy and longer service life.
Get More Details →

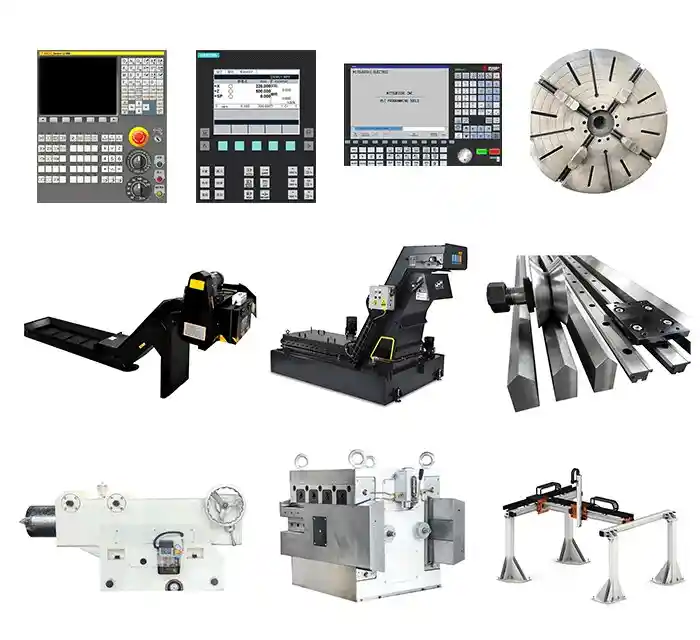

Recommended Configurations
- ● Spindle System: High-torque Spindle, High-power Spindle, Center Water Outlet Spindle
- ● Feed System: High-precision Servo Motor, Stepper Motor, Heavy-duty Square Linear Guides
- ● Cooling System: Centrifugal Pump, Vibration Pump, Water-soluble Coolant, Oil-based Coolant
- ● CNC Control System: High-performance CNC System (FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi, etc.)
- ● Tooling System: Large Square Ram Tool Holder, Turret Tooling System, Electric Turret, Large-size Tool Holding System
- ● Measurement and Monitoring: Heidenhain Linear Scales, Tool Breakage Detection System, Renishaw OMP60 Workpiece Probe, Renishaw TS27R Tool Setting Probe
- ● Other Configurations: Lubricated Manual Tailstock, Strong Magnetic Chain-type Chip Conveyor, Automated Loading/Unloading Gantry
Get More Details →
Application Case
- ● Client: Energy Equipment Manufacturer – Eastern Europe

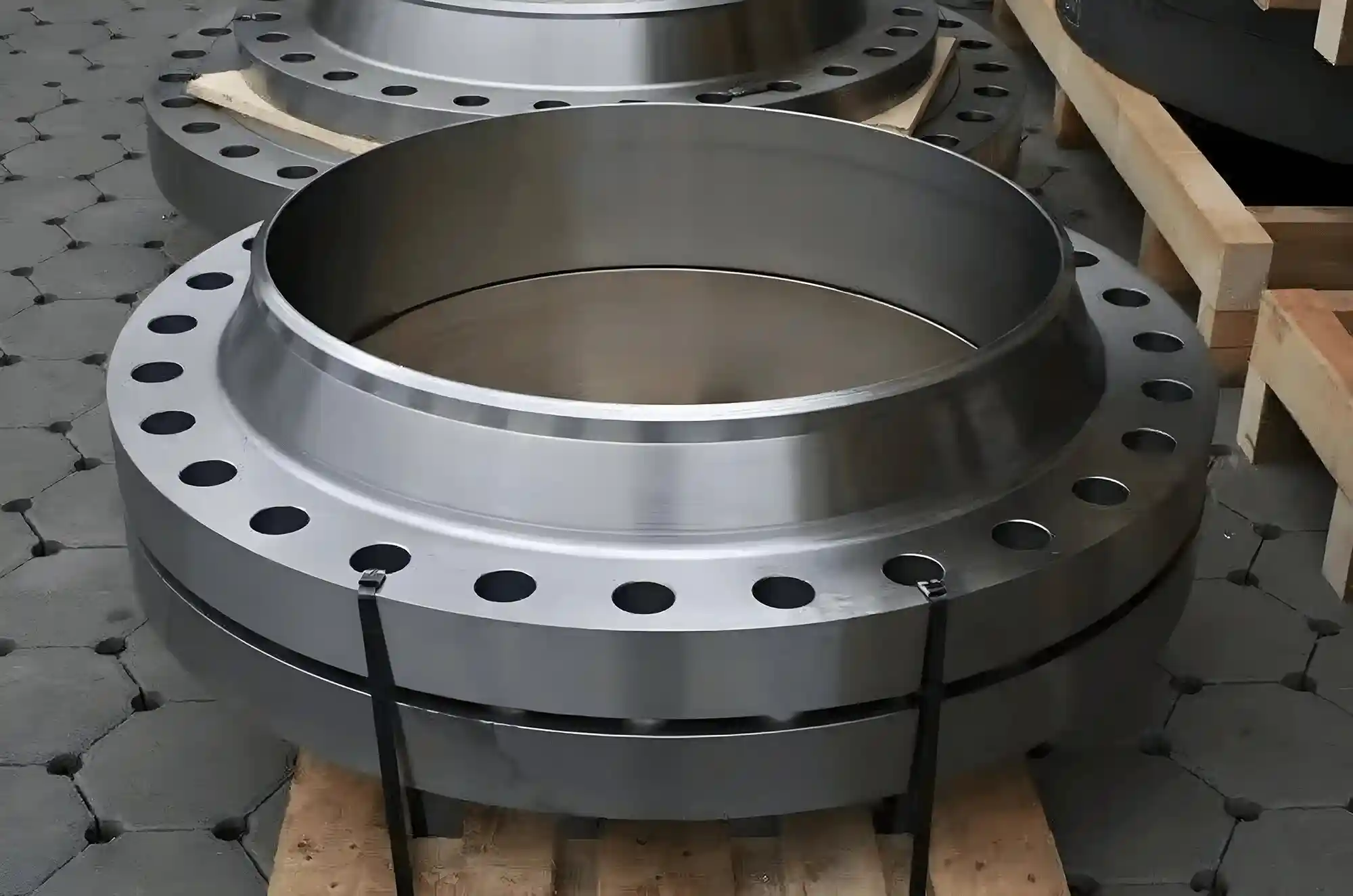

- ● Workpiece: Large-diameter turbine sealing flanges (φ2600 mm, weight ~2.5T)
- ● Machine: CX602500 with hydraulic chuck and DRO system
- ● Results: • Roughing & Finishing Time Reduced: 40% faster compared to vertical lathe solution • Surface Flatness Achieved: ≤0.02 mm across 2.5 m diameter • Spindle Load Fluctuation: <3% during continuous deep facing cut
- ● Client Feedback: “We replaced a vertical lathe setup with the CX60 floor lathe. The machine delivered consistent precision across massive flanges with less operator fatigue and faster changeovers.”
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
Minnuo heavy duty lathes are designed for large, long, and heavy components, such as wind turbine shafts, marine propeller shafts, large rollers, pressure vessel flanges, and oil drilling equipment. These machines are ideal for industries like energy, marine, aerospace, and heavy machinery.
Our standard heavy duty lathes can handle turning diameters up to 2,000 mm, lengths up to 10,000 mm, and load capacities over 15 tons. Custom models can be configured for even larger sizes and heavier components.
Minnuo heavy duty lathes feature one-piece cast iron beds, extra-wide guideways, large spindle bores, and reinforced tailstocks. These structural features ensure exceptional rigidity and vibration absorption during heavy cutting operations.
Yes! Just send us your part drawings or specifications, and Minnuo’s engineering team will recommend the suitable heavy duty lathe model within 10 minutes. For full production lines, we will provide a tailored solution within 5 working days.
Absolutely! We offer customizations including bed length, spindle bore diameter, main spindle power, chuck size, and steady rest options, as well as integration with automation systems to meet your exact processing needs.
Each machine is manufactured using premium processing equipment, with precision hand scraping of contact surfaces, and undergoes dynamic balancing tests, laser alignment checks, and full-function dry runs before shipment. Inspection reports are delivered with the machine.
Standard models can be delivered within 15–20 working days. For large or fully customized machines, the delivery time is usually 30–60 working days, depending on complexity and workload.
We offer a one-year warranty, with 24/7 technical support. Our service team provides remote video diagnostics, phone consultations, and on-site assistance to solve any issues quickly. Spare parts support is guaranteed for 10+ years after purchase.
As a professional heavy duty lathe machine manufacturer, Minnuo offers direct factory sales. We will provide the most suitable quotation according to customers' requirements to ensure the highest cost - performance ratio.
