Max. grinding diameter: 248mm，Max. swing: 250mm，Table size: 940×135mm

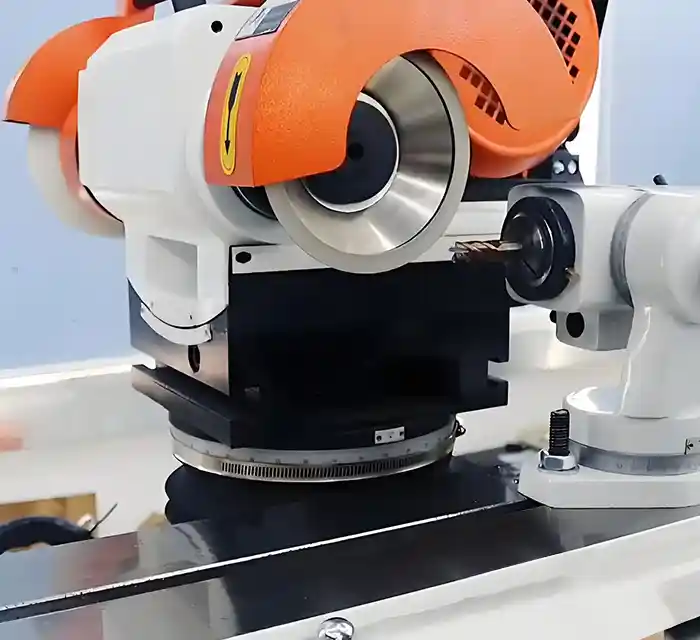

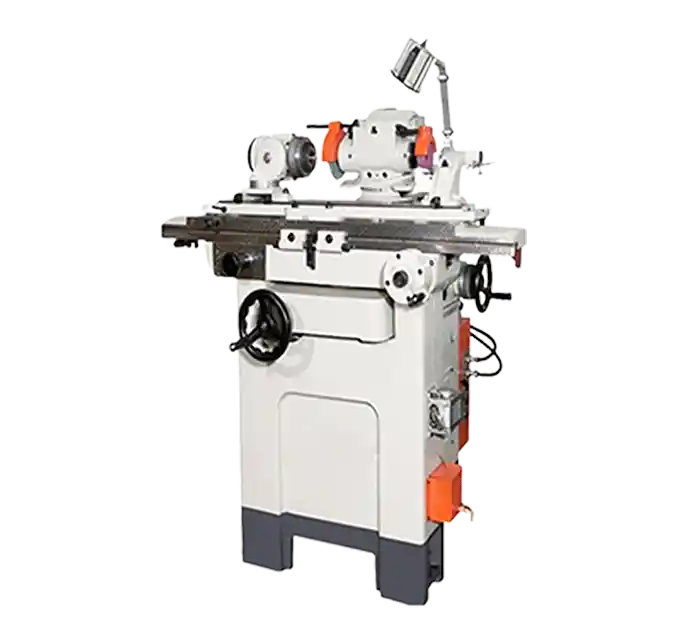

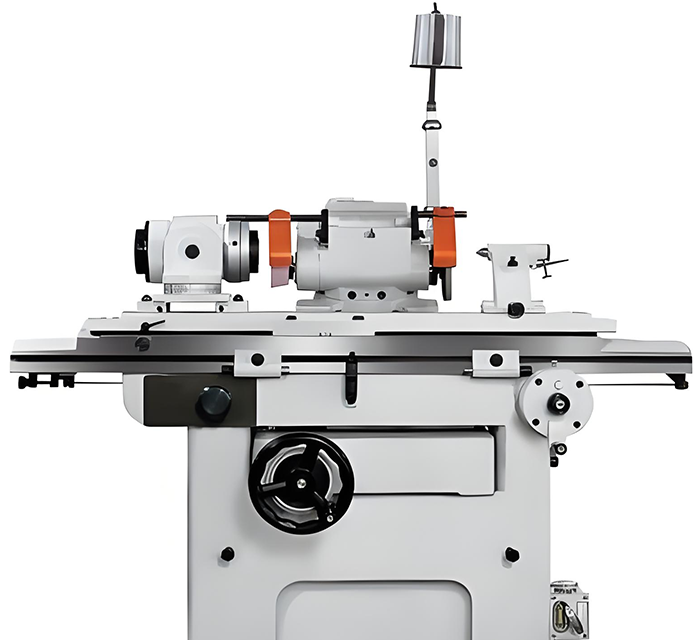

The LY-40 is a high-precision manual tool grinder built for toolroom and workshop applications where sharp, consistent tool geometry is critical. Its multi-angle grinding head, large working table, and stable cast body provide superior rigidity and support for a wide range of tool profiles.
LY-40 Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Supports multi-angle grinding with precision head adjustment.
- ● Large 940×135mm table for improved workpiece stability and handling.
- ● Suitable for various tools: milling cutters, end mills, drills, reamers, and taps.
- ● Durable cast iron base ensures vibration resistance and long-term accuracy.
- ● Manual fine-feed control for optimal sharpening detail.
- ● Versatile for sharpening, profiling, and resharpening in small-batch or custom production.
Get More Details →
Recommended Configurations
- ● Spindle and Cooling System: Belt Drive Spindle, Adjustable Nozzle Cooling System
- ● Workpiece Clamping System: Universal V-shaped Fixtures, Specialized Tool Fixtures
- ● Grinding Wheel System: Diamond Dressing Tool
- ● Accessories and Optional Devices: Grinding Wheel Dressing Tool Stand, Workpiece Positioning Support, Lighting System, Human-Machine Interface (HMI Touchscreen)
Get More Details →
Application Case
- ● Client: Mold Tooling Workshop – South China
- ● Workpiece: HSS and carbide step drills (Ø10–Ø20 mm)
- ● Setup: LY-40 with diamond wheel, tool sleeves, and manual dresser
- ● Results: • Resharpening Accuracy: ≤ ±0.01 mm • Finish Quality: Ra ≤ 0.6 μm on cutting edges • Productivity: 40% reduction in setup time compared to older semi-automatic grinders
- ● Client Feedback: “LY-40’s mechanical stability and easy angle adjustments have made it our go-to grinder for reconditioning both standard and custom tools.”
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
Absolutely. Minnuo has an experienced and responsive technical team. As long as I provide the part drawings, you can recommend a suitable tool grinding machine within 10 minutes for a single unit. For production lines with multiple machines, a full solution will be delivered within 5 working days.
If I need to frequently grind or re-sharpen tools like drills, end mills, or taps, a tool & cutter grinding machine is the right choice. It supports multi-angle and multi-type tool grinding and is ideal for mold making, hardware machining, and repair shops.
A CNC tool grinding machine offers automated control, high repeatability, and is ideal for complex or batch tool production. If I require high efficiency, consistency, or need to grind complex geometries, CNC is the better choice. For small volumes or limited budgets, a manual grinder may suffice.
Yes. You offer various models of 5 axis CNC tool grinding machines, and I can customize one based on tool size, geometry, and processing needs. It’s ideal for precision grinding of complex tools like spiral end mills and ball nose cutters.
A universal tool cutter grinder machine is highly versatile. It can handle many tool types including end mills, turning tools, drills, and gear cutters. It’s perfect for shops like mine that deal with a wide range of tool types and require flexible processing.
You’re equipped with high-end machining centers from top global brands to ensure precision for all key parts of the CNC tool grinding machine. Each machine is rigorously tested before delivery and comes with a detailed quality inspection report, so I can purchase with confidence.
A tool post grinding machine is typically mounted on a lathe and used for regrinding tools or small workpieces. It’s an ideal option for tasks that require precision grinding of outer diameters or faces in limited space—perfect for repair shops or turning environments like mine.
Not at all. We provide operation manuals, instructional videos, and technical training support for all models of tool grinding machines. I can also choose remote training or on-site installation and commissioning services to ensure quick setup and safe operation.
