Max. workpiece diameter: 32mm，Max. workpiece length: 260mm，Max. workpiece groove depth: 20mm，Max. workpiece weight: 20kg
The QD580 is a high-precision 5-axis CNC tool grinding machine engineered for the manufacturing and regrinding of complex cutting tools. Ideal for aerospace, automotive, mold, and high-precision machining industries, it features a rigid machine frame, high-speed spindle, and integrated CNC control system for simultaneous multi-axis tool shaping and profiling.
QD580 Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● 5-axis simultaneous CNC control: For complex geometry grinding.
- ● Supports manufacturing and resharpening: Of carbide and HSS tools.
- ● Rigid mechanical base: Reduces vibration for ultra-stable operation.
- ● CNC system: With tool database and parametric programming.

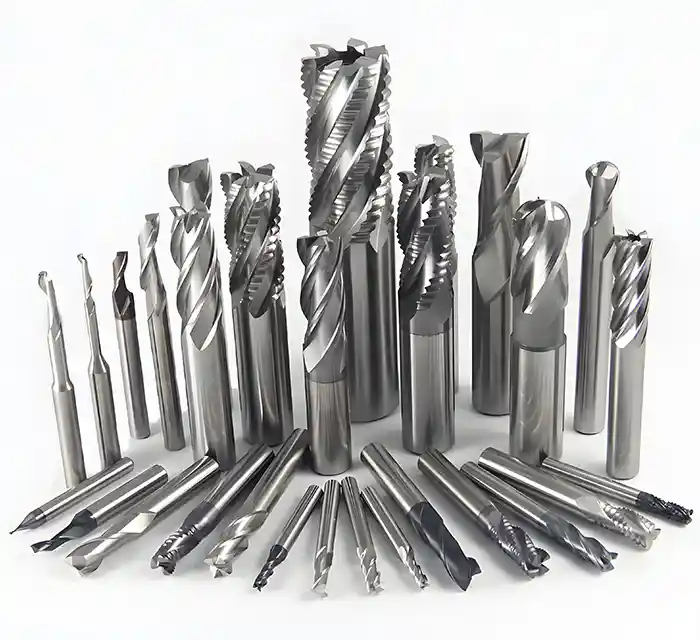

- ● Ideal for: Step tools, ball nose end mills, profile cutters, and drills.
- ● Compatible with: Automation upgrades and robotic loading systems.
Get More Details →
Recommended Configurations
- ● Spindle System: High-precision grinding spindles (belt-driven, electric spindles, or hydrostatic spindles), spindle cooling system (oil-cooling or air-cooling), automatic spindle balancing system (optional)

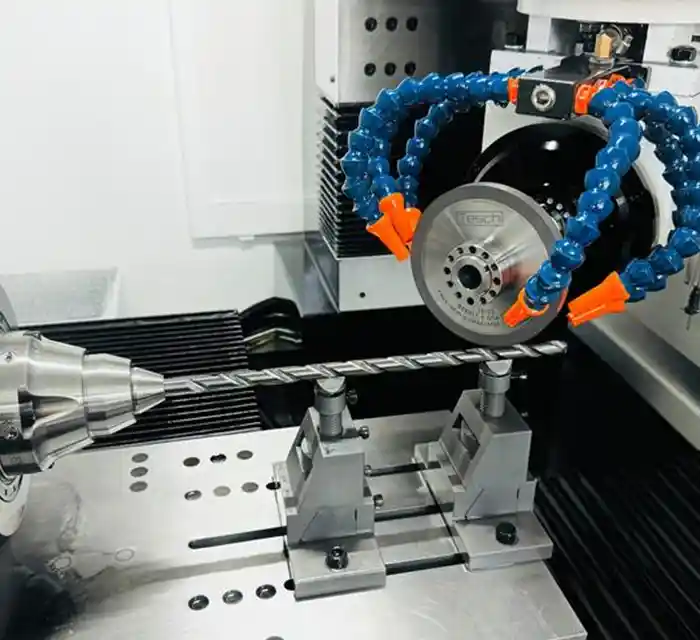

- ● Workpiece Clamping System: Precision clamping devices, universal V-block clamps, custom tooling fixtures, workpiece rotation system
- ● Grinding Wheel System: Automatic grinding wheel dressing system (diamond dressing wheel or single-point dresser), precision grinding wheel dynamic balancing system
- ● Feed and Motion System: Automatic feed control system, adjustable feed speed to meet different grinding operation requirements
- ● Cooling and Filtration System: Coolant circulation system, adjustable nozzle-type coolant injection system, high-efficiency filtration system (paper belt filter or magnetic separator)
- ● Control and Automation System: CNC (Computer Numerical Control) system or PLC control system, Human-Machine Interface (HMI touch screen), tool measurement and compensation system (optional), automatic loading and unloading system (optional)
- ● Accessories and Optional Devices: Grinding wheel dressing tool holder, workpiece positioning supports, lighting system and workpiece air-blow cleaning system, chip removal and dust cleaning system
Get More Details →
Application Case
- ● Client: Cutting Tool Manufacturer – East China
- ● Workpiece: Ø20 mm solid carbide end mills with stepped flutes
- ● Setup: QD580 with 5-axis controller, in-machine measuring probe, and mist collector
- ● Results: • Profile Accuracy: ≤ 0.006 mm deviation across entire cutting edge • Cycle Time: Reduced by 22% compared to previous 4-axis grinding solution • Tool Reusability: Sharpened tools met original performance for up to 90% of new-tool life
- ● Client Feedback: “With the QD580, we’ve achieved faster tool turnaround and tighter tolerance control. It’s now central to our high-efficiency regrinding line for both HSS and carbide tools.”
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
Absolutely. Minnuo has an experienced and responsive technical team. As long as I provide the part drawings, you can recommend a suitable tool grinding machine within 10 minutes for a single unit. For production lines with multiple machines, a full solution will be delivered within 5 working days.
If I need to frequently grind or re-sharpen tools like drills, end mills, or taps, a tool & cutter grinding machine is the right choice. It supports multi-angle and multi-type tool grinding and is ideal for mold making, hardware machining, and repair shops.
A CNC tool grinding machine offers automated control, high repeatability, and is ideal for complex or batch tool production. If I require high efficiency, consistency, or need to grind complex geometries, CNC is the better choice. For small volumes or limited budgets, a manual grinder may suffice.
Yes. You offer various models of 5 axis CNC tool grinding machines, and I can customize one based on tool size, geometry, and processing needs. It’s ideal for precision grinding of complex tools like spiral end mills and ball nose cutters.
A universal tool cutter grinder machine is highly versatile. It can handle many tool types including end mills, turning tools, drills, and gear cutters. It’s perfect for shops like mine that deal with a wide range of tool types and require flexible processing.
You’re equipped with high-end machining centers from top global brands to ensure precision for all key parts of the CNC tool grinding machine. Each machine is rigorously tested before delivery and comes with a detailed quality inspection report, so I can purchase with confidence.
A tool post grinding machine is typically mounted on a lathe and used for regrinding tools or small workpieces. It’s an ideal option for tasks that require precision grinding of outer diameters or faces in limited space—perfect for repair shops or turning environments like mine.
Not at all. We provide operation manuals, instructional videos, and technical training support for all models of tool grinding machines. I can also choose remote training or on-site installation and commissioning services to ensure quick setup and safe operation.
