Max. Workpiece Ø320–600mm · Saddle Swing Ø590–800mm · Spindle Bore Ø52mm
The C6132/C6160 is a versatile manual lathe suitable for turning shafts, flanges, and cylindrical parts, with workpiece diameters from 320mm to 600mm. It offers reliable performance and user-friendly controls for general machining, workshop repair, and light manufacturing.
C6132/C6160 Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Flexible Size Range. Choose based on workpiece requirements: C6132: Max turning Ø320mm C6160: Max turning Ø600mm
- ● Large Swing over Saddle: up to Ø800mm. Ideal for short, wide-diameter parts and complex contours.
- ● 52mm Spindle Bore: Supports moderate-diameter hollow shafts and bar materials.
- ● Easy-to-Use Mechanical Layout: Traditional manual controls and gearbox feed ensure learning curve is low and usability is high.
- ● Robust Bed and Guideways: Provide long-lasting precision and vibration resistance, even during tougher cuts.
Get More Details →

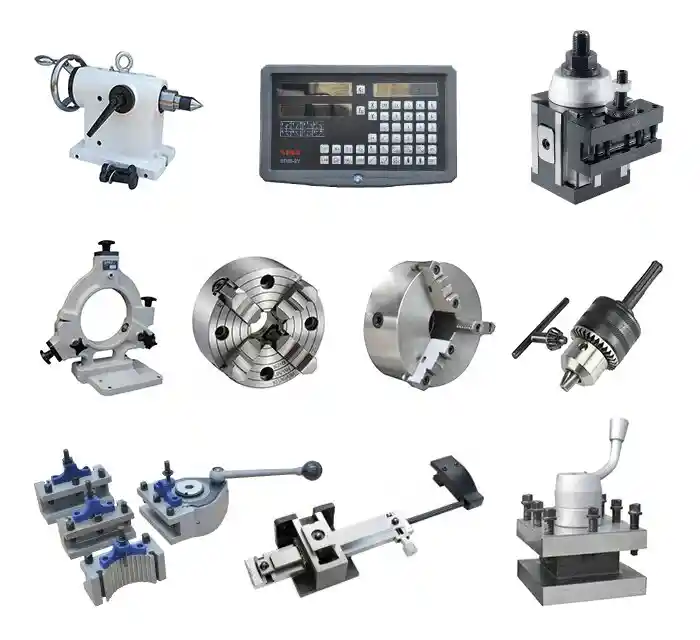

Recommended Configurations
- ● Spindle: High-precision spindle (SKF, NSK)
- ● Chuck: Three-jaw chuck with chuck protection device, manual four-jaw independent chuck
- ● Drive System: Belt drive, motor drive
- ● Turret: Single turret, square tool post
- ● Cooling System: Conventional cooling system, built-in cooling system
- ● Support: Stable support, follow rest
- ● Other Configurations: Center rest, protective cover design, manual tailstock, work light
Get More Details →

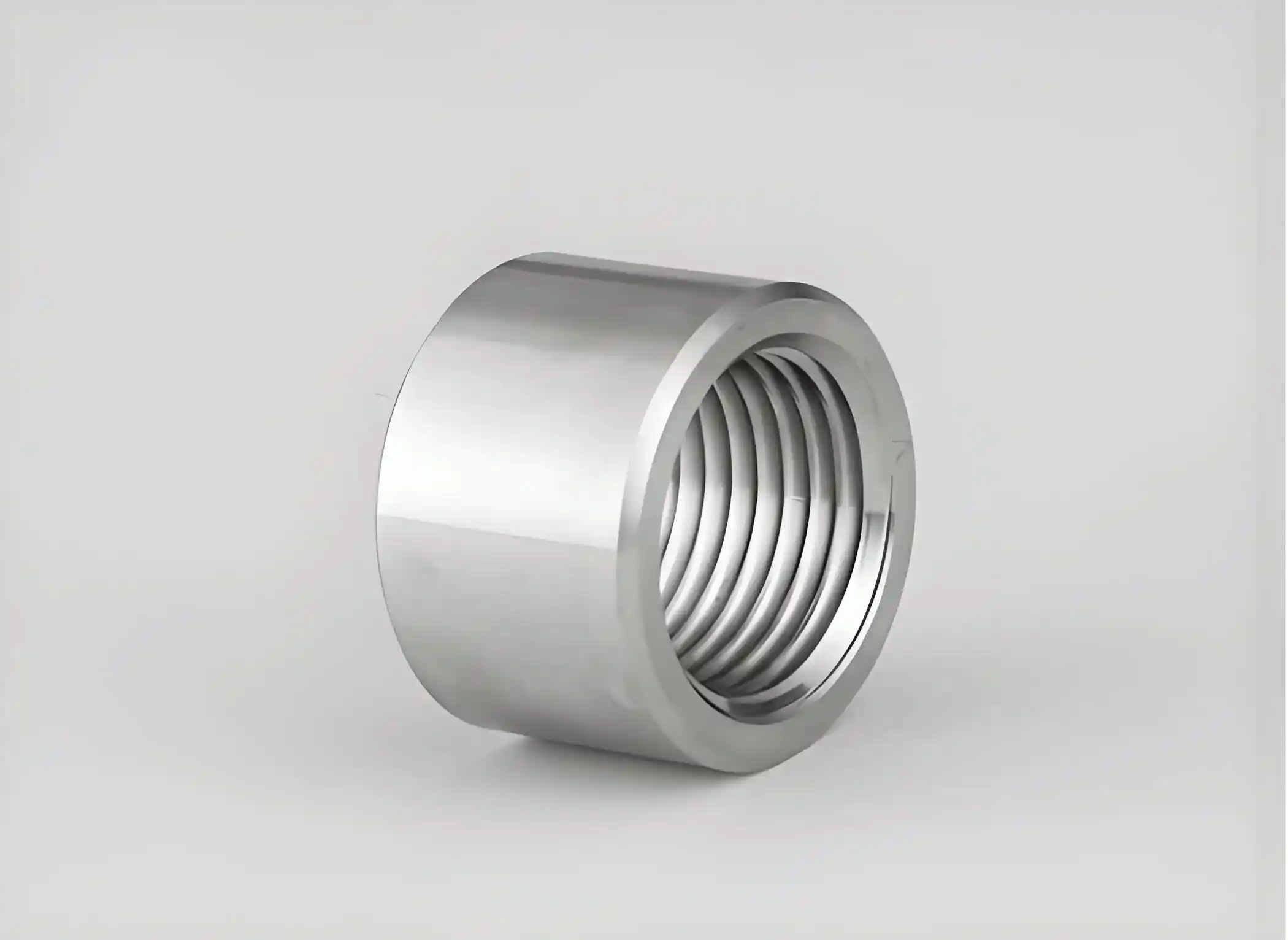

Application Case
- ● Client: Equipment repair center (Eastern Europe).
- ● Machine: C6160 with 3-jaw chuck and steady rest.
- ● Use Case: Shaft repair, sleeve boring, and pipe-end threading.
- ● Performance: Achieved concentricity within ±0.03mm， Easy for operators with minimal training， Durable under continuous 2-shift daily operation， Gearbox changes smooth, threading consistent.
Get More Details →
Product Specifications
| Parameters | C6132 C6232 | C6136 | C6140 | C6160 | |
|---|---|---|---|---|---|
| Machining capacity | Maximum workpiece diameter on the bed | 320mm | 360mm | 400mm | 600mm |
| Max.rotary diameter of drag plate | 200mm | 200mm | 230mm | 440mm | |
| Max.turning diameter at saddle | 590mm | 590mm | 630mm | 800mm | |
| Center distance | 750、1000、1500、2000mm | 750、1000mm | 750、1000mm | 750、1000、1500、2000mm | |
| Spindle bore diameter | 52mm | 52mm | 52mm | 52mm | |
| Spindle | Spindle end size | SO-C6 | SO-C6 | SO-C6 | ISO-C6 |
| Spindle Taper Bore | MT6 | MT6 | MT6 | MT6 | |
| Spindle speed range(number of stages) | 36-1600rpm(9Steps) | 36-1600rpm(9 Steps) | 36-1600rpm(9 Steps) | 36-1600rpm(12 Steps) | |
| Feed | Metric thread range(number of types) | 0.5-14mm(18 Kinds) | 0.5-14mm(18 Kinds) | 0.5-14mm(18 Kinds) | 0.5-14mm(18 Kinds) |
| Inch thread range(number of types) | 2-40/inch(28 Kinds) | 2-40/inch(28 Kinds) | 2-40/nch(28 Kinds) | 2-40/inch(28 Kinds) | |
| Modular thread range(number of types) | 0.25-3.5mπ(17 Kinds) | 0.25-3.5mπ(17 Kinds) | 0.25-3.5mπ(17 Kinds) | 0.25-3.5mπ(17 Kinds) | |
| Stroke of small tool holder | 150mm | 150mm | 150mm | 150mm | |
| Cross slide travel | 180mm | 180mm | 180mm | 180mm | |
| Toolpost cross-section dimensions | 20×20mm2 | 20×20mm2 | 20×20mm2 | 22×22mm2 | |
| Tailstock | Tailstock sleeve diameter | 75mm | 75mm | 75mm | 75mm |
| Tailstock sleeve taper | MT5 | MT5 | MT5 | MT5 | |
| Tailstock sleeve travel | 160mm | 160mm | 160mm | 160mm | |
| Main motor | 4KW | 4/5.5KW | 4kw | 7.5KW | |
| Machine dimensions (L*W*H mm) | Overall dimensions for750mm | 2100x1150×1550mm | 2100x1150x1550mm | 2100×1150×1550mm | 2100×1150×1750mm |
| Overall dimensions for1000mm | 2350×1150×1550mm | 2350×1150×1750mm | |||
| Overall dimensions for1500mm | 2850×1150×1550mm | 2350×1150x1550mm | 2350x1150x1550mm | 2850×1150×1750mm | |
| Overall dimensions for2000mm | 3350×1150×1550mm | 3350×1150×1750mm | |||
| Weight (kg) | Weight | 1300kg~1800kg | 1500kg~1600kg | 1500kg~1600kg | 1800kg~2300kg |
Catalog
Frequently Asked Questions
A manual lathe can process various types of materials, including steel, cast iron, non - ferrous metals, and some non - metallic materials.
The machining accuracy of our manual lathe can reach grade IT7, which can meet the processing requirements of most precision parts.
As a professional manual lathe manufactor, Minnuo offers direct factory sales. We will provide the most suitable quotation according to customers' requirements to ensure the highest cost - performance ratio.
The pre - sales department of Minnuo Company is strong and responsive. As long as you have the drawings, for a single piece of equipment, we can recommend the best manual lathe within 10 minutes. For a production line composed of multiple pieces of equipment, we will provide a solution within 5 working days!
Minnuo Company has a complete set of basic production equipment. We can provide customization services for machine systems, spindle speeds, motor powers, and even the sheet metal of the outer shell.
Our company has several processing master machines of international first - tier brands, which ensures the processing accuracy of manual lathe machine components. At the same time, we also provide a quality inspection report when the machine leaves the factory.
We have inventory for conventional models of manual lathes and can deliver them quickly. For customized models, delivery can be made within 30 - 45 working days.
Our high precision manual lathe comes with a one - year warranty. During the warranty period, we provide free repair services. If the equipment malfunctions, customers can contact our after - sales team at any time. We provide 24 - hour technical support services and can quickly solve problems through remote video, phone calls, or on - site services.
Operating a manual lathe can be challenging for beginners, as it requires hands-on skills and precision. A skilled manual lathe operator must understand tooling, feeds, speeds, and material behavior. However, with proper training and practice, the learning curve becomes manageable.
