Φ20mm Max Machining Diameter · Φ10mm Max Drilling Capability · M8 Max Tapping Capability

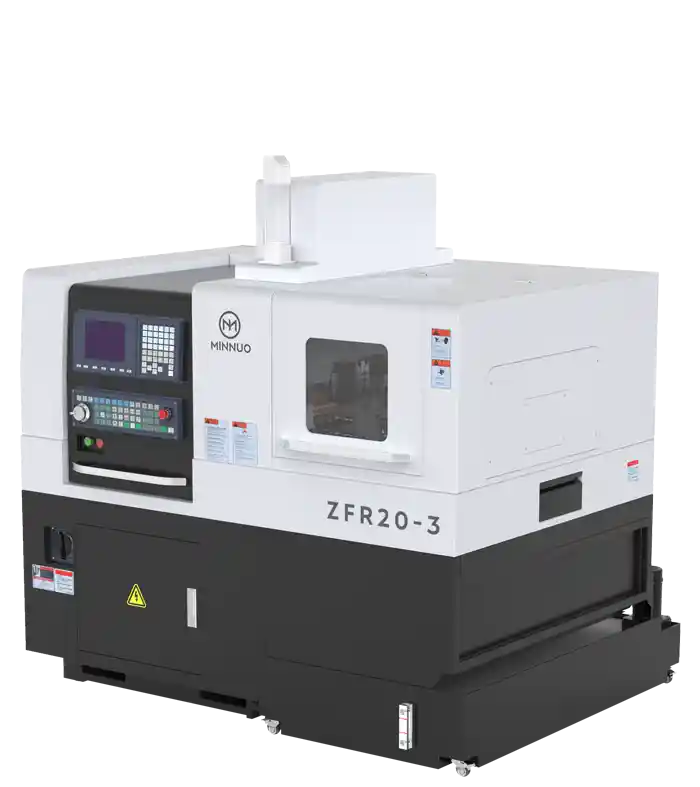

Designed for high-efficiency and precision in compact part production, the swiss type cnc lathe ZR20-3Ⅱ delivers stable three-axis machining with a single high-speed spindle. Its rigid structure, optimized layout, and intuitive controls make it a reliable solution for small-diameter precision components across various industries. Ideal for applications requiring drilling, tapping, and turning in a compact footprint.
ZFR Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Main and Back Spindle System: Equipped with imported NSK bearings and THK guide rails, the system supports six power-driven tools, enabling multiple operations in a single cycle. An oil-cooled motor ensures stable high-speed performance, minimizing thermal expansion and enhancing machining accuracy.
- ● High-Speed Front Tool Head: Capable of reaching up to 10,000 rpm, this head shortens machining cycles for small-diameter holes, significantly boosting productivity.
- ● Efficient Product Discharge System: The fixed discharge chute allows for seamless part removal within one second without obstructing the front tool head, maximizing machine uptime.
Get More Details →

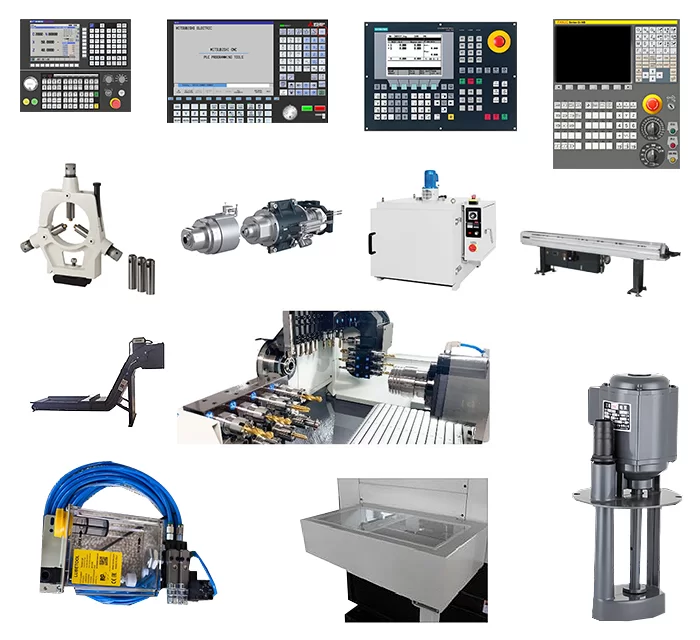

Recommended Configurations
- ● Automatic Tool Changer (ATC): Allows automatic tool changes, reducing downtime and improving operational efficiency in high-volume production environments.
- ● Hydraulic or Pneumatic Chucks: Provides reliable and secure clamping for various workpiece sizes, making it ideal for repetitive and precision machining tasks.
- ● Bar Feeder Interface: Enables continuous feeding of bar stock, minimizing setup time and allowing for extended, uninterrupted production cycles.
- ● Coolant and Filtration System: Ensures effective cooling and chip evacuation during high-speed operations, extending tool life and maintaining machining quality.
Get More Details →
Application Case
- ● Client: Precision Electronics Manufacturer – USA
- ● Workpiece: Miniature pins for connectors and medical device components
- ● Setup: ZFR Series Swiss-Type CNC Lathe with 6-tool live turret, high-speed front tool head, and automatic tool changer
- ● Results: • Precision: Achieved tolerances within ±0.002 mm for small, high-precision components • Efficiency: Reduced cycle times by 25% with high-speed tool head and simultaneous multi-tool operation • Productivity: Increased output by 30% through continuous automated part discharge and bar feeding • Client Feedback: “The ZFR Series lathe has allowed us to meet the demands of high-precision production while significantly improving our throughput.”
Get More Details →
Product Specifications
| Model | FR25-5 | FR20-6 | FR20-6S | FR20-5B | FR12-5 | ZR20-5 | MFR32-5 | DFR38-6 | DFR38-5 | ZR20-3 | FR25-9 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Max.machining diameter | φ20mm/φ25mm | φ12 mm | Φ20mm | Φ32mm | Φ38mm | φ38mm | φ20mm | φ25mm | |||
| Max.headstock strokeWith guide bush | 200mm | 135mm | 90mm | 190mm | 230mm | 230mm | 90mm | 260mm | |||
| Without guide bush | 1:2.5D | 1:2.5D | 1:2.5D | 1:2.5D | 1:2.5D | 1:2.5D | 1:2.5D | 1:2.5D | |||
| Max.headstock stroke Max.drilling capability | 10mm | φ8mm | φ10mm | φ7mm~φ13 mm | φ23mm | φ23mm | φ10 mm | φ10mm | |||
| Max.tapping capability | M8 | M6 | M8 | M6/M8/M12 | M16 | M16 | M8 | M8 | |||
| Max.drilling capability | φ8mm | φ5mm | φ8mm | φ7mm~φ10mm | φ13mm | φ13mm | φ8mm | φ8mm | |||
| Max.tapping capability | M6 | M4 | M6 | M6/M8 | M10 | M10 | M6 | M6 | |||
| Power-driven attachment Spindle speed | max.1.0000min | max.9.000min¹ | max.6000min¹ | max.6.000min¹ | max.6000min¹ | max.6000min⁴ | max.6000min | max.6000min | |||
| Power-driven attachment Driven motor | 1.0kw | 1.0/1.1kw | 1.0/1.1kw | 1.0/1.1kw | 0.9kw | 0.75KW | 1.7kw | 3.1KW | 3.1KW | 0.75KW | 1.0kw |
| Sub spindle tools Max.drilling capability | φ8mm | φ5mm | / | φ7mm | / | / | / | / | |||
| Sub spindle tools Max.tapping capability | M6 | M4 | / | M8 | / | / | / | / | |||
| Sub spindle tools Driven motor | 1.0kw | 1.1kw | 1.1kw | 1.0kw | 0.9kw | / | 1.7kw | / | / | / | / |
| Rapid feed rate | Z₁Y₁X₂Z2:32m/min | 24m/min¹ | 24m/min、max.5.000min¹ | / | / | / | / | ||||
| Main spindle speed | max.10000min¹ | max.10000min | max.10000min | max.10000min¹ | max.10000min¹ | max.10001min | max.6000min | max.6000min | max.6000min | max.10000min | max.10000min |
| Main spindle motor | 2.2kw(continuous)、3.7kw(10min./25%ED) | 2.2kw(continuous)、3.5kw(10min./26%ED) | 3.5kw(continuous)、6.0kw(10min./25%ED) | 11kw(continuous)、15kw(10min./25%ED) | 2.2kw(continuous)、3.5kw(10min./15%ED) | ||||||
| Sub spindle Max.travel distance | 265mm | 367mm | 367mm | 265mm | 265mm | / | 270mm | 30m/min | 30m/min | 24m/min | 32m/min |
| Machine weight | 3050kg | 3600kg | 3600kg | 3200kg | 1900kg | 2540kg | 3880kg | 4200kg | 4200kg | 1785kg | 3900kg |
