Φ520mm Max Turning Diameter · 2825mm Max Turning Length · 3000mm Max Workpiece Length
The MNF125E Series is a powerful flat-bed CNC lathe built for large and demanding turning applications. Designed with a one-piece cast bed and precision hard guideways, it ensures superior rigidity and vibration resistance. With a maximum turning diameter of 520mm and support for workpieces up to 3 meters long, it handles heavy-duty machining tasks with precision and stability.
MNF52E/125E Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Large Turning Capacity Handles turning diameters up to Φ520mm and lengths up to 2825mm—ideal for oversized parts and long shafts.

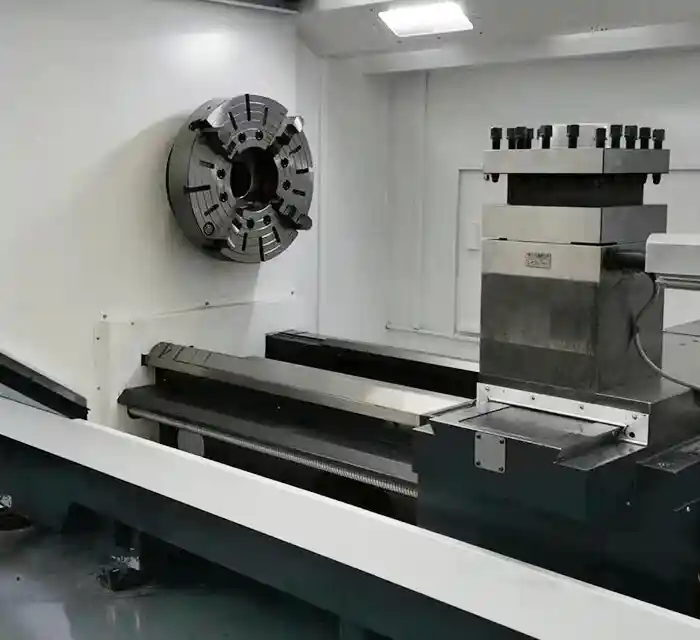

- ● Integrated One-Piece Bed Ensures excellent stability and resistance to thermal deformation during long machining cycles.
- ● Hardened Guideways Provides smooth, high-load linear movement, supporting consistent accuracy under heavy loads.
- ● High-Rigidity Structure Built for powerful cuts on inner bores, outer diameters, end surfaces, and both metric and inch threads.
- ● Multi-Function Capability Supports boring, drilling, and threading—delivering all-in-one machining for large parts.
Get More Details →

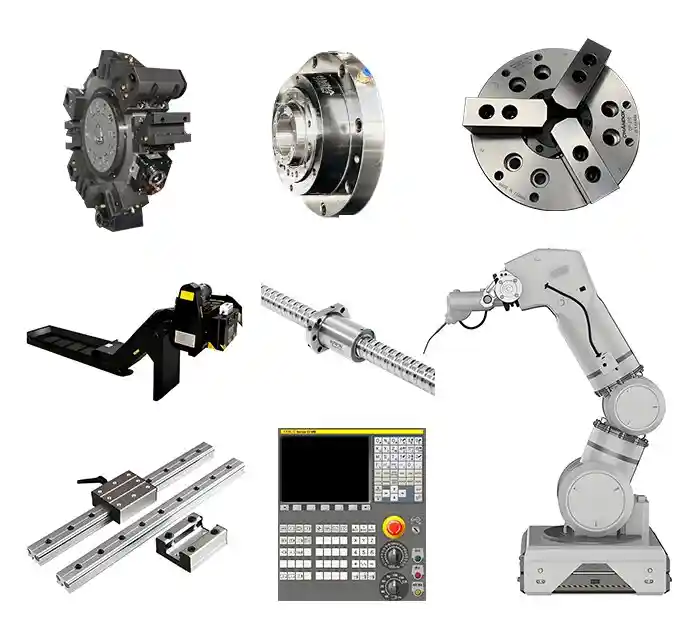

Recommended Configurations
- ● Spindle: High-precision spindle (SKF, NSK), center-out water spindle, hydraulic spindle
- ● Drive System: Servo motor, linear motor drive (high precision, high speed)
- ● Automation: Automatic tool changing system (ATC), automatic loading and unloading system, robotic arm integration
- ● Turret: Electric turret, servo turret, Y-axis powered turret, vertical electric tool holder
- ● Cooling System: High-pressure cooling system, built-in cooling system
- ● CNC Control System: High-performance CNC systems (FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi, etc.)
- ● Measurement and Monitoring: Tool breakage detection system, Renishaw OMP60 workpiece probe, Renishaw TS27R contact tool setter
- ● Other Configurations: Hydraulic/pneumatic chuck, protective cover design, chain-type chip conveyor, oil mist collector
Get More Details →
Application Case
- ● Client: Heavy Equipment Manufacturer – India
- ● Use Case: Turning and threading of long shafts for construction machinery
- ● Setup:MNF125E with hydraulic chuck, tailstock support, and spindle cooling unit
- ● Results: Dimensional tolerance: ±0.02 mm on 2.8m shaft, surface finish: Ra ≤ 3.0 μm, output increased by 40% over manual lathe processes
- ● Client Feedback: “MNF125E’s rigidity and size capacity allowed us to eliminate multiple setups—it’s the core of our large-parts line.”
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
Flat bed CNC lathes are suitable for steel, cast iron, copper, aluminum, and other metal materials, especially for high-precision and mass production.
The maximum machining diameter of common flat bed CNC lathes ranges from 300mm to 1000mm, depending on the model.
As a professional CNC lathe machine manufactor, Minnuo offers direct factory sales. We will provide the most suitable quotation according to customers' requirements to ensure the highest cost - performance ratio.
Minnuo's pre - sales team responds quickly. For a single flat bed lathe, we'll give equipment recommendations within 10 minutes upon getting the drawings. For a production line of multiple CNC machine lathes, a solution will be provided within 5 working days.
We have complete basic production equipment.We customize the CNC lathe machine components like machine systems, spindle speeds, motor power, and outer shell sheet metal.
Our top - brand processing machines ensure part machining accuracy in CNC lathe machines. We provide quality inspection reports for CNC machine lathes at factory - leaving.
We stock standard Flat bed CNC lathes for quick delivery. Custom flat bed CNC lathe are delivered in 30 - 45 working days.
Our CNC lathe machines have a one - year warranty with free repairs. Contact our 24/7 after - sales team for malfunctions. Issues are resolved via remote video, phone, or on - site service.
