φ650mm Swing · φ500mm Max Turning · 500mm Height · 15” Chuck
Specially designed for precise turning of shaft-type components such as wind turbine hubs, hydraulic pistons, and flywheels with excellent support for heavy cuts.

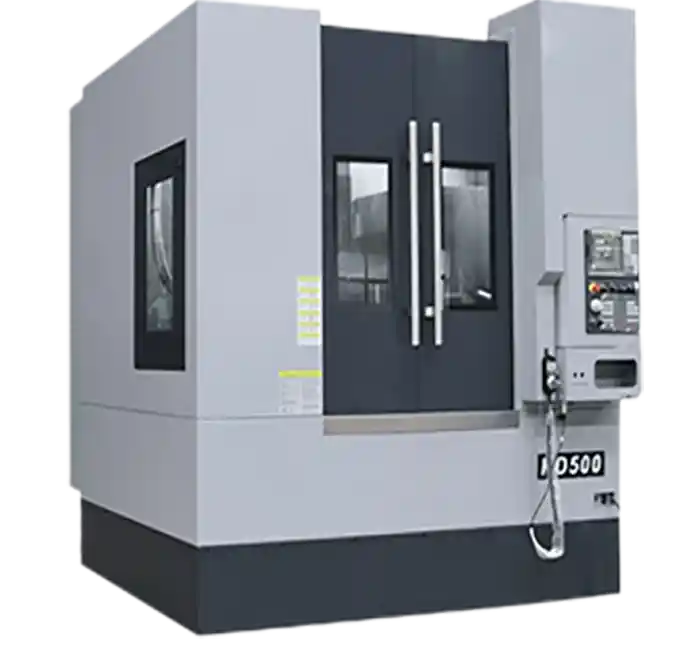

KD500/KD800Series

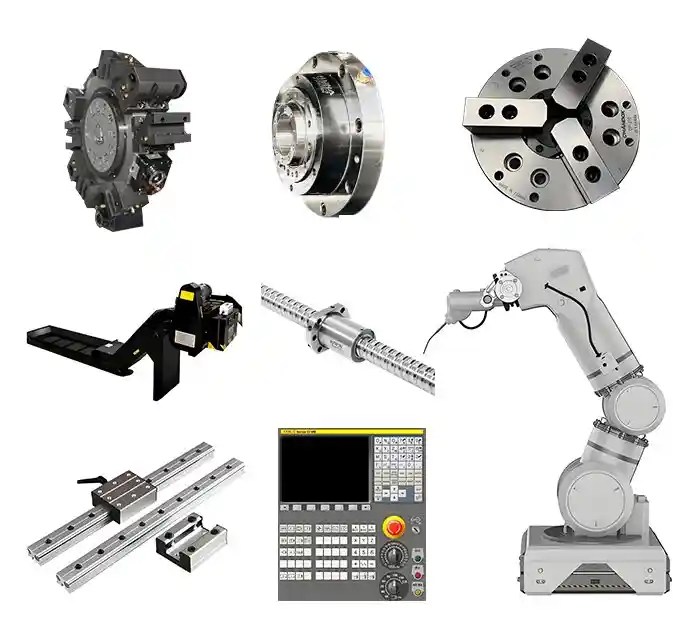

Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Double Moving Column Design: Ensures balanced load distribution for long, heavy parts.
- ● Box-Type Guideway Structure: Provides high rigidity and vibration resistance for heavy-duty machining.
- ● Large-Diameter Chuck (15”):Securely clamps large workpieces with minimal runout.
- ● High Torque Spindle Motor:Supports deep cuts and efficient material removal.
- ● Programmable Tailstock (Optional:: Offers additional axial support for long shaft-type parts.
Get More Details →
Recommended Configurations
- ● 4-Station Vertical Tool Turret: Allows quick multi-tool turning without manual setup
- ● Programmable Tailstock: Provides stable axial support for long or slender parts
- ● Enclosed Splash Guard: Improves coolant containment and operator safety Enables precise motion control with toolpath optimization
- ● LED Work Light: Enhances visibility for operators during manual adjustments or inspection
Get More Details →
Application Case
- ● Client:Heavy Machinery Manufacturer – South Korea
- ● Use Case:Machining of φ480mm × 450mm hydraulic cylinder shafts with high straightness requirements
- ● Setup:KD500 with programmable tailstock, vertical turret, and Siemens 828D CNC system
- ● Results: Straightness deviation: ≤ 0.015 mm Spindle load reduction: 18% due to dual-column support Surface finish: Ra ≤ 1.6 μm
- ● Client feedback:“The KD500’s stability and spindle strength deliver the cutting power and control we need for our toughest parts.”
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
Our vertical lathes are ideal for machining heavy, large-diameter, and short-length workpieces, such as flange parts, bearings, valves, and large gear blanks. They are particularly suited for industries like aerospace, wind energy, heavy machinery, and shipbuilding.
Minnuo vertical lathes achieve positioning accuracy within ±0.01mm and surface roughness up to Ra0.8μm, ensuring excellent precision even for complex contour turning operations.
Yes, our vertical lathes are designed for both heavy roughing and precision finishing. Equipped with high-rigidity structures, powerful spindles, and optional live tooling systems, they meet diverse turning requirements in one setup.
Absolutely! Minnuo Company has a strong and fast-responding pre-sales team. If you provide the parts drawings or specifications, we can recommend the appropriate vertical lathe model within 10 minutes for a single machine. For a full production line, we will offer a comprehensive solution within 5 working days.
Yes, Minnuo offers complete customization options for vertical lathes, including changes to spindle speed ranges, chuck sizes, motor power, tool turret types, and even special clamping systems to fit your specific production needs.
Our vertical lathes are manufactured using top-brand machining centers for parts processing, ensuring high-precision assembly. Each machine undergoes strict geometric accuracy tests and dynamic balancing tests. Quality inspection reports are provided with every shipment.
For standard vertical lathe models, we maintain stock and can arrange fast delivery within 7–10 days. Customized vertical lathes are usually delivered within 30–45 working days, depending on specific customer requirements.
All Minnuo vertical lathes come with a one-year warranty. We offer 24-hour technical support through video calls, phone, or on-site services. During the warranty period, any equipment faults are repaired free of charge. Our after-sales team ensures fast troubleshooting to keep your production line running smoothly.
