φ600mm Swing · φ400mm Max Turning · 500mm Height · 12” Chuck
Ideal for efficient machining of industrial flanges, valve bodies, and large bearings with high rigidity and stable cutting performance.

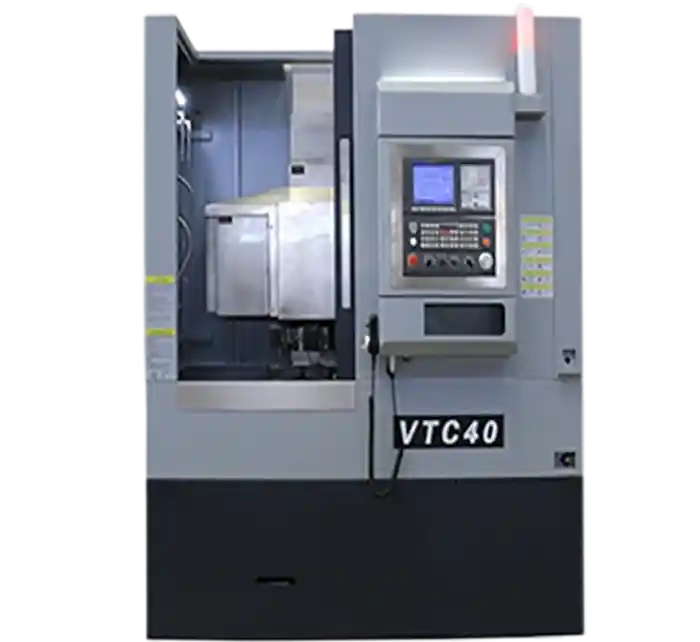

VTC40/VTC100A Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● High-Efficiency Hydraulic System Technology: Electro-hydraulic system offers precise control and energy efficiency, with a load sensing system that optimizes pressure and flow.
- ● Feed System: Servo motors drive the X and Z axes, with ball screws fixed at both ends for enhanced stability and wear-resistant hardened guides.
- ● Spindle Box: Combination of tapered roller and thrust ball bearings with adjustable preload ensures high precision and stability, while the synchronous belt drive minimizes noise and vibration.
Get More Details →

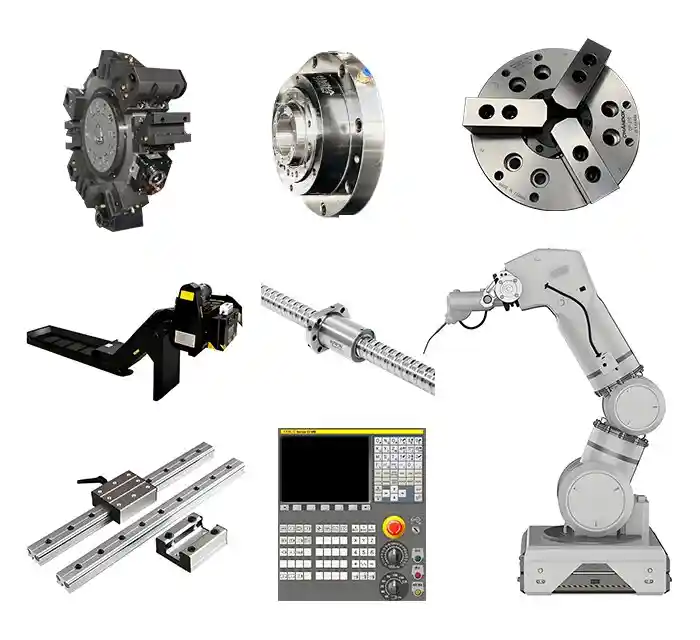

Recommended Configurations
- ● Spindle System: High-precision Spindle, High-torque Spindle, Center Water Outlet Spindle
- ● Feed System: High-precision Servo Motor, Stepper Motor, Linear Guides, Ball Screws
- ● Cooling System: Centrifugal Pump, Vibration Pump, Water-soluble Coolant, Oil-based Coolant
- ● CNC Control System: High-performance CNC System, High-precision CNC System, Multi-axis Linkage Control
- ● Tooling System: Turret Tooling System, Electric Turret, Tool Management System
- ● Measurement and Monitoring: Heidenhain Linear Scales, Tool Breakage Detection System, Renishaw OMP60 Workpiece Probe, Renishaw TS27R Tool Setting Probe
- ● Other Configurations: Chip Conveyor, Oil Mist Collector, Oil Cooler, Cooling Water Tank, Automated Robot Arm (Improves Production Efficiency, Suitable for High-volume Processing)
Get More Details →
Application Case
- ● Client: Heavy Machinery Manufacturer – USA

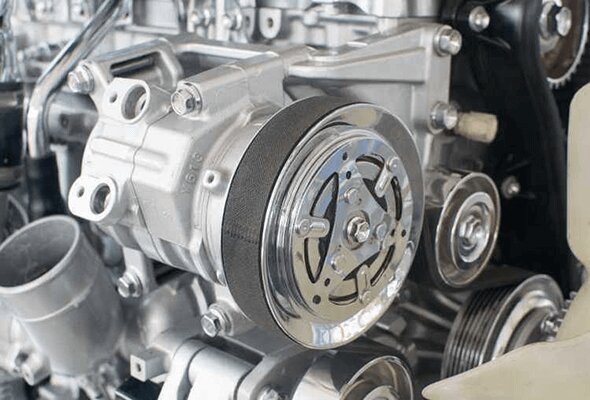

- ● Use Case: Machining of large engine parts and transmission housings

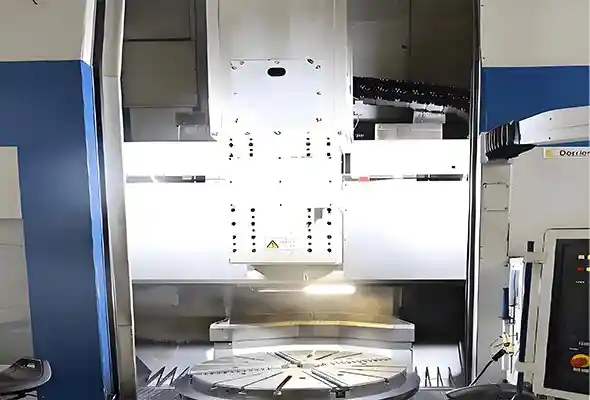

- ● Setup: Single-Column CNC Vertical Lathe with automatic tool changer and rotary table
- ● Results: • Precision: Achieved tight tolerances of ±0.005 mm on heavy-duty parts • Increased Productivity: Reduced machining time by 15% with fast tool changes and optimized cutting speeds • Improved Workpiece Quality: Enhanced surface finish and tool life due to efficient cooling and stable spindle performance
- ● Client Feedback: "The single-column CNC lathe has significantly improved both the efficiency and precision of our production process, especially for large components."
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
Our vertical lathes are ideal for machining heavy, large-diameter, and short-length workpieces, such as flange parts, bearings, valves, and large gear blanks. They are particularly suited for industries like aerospace, wind energy, heavy machinery, and shipbuilding.
Minnuo vertical lathe machines achieve positioning accuracy within ±0.01mm and surface roughness up to Ra0.8μm, ensuring excellent precision even for complex contour turning operations.
Yes, our vertical lathes are designed for both heavy roughing and precision finishing. Equipped with high-rigidity structures, powerful spindles, and optional live tooling systems, they meet diverse turning requirements in one setup.
Absolutely! Minnuo Company has a strong and fast-responding pre-sales team. If you provide the parts drawings or specifications, we can recommend the appropriate vertical lathe model within 10 minutes for a single machine. For a full production line, we will offer a comprehensive solution within 5 working days.
Yes, Minnuo offers complete customization options for vertical lathes, including changes to spindle speed ranges, chuck sizes, motor power, tool turret types, and even special clamping systems to fit your specific production needs.
Our cnc vertical lathes are manufactured using top-brand machining centers for parts processing, ensuring high-precision assembly. Each machine undergoes strict geometric accuracy tests and dynamic balancing tests. Quality inspection reports are provided with every shipment.
For standard vertical cnc lathe models, we maintain stock and can arrange fast delivery within 7–10 days. Customized vertical lathes are usually delivered within 30–45 working days, depending on specific customer requirements.
All Minnuo vertical lathes come with a one-year warranty. We offer 24-hour technical support through video calls, phone, or on-site services. During the warranty period, any equipment faults are repaired free of charge. Our after-sales team ensures fast troubleshooting to keep your production line running smoothly.
