43 Tons · Bending Length: 2000mm · Y-Axis Servo Power: 7.5 kW

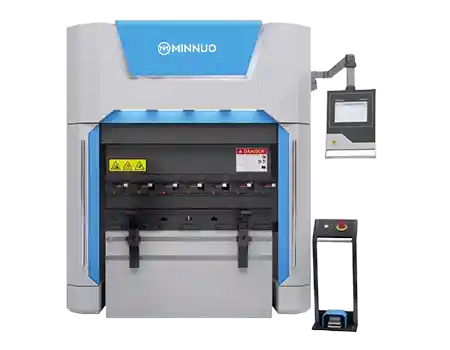

The EP-43T2000 is a mid-capacity electric servo press brake optimized for longer sheet metal components. With a bending capacity of 43 tons, a 2000mm working length, and a 7.5 kW Y-axis servo motor, it delivers smooth, quiet, and highly accurate performance for both batch and customized bending operations.
EP Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Electric Servo System – No Hydraulic Oil Environmentally friendly design reduces maintenance and eliminates hydraulic fluid risks.
- ● 7.5kW Servo Motor with Real-Time Position Control Ensures stable, controlled bending strokes, ideal for thin-to-medium sheet metal.
- ● 2000mm Bending Length with 43 Tons Force Designed for bending longer parts like panels, brackets, chassis, and structural sheets.
- ● Quiet, Clean, and High-Speed Operation Ideal for indoor, office-adjacent, or low-noise production environments.
- ● Integrated CNC Control System Compatible with Delem, ESA, or KND, allowing for multi-step program logic and back gauge integration.
Get More Details →
Recommended Configurations
- ● CNC Back Gauge (X + R axis): Supports accurate material positioning for multiple bend operations.
- ● Quick Die Change System: Speeds up changeovers for flexible production.
- ● Laser Bending Angle Correction: Provides automatic in-cycle angle adjustment.
- ● Pneumatic Front Support Arms: Keeps long parts stable, reducing operator strain.
- ● Foot Pedal + Emergency Stop System: Improves operator safety and ease of use.
Get More Details →
Application Case
- ● Client: Smart cabinet & control panel supplier (Eastern Europe)
- ● Workpiece: 1.2–2.0mm galvanized steel panels up to 1800mm length
- ● Setup: EP-43T2000 + ESA S660 controller + dual-axis CNC back gauge
- ● Results: Bending angle deviation: ≤ ±0.3° Material utilization improved by 15% Energy savings: ~55% vs traditional hydraulic press brake Noise reduced to < 70 dB Increased productivity by 30% through automatic angle correction
Get More Details →
Product Specifications
| Specifications | Unit | EP-35T1250 | EP-43T2000 | EP-65T2500 |
|---|---|---|---|---|
| Bending Capacity | T | 35 | 43 | 65 |
| Y-axis Servo Motor | KW | 6.5 | 7.5 | 15 |
| Bending Length | mm | 1250 | 2000 | 2500 |
| Column Pitch | mm | 1130 | 1400 | 2100 |
| Throat Depth | mm | 410 | 410 | 410 |
| Daylight | mm | 470 | 470 | 470 |
| Slider Inclination | mm | ±30 | ±30 | ±30 |
| Y Rapid Speed | mm/s | 135 | 180 | 160 |
| Y Working Speed | mm/s | 50 | 50 | 50 |
| Y Retrack Speed | mm/s | 135 | 180 | 165 |
| X Rapid Speed | mm/s | 500 | 500 | 500 |
| R Rapid Speed | mm/s | 200 | 200 | 200 |
| Z1/Z2 Rapid Speed | mm/s | 400 | 400 | 400 |
| Y-axis | mm | ±0.01 | ±0.01 | ±0.01 |
| X-axis | mm | ±0.02 | ±0.02 | ±0.02 |
| R-axis | mm | ±0.1 | ±0.1 | ±0.1 |
| Z1/Z2-axis | mm | ±0.1 | ±0.1 | ±0.1 |
| Y Stroke | mm | 200 | 200 | 200 |
| X Stroke | mm | 500 | 500 | 500 |
| R Stroke | mm | 140 | 140 | 140 |
| Z1/Z2 Stroke | mm | 400 | 600 | 900 |
| Controller System | SL100-P4/6 | SL100-P4/6 | SL100-P4/6 | |
| Installed capacity | kVA | 15 | 15 | 25 |
| Dimension | mm | 1475x1358x2439 | 2020x1388x2439 | 2520x1700x2664 |
| Weight | kg | 3000 | 3300 | 5100 |
Catalog
Frequently Asked Questions
Efficient series CNC press brake machines are designed for mid-to-high-end customer needs. They offer higher repeat positioning accuracy, faster bending speeds, and enhanced automation integration. These machines are ideal for high-precision and high-efficiency mass production, and are especially suitable for integration with robotic production lines.
Operating a brake press machine is not complicated. We provide operation manuals, instructional videos, and on-site training services. The CNC press brake machine is equipped with a graphical touchscreen interface that supports one-click angle adjustment and automatic calibration, making it easy and safe for beginners to learn and operate.
Absolutely! Minnuo has a strong and responsive pre-sales technical team. As long as you provide part drawings, whether for a single press brake machine or a complete automated bending line, we can usually provide a recommendation within 10 minutes. A complete multi-machine configuration can be delivered within 5 working days.
We have full mechanical processing and electrical control development capabilities. Based on your product material, thickness, bending angle, and precision requirements, we can customize the CNC press brake machine in terms of axis configuration, tonnage, control system, and tooling structure to meet specific process and production line needs.
We use hydraulic systems and servo motors from top international brands, combined with high-strength welded frames and self-developed control systems, to ensure that the press brake machine runs stably over long periods without deformation. Each machine comes with a complete quality inspection report and is ready for production upon delivery.
For standard models, we have inventory available for fast shipment. For customized press brake machines, the lead time is typically 30–45 working days, depending on the configuration complexity and production schedule.
Our press brake machines come with a one-year warranty. During the warranty period, any failure will be covered with free repair support. Minnuo provides 24-hour remote video support, telephone technical guidance, and on-site service if necessary to ensure quick production recovery.

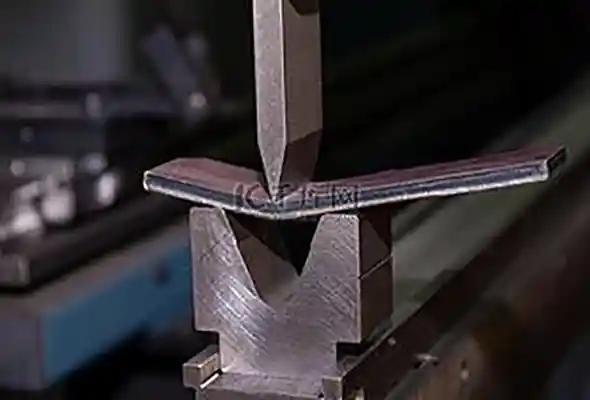

A press brake machine is a device used to accurately bend sheet metal into specific angles. It is widely used in sheet metal processing, cabinet manufacturing, automotive parts, and other industries. It achieves high-precision and high-efficiency bending through the coordination of upper and lower dies and numerical control systems.
