1300 mm X-Axis Travel • Vertical & Horizontal Dual-Spindle Design

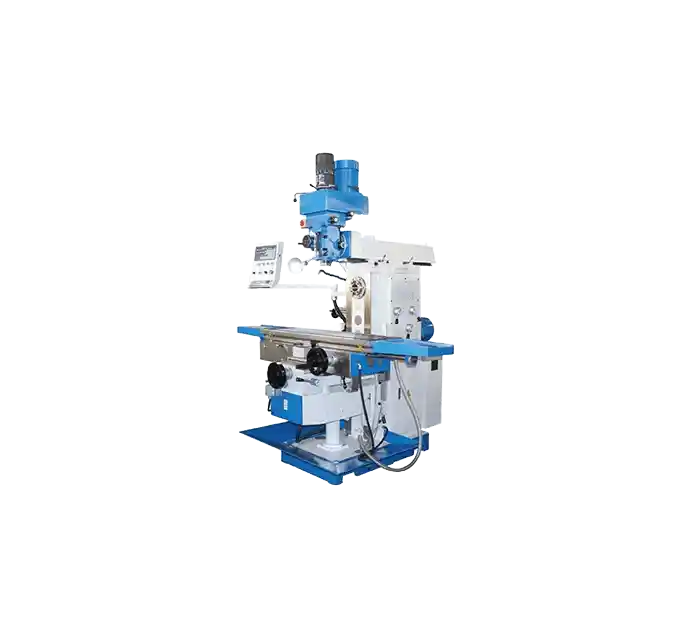

The XL6336 Series is a high-performance turret milling machine with dual vertical-horizontal capability, 3-axis servo drive, and a durable dual-spindle setup. Featuring a Taiwan-made turret head and optional CNC upgrade, it offers precision, versatility, and expandability for diverse machining needs.
XL6336 Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Extra-Long 1600mm Table: Accommodates large workpieces or multiple parts for high-efficiency machining.
- ● Dual-Spindle Design (Vertical & Horizontal): Supports full-face milling, side cutting, and angled drilling with quick spindle switching.
- ● b>Heavy-Duty Structure with Fine Feed Control: Offers smooth motion under load and stable cutting for precise material removal.
- ● Swivel Turret Vertical Head: Enables angled or compound surface machining without custom fixtures.

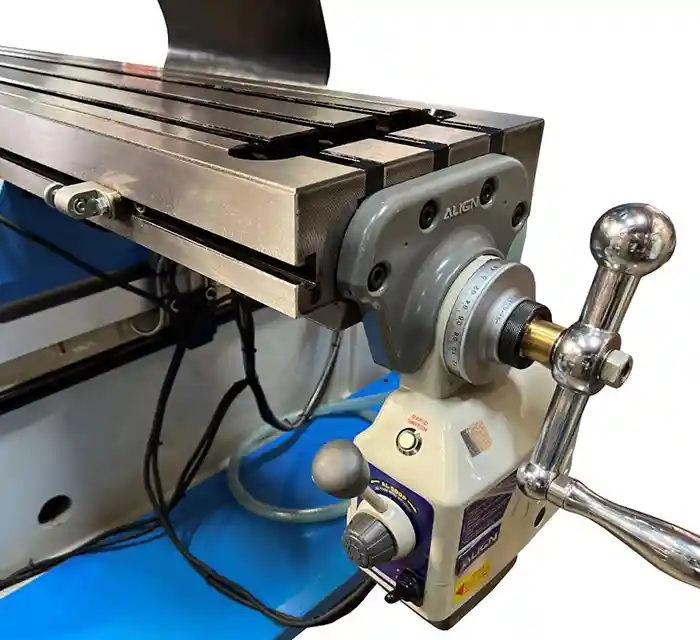

- ● Variable Mechanical Feeds on All Axes: Adjust feed rates for both roughing and precision finishing.
Get More Details →
Recommended Configurations
- ● Spindle System: Adjustable speed spindle
- ● Worktable: T-slot worktable, ±45° rotating worktable, coordinate system，Rotary table
- ● Feed System: Manual feed system, electric feed adjustment
- ● Cooling and Lubrication System: Coolant spray device，Automatic centralized oil lubrication
- ● Clamping System: Standard fixtures, quick-change fixture device
- ● Clamping System: Standard fixtures, quick-change fixture device
- ● Other (Safety Protection System): 45° high-speed rotating tool turret, digital readout, dividing head, protective covers, emergency stop button and safety lock, LED work lamp，cutting disc
Get More Details →
Application Case
- ● Client: Custom Machine Builder (Vietnam).
- ● Workpiece: 1500mm steel base plate with vertical and horizontal slots.
- ● Setup: XL6336CL + DRO + horizontal arbor + coolant tray.
- ● Results: Cut setup time by 40% using dual spindle switching, Achieved surface roughness ≤ Ra 1.6 μm, Processed all sides without repositioning, ensuring high geometric consistency, Operator praised torque stability during long-table feed travel.
Get More Details →
Product Specifications
| Specification | Unit | XL6336C | XL6336CL |
|---|---|---|---|
| Table size | mm | 1325×360 | 1600×360 |
| Table travel(X/Y/Z) | mm | 1100/320/450 | 1300/320/450 |
| Table feed.(X/Y/Z) | mm/min | 30-750/20-500/15-375 | |
| Table rapid speed(X/Y/Z) | mm/min | 1200/800/600 | |
| Spindle taper | 7:24 IS050(H)7:24 IS040(V) | ||
| Stroke of spindle quill | mm | 5HP:127(V)or7.5HP:140(V) | |
| Distance between spindle nose and table surface | mm | 180-630 | |
| Distance between horizontal spindle center line and table surface | mm | 0-450 | |
| Spindle speed range | r.p.m | 12steps 60-1800(H)16 steps 65-4660(V) | |
| T-slots(NO./width/pitch) | mm | 3/18/80 | |
| Arm travel | mm | 550 | |
| Main motor power | Kw | 5.5(H)3.7 or 5.5(V) | |
| Torque of X/Y/Z axis AC servo motor | N.m | 15 | |
| Overall size | mm | 2245×2100×2500 | 2520×2100×2500 |
| Net weight | kg | 2780 | 2850 |
Catalog
Frequently Asked Questions
A turret milling machine is a type of milling machine with an adjustable turret head structure. The spindle can rotate at multiple angles, making it suitable for machining multiple surfaces or complex angles. Compared with a conventional vertical milling machine, it offers greater flexibility and versatility, making it ideal for repair work, mold making, and small-batch production with varied part designs.
Common turret milling machine parts include the spindle head, worktable, saddle, base, column, handwheels, and electrical control system. Maintenance is not complicated—you only need to regularly clean the guideways, check the lubrication system, and inspect the electrical circuits. A complete maintenance manual and operational training will also be provided.
Absolutely! Minnuo has a strong and responsive pre-sales team. As long as you provide part drawings, whether for a single turret milling machine or a complete production line configuration, we can provide a recommendation within 10 minutes. For multi-machine systems, a full configuration plan can be delivered within 5 working days.
We have full machining and manufacturing capabilities. You can customize the turret milling machine in terms of travel range, table size, spindle specifications, motor power, control system, and external sheet metal. Custom structural forms such as ram turret milling machines or vertical turret milling machines are also supported.
We are equipped with high-end machining centers from top international brands. All key components of the turret milling machine are manufactured with high precision in our own machining facility. Each machine undergoes strict debugging and testing before delivery, and is issued with a quality inspection report to ensure it is ready to use upon arrival.
For standard models, we have inventory available and can usually ship within a few days. For customized turret milling machines, the delivery time is generally 30–45 working days, depending on the configuration and production schedule.
The equipment comes with a one-year warranty. During the warranty period, you can receive free repair support in case of any failure. We offer remote video guidance, phone-based technical support, and on-site service when necessary to help you resume production quickly and minimize downtime.
The turret milling machine price varies depending on the configuration, size, whether it includes a CNC system, and whether it is customized. We will provide a formal quotation based on your specific requirements, including tax and shipping options, so you have a clear understanding of the full cost and can purchase with confidence.
