Table Size: 1325×360mm · Travel (X/Y/Z): 1100/320/450mm · Feed Rate: 30–750 mm/min

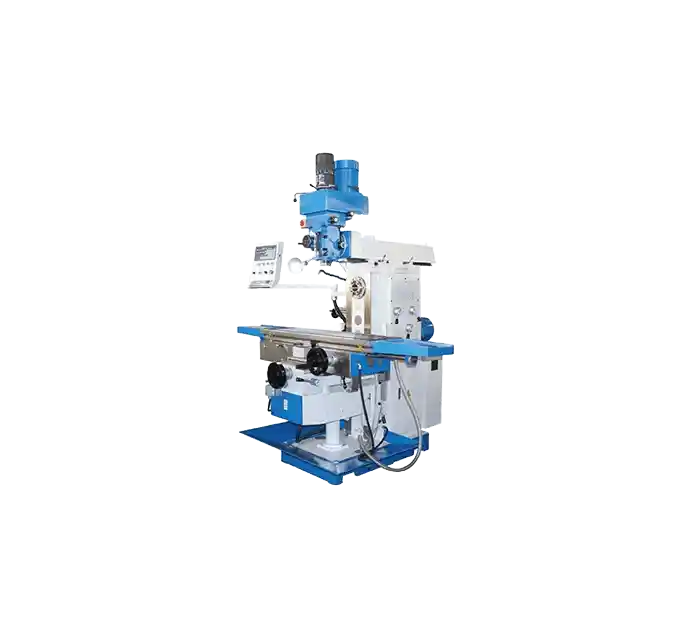

The XL6336C is a versatile turret milling machine offering both vertical and horizontal machining capabilities in one platform. With a large 1325×360mm table, extended X-axis travel of 1100mm, and full-range feed control, this machine is built for complex workpiece milling, drilling, boring, and tapping from multiple angles.
XL6336 Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Universal Milling Head (360° Swivel in Vertical Plane) Enables angular milling without repositioning the workpiece—ideal for bevels, inclined holes, and side-face slots.
- ● Generous Travel and Worktable X/Y/Z stroke of 1000×320×500mm allows machining of large workpieces in a single clamping.
- ● Integrated Horizontal and Vertical Spindle Supports end mills, face mills, side cutters, and slotting tools across two cutting planes.
- ● Rigid Box-Type Column and Saddle Provides structural integrity and absorbs vibration during heavy cuts.

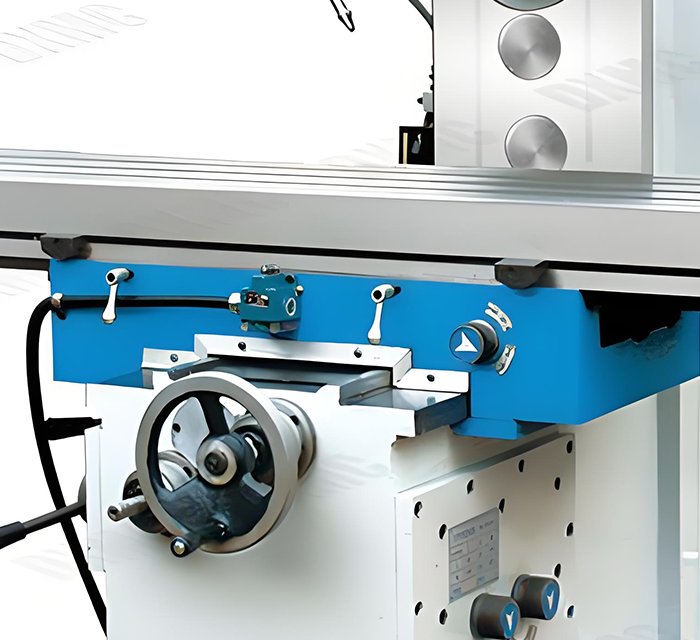

- ● Precision Hardened and Ground Table Ways Ensures smooth table motion and long service life even under high loads.
Get More Details →
Recommended Configurations
- ● Spindle System: Adjustable speed spindle
- ● Worktable: T-slot worktable, ±45° rotating worktable, coordinate system，Rotary table
- ● Feed System: Manual feed system, electric feed adjustment
- ● Cooling and Lubrication System: Coolant spray device，Automatic centralized oil lubrication
- ● Clamping System: Standard fixtures, quick-change fixture device
- ● Precision Guideways: Rolling guideways or sliding guideways
- ● Other (Safety Protection System): 45° high-speed rotating tool turret, digital readout, dividing head, protective covers, emergency stop button and safety lock, LED work lamp，cutting disc
Get More Details →
Application Case
- ● Client: Valve Component Manufacturer – Indonesia
- ● Use Case: Machining stainless steel valve bodies with tapped side ports and flanges
- ● Setup: XL6336C with DRO, horizontal arbor support, and rotary table
- ● Results: 3 face and 2 side operations completed in one clamping, angular port tapped using vertical swivel head, total machining time reduced by 38% vs separate milling machines, surface roughness Ra 1.6 μm achieved on key flanges
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
A turret milling machine is a type of milling machine with an adjustable turret head structure. The spindle can rotate at multiple angles, making it suitable for machining multiple surfaces or complex angles. Compared with a conventional vertical milling machine, it offers greater flexibility and versatility, making it ideal for repair work, mold making, and small-batch production with varied part designs.
Common turret milling machine parts include the spindle head, worktable, saddle, base, column, handwheels, and electrical control system. Maintenance is not complicated—you only need to regularly clean the guideways, check the lubrication system, and inspect the electrical circuits. A complete maintenance manual and operational training will also be provided.
Absolutely! Minnuo has a strong and responsive pre-sales team. As long as you provide part drawings, whether for a single turret milling machine or a complete production line configuration, we can provide a recommendation within 10 minutes. For multi-machine systems, a full configuration plan can be delivered within 5 working days.
We have full machining and manufacturing capabilities. You can customize the turret milling machine in terms of travel range, table size, spindle specifications, motor power, control system, and external sheet metal. Custom structural forms such as ram turret milling machines or vertical turret milling machines are also supported.
We are equipped with high-end machining centers from top international brands. All key components of the turret milling machine are manufactured with high precision in our own machining facility. Each machine undergoes strict debugging and testing before delivery, and is issued with a quality inspection report to ensure it is ready to use upon arrival.
For standard models, we have inventory available and can usually ship within a few days. For customized turret milling machines, the delivery time is generally 30–45 working days, depending on the configuration and production schedule.
The equipment comes with a one-year warranty. During the warranty period, you can receive free repair support in case of any failure. We offer remote video guidance, phone-based technical support, and on-site service when necessary to help you resume production quickly and minimize downtime.
The turret milling machine price varies depending on the configuration, size, whether it includes a CNC system, and whether it is customized. We will provide a formal quotation based on your specific requirements, including tax and shipping options, so you have a clear understanding of the full cost and can purchase with confidence.
