Travel (X/Y/Z): 1000 / 320 / 500mm · T-Slots: 3×18mm×80mm spacing

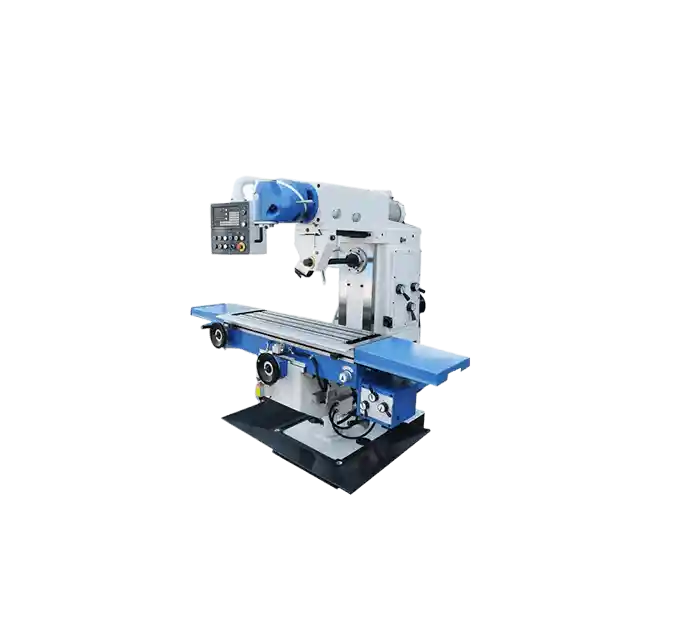

The X6432 is a universal rotary head milling machine with compact dimensions and multi-functionality, capable of handling both vertical and horizontal milling tasks. Its swiveling head design allows users to perform angled operations such as bevels, chamfers, and inclined pockets without needing to reposition the part.

X Series

Regular maintenance

Spare parts supply

On-site installation service

Customized design

Key Features

● Universal Milling Head with ±360° Swivel Provides precise angular milling without changing the fixture setup.

● Dual-Function Milling Capabilities Supports both vertical and horizontal milling operations with quick head rotation.

● Hardened Table Ways and Stable Feed Mechanism Offers high durability and smooth movement under load.

● Compact Design with Strong Cutting Ability Allows for space-efficient installation while still managing larger workpieces.

● Wide Travel Range (X/Y/Z: 1000 / 320 / 500mm) Supports complex part geometries and multi-face machining in one clamp.

Get More Details →

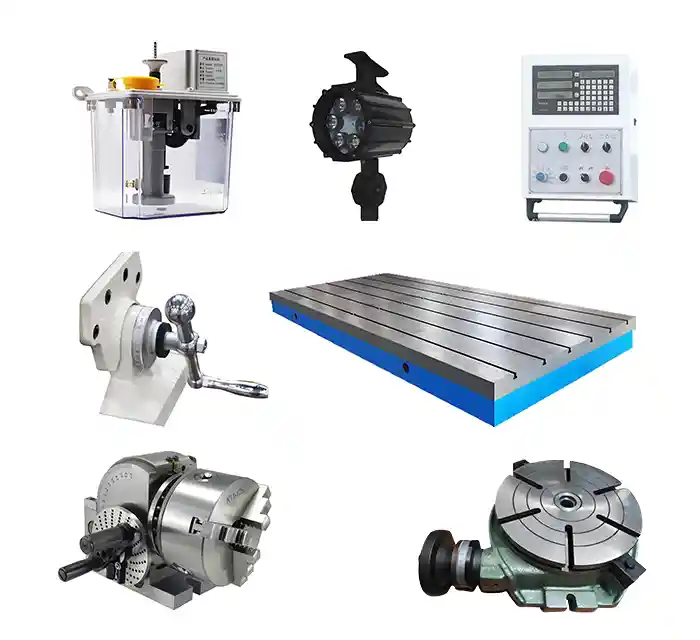

Recommended Configurations

● Spindle System: Adjustable speed spindle

● Worktable: T-slot worktable, ±45° rotating worktable, coordinate system，Rotary table

● Feed System: Manual feed system, electric feed adjustment

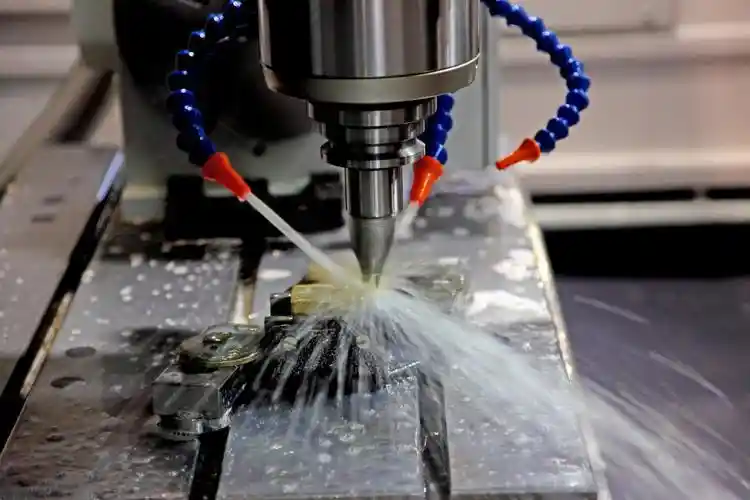

● Cooling and Lubrication System: Coolant spray device，Automatic centralized oil lubrication

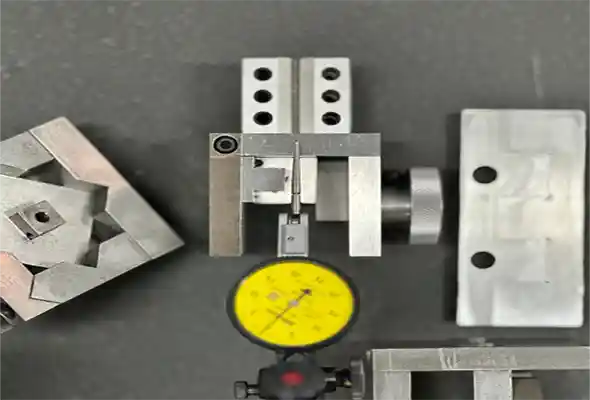

● Clamping System: Standard fixtures, quick-change fixture device

● Precision Guideways: Rolling guideways or sliding guideways

● Other (Safety Protection System): 45° high-speed rotating tool turret, digital readout, dividing head, protective covers, emergency stop button and safety lock, LED work lamp，cutting disc

Get More Details →

Application Case

● Client: Educational Tooling Lab (Malaysia)

● Application: Training students in inclined face machining and horizontal slotting

● Setup: X6432 with DRO, 120° rotary head configuration, and rotary table

● Results:Students able to complete angular cuts within ±0.05mm accuracy,Rapid switching between vertical and horizontal spindles in one session,

Get More Details →

Specifications	Unit	X6436	X6432
Table size	mm	1370x360	1370x320
Table size	mm	1500x360	1500x320
Table stroke	mm	1000x320x500	1000x300x500
T-type slot numbers/width/space	mm	3/18/80	3/14/60
Distance from spindle axis to table surface	mm	0-400	0-400
Spindle taper		ISO50	ISO40
Spindle speed range（steps）	rpm	48-1660(V)	28-1660(V)
Spindle speed range（steps）	rpm	60-1800(H)	40-1300(H)
Milling head swivel range	°	360	360
Spindle motor power	KW	4	3
Overall dimensions	mm	2070x2025x2020	2020x1710x1994
Machine weight	kg	2480	2100

MN CATALOG.pdf

Frequently Asked Questions

1、What is the difference between a universal vertical milling machine and a horizontal universal milling machine?

A universal vertical milling machine has a vertically oriented spindle, making it suitable for flat surface machining. A horizontal universal milling machine features a horizontally oriented spindle, ideal for side milling or long workpieces. Some high-end models can switch between vertical and horizontal modes, enhancing versatility.

2、What is the difference between a universal milling machine and a vertical milling machine?

Compared to a standard vertical milling machine, a universal milling machine typically features a multi-angle adjustable spindle head, a rotating worktable, and greater workpiece adaptability. It supports both vertical and horizontal multi-surface machining, making it ideal for complex structures and small-batch, variable-part production scenarios—such as the Huron universal milling machine.

3、I only have part drawings. Can you recommend a suitable universal milling machine?

Absolutely! Minnuo has a strong and responsive pre-sales team. As long as you provide part drawings, whether it's for a single universal milling machine or a production line with multiple machines, we can recommend a solution within 10 minutes. For full-line projects, a complete proposal will be delivered within 5 working days.

4、What customization options are available for universal milling machines?

We have full production capabilities and can customize the universal milling machine based on your specific needs, including travel range, spindle type, motor power, control system brand, and tool change method. Whether it's a traditional manual model or a CNC universal milling machine, non-standard customization is supported to meet a variety of machining scenarios.

5、How is the quality of a universal milling machine ensured?

We are equipped with high-end machining centers from top international brands, ensuring the machining precision of all core components of our universal milling machines. Each unit undergoes full machine testing before delivery and includes a quality inspection report to ensure it meets delivery standards.

6、What is the typical delivery time for a universal milling machine?

For standard models, we maintain stock for fast delivery. If you require a customized universal milling machine or a horizontal universal milling machine, the delivery time is typically 30–45 working days, depending on the configuration.

7、What does your after-sales service include?

The equipment you purchase comes with a one-year warranty. During the warranty period, you are entitled to free repair services in the event of equipment failure. We also provide remote video guidance, phone-based technical support, and on-site service when needed to help you resume production quickly and minimize downtime.

8、 What is the general price range for a universal milling machine?

The universal milling machine price varies depending on the model, configuration (such as whether it's a CNC bed type universal milling machine), travel specifications, and whether customization is required. Minnuo will provide a detailed and transparent formal quotation based on your specific needs, with optional inclusion of taxes and shipping.
